KG Series

37 models in this series

Kaishan KG430 DTH Drilling Rig

Model: KG430

Kaishan KG520 DTH Drilling Rig

Model: KG520

Kaishan KG590 Open-Pit DTH Drilling Rig

Model: KG590

Kaishan KG590H Open-Pit DTH Drilling Rig

Model: KG590H

Kaishan KG720 DTH Drilling Rig

Model: KG720

Kaishan KG420B DTH Drilling Rig

Model: KG420B

Kaishan KG550 Open-Pit DTH Drilling Rig

Model: KG550

Kaishan KG940A DTH Drilling Rig

Model: KG940A

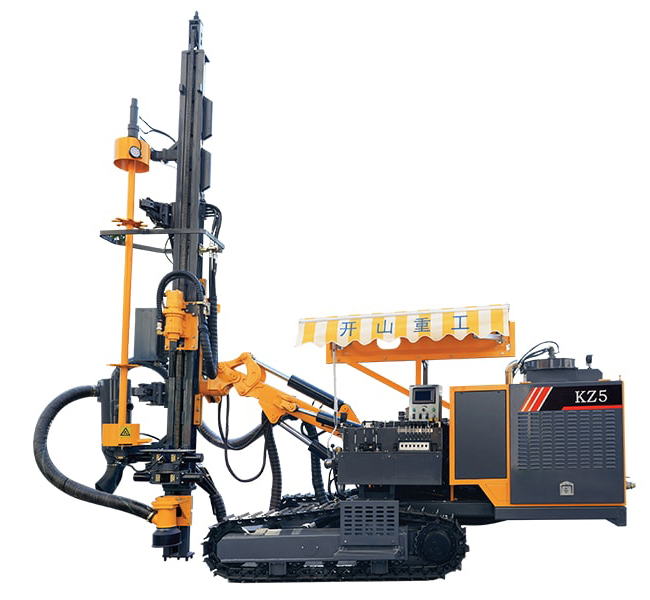

Kaishan KZ5 Open-Pit DTH Drilling Rig

Model: KZ5

Kaishan KZ9 Open-Pit DTH Drilling Rig

Model: KZ9

Kaishan KG920A DTH Drilling Rig

Model: KG920A

Kaishan KG920B DTH Drilling Rig

Model: KG920B

Kaishan KG920D DTH Drilling Rig

Model: KG920D

Kaishan KGH4 DTH Drilling Rig

Model: KGH4

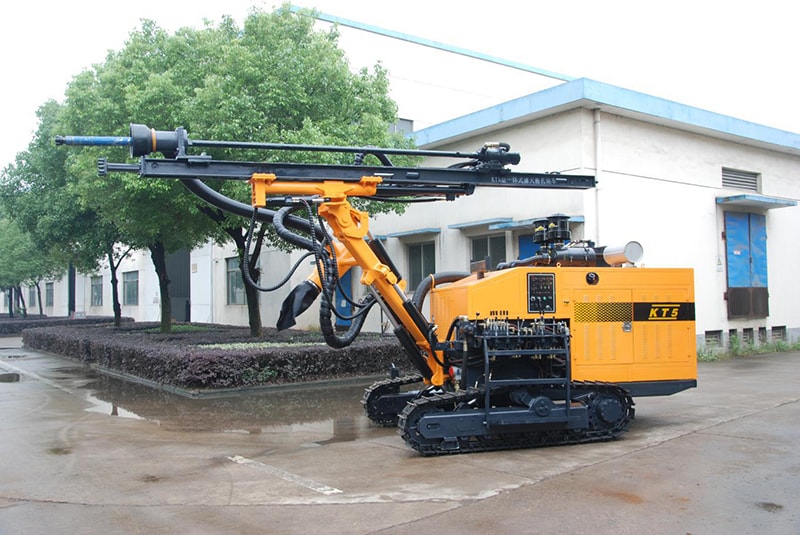

Kaishan KT5C Integrated Surface DTH Drilling Rig

Model: KT5C

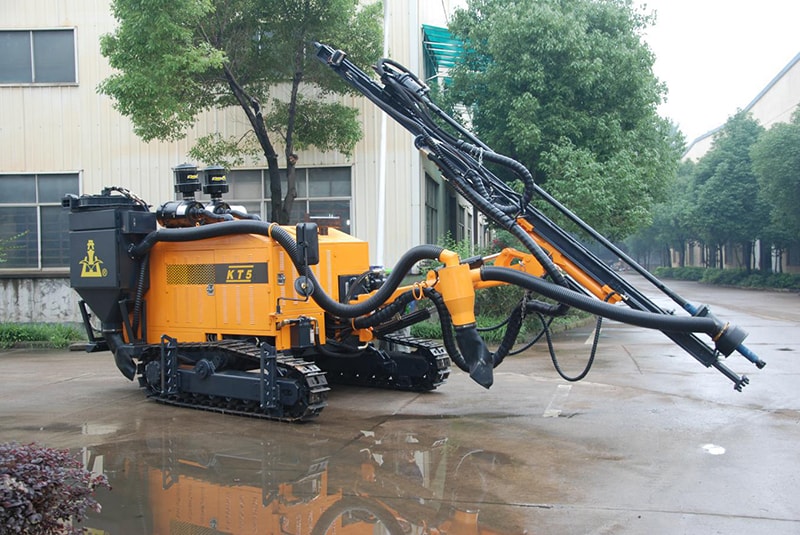

Kaishan KT5H Integrated Surface DTH Drilling Rig

Model: KT5H

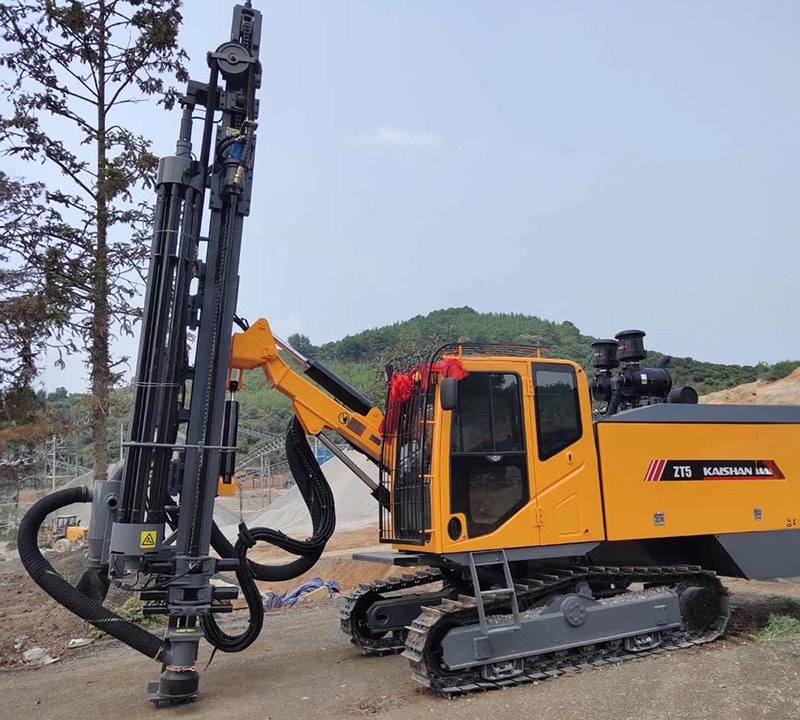

Kaishan ZT5 DTH Drilling Rig

Model: ZT5

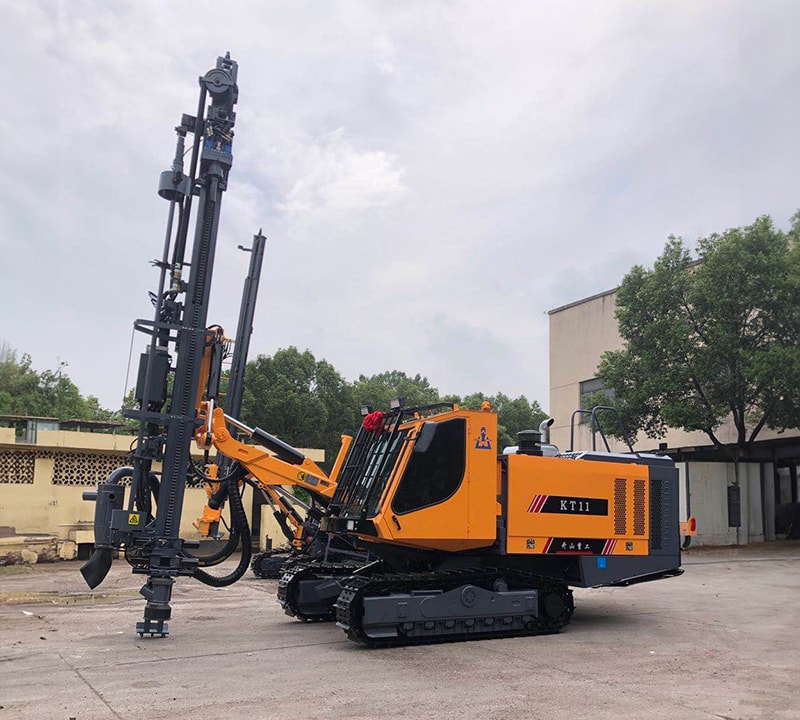

Kaishan KT11 Open-Pit DTH Drilling Rig

Model: KT11

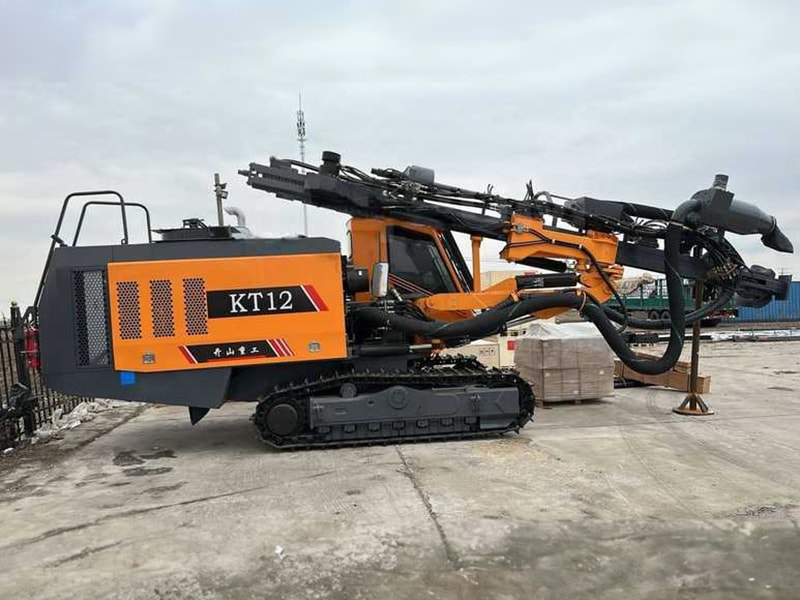

Kaishan KT12 Open-Pit DTH Drilling Rig

Model: KT12

Kaishan KT9D Open-Pit DTH Drilling Rig

Model: KT9D

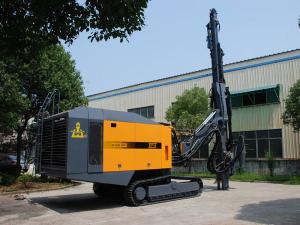

Kaishan KT15 Open-Pit Drilling Rig

Model: KT15

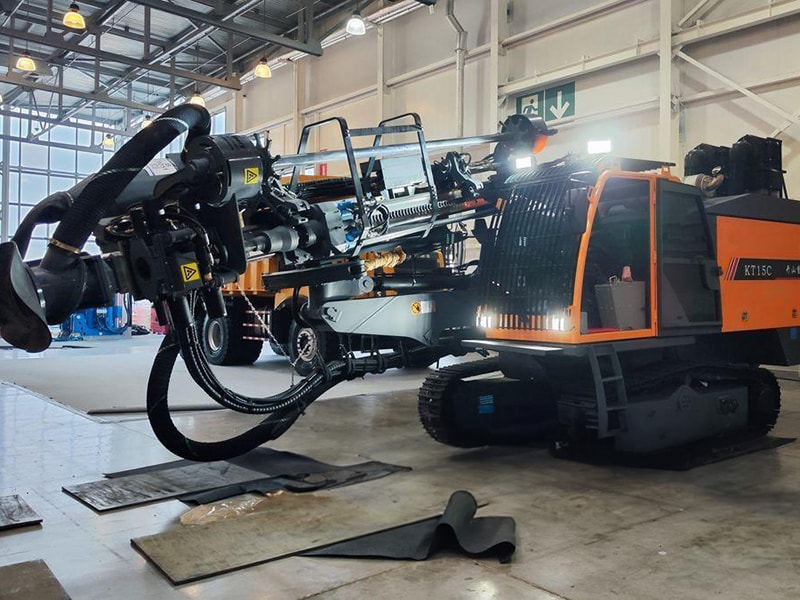

Kaishan KT15C DTH Drilling Rig

Model: KT15C

Kaishan KT25 Open-Pit DTH Drilling Rig

Model: KT25

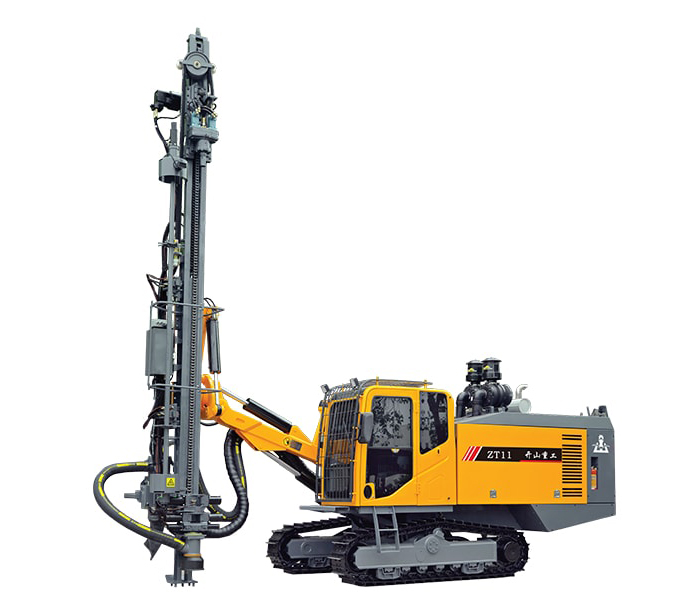

Kaishan ZT11 Open-Pit DTH Drilling Rig

Model: ZT11

Kaishan ZT12 Open-Pit DTH Drilling Rig

Model: ZT12

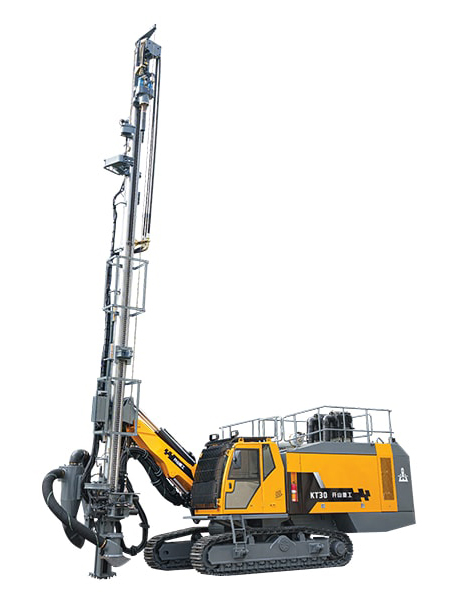

Kaishan KT30 Open-Pit DTH Drilling Rig

Model: KT30

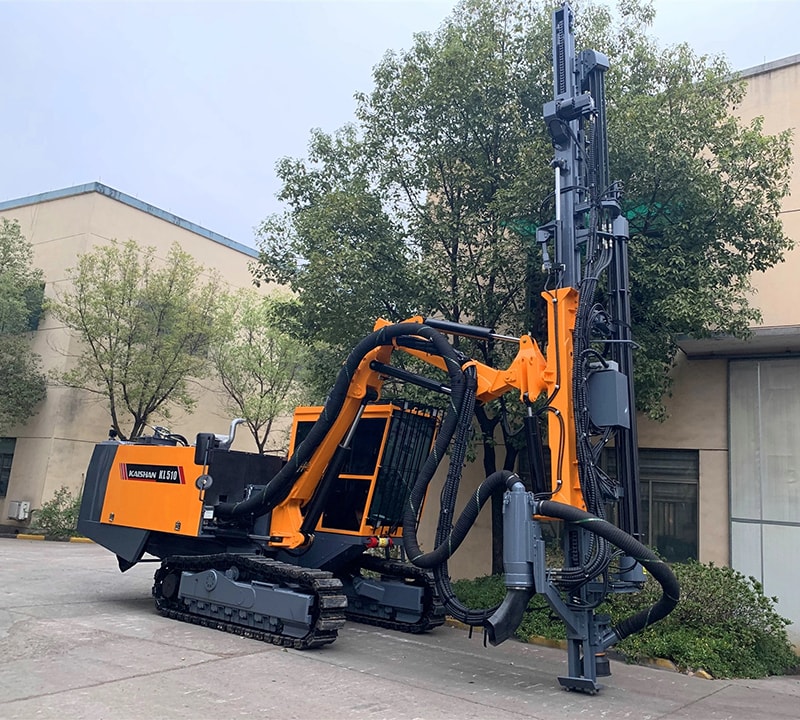

Kaishan KL510 Open-Pit DTH Drilling Rig

Model: KL510

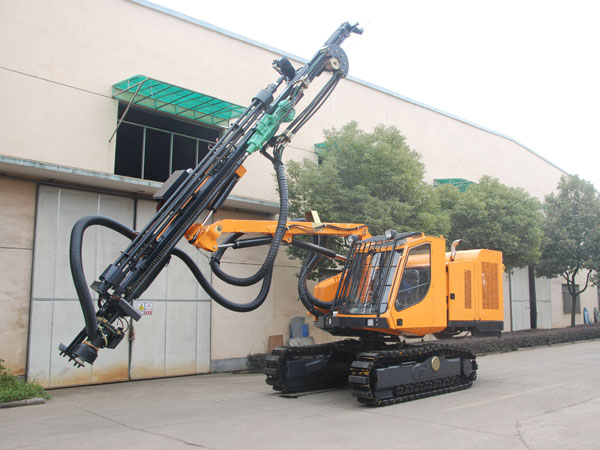

Kaishan KL511 Open-Pit DTH Drilling Rig

Model: KAISHAN KL511

Kaishan KG200GF Photovoltaic DTH Drilling Rig

Model: KG200GF

Kaishan KG500GF Photovoltaic DTH Drilling Rig

Model: KG500GF

Kaishan KG726HIII Surface DTH Drilling Rig

Model: KG726HIII

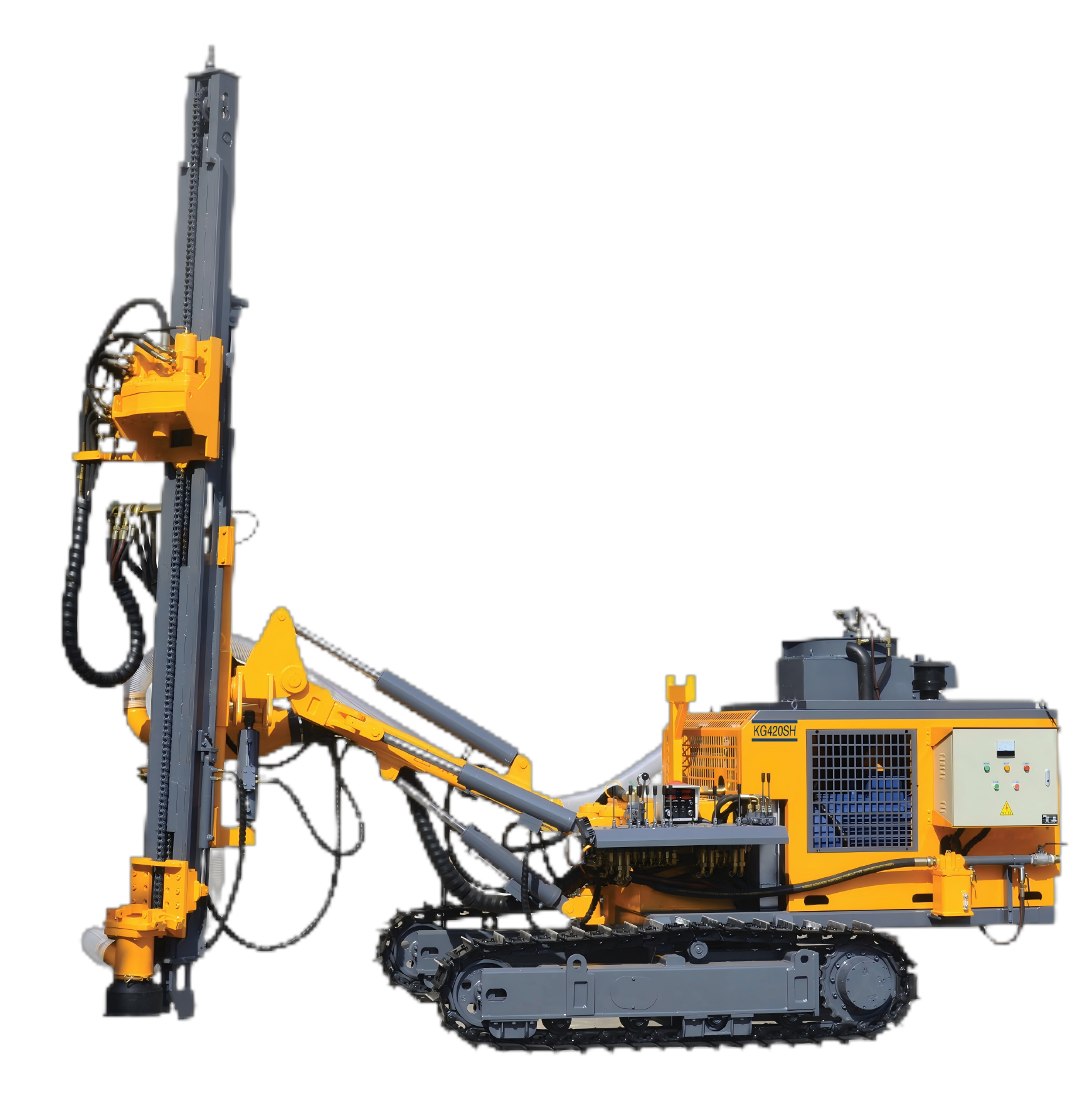

Kaishan KG420S(H) Surface DTH Drilling Rig

Model: KG420S(H)

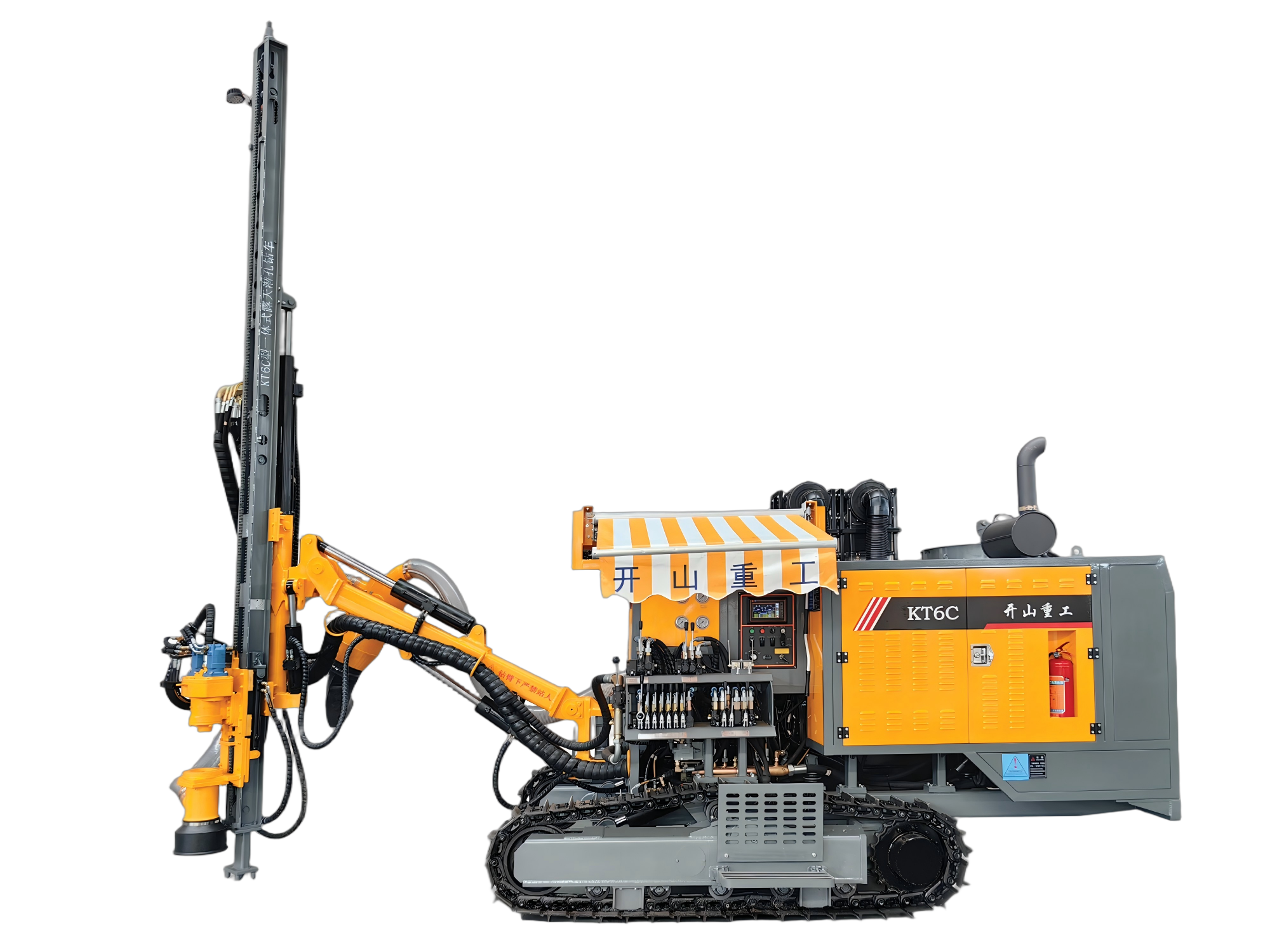

Kaishan KT6C Integrated Surface DTH Drilling Rig

Model: KT6C

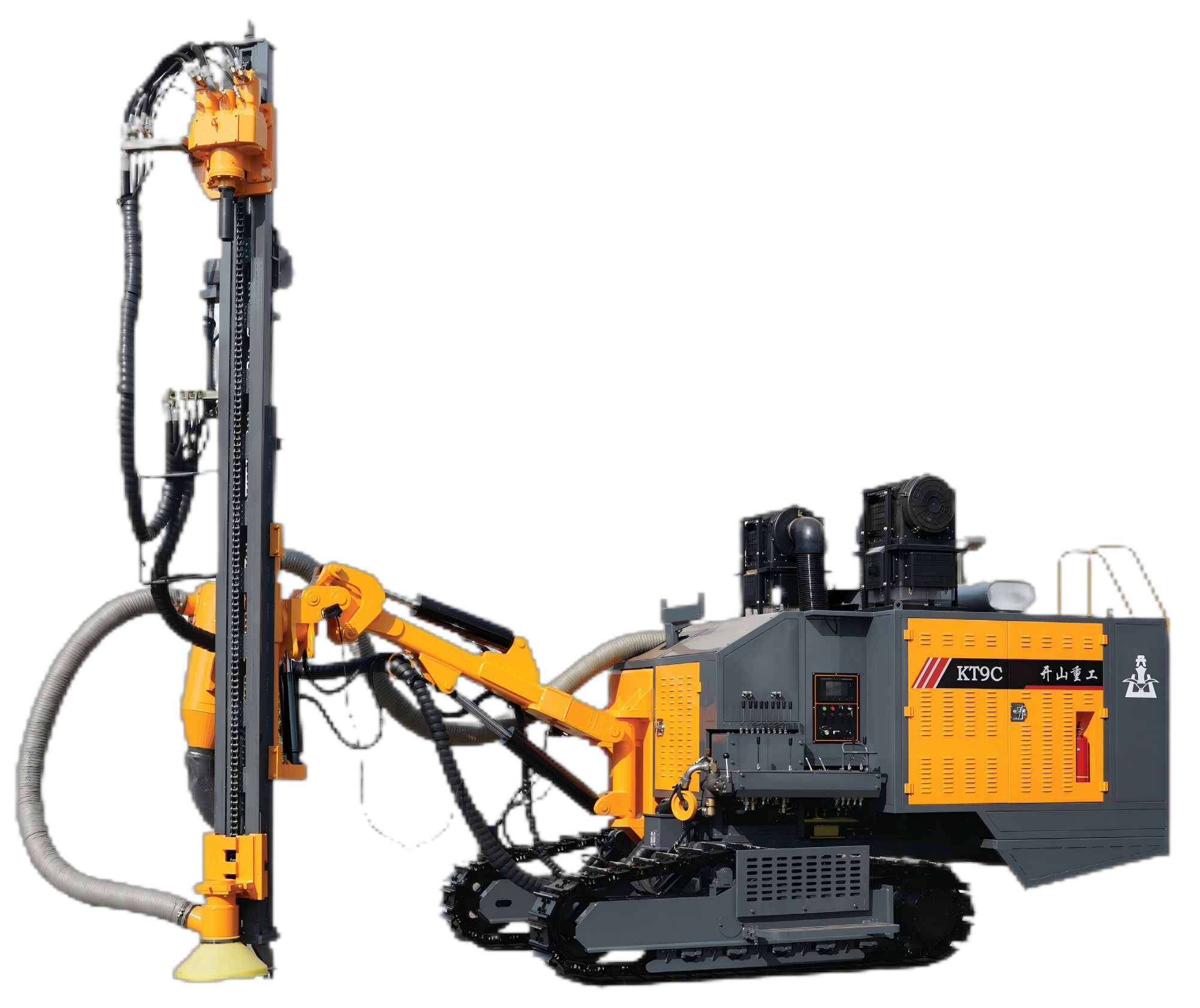

Kaishan KT9C Integrated Surface DTH Drilling Rig

Model: KT9C

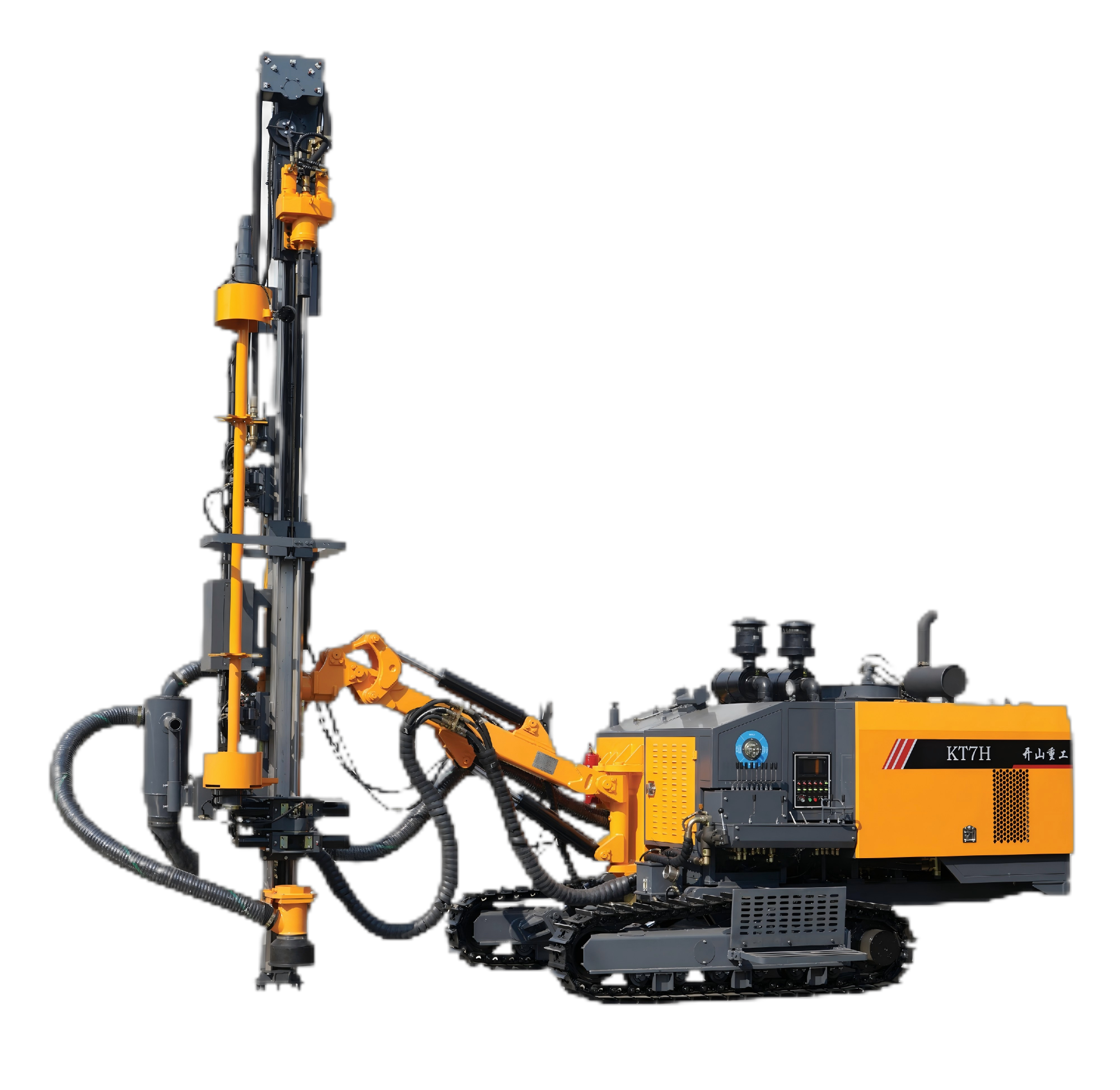

Kaishan KT7H Integrated Surface DTH Drilling Rig

Model: KT7H

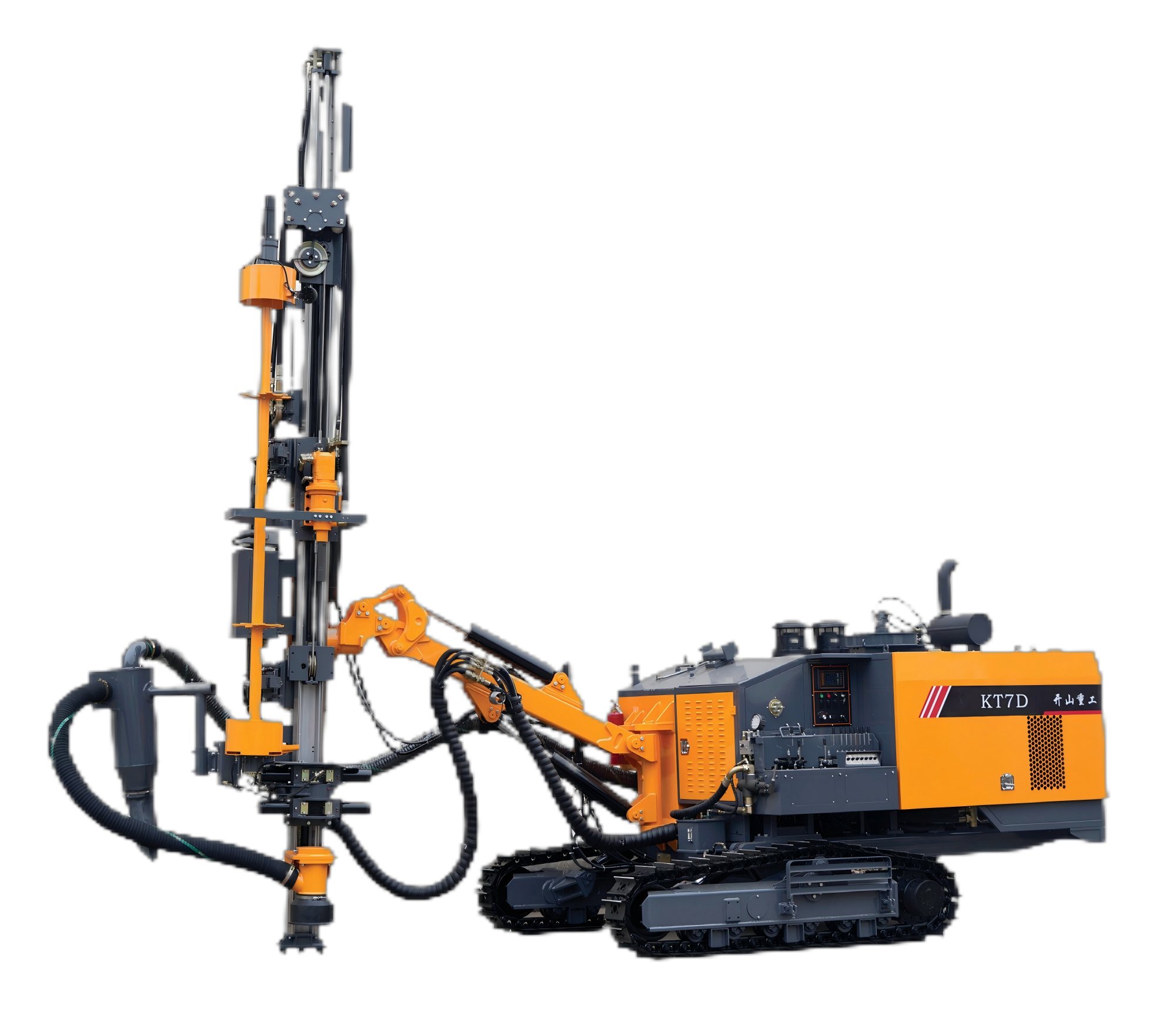

Kaishan KT7D Integrated Surface DTH Drilling Rig

Model: KT7D

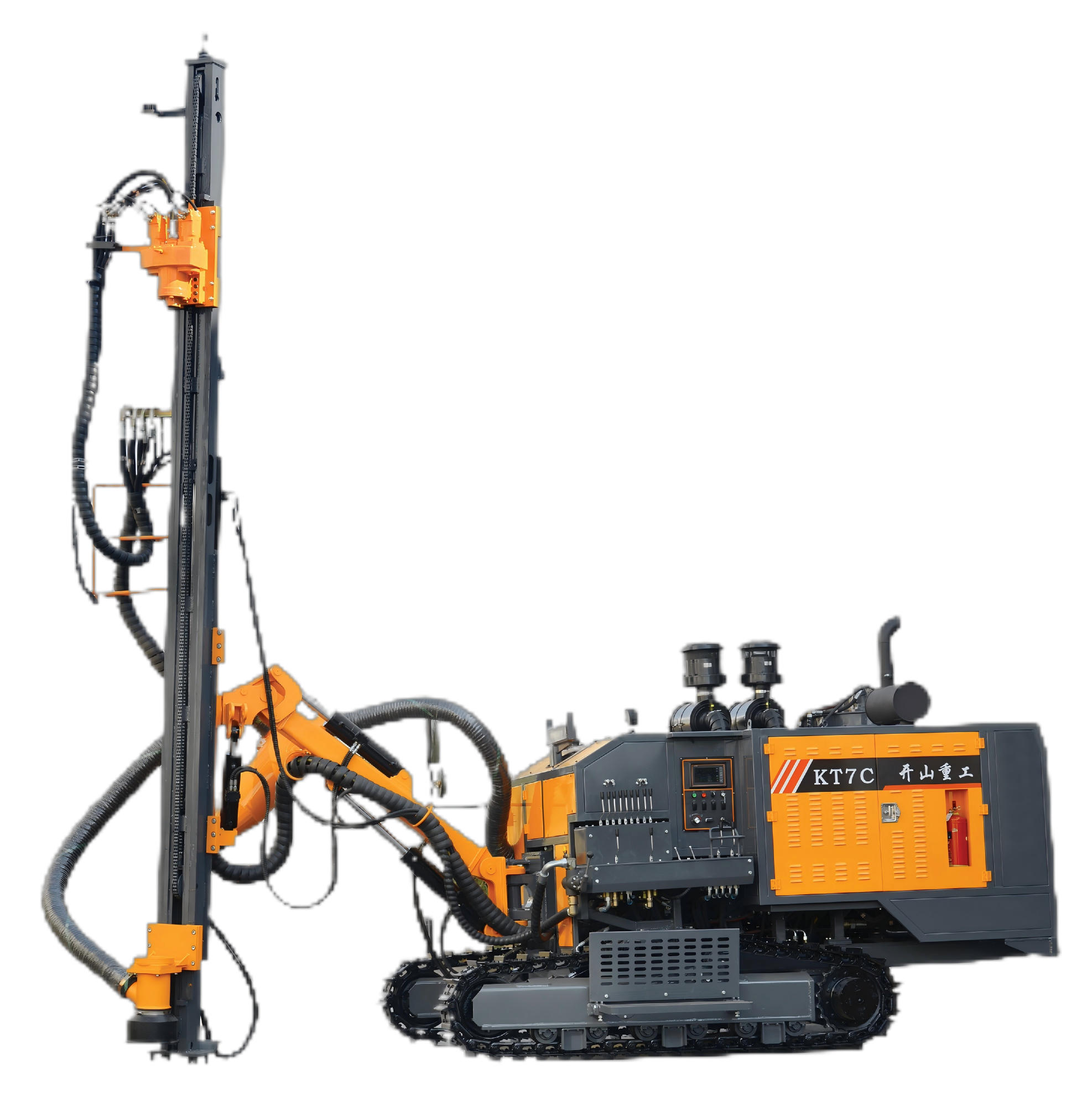

Kaishan KT7C Integrated Surface DTH Drilling Rig

Model: KT7C

KG Series — Full Specification Comparison

Compare all 37 models in this series. Click any model name to view full specifications and inquiry details.

Model	Hole Diameter	Drilling Method	Engine Power	Weight	Dimension (L×W×H)
KG430	90–165 mm	DTH (Down-The-Hole)	73 kW	5,250 / 5,700 kg	8,500 × 2,500 × 3,200 mm
KG520	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	12,000 kg	7,500 × 2,500 × 3,200 mm
KG590	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	15,000 kg	8,500 × 2,500 × 3,200 mm
KG590H	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	7200 kg	7100× 2,500 × 2700 mm
KG720	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	15,000 kg	8,500 × 2,500 × 3,200 mm
KG420B	90-130 mm	Down-the-Hole (DTH)	58 kW	4,150 / 4,350 kg	7,500 × 2,300 × 3,000 mm
KG550	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	6,200 kg	11,000 × 2,800 × 3,400 mm
KG940A	90–165 mm	DTH (Down-The-Hole)	58 kW	6,450 / 6,900 kg	7,500 × 2,500 × 3,200 mm
KZ5	90–130 mm	DTH (Down-The-Hole) hammer drilling	78 kW (105 hp) diesel engine	5,800 kg	6,200 × 2,200 × 2,600 mm (transport)
KZ9	90–152 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW	16,000 kg	8,500 × 2,500 × 3,200 mm
KG920A	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	12,000 kg	8,500 × 2,500 × 3,200 mm
KG920B	90-165 mm	DTH (Down-The-Hole)	194 kW	12,000 kg	7,500 × 2,300 × 2,800 mm
KG920D	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	12,000 kg	7,500 × 2,500 × 3,200 mm
KGH4	80–115 mm	DTH Hammer / Rotary	118 kW	12,000 kg	7,500 × 2,300 × 2,800 mm
KT5C	80-105 mm	Rotary / DTH	55 kW	4500 kg	5500×1200×1800 mm
KT5H	90-127 mm	Top Hammer / DTH	74 kW	8500 kg	6800×1600×2200 mm
ZT5	90–105 mm	Down-the-hole (DTH) hammer drilling	78 kW (105 hp)	13000 kg	8630 × 2,100 × 2830 mm
KT11	80-115 mm	DTH (Down-The-Hole) drilling	92 kW (125 hp)	7,500 kg	6,000 × 2,200 × 2,800 mm
KT12	115–152 mm	DTH (Down-The-Hole) Drilling	118 kW	12,000 kg	7,500 × 2,300 × 2,900 mm
KT9D	115–165 mm	DTH (Down-The-Hole)	194 kW (260 hp)	15,000 kg	8,500 × 2,500 × 3,200 mm
KT15	135-190 mm	Rotary & DTH	194 kW	15,000 kg	10,000 × 2,500 × 3,200 mm
KT15C	140–190 mm	Down-the-Hole (DTH) Drilling	336 kW	28,000 kg	12,000 × 3,200 × 3,600 mm
KT25	152–203 mm	Down-the-Hole (DTH) Drilling	328 kW	25800 kg	12200 × 2840 × 3620 mm
ZT11	115–152 mm	DTH (Down-The-Hole) drilling	235 kW	125000 kg	9900 × 2,300 × 3,200 mm
ZT12	115–152 mm	DTH (Down-The-Hole)	264 kW	16800 kg	10000 × 2,480 × 3,100 mm
KT30	195–254 mm	DTH (Down-The-Hole) drilling	563 kW	33930 kg	14300 × 3000 ×4100 mm
KL510	64-115 mm	Down-the-Hole (DTH) Drilling	179 kW	165,00 kg	105000 × 2,450 × 3,200 mm
KAISHAN KL511	89–127 mm	DTH Hammer Drilling	194 kW	15,000 kg	11100 × 2,520 × 3,320 mm
KG200GF	90-165 mm	DTH Hammer Drilling	194 kW	22,000 kg	10,500 × 2,800 × 3,500 mm
KG500GF	90-165 mm	DTH (Down-The-Hole)	194 kW	15,000 kg	9,000 × 2,500 × 3,200 mm
KG726HIII	90-165 mm	DTH Hammer Drilling	264 kW	28,000 kg	12,000 × 3,200 × 3,600 mm
KG420S(H)	90-165 mm	DTH Hammer Drilling	194 kW	15,000 kg	10,500 × 2,500 × 3,200 mm
KT6C	90–165 mm	DTH (Down-The-Hole) drilling	194 kW (Cummins)	15,000 kg	12,000 × 2,500 × 3,200 mm
KT9C	90–165 mm	DTH (Down-The-Hole)	194 kW	15,000 kg	8,500 × 2,500 × 3,200 mm
KT7H	90-165 mm	DTH (Down-The-Hole) Drilling	194 kW	15,000 kg	10,000 × 2,500 × 3,200 mm
KT7D	76-115 mm	Hydraulic Top Hammer	194 kW	18,000 kg	10,500 × 2,500 × 3,200 mm
KT7C	76-115 mm	Top Hammer	194 kW	15,000 kg	10,000 × 2,500 × 3,200 mm
