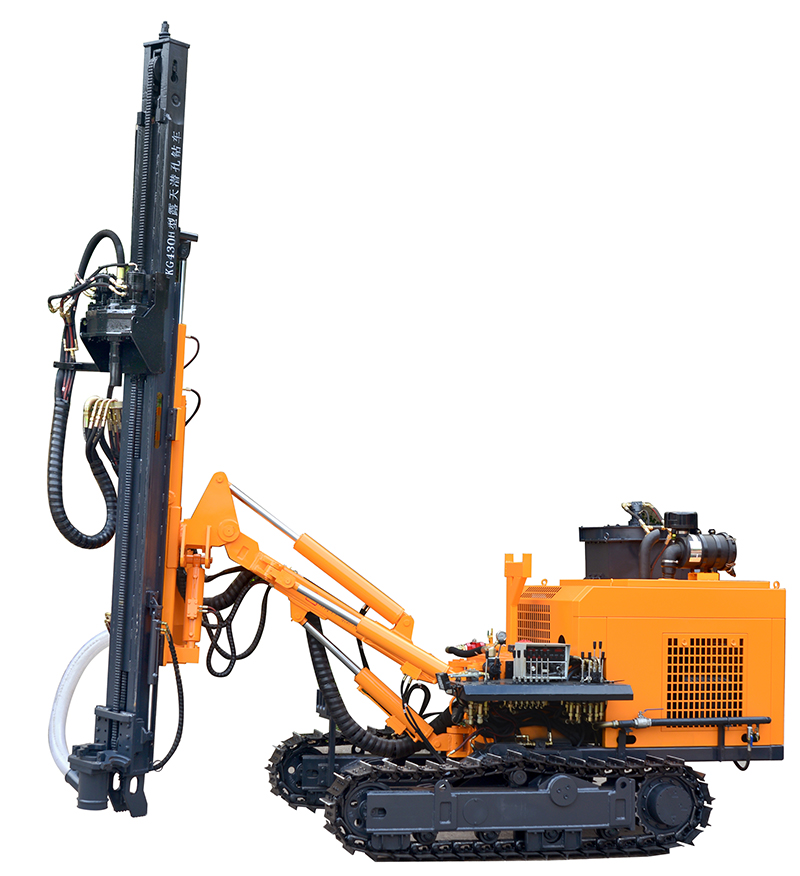

Kaishan KG430 DTH Drilling Rig

Name: Kaishan KG430 DTH Drilling Rig
Brand: Kaishan
SKU: KG430
Availability: InStock

Model: KG430

The Kaishan KG430 is a high-performance DTH drilling rig engineered for demanding open-pit mining, quarrying, and construction projects. Designed to deliver efficient hard-rock drilling, this hydraulic top-drive rig combines a powerful diesel engine with an optimized rotary head and robust undercarriage. It achieves hole diameters from 90 mm to 165 mm and drilling depths up to 30 meters, making it ideal for blast hole drilling, foundation work, and aggregate production. The KG430 features a heavy-duty crawler chassis for superior stability on rough terrain, a high-efficiency dust collection system, and an ergonomic operator cabin for enhanced safety and comfort. With fast tramming speeds, reliable hydraulic components, and easy maintenance access, the KG430 maximizes productivity while lowering cost per meter. Whether you are drilling in granite, limestone, or basalt, the Kaishan KG430 DTH drilling rig delivers consistent performance and long service life. It is the smart choice for contractors seeking a versatile, durable, and cost-effective drilling solution.

Best For

Open-Pit Mining Quarrying & Aggregate Production Construction & Foundation Work Water Well Drilling

Technical Specifications

Model	Kaishan KG430
Drilling Depth	30 m
Hole Diameter	90–165 mm
Drilling Method	DTH (Down-The-Hole)
Engine Power	73 kW
Weight	5,250 / 5,700 kg
Dimension (L×W×H)	8,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

The KG430 is a hydraulic top-drive rig in the KG series, built for DTH blast hole work in open-pit mining, quarrying and construction. A diesel engine drives the on-board compressor and hydraulic pumps, feeding a high-torque rotary head and chain feed on a crawler undercarriage. A down-the-hole hammer and button bit at the string end crush hard rock while exhaust air clears cuttings and the dust collector captures fines. It pairs with a matching air package, hammer, rods and bits, and is backed by Kaishan service support, spare parts and operator training.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–165 mm

Drilling Depth

30 m

Engine Power

73 kW

Weight

5,250 / 5,700 kg

Dimension (L×W×H)

8,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine delivers reliable performance in hard rock conditions

✓

Drilling depth up to 30 m and hole diameter range of 90–165 mm

✓

Heavy-duty crawler chassis ensures stability and mobility on rough terrain

✓

High-torque rotary head with automatic rod handling for efficient drilling

✓

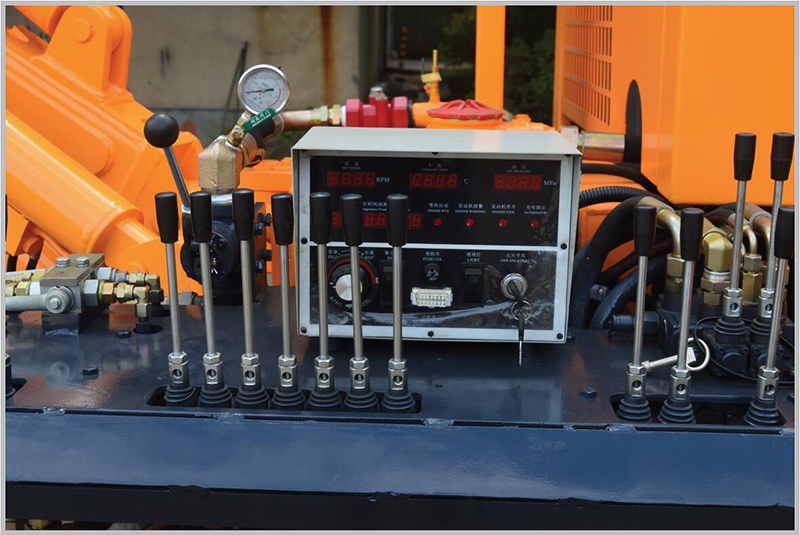

Ergonomic operator cabin with joystick controls and excellent visibility

✓

Integrated dust collection system for a cleaner and safer worksite

✓

Easy maintenance access with centralized lubrication points

✓

Backed by Kaishan global service network and spare parts support

Applications

📍 Open-Pit Mining

Blast hole drilling in hard rock such as granite, basalt, and iron ore.

Solution: KG430's high torque and powerful engine ensure fast penetration and accurate hole alignment, boosting productivity.

📍 Quarrying & Aggregate Production

Drilling blast holes for limestone, sandstone, and other quarry materials.

Solution: The rig's dust collection system and efficient drilling reduce environmental impact and operating costs.

📍 Construction & Foundation Work

Pre-split drilling, anchoring, and foundation piling in civil engineering projects.

Solution: Compact crawler design allows access to confined sites; precise controls ensure hole accuracy.

📍 Water Well Drilling

Drilling water wells in hard rock formations where DTH method is required.

Solution: KG430's depth capacity and reliable hydraulic system provide consistent performance for water well projects.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG430This model	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920A	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG920B	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system

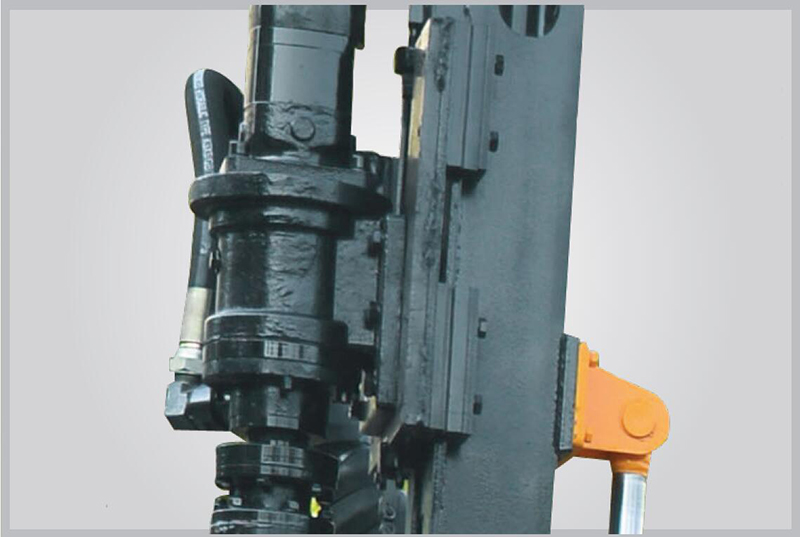

Rotary head
Feed beam
Crawler undercarriage
Operator cabin
Dust collection system
Drill string (pipes and bit)

Working Principle

The Kaishan KG430 operates on the Down-The-Hole (DTH) drilling principle, where a pneumatic hammer is integrated into the drill string just above the bit. High-pressure air is delivered through the drill pipes to the hammer, driving the piston to strike the bit at high frequency. The bit crushes rock into small fragments, which are then flushed out of the hole by the exhaust air. Simultaneously, the rig's rotary head applies rotation and feed force to the drill string, ensuring even bit wear and straight hole trajectory. The hydraulic system powers the rotation, feed, and tramming functions, while the diesel engine drives the air compressor and hydraulic pumps. This combination allows the KG430 to achieve high penetration rates in hard rock with minimal energy loss. The operator controls all functions from the ergonomic cabin, monitoring drilling parameters via the control panel. The dust collector captures airborne particles, maintaining a safe and clean working environment. This efficient and proven method makes the KG430 a reliable choice for demanding drilling applications.

Detailed Features

▸High drilling efficiency in hard rock
▸Reliable hydraulic components
▸Ergonomic operator cabin
▸Automatic rod handling
▸Dust suppression system
▸Easy maintenance access
▸Robust crawler chassis
▸Global service support

Packaging & Shipping

The Kaishan KG430 DTH drilling rig is shipped in a disassembled state for efficient container transport. Main components are securely packed and protected against corrosion and impact. Typically, one 40HQ container can accommodate the rig with proper loading. Delivery time is 30–45 days after order confirmation, depending on configuration. Shipping ports include Shanghai, Qingdao, or other major Chinese ports as per customer request. All necessary documentation for export is provided.

After-Sales Service

Kaishan offers comprehensive after-sales service for the KG430. The rig comes with a 12-month warranty or 2000 working hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting. We provide on-site installation and commissioning guidance, as well as operator training. Genuine spare parts are available through our global distribution network, ensuring minimal downtime. Regular maintenance kits and service contracts are also offered to maximize equipment uptime.

Frequently Asked Questions

What hole sizes and drilling depth can the Kaishan KG430 handle?+

The KG430 drills hole diameters from 90 mm to 165 mm and reaches a drilling depth of 30 m. It uses the DTH (Down-The-Hole) drilling method for hard-rock work. This range covers blast hole drilling and other production holes in open-pit mining and quarrying.

What engine powers the KG430 DTH drilling rig?+

The KG430 is powered by a 73 kW diesel engine. The rig weighs 5,250 / 5,700 kg and measures 8,500 × 2,500 × 3,200 mm (L×W×H). The engine drives the hydraulic system and the high-torque rotary head with automatic rod handling.

What air supply does the KG430 need to run a DTH hammer?+

The KG430 is a DTH drilling rig that runs a down-the-hole hammer, so it requires a matching air compressor to supply the working pressure and free air delivery for the hammer and button bit. The required air supply depends on the hammer and bit selected for the 90–165 mm hole diameter range. The rig itself is powered by its own 73 kW diesel engine.

Where can the KG430 be used?+

The KG430 is built for open-pit mining, quarrying and aggregate production, construction and foundation work, and water well drilling. Its heavy-duty crawler chassis provides stability and mobility on rough terrain, and the DTH method handles hard rock such as granite, limestone, and basalt. The 30 m drilling depth and 90–165 mm hole diameter suit blast hole and foundation drilling.

How is the Kaishan KG430 shipped?+

The KG430 is shipped in a disassembled state for efficient container transport, with main components packed and protected against corrosion and impact. Typically, one 40HQ container can accommodate the rig with proper loading. Delivery time is 30–45 days after order confirmation, depending on configuration, and shipping ports include Shanghai, Qingdao, or other major Chinese ports.

What warranty and after-sales support come with the KG430?+

The KG430 comes with a 12-month warranty or 2000 working hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting, along with on-site installation and commissioning guidance and operator training. Genuine spare parts are available through the global distribution network.

What maintenance features does the KG430 offer?+

The KG430 provides easy maintenance access with centralized lubrication points. It uses reliable hydraulic components, and the integrated dust collection system supports a cleaner and safer worksite. These features are designed to keep the rig productive on open-pit mining and quarrying sites.
