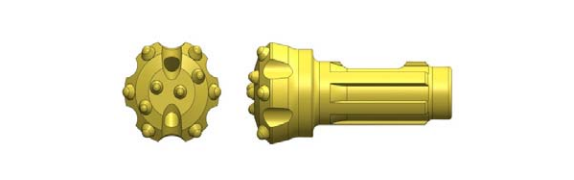

Kaishan L3 DTH Drill Bit for Mining & Water Well
Model: L3
The Kaishan L3 DTH drill bit is a high-performance down-the-hole button bit engineered for demanding mining, quarrying, and water well drilling. Designed with premium tungsten carbide buttons and a robust alloy steel body, the L3 delivers exceptional penetration rates and long service life in hard rock formations. Its optimized air passages ensure efficient cuttings removal, while the precision-machined splines guarantee a secure fit with standard DTH hammers. Whether you are drilling blast holes in granite or water wells in limestone, the Kaishan L3 provides reliable, cost-effective performance. Available in a range of diameters and thread types, it is the ideal consumable for contractors seeking productivity and durability.

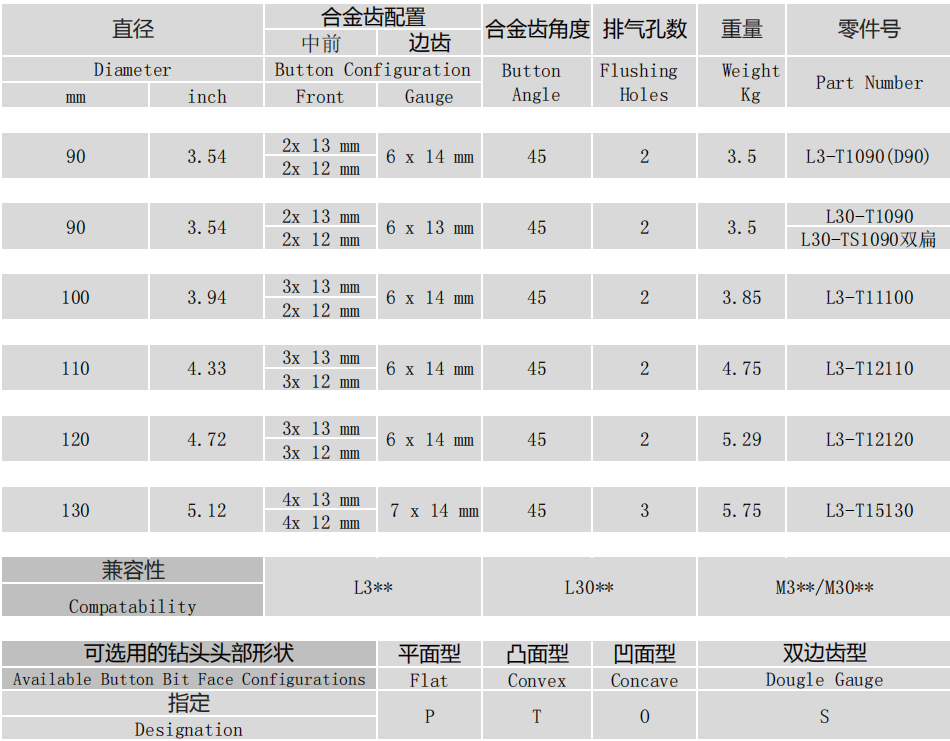

Technical Specifications
| Model | Kaishan L3 |
| Type | DTH Button Bit |
| Size | 76mm - 152mm (3" - 6") |
| Application | Mining, Quarrying, Water Well, Construction |
| Material | Alloy Steel Body with Tungsten Carbide Buttons |
| Weight | 4.5kg - 25kg (depending on size) |
| Packing | Wooden Case or Carton |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Weight
4.5kg - 25kg (depending on size)
Model
Kaishan L3
Type
DTH Button Bit
Size
76mm - 152mm (3" - 6")
Application
Mining, Quarrying, Water Well, Construction
Material
Alloy Steel Body with Tungsten Carbide Buttons
Packing
Wooden Case or Carton
Not sure this model fits? Tell us the hole diameter and depth β we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Premium tungsten carbide buttons for extended wear life
High-strength alloy steel body for impact resistance
Optimized air passages for efficient hole cleaning
Precision-machined splines for secure hammer fit
Available in multiple diameters and head shapes
Compatible with most standard DTH hammers
Consistent penetration rates in hard rock
Cost-effective consumable for high-volume drilling
Applications
π Open-Pit Mining
Blast hole drilling in hard rock such as granite and basalt.
Solution: Kaishan L3 DTH bits deliver fast penetration and long life, reducing downtime and cost per meter.
π Quarrying
Drilling for dimension stone and aggregate extraction.
Solution: The L3's wear-resistant buttons maintain gauge, ensuring straight holes and consistent fragmentation.
π Water Well Drilling
Drilling water wells in overburden and bedrock formations.
Solution: Reliable performance and efficient flushing help contractors complete wells quickly.
π Construction & Foundation
Piling and site investigation in urban and infrastructure projects.
Solution: The L3 provides accurate hole alignment and smooth drilling in mixed ground conditions.
Low Pressure Series Models
Compare specifications across the series to find the right model.
| β | Model | Model | Type | Size | Application | Material | Inquire |
|---|---|---|---|---|---|---|---|
| L3This model | Kaishan L3 | DTH Button Bit | 76mm - 152mm (3" - 6") | Mining, Quarrying, Water Well, Construction | Alloy Steel Body with Tungsten Carbide Buttons | Get a Quote | |
| L2 | Kaishan L2 | DTH Drill Bit | 110 mm (standard); other sizes available | Mining, quarrying, water well drilling, construction | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| L2 | Kaishan L2 | Low-pressure DTH Hammer | 2-inch (compatible with 64-76 mm bits) | Water well drilling, mining, quarrying, construction | Alloy steel with heat treatment | Get a Quote |
Compare 2β3 models? Tick the boxes and send them together β we will quote each one for you.
Tip: select multiple models and click βInquire Allβ β the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand β our engineers will recommend the right one.
Main Components
- Alloy steel body
- Tungsten carbide buttons
- Flushing holes
- Splines
- Threaded shank
- Head face (flat/convex/concave)
- Gauge buttons
- Front buttons
Working Principle
The Kaishan L3 DTH drill bit operates on the principle of down-the-hole hammer drilling. Compressed air is delivered through the drill string to the DTH hammer, which contains a piston that reciprocates at high frequency. The piston strikes the bit's shank, transmitting impact energy to the tungsten carbide buttons. Simultaneously, the bit is rotated slowly by the drill rig. The combination of impact and rotation causes the buttons to fracture the rock through a process of crushing and chipping. The air then flows through the bit's flushing holes, carrying rock cuttings up the annulus to the surface. The L3's design ensures that impact energy is efficiently transferred to the rock, while the air passages are optimized to prevent blockage and minimize pressure loss. The bit's splines engage with the hammer's chuck to transmit rotation without slippage. This method allows for high penetration rates in hard rock with minimal energy loss.
Detailed Features
- βΈHigh wear resistance
- βΈExcellent impact toughness
- βΈEfficient hole cleaning
- βΈSecure hammer connection
- βΈMultiple size options
- βΈOptimized button layout
- βΈLong service life
- βΈConsistent performance
Packaging & Shipping
Each Kaishan L3 DTH drill bit is individually packed in a wooden case or carton, with rust-preventive coating applied to threads and splines. Bits are then palletized and wrapped for container shipment. Standard export packaging ensures protection during transit. Delivery time is typically 15-30 days after order confirmation, depending on quantity. Ports of shipment include Ningbo, Shanghai, or as per customer request. We can accommodate FCL and LCL shipments.
After-Sales Service
Kaishan provides a 12-month warranty against manufacturing defects. Our 24-hour technical support team is available to assist with product selection, troubleshooting, and optimization. We offer on-site training for operators and maintenance personnel. A global network of spare parts warehouses ensures fast delivery of replacement bits and components. Customized solutions and OEM services are available upon request.
Frequently Asked Questions
What is the Kaishan L3 DTH drill bit used for?+
It is used for down-the-hole hammer drilling in mining, quarrying, water well, and construction applications.
What sizes are available?+
The L3 is available in diameters from 76mm to 152mm, with various thread types such as API 2 3/8" and 3 1/2".
What rock formations can it drill?+
It performs well in medium to hard rocks including granite, basalt, limestone, and sandstone.
How long does the bit last?+
Service life depends on rock conditions and operating parameters, but the L3 is designed for extended wear life.
Is it compatible with other brands of hammers?+
Yes, it is designed to fit most standard DTH hammers with matching shank and thread.
What is the warranty and delivery time?+
We offer a 12-month warranty and delivery within 15-30 days after order confirmation.
