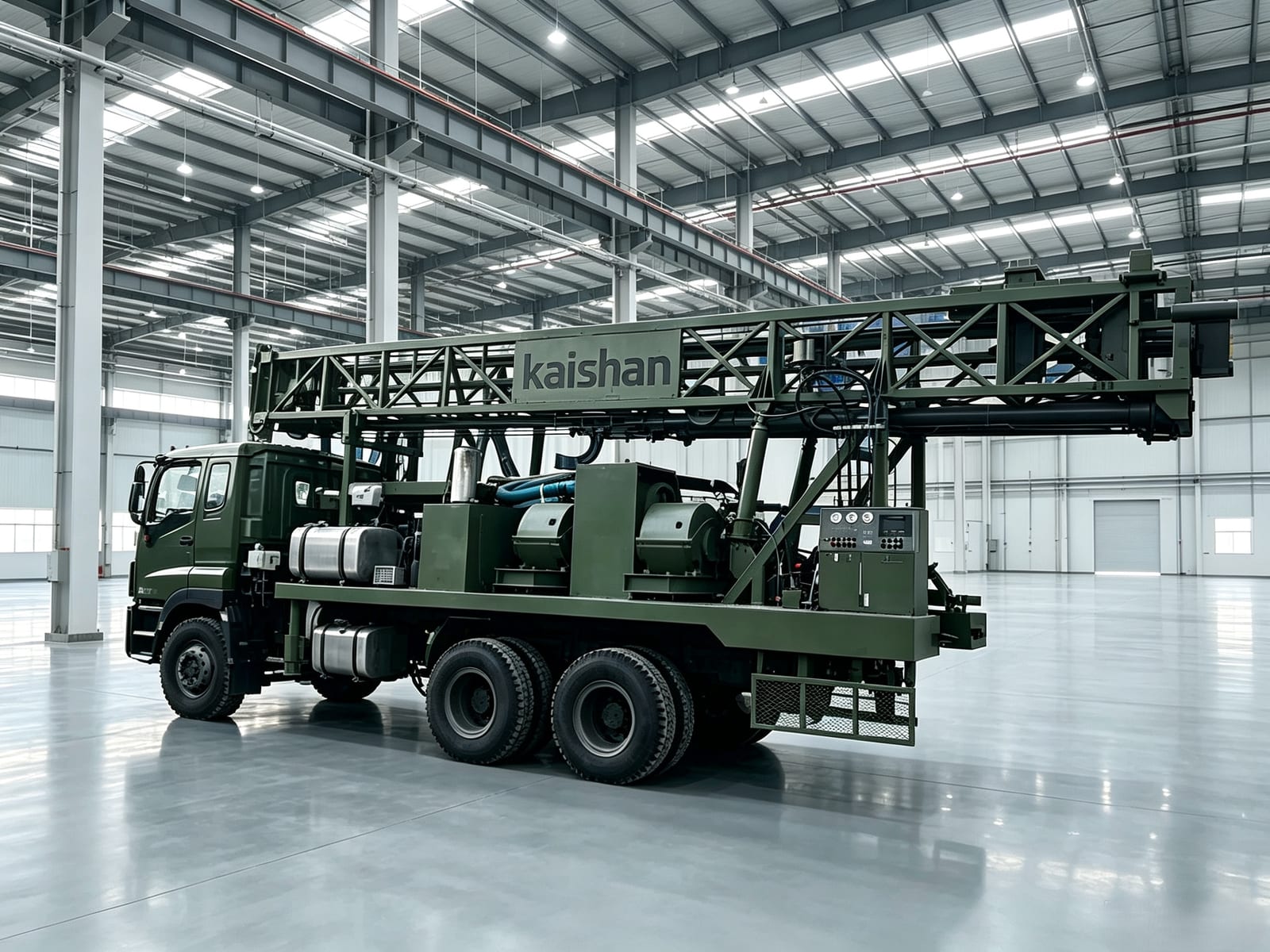

Kaishan CDC-600 Water Well Drilling Rig

Name: Kaishan CDC-600 Water Well Drilling Rig
Brand: Kaishan
SKU: CDC-600
Availability: InStock

Model: CDC-600

The Kaishan CDC-600 water well drilling rig is a powerful and efficient drilling solution designed for water well, geothermal, and foundation drilling projects. With a maximum drilling depth

Best For

Water Well Drilling Geothermal Exploration Foundation Engineering Agricultural Irrigation

Technical Specifications

Model	CDC-600
Drilling Depth	600 m
Hole Diameter	90-850 mm
Drilling Method	DTH / Mud Rotary
Engine Power	194 kW
Weight	165,00 kg
Dimension (L×W×H)	10500 × 2,800 × 4500 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

The Kaishan CDC-600 water well drilling rig is a powerful and efficient drilling solution designed for water well, geothermal, and foundation drilling projects. With a maximum drilling depth of 600 meters and a hole diameter range of 105-350 mm, this rig utilizes advanced DTH (Down-The-Hole) and mud rotary drilling methods to tackle diverse geological conditions. Powered by a reliable 194 kW diesel engine, the CDC-600 delivers exceptional performance while maintaining fuel efficiency. Its robust construction and intelligent control system ensure stable operation, high productivity, and low maintenance costs. The rig features a heavy-duty hydraulic system, a high-torque rotary head, and a durable mast, making it ideal for challenging terrains. Whether you're drilling in hard rock or soft soil, the CDC-600 provides reliable, cost-effective results. With Kaishan's global service network and comprehensive after-sales support, you can trust the CDC-600 to keep your projects on schedule and within budget. Experience the perfect blend of power, precision, and durability with the Kaishan CDC-600 water well drilling rig.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90-850 mm

Drilling Depth

600 m

Engine Power

194 kW

Weight

165,00 kg

Dimension (L×W×H)

10500 × 2,800 × 4500 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Max drilling depth of 600 meters for deep water wells

✓

Hole diameter range of 105-350 mm for versatile applications

✓

Dual drilling methods: DTH hammer and mud rotary

✓

Powerful 194 kW diesel engine for reliable performance

✓

Heavy-duty hydraulic system for efficient power transmission

✓

Advanced control system for real-time monitoring and optimization

✓

Robust construction with high-strength steel for durability

✓

Compact design for easy transportation and quick setup

Applications

📍 Water Well Drilling

Ideal for drilling water wells for residential, agricultural, and industrial use.

Solution: The CDC-600's DTH and mud rotary capabilities ensure efficient drilling in various formations, providing reliable water access.

📍 Geothermal Exploration

Suitable for geothermal heat pump systems and exploration wells.

Solution: With precise control and deep drilling capacity, the CDC-600 enables accurate and efficient geothermal drilling.

📍 Foundation Engineering

Used for foundation piling and anchoring in construction projects.

Solution: The rig's high torque and stable mast ensure straight and reliable holes for foundation work.

📍 Agricultural Irrigation

Provides water wells for irrigation systems in farming areas.

Solution: The CDC-600's fast penetration and mobility make it perfect for quick installation of irrigation wells.

SMJ Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
CDC-600This model	CDC-600	600 m	90-850 mm	DTH / Mud Rotary	194 kW	Get a Quote
CDC-800	CDC-800	800 m	140–350 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW	Get a Quote
CDC-600K	Kaishan CDC-600K	600 m	105-350 mm	DTH hammer / Mud rotary	194 kW	Get a Quote
CDC-450J	CDC-450J	450 m	105-350 mm	DTH Hammer / Mud Rotary	132 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system
Rotary head
Mast
Feed system
Control cabin
Drill string
DTH hammer or mud pump

Working Principle

The Kaishan CDC-600 water well drilling rig operates on a hydraulic rotary drilling principle, utilizing either DTH (Down-The-Hole) hammer or mud rotary methods. In DTH mode, a pneumatic hammer at the bottom of the drill string delivers high-frequency impacts to break rock, while the rotary head rotates the string for efficient cutting. Compressed air is used to flush cuttings to the surface. In mud rotary mode, a drill bit rotates to cut formations, and drilling fluid (mud) is circulated to remove cuttings and stabilize the borehole. The rig's hydraulic system powers the rotary head, feed system, and mast, providing smooth and controlled movement. The operator controls drilling parameters from the cabin, adjusting rotation speed, feed force, and fluid flow to match geological conditions. This dual-method capability allows the CDC-600 to adapt to various ground conditions, from soft soil to hard rock, ensuring optimal drilling performance and efficiency.

Detailed Features

▸High drilling efficiency with dual drilling methods
▸Powerful and fuel-efficient diesel engine
▸Advanced hydraulic system for precise control
▸Heavy-duty mast for stability in deep drilling
▸Ergonomic cabin with excellent visibility
▸Easy maintenance with accessible service points
▸Compact and modular design for easy transport
▸Real-time monitoring system for optimized performance

Packaging & Shipping

The Kaishan CDC-600 water well drilling rig is carefully packaged for safe transportation. The main rig is shipped in a 40-foot container, with components securely fastened and protected against corrosion and impact. Smaller parts and accessories are packed in wooden crates. Delivery time is typically 30-45 days after order confirmation, depending on customization. We ship from major Chinese ports such as Shanghai or Qingdao, ensuring efficient global logistics. Our team handles all export documentation and coordinates with freight forwarders to ensure timely delivery to your destination.

After-Sales Service

Kaishan offers comprehensive after-sales service for the CDC-600 water well drilling rig. We provide installation and commissioning support, operator training, and technical assistance. Our global network of service centers ensures quick response to spare parts requests and maintenance needs. We offer a 12-month warranty on major components, with extended coverage options available. Our dedicated support team is available 24/7 to assist with troubleshooting and operational guidance. Additionally, we provide regular maintenance reminders and on-site service visits to keep your rig running at peak performance. With Kaishan, you gain a partner committed to your success.

Frequently Asked Questions

What is the drilling depth and hole diameter of the CDC-600?+

The CDC-600 reaches a maximum drilling depth of 600 m with a hole diameter range of 105-350 mm. It supports both DTH and mud rotary drilling methods.

What engine powers the CDC-600 water well drilling rig?+

The CDC-600 uses a 194 kW diesel engine. The rig weighs 28,000 kg.

What are the dimensions of the CDC-600?+

The CDC-600 measures 12,000 × 2,800 × 3,800 mm (L×W×H). It is a truck-mounted rig in the SMJ series.

What applications suit the CDC-600 drilling rig?+

The CDC-600 is used for water well drilling, geothermal exploration, foundation engineering and agricultural irrigation. Its DTH and mud rotary methods handle hard rock, clay, sand and gravel.

How is the CDC-600 packaged and shipped?+

The main rig ships in a 40-foot container, with smaller parts in wooden crates. Delivery is typically 30-45 days after order confirmation.

What after-sales service is available for the CDC-600?+

Kaishan provides installation and commissioning support, operator training and technical assistance. A 12-month warranty on major components is offered, with extended coverage options available.
