Kaishan K3 DTH Drill Bit for Mining & Water Well Drilling
Model: K3

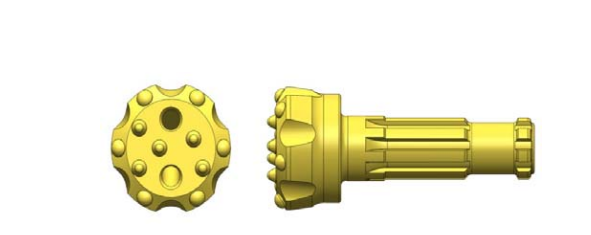

The Kaishan K3 DTH drill bit is a high-performance down-the-hole tool engineered for demanding mining, quarrying, and water well drilling operations. Designed with premium carbide buttons and a robust steel body, the K3 delivers exceptional penetration rates and long service life in medium to hard rock formations. Its optimized air flow channels ensure efficient cuttings removal, reducing regrinding and improving overall drilling efficiency. Compatible with standard DTH hammers and drill pipes, the K3 is available in various diameters and face designs to match specific application needs. Whether you are drilling blast holes in an open-pit mine or constructing a deep water well, the Kaishan K3 provides reliable, cost-effective performance. Backed by Kaishan's global service network and strict quality control, this drill bit is the ideal choice for contractors seeking productivity and durability.

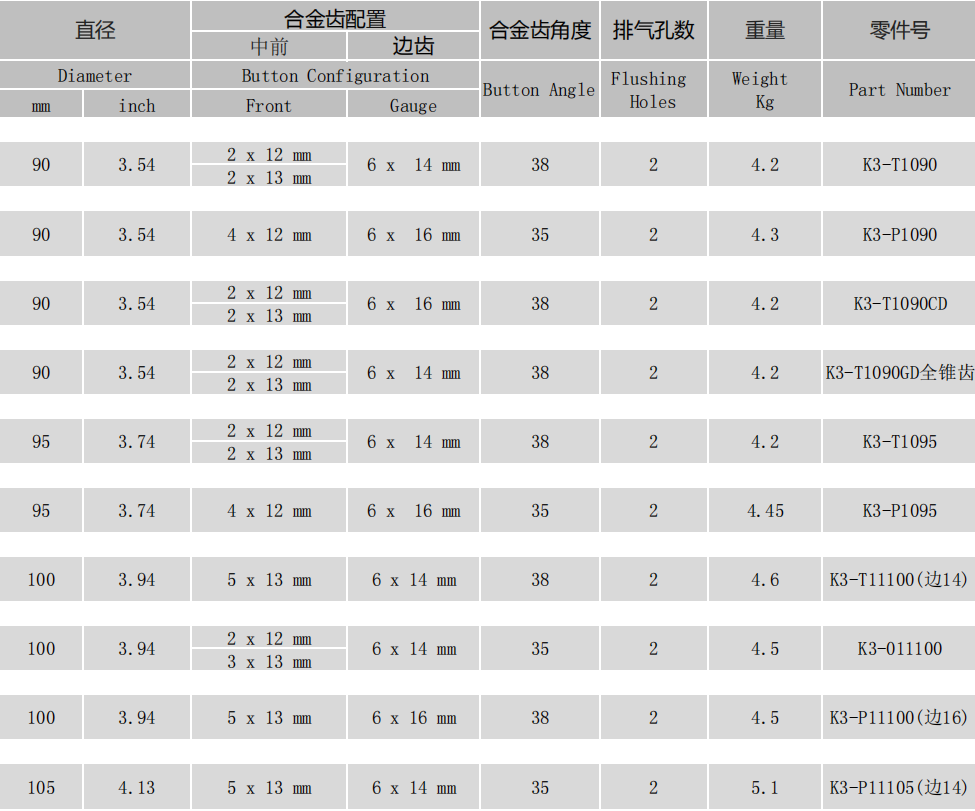

Technical Specifications
| Model | K3 |
| Type | DTH Drill Bit |
| Size | 76mm - 152mm |
| Application | Mining, Quarrying, Water Well Drilling |
| Material | Alloy Steel with Carbide Buttons |
| Weight | 3.5kg - 25kg (depending on size) |
| Packing | Wooden Case / Carton |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Weight
3.5kg - 25kg (depending on size)
Model
K3
Type
DTH Drill Bit
Size
76mm - 152mm
Application
Mining, Quarrying, Water Well Drilling
Material
Alloy Steel with Carbide Buttons
Packing
Wooden Case / Carton
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
High-strength alloy steel body for superior durability
Premium carbide buttons for long service life
Optimized face design for efficient rock breakage
Advanced flushing system for rapid cuttings removal
Compatible with standard DTH hammers and drill pipes
Available in multiple diameters and face configurations
Precision manufacturing ensures consistent quality
Applications
📍 Open-Pit Mining
Blast hole drilling in hard rock such as granite and basalt.
Solution: Kaishan K3 DTH bit with hemispherical buttons for high penetration rates and long life.
📍 Water Well Drilling
Constructing deep water wells in various geological formations.
Solution: K3 bit with flat face and optimal flushing for efficient cuttings removal and hole stability.
📍 Quarrying
Production drilling for aggregate extraction.
Solution: K3 bit with ballistic buttons for fast drilling in medium-hard rock.
📍 Geothermal Exploration
Drilling boreholes for geothermal heat pump systems.
Solution: K3 bit with reliable performance and compatibility with standard DTH hammers.
High Pressure Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Type | Size | Application | Material | Inquire |
|---|---|---|---|---|---|---|---|
| K3This model | K3 | DTH Drill Bit | 76mm - 152mm | Mining, Quarrying, Water Well Drilling | Alloy Steel with Carbide Buttons | Get a Quote | |
| K10 | K10 | DTH Drill Bit (Down-the-Hole Button Bit) | 90–130 mm diameter (customizable) | Mining, quarrying, water well drilling, construction | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K4 | K4 | DTH Drill Bit | Φ110 mm (standard); other sizes available | Mining, water well drilling, quarrying, construction | Alloy steel body with carbide button inserts | Get a Quote | |
| K5 | K5 | DTH Button Bit | 130 mm - 152 mm diameter | Mining, quarrying, water well drilling, foundation engineering | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K6 | K6 | DTH Button Bit | 76mm - 152mm (3" - 6") | Mining, Quarrying, Water Well Drilling, Construction | Alloy Steel Body with Tungsten Carbide Buttons | Get a Quote | |
| K8 | K8 | DTH Drill Bit | 4 inch (102 mm) diameter | Mining, quarrying, water well drilling | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K10 | K10 | DTH Hammer | 10 inch | Mining, Water Well, Quarry, Construction | Alloy Steel | Get a Quote | |
| K3 | K3 | DTH Hammer | 3 inch | Mining, quarrying, water well drilling, construction | Alloy steel | Get a Quote | |
| K30C | K30C | Down-the-Hole (DTH) Hammer | 3 inch (76.2 mm) nominal | Mining, quarrying, water well drilling, construction | High-quality alloy steel, heat-treated | Get a Quote | |
| K4 | K4 | DTH Hammer | 4 inch | Mining, water well, quarry, construction | Alloy steel, heat-treated | Get a Quote | |
| K40 | K40 | DTH Hammer | 4 inch | Mining, quarrying, water well drilling, construction | High-strength alloy steel | Get a Quote | |
| K40C | K40C | Down-The-Hole (DTH) Hammer | 4-inch class (105-130mm hole diameter) | Mining, water well, quarry, construction drilling | Alloy steel, heat-treated | Get a Quote | |
| K46 | K46 | DTH Hammer | 4 inch | Mining, Quarrying, Water Well Drilling, Construction | High-Strength Alloy Steel | Get a Quote | |
| K5 | K5 | Down The Hole (DTH) Hammer | 5 inch | Mining, quarrying, water well, construction | Alloy steel, heat-treated | Get a Quote | |
| K50 | K50 | Down-the-Hole (DTH) Hammer | 5-inch class | Mining, quarrying, water well drilling, construction | Alloy steel, heat-treated | Get a Quote | |
| K6 | K6 | DTH Hammer | 6 inch | Mining, Water Well, Quarrying | Alloy Steel | Get a Quote | |
| K8 | K8 | DTH Hammer | 8 inch | Water well drilling, mining, quarrying | Alloy steel | Get a Quote | |
| K80 | K80 | Down-the-Hole (DTH) Hammer | 8 inch (203 mm) | Mining, Quarrying, Water Well Drilling | Alloy Steel | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Alloy steel body
- Carbide buttons
- Splined shank
- Flushing holes
- Face design
- Retaining ring
- O-ring seals
- Chuck
Working Principle
The Kaishan K3 DTH drill bit operates on the principle of down-the-hole percussion. High-pressure air is delivered through the drill pipe to the DTH hammer, which drives the bit's piston in a rapid reciprocating motion. This piston strikes the bit's shank, transmitting powerful impact energy to the carbide buttons on the bit face. Simultaneously, the bit is rotated slowly, allowing the buttons to crush and fracture the rock. The air then flows through flushing holes in the bit, carrying rock cuttings up the annulus to the surface. This combination of impact and rotation creates efficient rock breakage, while the flushing action prevents regrinding and keeps the hole clean. The K3's design optimizes this process by ensuring uniform button loading and effective air distribution, resulting in high penetration rates and extended bit life.
Detailed Features
- ▸High-strength alloy steel body
- ▸Premium carbide buttons
- ▸Optimized face design
- ▸Advanced flushing system
- ▸Standard DTH hammer compatibility
- ▸Multiple diameters available
- ▸Precision manufacturing
- ▸Long service life
Packaging & Shipping
Each Kaishan K3 DTH drill bit is carefully packed in a wooden case or carton, with rust-preventive coating and protective caps on threads and shanks. Standard export packaging ensures safe transport by sea or air. For bulk orders, bits are palletized and shrink-wrapped. Container loading: 20ft container can hold approximately 500-800 bits depending on size. Delivery time is 15-30 days after order confirmation. Ports of shipment: Shanghai, Ningbo, or as per customer request.
After-Sales Service
Kaishan offers comprehensive after-sales service for the K3 DTH drill bit. All products come with a 6-month warranty against manufacturing defects. Our 24-hour technical support team is available to assist with application questions and troubleshooting. We provide free training for operators on proper bit selection, usage, and maintenance. Genuine spare parts are stocked worldwide for quick delivery. Our global service network ensures minimal downtime and maximum productivity for your drilling operations.
Frequently Asked Questions
What is the recommended hole diameter for the Kaishan K3 DTH drill bit?+
The K3 is available in diameters from 76mm to 152mm. The specific diameter should be selected based on your DTH hammer size and desired hole diameter.
What rock formations is the K3 suitable for?+
The K3 is designed for medium to hard rock such as granite, basalt, limestone, and sandstone. It performs well in both abrasive and non-abrasive conditions.
How do I choose between hemispherical and ballistic buttons?+
Hemispherical buttons are ideal for hard, abrasive rock, offering longer life. Ballistic buttons provide faster penetration in softer, less abrasive formations.
What is the expected service life of a K3 bit?+
Service life varies depending on rock conditions, drilling parameters, and operator skill. Under normal conditions, you can expect 200-500 meters of drilling before regrinding or replacement.
Is the K3 compatible with other brands of DTH hammers?+
Yes, the K3 is designed to fit standard DTH hammers with splined shanks. Please confirm the shank type and dimensions before ordering.
What is the minimum order quantity?+
We accept orders starting from one piece for sample evaluation. However, for best pricing and shipping efficiency, we recommend ordering in bulk.
