Kaishan K3 DTH Hammer for Drilling Tools

Name: Kaishan K3 DTH Hammer for Drilling Tools
Brand: Kaishan
SKU: K3
Availability: InStock

Model: K3

The Kaishan K3 DTH hammer is a high-performance down-the-hole drilling tool designed for efficient rock fragmentation in mining, quarrying, water well, and construction projects. As a core component in the Drilling Tools category, this DTH hammer delivers reliable impact energy, optimized air consumption, and long service life. The K3 model features a robust alloy steel construction, precision-machined internal parts, and a standard API connection, making it compatible with a wide range of drilling rigs and DTH bits. Whether you are drilling blast holes in hard rock or water wells in mixed formations, the Kaishan K3 provides consistent penetration rates and reduced downtime. Its simple design allows for easy maintenance and quick bit changes, lowering your overall drilling cost per meter. Trusted by contractors worldwide, Kaishan DTH hammers are engineered for durability and performance in the toughest conditions.

Best For

Mining Blast Hole Drilling Quarrying and Aggregate Production Water Well Drilling Construction and Foundation Drilling

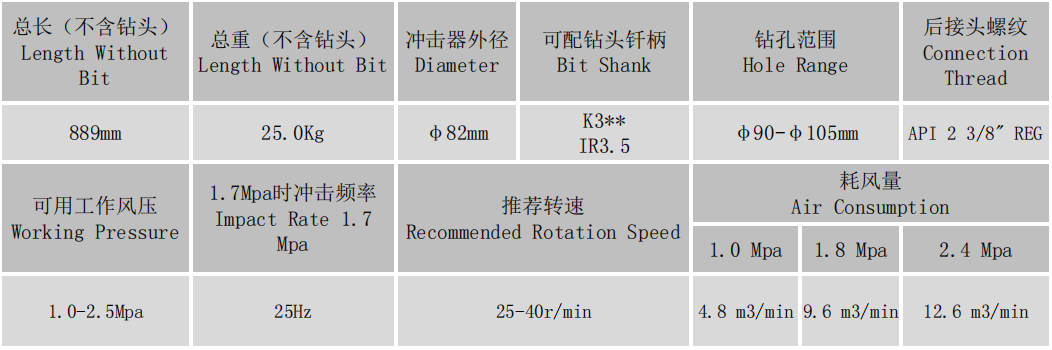

Technical Specifications

Model	K3
Type	DTH Hammer
Size	3 inch
Application	Mining, quarrying, water well drilling, construction
Material	Alloy steel
Weight	25 kg
Packing	Wooden case

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan K3 DTH hammer is a premium drilling tool engineered for down-the-hole percussive drilling. As part of the Drilling Tools category, it is specifically designed to deliver high-impact energy directly to the drill bit, ensuring efficient rock breakage in mining, quarrying, water well, and geotechnical applications. The K3 model is built to withstand demanding environments while maintaining optimal performance and reliability. ## Technical Features The K3 DTH hammer incorporates a valveless design that reduces wear parts and improves reliability. Its internal components are made from high-quality alloy steel and undergo precise heat treatment, providing excellent resistance to fatigue and impact. The hammer operates efficiently with standard air pressures, delivering strong impact energy with minimal air consumption. The optimized piston and bit shank design ensure maximum energy transfer to the bit, resulting in faster penetration rates and longer bit life. The K3 is available with standard API connections, making it compatible with a wide range of DTH bits and drilling rigs. ## Applications The Kaishan K3 DTH hammer is suitable for a variety of drilling applications, including blast hole drilling in open-pit mines, quarrying, water well drilling, and foundation drilling. It performs exceptionally well in hard and abrasive rock formations, such as granite, basalt, and limestone. The hammer can be used with both air and foam flushing systems, depending on the drilling conditions. Its versatility makes it a valuable tool for contractors and drilling companies looking to improve productivity and reduce operating costs. ## Maintenance and Service Maintaining the K3 DTH hammer is straightforward due to its simple and robust construction. Routine inspection of the piston, bit shank, and wear sleeves can be performed on-site, minimizing downtime. Kaishan provides comprehensive after-sales support, including spare parts availability, technical training, and 24-hour online assistance. With proper care, the K3 hammer delivers a long service life and consistent performance, ensuring a low cost per meter drilled.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Weight

25 kg

Model

Type

DTH Hammer

Size

3 inch

Application

Mining, quarrying, water well drilling, construction

Material

Alloy steel

Packing

Wooden case

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

High impact energy for fast penetration in hard rock

✓

Valveless design reduces wear parts and maintenance

✓

Precision-machined alloy steel components for durability

✓

Optimized air consumption for cost-effective operation

✓

Standard API connections for broad compatibility

✓

Simple structure allows quick on-site servicing

Applications

📍 Mining Blast Hole Drilling

Used in open-pit mines for drilling blast holes in hard rock formations.

Solution: The K3 hammer delivers high impact energy to ensure fast penetration and uniform hole quality, reducing drilling time and explosive costs.

📍 Quarrying and Aggregate Production

Ideal for drilling holes in granite, basalt, and limestone quarries.

Solution: With its durable construction and efficient air consumption, the K3 provides reliable performance and low cost per meter in abrasive conditions.

📍 Water Well Drilling

Suitable for drilling water wells in mixed soil and rock formations.

Solution: The K3 hammer can be used with foam or air flushing to maintain hole stability and deliver clean water wells with high productivity.

📍 Construction and Foundation Drilling

Used for foundation piling, anchoring, and site investigation drilling.

Solution: The compact and robust design of the K3 allows for precise drilling in confined spaces, ensuring stable foundations and accurate hole placement.

High Pressure Series Models

Compare specifications across the series to find the right model.

Model	Model	Type	Size	Application	Material	Inquire
K3This model	K3	DTH Hammer	3 inch	Mining, quarrying, water well drilling, construction	Alloy steel	Get a Quote
K10	K10	DTH Drill Bit (Down-the-Hole Button Bit)	90–130 mm diameter (customizable)	Mining, quarrying, water well drilling, construction	Alloy steel body with tungsten carbide buttons	Get a Quote
K3	K3	DTH Drill Bit	76mm - 152mm	Mining, Quarrying, Water Well Drilling	Alloy Steel with Carbide Buttons	Get a Quote
K4	K4	DTH Drill Bit	Φ110 mm (standard); other sizes available	Mining, water well drilling, quarrying, construction	Alloy steel body with carbide button inserts	Get a Quote
K5	K5	DTH Button Bit	130 mm - 152 mm diameter	Mining, quarrying, water well drilling, foundation engineering	Alloy steel body with tungsten carbide buttons	Get a Quote
K6	K6	DTH Button Bit	76mm - 152mm (3" - 6")	Mining, Quarrying, Water Well Drilling, Construction	Alloy Steel Body with Tungsten Carbide Buttons	Get a Quote
K8	K8	DTH Drill Bit	4 inch (102 mm) diameter	Mining, quarrying, water well drilling	Alloy steel body with tungsten carbide buttons	Get a Quote
K10	K10	DTH Hammer	10 inch	Mining, Water Well, Quarry, Construction	Alloy Steel	Get a Quote
K30C	K30C	Down-the-Hole (DTH) Hammer	3 inch (76.2 mm) nominal	Mining, quarrying, water well drilling, construction	High-quality alloy steel, heat-treated	Get a Quote
K4	K4	DTH Hammer	4 inch	Mining, water well, quarry, construction	Alloy steel, heat-treated	Get a Quote
K40	K40	DTH Hammer	4 inch	Mining, quarrying, water well drilling, construction	High-strength alloy steel	Get a Quote
K40C	K40C	Down-The-Hole (DTH) Hammer	4-inch class (105-130mm hole diameter)	Mining, water well, quarry, construction drilling	Alloy steel, heat-treated	Get a Quote
K46	K46	DTH Hammer	4 inch	Mining, Quarrying, Water Well Drilling, Construction	High-Strength Alloy Steel	Get a Quote
K5	K5	Down The Hole (DTH) Hammer	5 inch	Mining, quarrying, water well, construction	Alloy steel, heat-treated	Get a Quote
K50	K50	Down-the-Hole (DTH) Hammer	5-inch class	Mining, quarrying, water well drilling, construction	Alloy steel, heat-treated	Get a Quote
K6	K6	DTH Hammer	6 inch	Mining, Water Well, Quarrying	Alloy Steel	Get a Quote
K8	K8	DTH Hammer	8 inch	Water well drilling, mining, quarrying	Alloy steel	Get a Quote
K80	K80	Down-the-Hole (DTH) Hammer	8 inch (203 mm)	Mining, Quarrying, Water Well Drilling	Alloy Steel	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Top sub
Check valve
Piston
Cylinder
Bit shank
Wear sleeve
Chuck
Retainer ring

Working Principle

The Kaishan K3 DTH hammer operates on the principle of down-the-hole percussive drilling. Compressed air is supplied through the drill string to the hammer, which is located directly above the drill bit. Inside the hammer, a piston reciprocates rapidly, striking the bit shank with high impact energy. The bit then transmits this energy to the rock, causing it to fracture and break. Simultaneously, the exhaust air from the hammer flushes the cuttings out of the hole through the annular space between the drill pipe and the hole wall. The hammer's valveless design simplifies the air distribution mechanism, reducing the number of moving parts and minimizing wear. This results in reliable operation, lower maintenance requirements, and consistent performance even in harsh drilling conditions. The K3 hammer is designed to optimize the balance between impact energy and air consumption, ensuring efficient rock breakage and fast penetration rates.

Detailed Features

▸High impact energy for fast drilling
▸Valveless design for reduced wear
▸Durable alloy steel construction
▸Optimized air consumption
▸Standard API connections
▸Easy maintenance and bit changes
▸Long service life
▸Reliable performance in hard rock

Packaging & Shipping

Each Kaishan K3 DTH hammer is packed in a sturdy wooden case with foam padding to prevent damage during transport. The case is then placed on a pallet and wrapped with plastic film for moisture protection. For bulk orders, hammers can be loaded into 20ft or 40ft containers. Standard delivery time is 15-30 days after order confirmation, depending on quantity. Shipping ports include Shanghai, Ningbo, or Qingdao, China. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on the K3 DTH hammer against manufacturing defects. Our dedicated after-sales team provides 24-hour online support and technical assistance. We supply genuine spare parts and offer on-site training for maintenance and operation. Our global network of distributors ensures quick access to service and parts. We are committed to minimizing your downtime and maximizing your drilling efficiency.

Frequently Asked Questions

What is the recommended air pressure for the Kaishan K3 DTH hammer?+

The K3 hammer is designed to operate efficiently at air pressures between 10-25 bar (145-362 psi), depending on the specific drilling conditions and bit size.

What sizes of DTH bits are compatible with the K3 hammer?+

The K3 hammer is typically used with bits ranging from 90mm to 130mm in diameter, but this can vary based on the shank type. Please consult our technical team for exact compatibility.

How often should I service the K3 DTH hammer?+

We recommend inspecting the hammer after every 100-150 drilling hours or whenever performance drops. Regular inspection of the piston, bit shank, and wear sleeves is essential for optimal performance.

Can the K3 hammer be used for water well drilling?+

Yes, the K3 is suitable for water well drilling when used with appropriate flushing media (air or foam) and bits designed for water well applications.

What is the warranty period for the K3 DTH hammer?+

Kaishan provides a 12-month warranty from the date of shipment for manufacturing defects. Normal wear parts are not covered under warranty.

Do you provide spare parts for the K3 hammer?+

Yes, we stock a full range of genuine spare parts for the K3 hammer, including pistons, cylinders, bit shanks, and seals. We can ship parts quickly to minimize downtime.
