📦 DTH Hammers
Kaishan K8 DTH Hammer for Water Well & Mining Drilling
Model: K8
The Kaishan K8 DTH hammer is a high-performance down-the-hole tool engineered for water well drilling, mining, and quarrying. With an 8-inch class design, it delivers powerful impact energy and reliable performance in hard rock formations. Compatible with standard DTH bits and drill pipes, the K8 ensures efficient penetration and long service life. Its robust alloy steel construction and precision machining reduce downtime and operating costs. Ideal for contractors seeking dependable drilling tools for medium to large diameter holes.

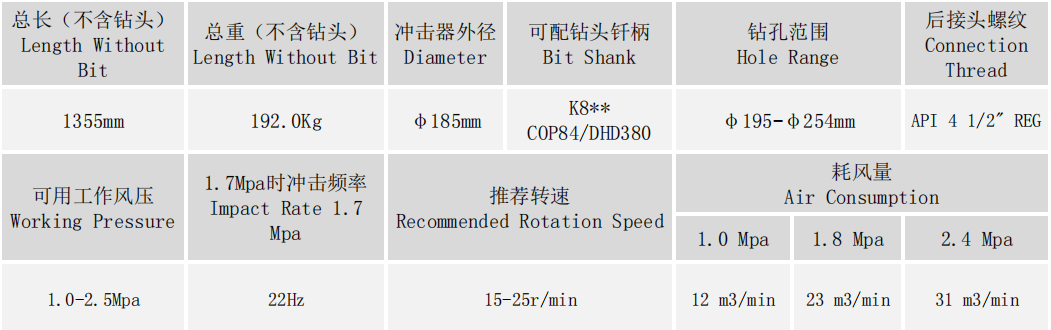

Technical Specifications
| Model | K8 |
| Type | DTH Hammer |
| Size | 8 inch |
| Application | Water well drilling, mining, quarrying |
| Material | Alloy steel |
| Weight | Approx. 180 kg |
| Packing | Wooden case |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Weight
Approx. 180 kg
Model
K8
Type
DTH Hammer
Size
8 inch
Application
Water well drilling, mining, quarrying
Material
Alloy steel
Packing
Wooden case
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
8-inch class DTH hammer for medium to large diameter drilling
High impact energy and fast penetration in hard rock
Durable alloy steel construction with heat treatment
Optimized air distribution for efficient operation
Compatible with standard DTH bits and drill pipes
Low maintenance and long service life
Applications
📍 Water Well Drilling
Efficient drilling of water wells in hard rock formations.
Solution: The K8 hammer delivers high penetration rates and reliable performance, reducing drilling time and cost.
📍 Mining Blast Hole Drilling
Drilling blast holes for open-pit and underground mining.
Solution: Its powerful impact energy ensures fast and accurate hole drilling, improving mining productivity.
📍 Quarrying
Drilling holes for rock blasting in quarries.
Solution: The K8's durable design withstands abrasive conditions, ensuring consistent performance and long life.
📍 Construction
Foundation drilling and rock anchoring in construction projects.
Solution: The hammer's versatility and reliability make it ideal for various construction drilling tasks.
High Pressure Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Type | Size | Application | Material | Inquire |
|---|---|---|---|---|---|---|---|
| K8This model | K8 | DTH Hammer | 8 inch | Water well drilling, mining, quarrying | Alloy steel | Get a Quote | |
| K10 | K10 | DTH Drill Bit (Down-the-Hole Button Bit) | 90–130 mm diameter (customizable) | Mining, quarrying, water well drilling, construction | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K3 | K3 | DTH Drill Bit | 76mm - 152mm | Mining, Quarrying, Water Well Drilling | Alloy Steel with Carbide Buttons | Get a Quote | |
| K4 | K4 | DTH Drill Bit | Φ110 mm (standard); other sizes available | Mining, water well drilling, quarrying, construction | Alloy steel body with carbide button inserts | Get a Quote | |
| K5 | K5 | DTH Button Bit | 130 mm - 152 mm diameter | Mining, quarrying, water well drilling, foundation engineering | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K6 | K6 | DTH Button Bit | 76mm - 152mm (3" - 6") | Mining, Quarrying, Water Well Drilling, Construction | Alloy Steel Body with Tungsten Carbide Buttons | Get a Quote | |
| K8 | K8 | DTH Drill Bit | 4 inch (102 mm) diameter | Mining, quarrying, water well drilling | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| K10 | K10 | DTH Hammer | 10 inch | Mining, Water Well, Quarry, Construction | Alloy Steel | Get a Quote | |
| K3 | K3 | DTH Hammer | 3 inch | Mining, quarrying, water well drilling, construction | Alloy steel | Get a Quote | |
| K30C | K30C | Down-the-Hole (DTH) Hammer | 3 inch (76.2 mm) nominal | Mining, quarrying, water well drilling, construction | High-quality alloy steel, heat-treated | Get a Quote | |
| K4 | K4 | DTH Hammer | 4 inch | Mining, water well, quarry, construction | Alloy steel, heat-treated | Get a Quote | |
| K40 | K40 | DTH Hammer | 4 inch | Mining, quarrying, water well drilling, construction | High-strength alloy steel | Get a Quote | |
| K40C | K40C | Down-The-Hole (DTH) Hammer | 4-inch class (105-130mm hole diameter) | Mining, water well, quarry, construction drilling | Alloy steel, heat-treated | Get a Quote | |
| K46 | K46 | DTH Hammer | 4 inch | Mining, Quarrying, Water Well Drilling, Construction | High-Strength Alloy Steel | Get a Quote | |
| K5 | K5 | Down The Hole (DTH) Hammer | 5 inch | Mining, quarrying, water well, construction | Alloy steel, heat-treated | Get a Quote | |
| K50 | K50 | Down-the-Hole (DTH) Hammer | 5-inch class | Mining, quarrying, water well drilling, construction | Alloy steel, heat-treated | Get a Quote | |
| K6 | K6 | DTH Hammer | 6 inch | Mining, Water Well, Quarrying | Alloy Steel | Get a Quote | |
| K80 | K80 | Down-the-Hole (DTH) Hammer | 8 inch (203 mm) | Mining, Quarrying, Water Well Drilling | Alloy Steel | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Top sub
- Cylinder
- Piston
- Bit retainer
- Check valve
- Drive chuck
- Air distributor
- Bottom sub
Working Principle
The Kaishan K8 DTH hammer operates on the principle of down-the-hole drilling, where the hammer is positioned directly above the drill bit at the bottom of the hole. Compressed air is supplied through the drill pipe to the hammer, driving a piston that strikes the bit with high impact energy. The bit then crushes the rock, and the air flow flushes cuttings out of the hole. This mechanism allows for efficient energy transfer and fast penetration, especially in hard rock formations. The hammer's internal design ensures optimal air distribution and minimal energy loss, resulting in high drilling efficiency and reduced fuel consumption.
Detailed Features
- ▸High impact energy for fast penetration
- ▸Durable alloy steel construction
- ▸Optimized air distribution system
- ▸Compatible with standard DTH bits
- ▸Low air consumption
- ▸Simple maintenance
- ▸Long service life
- ▸Reliable performance in hard rock
Packaging & Shipping
Each Kaishan K8 DTH hammer is packed in a wooden case or according to customer requirements, suitable for sea and air transport. Standard export packaging ensures protection during shipping. Delivery time is typically 15-30 days after order confirmation. Ports of shipment include Shanghai, Ningbo, or as per customer request.
After-Sales Service
Kaishan offers a 12-month warranty on the K8 DTH hammer against manufacturing defects. Our 24-hour customer service team provides technical support and troubleshooting. We offer training for operators and maintenance personnel. Genuine spare parts are available for quick delivery to minimize downtime.
Frequently Asked Questions
What is the recommended hole diameter for the Kaishan K8 DTH hammer?+
The K8 is designed for drilling holes with a diameter of 203-254mm (8-10 inches).
What is the air consumption of the K8 hammer?+
The air consumption is approximately 15-25 m³/min at 1.0-2.5 MPa working pressure.
Is the K8 compatible with other brands' DTH bits?+
Yes, the K8 uses standard shank connections and is compatible with most DTH bits available on the market.
What is the warranty period for the K8 hammer?+
We offer a 12-month warranty against manufacturing defects under normal operating conditions.
Can the K8 be used for both water well and mining drilling?+
Yes, the K8 is versatile and suitable for water well drilling, mining, quarrying, and construction.
What is the delivery time for the K8 hammer?+
Standard delivery time is 15-30 days after order confirmation, depending on quantity and destination.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.
Need Technical Support?
Request information and get a quote from our engineers.
Recommended System
Rig + air compressor + drilling tools matched to your project. Get pre-matching advice from our engineers.
Recommended Equipment Configuration
Matched from real machine parameters — rig, compressor, hammer, bit and rod working as one system.
CDC-450J
- Hole range
- 105–350
- Drilling depth
- 450 m
Why matched
Parameter-matched to the machine on this page.
LGCY-33/25
- Working pressure
- 25 bar
- Air flow
- 33 m³/min
Why matched
Covers the required 10 bar / 31 m³/min air demand (rated 25 bar / 33 m³/min).
K6
- Hole range
- 152–300
- Pressure class
- 高风压 (High pressure)
Why matched
Hole range 152–300 mm covers your requirement 195–254 mm.
System requirement: 10 bar / 31 m³/min · 195–254 mm
