Kaishan KG520 DTH Drilling Rig

Name: Kaishan KG520 DTH Drilling Rig
Brand: Kaishan
SKU: KG520
Availability: InStock

Model: KG520

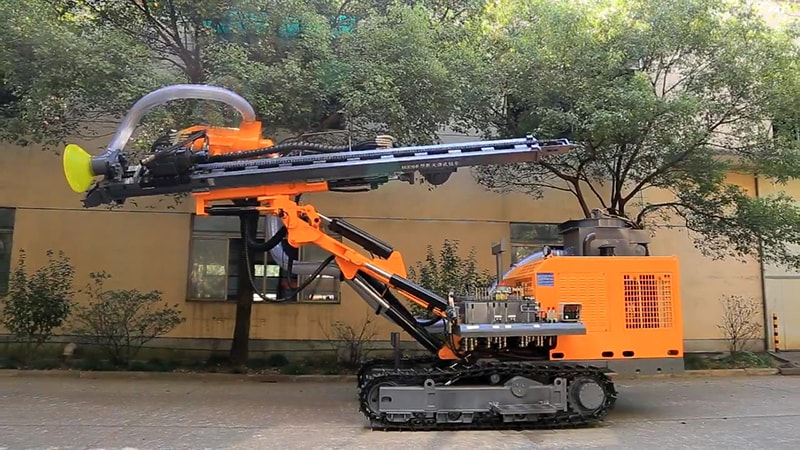

The Kaishan KG520 is a high-performance DTH drilling rig engineered for demanding rock drilling in mining, quarrying, and water well projects. Built around a robust hydraulic system and a powerful diesel engine, this Down-The-Hole drill rig delivers efficient penetration in hard rock formations. It supports hole diameters from 90 mm to 165 mm and achieves drilling depths up to 30 meters in a single pass, with a maximum drilling depth of 100 meters using extension rods. The KG520 combines a heavy-duty crawler undercarriage, high-torque rotary head, and reliable dust suppression system to ensure stable operation and cleaner jobsites. Its compact structure and ergonomic control panel allow one operator to manage tramming, leveling, and drilling with ease. Whether you are blasting in an open-pit mine, quarrying granite, or developing water wells, the KG520 offers a cost-effective, fuel-efficient, and durable solution. Kaishan's global service network and genuine spare parts support keep your drilling operations running with minimal downtime.

Best For

Open-Pit Mining Quarrying Water Well Drilling Construction and Foundation

Technical Specifications

Model	Kaishan KG520
Drilling Depth	30 m (single pass); 100 m (with extension rods)
Hole Diameter	90–165 mm
Drilling Method	Down-The-Hole (DTH) drilling
Engine Power	194 kW (260 HP)
Weight	12,000 kg
Dimension (L×W×H)	7,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG520 is a crawler-mounted Down-The-Hole (DTH) drilling rig designed for high-efficiency rock drilling in mining, quarrying, construction, and water well applications. As part of Kaishan's proven KG series, the KG520 integrates a powerful diesel engine, a heavy-duty hydraulic system, and a durable undercarriage to deliver reliable performance in the most challenging geological conditions. It is capable of drilling holes from 90 mm to 165 mm in diameter, making it a versatile choice for both production drilling and exploration tasks. ## Technical Features The KG520 features a high-torque rotary head and a robust feed system that ensures stable penetration rates in hard rock. The hydraulic system is designed for smooth and precise control of feed force, rotation speed, and tramming, allowing operators to adapt quickly to changing rock formations. A high-efficiency dust collector reduces airborne particles, improving worksite safety and environmental compliance. The rig is equipped with a comfortable, ergonomic control panel that centralizes all drilling and tramming functions, reducing operator fatigue during long shifts. The crawler undercarriage provides excellent stability and mobility on rough terrain, while the articulated boom enables accurate positioning of the drill hole. ## Applications The KG520 is widely used in open-pit mining, quarrying, road construction, and water well drilling. In mining, it handles production drilling and pre-split drilling with precision. In quarries, it delivers consistent performance in granite, limestone, and basalt. For water well projects, the KG520 can be equipped with optional accessories to drill deeper holes, making it a flexible solution for rural water supply and irrigation. Its compact design also makes it suitable for urban construction and foundation work where space is limited. ## Reliability and Service Kaishan is a globally recognized manufacturer of drilling equipment, and the KG520 is built to withstand continuous operation in harsh environments. The rig's components are sourced from reputable suppliers and assembled under strict quality control. Kaishan's worldwide service network provides technical support, operator training, and genuine spare parts to ensure maximum uptime and low total cost of ownership.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–165 mm

Drilling Depth

30 m (single pass); 100 m (with extension rods)

Engine Power

194 kW (260 HP)

Weight

12,000 kg

Dimension (L×W×H)

7,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine delivers reliable performance in hard rock drilling

✓

Drilling depth up to 30 m in single pass and 100 m with extension rods

✓

Hole diameter range of 90–165 mm for versatile applications

✓

High-torque rotary head ensures efficient penetration in challenging formations

✓

Crawler undercarriage provides excellent stability and mobility on rough terrain

✓

Ergonomic control panel centralizes drilling and tramming functions

Applications

📍 Open-Pit Mining

Production drilling and pre-split drilling in hard rock mines.

Solution: The KG520's high penetration rate and precise hole positioning reduce drilling time and improve blasting efficiency.

📍 Quarrying

Drilling blast holes in granite, limestone, and basalt quarries.

Solution: With a durable rotary head and dust suppression system, the KG520 maintains high productivity and cleaner operations.

📍 Water Well Drilling

Drilling water wells for rural water supply and irrigation.

Solution: Optional extension rods and accessories allow the KG520 to reach depths up to 100 m, providing a reliable water well solution.

📍 Construction and Foundation

Rock drilling for foundation work, road construction, and urban projects.

Solution: The compact crawler design and articulated boom enable precise drilling in confined spaces with minimal disturbance.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG520This model	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920A	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG920B	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system

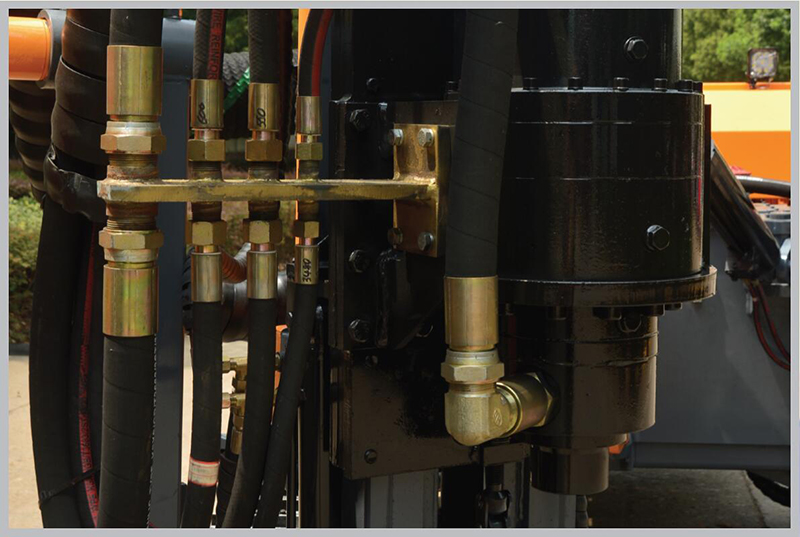

Rotary head
Feed beam
Crawler undercarriage

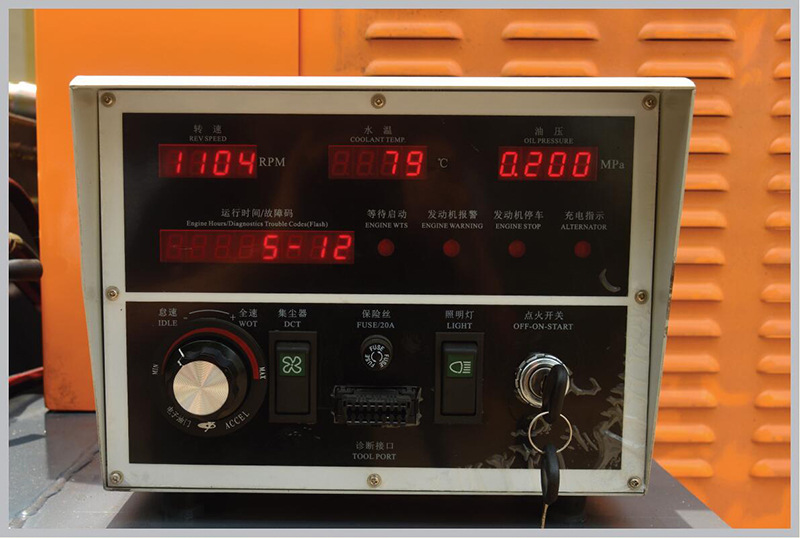

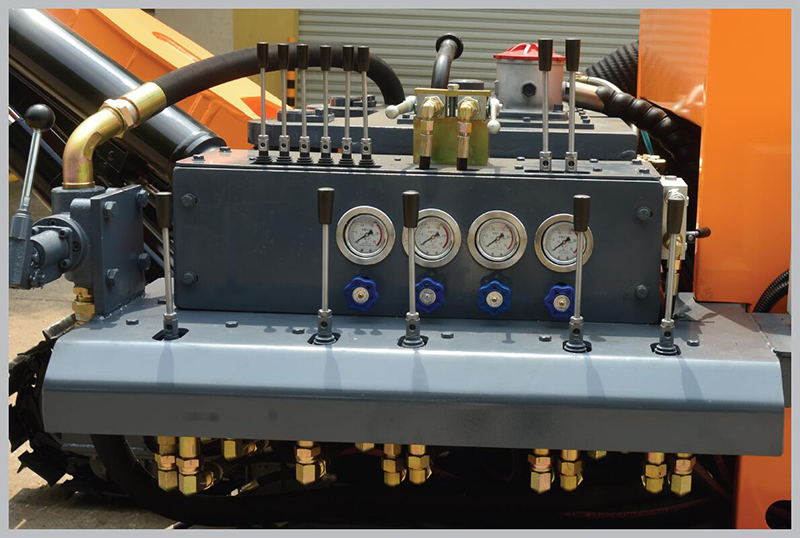

Control panel

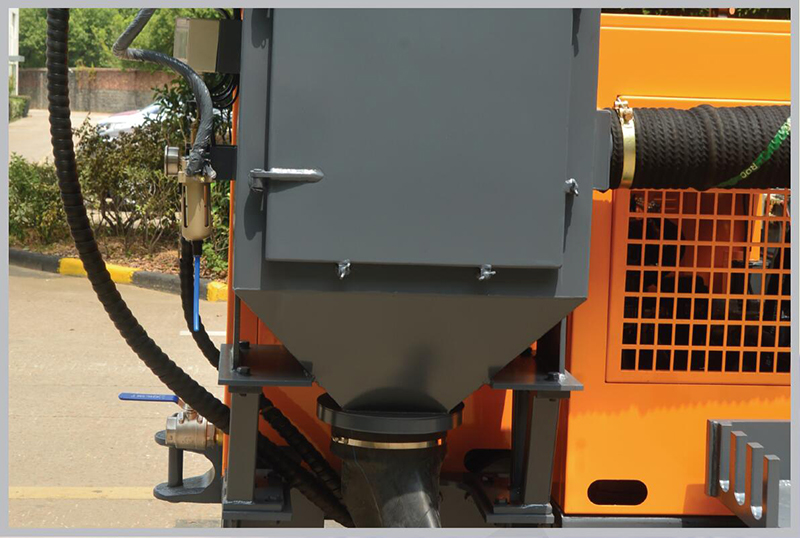

Dust collector
