📦 Surface Mining Drilling Rigs

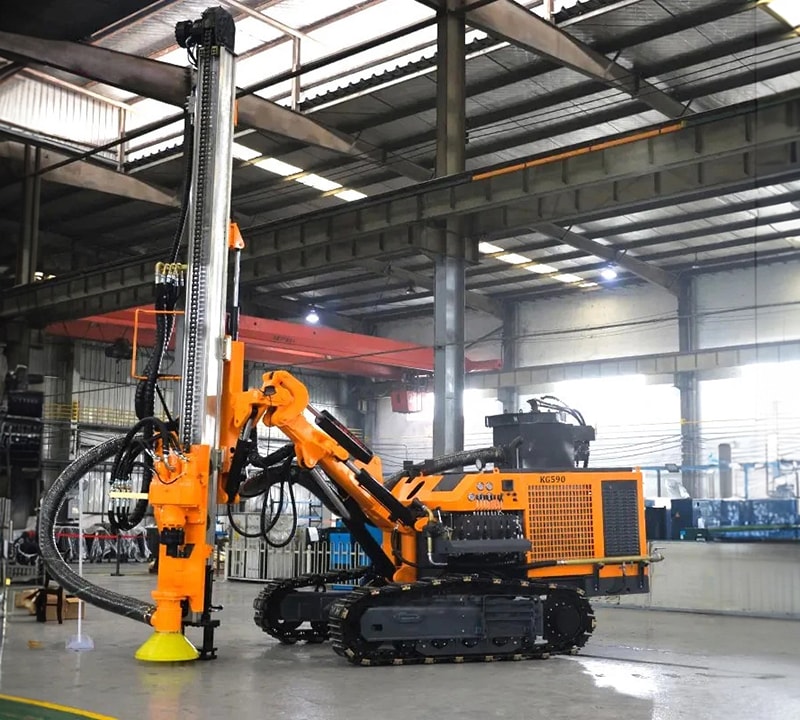

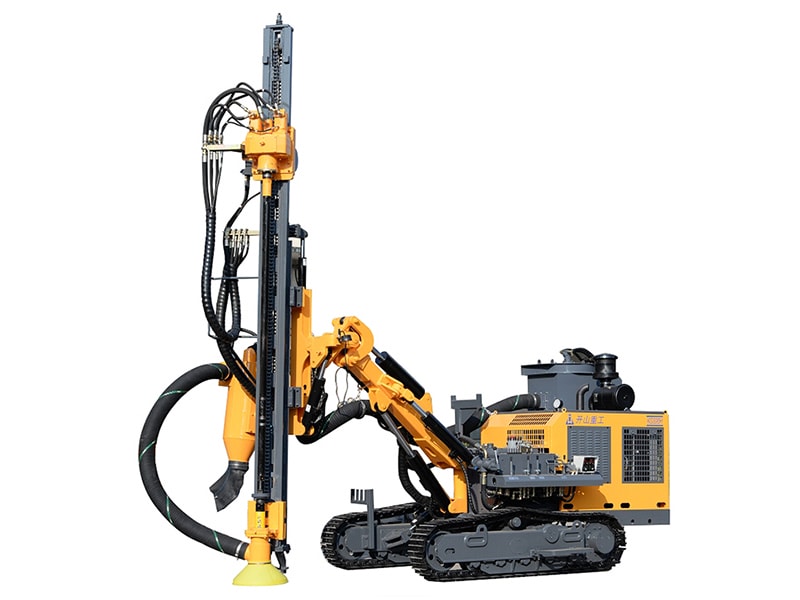

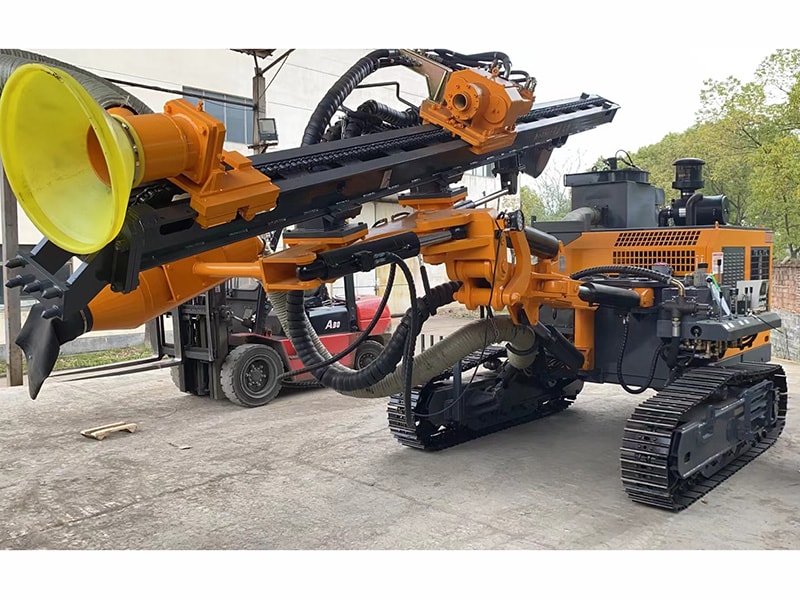

Kaishan KG590 Open-Pit DTH Drilling Rig

Name: Kaishan KG590 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KG590
Availability: InStock

Model: KG590

The Kaishan KG590 is a high-performance open-pit DTH drilling rig engineered for quarrying, mining, and construction projects. Built to deliver reliable blast-hole drilling in demanding rock conditions, this rig combines a powerful diesel engine with an efficient rotary percussion system. It supports hole diameters from 90 to 165 mm and achieves drilling depths up to 30 meters, making it ideal for large-scale open-pit operations. The KG590 features a robust tracked undercarriage for stable positioning on rough terrain, a high-capacity dust collection system for cleaner worksites, and an ergonomic operator cabin for enhanced comfort and safety. With fast penetration rates, low fuel consumption, and easy maintenance, the Kaishan KG590 maximizes productivity and reduces cost per meter drilled. Whether you are developing a new quarry or expanding an existing mine, this rig delivers consistent performance and long service life.

Best For

Open-Pit Mining Quarrying & Aggregate Production Construction & Infrastructure Dimensional Stone Extraction

Technical Specifications

Model	Kaishan KG590
Drilling Depth	30 m
Hole Diameter	90–165 mm
Drilling Method	DTH (Down-The-Hole) Hammer Drilling
Engine Power	194 kW (260 HP)
Weight	15,000 kg
Dimension (L×W×H)	8,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG590 is a tracked open-pit DTH drilling rig designed for high-efficiency blast-hole drilling in quarries, open-pit mines, and infrastructure projects. It is engineered to deliver superior performance in medium to hard rock formations, with a drilling depth of up to 30 meters and hole diameters ranging from 90 to 165 mm. The rig integrates a powerful diesel engine, a reliable rotary head, and an advanced dust suppression system to ensure productive and environmentally responsible operation. ## Technical Features The KG590 is equipped with a high-torque rotary head and a heavy-duty feed system that provides smooth and stable drilling. Its hydraulic system is optimized for precise control of feed force, rotation speed, and percussion pressure, allowing operators to adapt to varying rock conditions. The tracked undercarriage offers excellent mobility and stability on uneven ground. A spacious, sound-insulated cabin with ergonomic controls reduces operator fatigue and improves safety. The on-board dust collector captures fine particles, maintaining a clean working environment and complying with environmental regulations. ## Applications This rig is widely used in open-pit mining for copper, iron, gold, and coal, as well as in quarrying for aggregates and dimension stone. It is also suitable for construction projects such as road cuts, dam foundations, and site preparation. The KG590's versatility and reliability make it a valuable asset for contractors and mining companies seeking to increase drilling efficiency and reduce operational costs. ## Why Choose Kaishan KG590 With decades of experience in drilling equipment, Kaishan has engineered the KG590 to meet the rigorous demands of modern open-pit operations. The rig combines robust construction, advanced hydraulic technology, and user-friendly design to deliver outstanding productivity and low total cost of ownership. Backed by a global service network and comprehensive after-sales support, the KG590 ensures maximum uptime and peace of mind.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–165 mm

Drilling Depth

30 m

Engine Power

194 kW (260 HP)

Weight

15,000 kg

Dimension (L×W×H)

8,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine delivers high torque and fast penetration in hard rock

✓

Drilling depth up to 30 m and hole diameter 90–165 mm for versatile blast-hole patterns

✓

Advanced dust collection system ensures a cleaner and safer worksite

✓

Tracked undercarriage provides excellent mobility and stability on rough terrain

✓

Ergonomic operator cabin with joystick controls reduces fatigue and boosts efficiency

✓

Heavy-duty components and easy maintenance design extend service intervals

Applications

📍 Open-Pit Mining

Blast-hole drilling for copper, iron, gold, and coal mines.

Solution: The KG590's high penetration rate and depth capacity optimize drilling patterns, reducing cost per ton.

📍 Quarrying & Aggregate Production

Drilling blast holes for limestone, granite, and basalt quarries.

Solution: With adjustable hole diameters and reliable dust control, the KG590 ensures efficient and compliant quarry operations.

📍 Construction & Infrastructure

Foundation drilling, road cuts, and dam site preparation.

Solution: The rig's mobility and precise control allow accurate drilling in confined or uneven job sites.

📍 Dimensional Stone Extraction

Drilling vertical and inclined holes for marble and granite blocks.

Solution: The KG590's smooth feed system and high accuracy minimize overbreak and maximize stone recovery.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG590This model	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920A	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG920B	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Rotary head
Feed system
DTH hammer and bit
Dust collector
Tracked undercarriage
Operator cabin
Hydraulic system

Working Principle

The Kaishan KG590 operates on the principle of down-the-hole (DTH) drilling, where a pneumatic hammer is placed directly behind the drill bit. High-pressure air is supplied through the drill string to drive the hammer's piston, which strikes the bit with high-frequency impacts. Simultaneously, the rotary head turns the drill string, indexing the bit for efficient rock breakage. The feed system applies optimal thrust to keep the bit in contact with the rock, while the flushing air removes cuttings from the hole. The rig's hydraulic system controls rotation speed, feed force, and percussion pressure to match rock conditions. A dust collector captures airborne particles at the collar, ensuring a clean and safe working environment. This combination of impact and rotation delivers fast penetration rates and straight, accurate holes in medium to hard rock formations.

Detailed Features

▸High drilling efficiency with fast penetration rates
▸Robust and durable construction for demanding environments
▸Advanced dust suppression for environmental compliance
▸Ergonomic controls and comfortable cabin for operator safety
▸Easy maintenance access to key components
▸Reliable hydraulic system for precise control
▸Mobility on rough terrain with tracked undercarriage
▸Low fuel consumption and operating costs

Packaging & Shipping

The Kaishan KG590 is shipped in a disassembled state for efficient container loading. The main body, boom, and cabin are packed in a 40HQ container, while the drill pipes and accessories are secured in wooden crates. Each unit is protected with anti-rust coating and waterproof wrapping. Standard delivery time is 30–45 days after order confirmation. Shipping ports include Shanghai, Qingdao, or as per customer request. All packages are clearly labeled with handling instructions and component lists.

After-Sales Service

Kaishan offers comprehensive after-sales support for the KG590. The rig comes with a 12-month warranty or 2000 working hours (whichever comes first) covering major components. A 24-hour technical hotline provides prompt assistance. We offer on-site installation and commissioning services, as well as operator training to ensure safe and efficient use. A global network of spare parts warehouses guarantees quick availability of consumables and critical components. Regular maintenance kits and service contracts are available to maximize uptime and extend equipment life.

Frequently Asked Questions

What hole diameter and drilling depth does the KG590 support?+

The KG590 drills hole diameters from 90 to 165 mm and reaches a drilling depth of up to 30 m. It uses DTH hammer drilling for blast-hole patterns in open-pit work.

What engine powers the Kaishan KG590?+

The KG590 is powered by a 194 kW (260 HP) diesel engine. The rig weighs 15,000 kg and measures 8,500 × 2,500 × 3,200 mm.

What air supply does the KG590 need for DTH hammer drilling?+

The KG590 uses DTH hammer drilling with a rotary percussion system, so the DTH hammer and button bit must match the 90–165 mm hole diameter. Air consumption depends on the hammer selected for the hole size.

Where can the KG590 be used?+

The KG590 suits open-pit mining, quarrying and aggregate production, construction and infrastructure, and dimensional stone extraction. Its tracked undercarriage provides mobility and stability on rough terrain.

How is the Kaishan KG590 shipped?+

The KG590 is shipped disassembled for container loading, with the main body, boom and cabin in a 40HQ container and drill pipes and accessories in wooden crates. Anti-rust coating and waterproof wrapping protect each unit, and standard delivery is 30–45 days after order confirmation.

What warranty and after-sales support come with the KG590?+

The KG590 carries a 12-month warranty or 2000 working hours, whichever comes first, covering major components. A 24-hour technical hotline, on-site installation and commissioning, operator training, and a global spare parts warehouse network are offered.

What maintenance features does the KG590 have?+

The KG590 uses heavy-duty components and an easy maintenance design to extend service intervals. Easy maintenance access to key components and a reliable hydraulic system support precise control.
