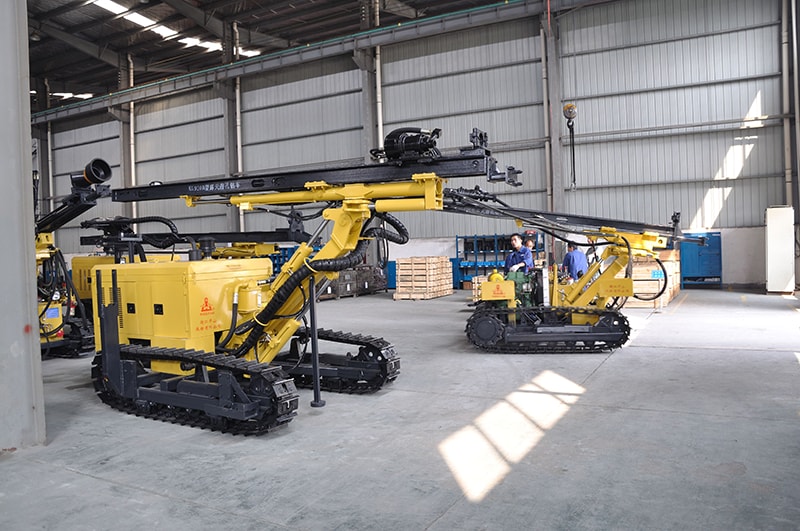

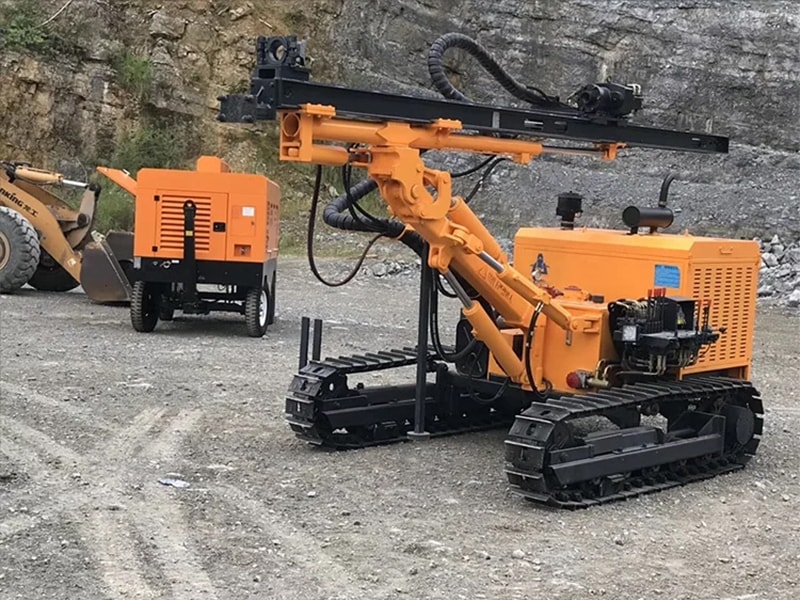

Kaishan KG920B DTH Drilling Rig

Name: Kaishan KG920B DTH Drilling Rig
Brand: Kaishan
SKU: KG920B
Availability: InStock

Model: KG920B

The Kaishan KG920B is a high-performance DTH drilling rig designed for demanding mining, quarrying, and water well applications. Built for efficiency and reliability, this rig delivers powerful drilling capabilities with a maximum depth of 25 meters and hole diameters from 90 to 165 mm. Powered by a robust 194 kW diesel engine, the KG920B ensures consistent performance even in the toughest rock formations. Its advanced hydraulic system and durable construction make it ideal for contractors seeking a versatile and cost-effective drilling solution. With a compact design and easy maneuverability, the KG920B excels in space-constrained job sites while maintaining high productivity. Whether you're drilling blast holes or water wells, the Kaishan KG920B offers the perfect balance of power, precision, and durability.

Best For

Open-Pit Mining Quarrying Water Well Drilling Construction

Technical Specifications

Model	KG920B
Drilling Depth	25 m
Hole Diameter	90-165 mm
Drilling Method	DTH (Down-The-Hole)
Engine Power	194 kW
Weight	12,000 kg
Dimension (L×W×H)	7,500 × 2,300 × 2,800 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG920B is a track-mounted down-the-hole (DTH) drilling rig engineered for high-efficiency drilling in mining, quarrying, and water well projects. As a leading model in Kaishan's DTH series, it combines advanced hydraulic technology with a rugged design to deliver reliable performance in the most challenging environments. With a maximum drilling depth of 25 meters and a hole diameter range of 90–165 mm, the KG920B is ideal for blast hole drilling, foundation work, and shallow water well applications. ## Technical Features The KG920B is powered by a 194 kW diesel engine, providing ample power for demanding drilling tasks. Its high-torque rotary head and powerful feed system ensure fast penetration rates, while the advanced dust collection system minimizes environmental impact. The rig features a robust undercarriage with high ground clearance, allowing easy movement over rough terrain. The ergonomic control panel and spacious cabin enhance operator comfort and safety, reducing fatigue during long shifts. Additionally, the KG920B is equipped with a reliable hydraulic system from internationally renowned brands, ensuring smooth and precise operation. ## Applications This drilling rig is widely used in open-pit mining, quarrying, construction, and water well drilling. Its versatility makes it suitable for drilling blast holes, anchor holes, and drainage holes. The KG920B excels in medium-hard to hard rock formations, thanks to its DTH hammer compatibility. Whether you are working in a limestone quarry or a granite mine, the KG920B delivers consistent results. Its compact dimensions (7,500 × 2,300 × 2,800 mm) and relatively low weight (12,000 kg) make it easy to transport between job sites, reducing mobilization costs. ## Why Choose Kaishan KG920B? Kaishan is a globally recognized brand in drilling equipment, known for its quality and innovation. The KG920B is backed by a comprehensive after-sales service network, ensuring minimal downtime and maximum productivity. With its combination of power, efficiency, and durability, the KG920B is a smart investment for contractors looking to enhance their drilling operations.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90-165 mm

Drilling Depth

25 m

Engine Power

194 kW

Weight

12,000 kg

Dimension (L×W×H)

7,500 × 2,300 × 2,800 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 194 kW diesel engine for demanding drilling conditions

✓

Maximum drilling depth of 25 meters and hole diameter of 90–165 mm

✓

Advanced hydraulic system for smooth and precise operation

✓

Dust collection system for environmentally friendly drilling

✓

Compact and maneuverable design for easy transport and setup

✓

Ergonomic cabin with intuitive controls for operator comfort

✓

Durable undercarriage for rough terrain mobility

✓

Compatible with various DTH hammers for versatile applications

Applications

📍 Open-Pit Mining

Drilling blast holes in medium to hard rock formations for efficient fragmentation.

Solution: The KG920B's high penetration rate and reliable DTH hammer compatibility ensure fast and accurate blast hole drilling, optimizing mining productivity.

📍 Quarrying

Production drilling in limestone, granite, and other quarry materials.

Solution: With its powerful engine and robust feed system, the KG920B delivers consistent performance in quarry environments, reducing drilling costs per ton.

📍 Water Well Drilling

Shallow water well drilling for agricultural and domestic use.

Solution: The KG920B's ability to drill up to 25 meters with various diameters makes it ideal for water well projects, providing a cost-effective solution.

📍 Construction

Foundation drilling, anchor holes, and site preparation.

Solution: The rig's compact size and maneuverability allow it to work in confined spaces, while its power ensures efficient drilling for construction projects.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG920BThis model	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920A	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system
Rotary head
Feed system
Undercarriage
Dust collector
Control panel
DTH hammer and bit

Working Principle

The Kaishan KG920B operates on the down-the-hole (DTH) drilling principle, where a pneumatic hammer is positioned directly behind the drill bit. High-pressure air is supplied through the drill string to the hammer, which delivers rapid impacts to the bit, fracturing the rock. Simultaneously, the drill string rotates slowly, indexing the bit for even wear and efficient cutting. The cuttings are flushed out of the hole by the exhaust air, ensuring a clean hole. The rig's hydraulic system controls the feed force and rotation speed, optimizing drilling parameters for different rock types. The KG920B's diesel engine powers the hydraulic pumps and air compressor, providing the necessary energy for the drilling process. This method is highly efficient in hard rock formations, offering faster penetration rates compared to rotary drilling.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Powerful and reliable diesel engine
▸Advanced hydraulic controls for precision
▸Dust suppression system for clean operation
▸Heavy-duty undercarriage for stability
▸Comfortable and safe operator cabin
▸Easy maintenance access points
▸Global after-sales support

Packaging & Shipping

The Kaishan KG920B is shipped in a standard export packing, suitable for container or flat rack transportation. It is secured and protected against corrosion during transit. Delivery time is typically 30-45 days after order confirmation. Port of departure: Shanghai or Ningbo, China.

After-Sales Service

Kaishan offers a 12-month warranty on the KG920B, covering major components. Our 24/7 technical support team is available to assist with any issues. We provide on-site training for operators and maintenance personnel. A comprehensive spare parts inventory ensures quick delivery of replacement parts, minimizing downtime.

Frequently Asked Questions

What hole diameter and depth can the KG920B drill?+

The KG920B drills hole diameters from 90 to 165 mm to a maximum drilling depth of 25 m. It uses the DTH (down-the-hole) drilling method. This range covers blast hole and shallow water well work.

What engine powers the KG920B?+

The KG920B is powered by a 194 kW diesel engine. This engine drives the rig during demanding drilling conditions. The rig weighs 12,000 kg.

What DTH hammer and air supply does the KG920B need?+

The KG920B is compatible with various DTH hammers for versatile applications. It is a DTH drilling rig, so the hammer is matched to the 90-165 mm hole diameter range. The product data does not list a required air supply figure.

What applications suit the KG920B?+

The KG920B is used for open-pit mining, quarrying, water well drilling and construction. Its 25 m drilling depth and 90-165 mm hole diameter suit blast hole drilling and shallow water wells. A durable undercarriage supports rough terrain mobility.

How does the KG920B handle dust and operator comfort?+

The KG920B has a dust collection system for environmentally friendly drilling. An ergonomic cabin with intuitive controls supports operator comfort. A heavy-duty undercarriage provides stability.

What are the KG920B transport dimensions and weight?+

The KG920B measures 7,500 x 2,300 x 2,800 mm and weighs 12,000 kg. Its compact and maneuverable design allows easy transport and setup. It ships in standard export packing for container or flat rack transportation.

What warranty and support come with the KG920B?+

Kaishan offers a 12-month warranty on the KG920B covering major components. A 24/7 technical support team is available, with on-site training for operators and maintenance personnel. A comprehensive spare parts inventory supports quick delivery of replacement parts.

How is the KG920B shipped and what is the delivery time?+

The KG920B ships in standard export packing suitable for container or flat rack transportation. Delivery time is typically 30-45 days after order confirmation. The port of departure is Shanghai or Ningbo, China.
