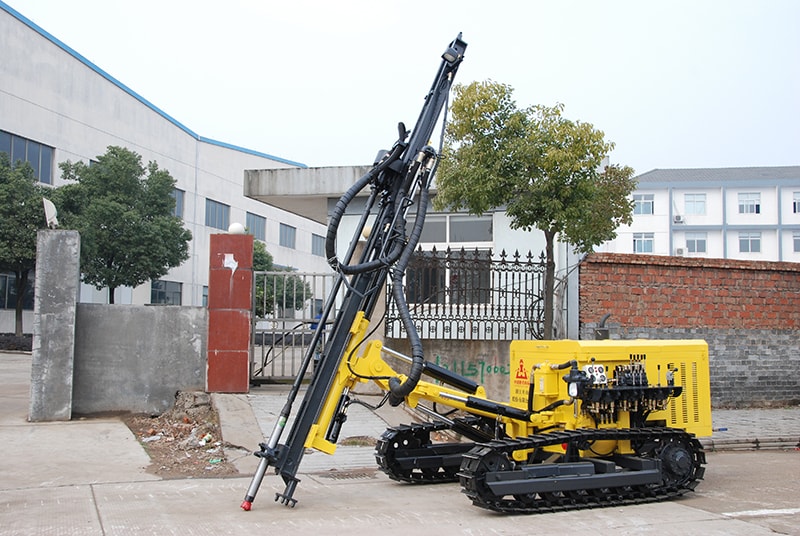

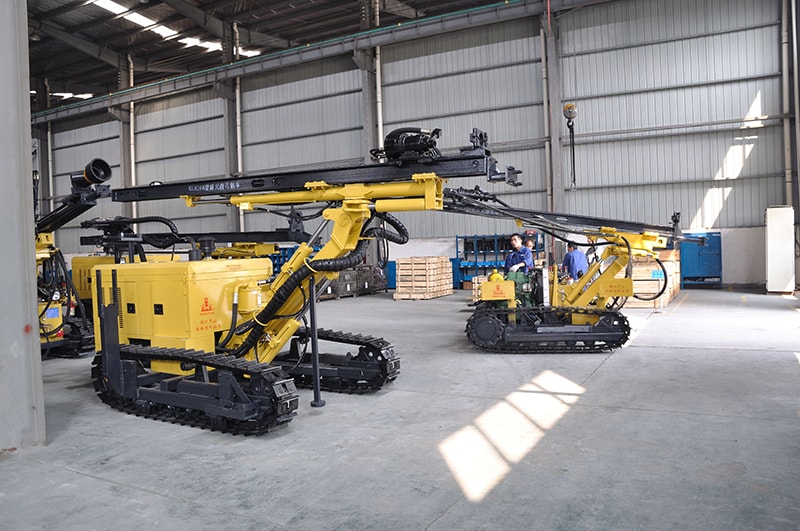

Kaishan KG920A DTH Drilling Rig

Name: Kaishan KG920A DTH Drilling Rig
Brand: Kaishan
SKU: KG920A
Availability: InStock

Model: KG920A

The Kaishan KG920A is a high-performance DTH drilling rig engineered for demanding open-pit mining, quarrying, and water well applications. Built around a robust crawler chassis and powered by a reliable diesel engine, this rig delivers efficient down-the-hole hammer drilling with a maximum depth of 25 meters and hole diameters from 90 to 165 mm. Its advanced hydraulic system ensures smooth tramming, stable positioning, and rapid penetration rates even in hard rock formations. The KG920A integrates a high-efficiency dust collection system, ergonomic operator cabin, and easy-access maintenance points to maximize uptime and productivity. Whether you are blasting in a limestone quarry or drilling water wells in remote areas, the KG920A offers the durability, mobility, and precision you need to lower cost per meter. With Kaishan's global service network and proven engineering, this rig is a smart investment for contractors seeking a versatile and reliable drilling solution.

Best For

Open-Pit Mining Quarrying & Aggregate Production Water Well Drilling Construction & Infrastructure

Technical Specifications

Model	Kaishan KG920A
Drilling Depth	25 m
Hole Diameter	90–165 mm
Drilling Method	DTH (Down-The-Hole) Hammer
Engine Power	118 kW (158 hp)
Weight	12,000 kg
Dimension (L×W×H)	8,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG920A is a crawler-mounted down-the-hole (DTH) drilling rig designed for high-capacity drilling in mining, quarrying, and water well construction. It combines a powerful diesel engine, advanced hydraulic system, and robust undercarriage to deliver reliable performance in the most challenging environments. With a drilling depth of up to 25 meters and hole diameters ranging from 90 to 165 mm, the KG920A is ideal for blast hole drilling and shallow water well applications. ## Technical Features The KG920A features a heavy-duty hydraulic system that provides smooth and precise control of the drill boom, feed, and rotation. The rig is equipped with a high-torque rotary head and a powerful DTH hammer, ensuring fast penetration in hard rock. The dust collection system significantly reduces airborne particles, improving operator safety and environmental compliance. The ergonomic operator cabin offers excellent visibility and comfort, while the centralized maintenance points simplify servicing. The crawler chassis ensures stable tramming on rough terrain, and the articulated boom allows accurate positioning of the drill hole. ## Applications The KG920A excels in open-pit mining, quarrying, and construction sites where efficient blast hole drilling is required. It is also suitable for water well drilling in rural and remote areas, thanks to its mobility and self-contained design. The rig can handle various rock types, from limestone and granite to sandstone and shale. Its compact size and maneuverability make it a valuable asset for contractors working in confined spaces or on uneven ground. ## Why Choose Kaishan KG920A Kaishan is a global leader in drilling equipment, and the KG920A reflects decades of engineering expertise. The rig is built with high-quality components, ensuring long service life and minimal downtime. It offers an excellent balance of power, efficiency, and affordability, making it a cost-effective solution for drilling professionals. With Kaishan's worldwide service network and genuine spare parts availability, you can count on the KG920A to keep your projects on schedule.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–165 mm

Drilling Depth

25 m

Engine Power

118 kW (158 hp)

Weight

12,000 kg

Dimension (L×W×H)

8,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine delivers reliable performance in remote areas

✓

Crawler-mounted chassis ensures excellent mobility on rough terrain

✓

DTH hammer system provides fast penetration in hard rock

✓

Drilling depth up to 25 m and hole diameter 90–165 mm

✓

High-efficiency dust collection system for a safer work environment

✓

Ergonomic operator cabin with superior visibility and comfort

✓

Centralized maintenance points reduce service time and cost

✓

Robust hydraulic system for precise boom and feed control

Applications

📍 Open-Pit Mining

Blast hole drilling in iron, copper, gold, and coal mines.

Solution: The KG920A's powerful DTH hammer and stable crawler chassis ensure accurate hole placement and high productivity, reducing drilling costs per ton.

📍 Quarrying & Aggregate Production

Drilling blast holes in limestone, granite, and basalt quarries.

Solution: With a dust collection system and efficient hydraulic controls, the KG920A maintains a clean and safe site while delivering consistent drilling performance.

📍 Water Well Drilling

Shallow water well drilling for agricultural and domestic use.

Solution: The rig's mobility and self-contained design allow quick setup and drilling in remote locations, providing reliable water access.

📍 Construction & Infrastructure

Foundation drilling, rock anchoring, and site preparation.

Solution: The KG920A's precise boom positioning and versatile drilling parameters make it suitable for various construction drilling tasks.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG920AThis model	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920B	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Crawler undercarriage
Diesel engine
Hydraulic system
Rotary head
Drill boom
Feed mechanism
Dust collection system
Operator cabin

Working Principle

The Kaishan KG920A operates on the down-the-hole (DTH) drilling principle. A pneumatic hammer, attached to the drill string, is lowered into the hole and impacts the rock directly while rotating slowly. The hammer is powered by compressed air, which is supplied by a separate air compressor (not included). The rig's hydraulic system drives the rotary head, feed chain, and crawler tracks. The operator controls the drilling process from the cabin, adjusting feed force, rotation speed, and air volume to match rock conditions. As the hole deepens, the drill string is extended by adding rods. Cuttings are flushed out of the hole by the exhaust air and collected by the dust suppression system. This method achieves high penetration rates in hard rock with minimal deviation, making the KG920A ideal for blast hole and water well drilling.

Detailed Features

▸Powerful diesel engine for reliable performance
▸Crawler-mounted for rough terrain mobility
▸DTH hammer for fast penetration in hard rock
▸Drilling depth up to 25 m and diameter 90–165 mm
▸High-efficiency dust collection system
▸Ergonomic operator cabin with excellent visibility
▸Centralized maintenance points for easy servicing
▸Robust hydraulic system for precise control

Packaging & Shipping

The Kaishan KG920A is shipped in a disassembled state for efficient transport. The main body, boom, and crawler are packed in heavy-duty steel frames and wrapped with protective film. Smaller components and accessories are packed in wooden cases. The rig is loaded into 40HQ containers, with typically one unit per container. Delivery time is 30–45 days after order confirmation, depending on destination. Shipping ports include Shanghai, Ningbo, or Qingdao, China. All packages are marked with handling instructions and lifting points.

After-Sales Service

Kaishan offers comprehensive after-sales service for the KG920A. The rig comes with a 12-month warranty or 2000 working hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting. We provide on-site installation and commissioning services, as well as operator training. Genuine spare parts are available through our global distribution network, ensuring quick delivery. Regular maintenance kits and service contracts are also offered to maximize uptime and extend equipment life.

Frequently Asked Questions

What hole diameter and drilling depth can the KG920A achieve?+

The KG920A drills hole diameters from 90 to 165 mm to a maximum drilling depth of 25 m. It uses DTH (down-the-hole) hammer drilling. This range covers blast hole drilling and shallow water well applications.

What engine powers the Kaishan KG920A?+

The KG920A is powered by a 118 kW (158 hp) diesel engine. The diesel engine is stated for reliable performance in remote areas. The rig weighs 12,000 kg.

What are the dimensions of the KG920A?+

The KG920A measures 8,500 × 2,500 × 3,200 mm (L×W×H). It is crawler-mounted for mobility on rough terrain. The rig weighs 12,000 kg.

What applications suit the KG920A DTH drilling rig?+

The KG920A suits open-pit mining, quarrying and aggregate production, water well drilling, and construction and infrastructure. Its 90–165 mm hole diameter and 25 m drilling depth fit blast hole drilling and shallow water wells. The crawler-mounted chassis provides mobility on rough terrain.

How is the KG920A packed and shipped?+

The KG920A is shipped disassembled, with the main body, boom and crawler packed in heavy-duty steel frames and wrapped with protective film. Smaller components and accessories are packed in wooden cases. The rig is loaded into 40HQ containers, typically one unit per container, with delivery time of 30–45 days after order confirmation.

What after-sales service and warranty come with the KG920A?+

The KG920A comes with a 12-month warranty or 2000 working hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting. On-site installation and commissioning services, operator training, and genuine spare parts through the global distribution network are provided.

What maintenance features does the KG920A have?+

The KG920A has centralized maintenance points to reduce service time and cost. It also includes a high-efficiency dust collection system for a safer work environment. The ergonomic operator cabin offers superior visibility and comfort.

What drilling method does the KG920A use?+

The KG920A uses DTH (down-the-hole) hammer drilling. It is equipped with a high-torque rotary head and a powerful DTH hammer for fast penetration in hard rock. The robust hydraulic system provides precise boom and feed control.
