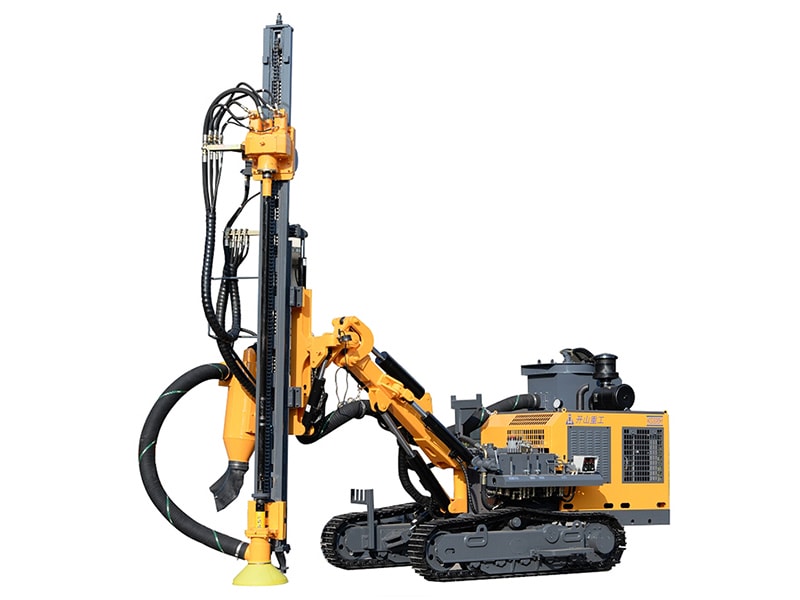

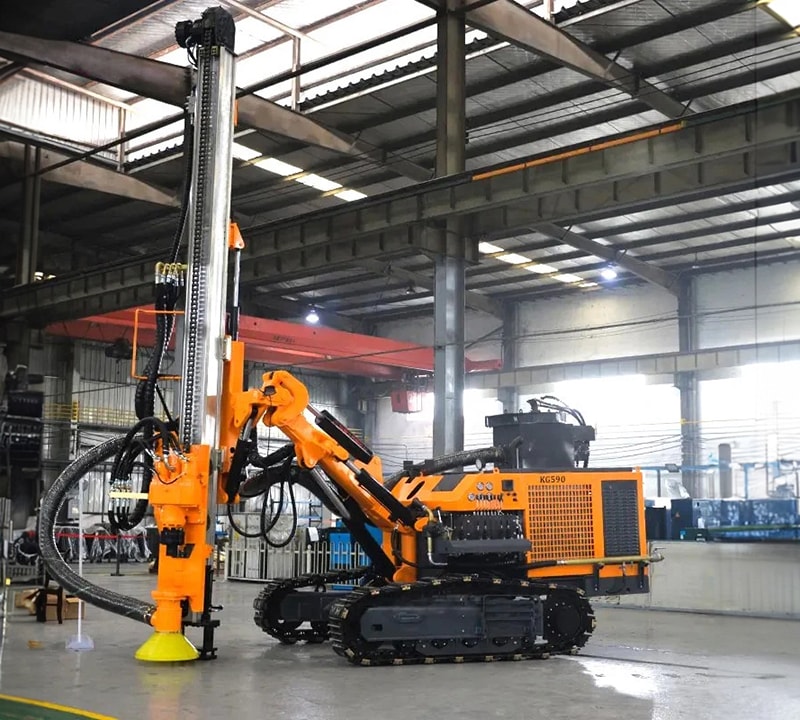

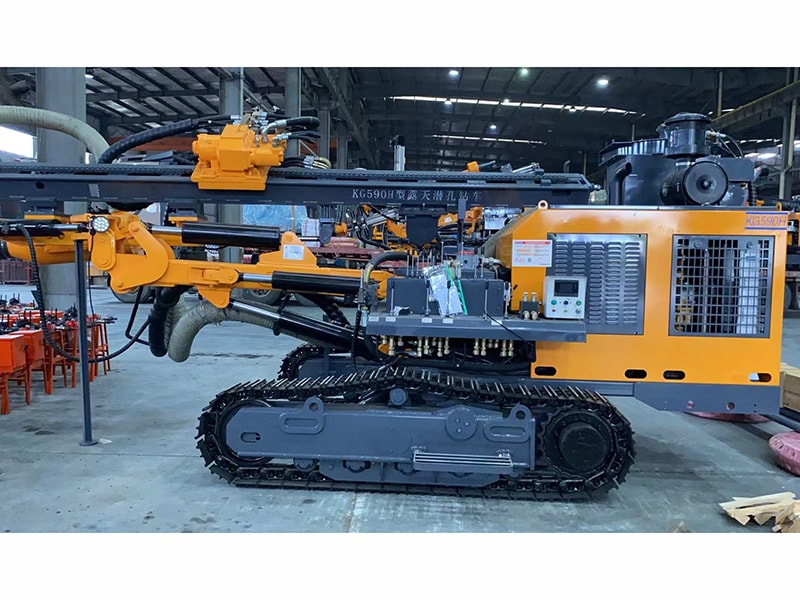

Kaishan KG590H Open-Pit DTH Drilling Rig

Name: Kaishan KG590H Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KG590H
Availability: InStock

Model: KG590H

The Kaishan KG590H is a high-efficiency open-pit DTH drilling rig engineered for quarrying, mining, and infrastructure projects. Built around a robust hydraulic crawler chassis and a powerful diesel engine, it delivers reliable drilling performance in demanding rock conditions. With a maximum drilling depth of 30 meters and a hole diameter range of 90–165 mm, the KG590H is ideal for bench drilling, road construction, and foundation work. Its advanced rotary head, integrated dust collection system, and ergonomic control cabin ensure high productivity, low operating cost, and operator comfort. The KG590H combines Kaishan's proven drilling technology with durable components, making it a cost-effective solution for contractors worldwide.

Best For

Quarry Bench Drilling Open-Pit Mining Road and Railway Construction Foundation Drilling

Technical Specifications

Model	KG590H
Drilling Depth	25 m
Hole Diameter	105-152 mm
Drilling Method	DTH (Down-The-Hole) Drilling
Engine Power	194 kW (260 HP)
Weight	7200 kg
Dimension (L×W×H)	7100× 2,500 × 2700 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG590H is a crawler-mounted open-pit DTH drilling rig designed for high-performance rock drilling in quarries, open-pit mines, and construction sites. As part of Kaishan's renowned KG series, this model balances power, mobility, and precision to meet the rigorous demands of modern drilling operations. Its compact design and powerful diesel engine allow efficient navigation across rough terrain while delivering consistent drilling results. ## Technical Features The KG590H is equipped with a heavy-duty hydraulic system that drives the rotary head and feed mechanism, ensuring smooth and stable drilling. The rig features a high-torque rotary head with adjustable speed, allowing adaptation to various rock formations. A reliable diesel engine provides ample power for both drilling and track travel. The advanced dust collection system significantly reduces airborne particles, creating a safer and cleaner working environment. The ergonomic control cabin offers excellent visibility and intuitive joystick controls, reducing operator fatigue during long shifts. Additionally, the KG590H incorporates automatic rod handling and a centralized lubrication system to minimize downtime and maintenance. ## Applications This drilling rig is ideal for a wide range of applications, including quarry bench drilling, open-pit mining, road and railway construction, and foundation drilling for buildings and bridges. Its ability to drill holes from 90 mm to 165 mm in diameter and up to 30 meters deep makes it versatile for both production and exploration drilling. The KG590H excels in medium to hard rock conditions, delivering high penetration rates and accurate hole alignment. ## Reliability and Support Kaishan backs the KG590H with a comprehensive warranty and global after-sales support. The rig is built with high-quality components from reputable suppliers, ensuring long service life and low total cost of ownership. With readily available spare parts and a network of service engineers, Kaishan ensures minimal downtime and maximum productivity for your projects.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

105-152 mm

Drilling Depth

25 m

Engine Power

194 kW (260 HP)

Weight

7200 kg

Dimension (L×W×H)

7100× 2,500 × 2700 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine for reliable performance in demanding conditions

✓

Max drilling depth of 30 m and hole diameter range of 90–165 mm

✓

Advanced dust collection system for a cleaner and safer worksite

✓

Ergonomic control cabin with intuitive joystick operation

✓

Heavy-duty crawler chassis for excellent mobility on rough terrain

✓

Automatic rod handling and centralized lubrication for reduced downtime

Applications

📍 Quarry Bench Drilling

Efficient drilling of blast holes in limestone, granite, and other hard rock quarries.

Solution: The KG590H's high penetration rate and precise hole alignment ensure optimal blasting results and reduced cost per ton.

📍 Open-Pit Mining

Production drilling in metal and coal mines for ore extraction and overburden removal.

Solution: With its powerful engine and robust chassis, the KG590H handles continuous operation in remote mining sites, maximizing productivity.

📍 Road and Railway Construction

Drilling for rock bolts, foundations, and slope stabilization in infrastructure projects.

Solution: The rig's versatility and mobility allow quick setup and accurate drilling for various construction needs.

📍 Foundation Drilling

Drilling for building foundations, bridges, and other civil engineering structures.

Solution: The KG590H delivers reliable performance in mixed ground conditions, ensuring stable and precise foundation holes.

KG Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG590HThis model	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote
KG920A	Kaishan KG920A	25 m	90–165 mm	DTH (Down-The-Hole) Hammer	118 kW (158 hp)	Get a Quote
KG920B	KG920B	25 m	90-165 mm	DTH (Down-The-Hole)	194 kW	Get a Quote
KG920D	Kaishan KG920D	25 m	90–165 mm	Down-the-Hole (DTH) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system
Rotary head
Feed beam
Crawler chassis
Control cabin
Dust collector
Drill string (rods and bit)

Working Principle

The Kaishan KG590H operates on the principle of down-the-hole (DTH) drilling, where a pneumatic hammer is positioned directly behind the drill bit. High-pressure air is supplied through the drill string to drive the hammer's piston, which strikes the bit with rapid impacts. Simultaneously, the rotary head rotates the drill string, indexing the bit for efficient rock fragmentation. The cuttings are flushed out of the hole by the exhaust air, ensuring a clean hole. The hydraulic feed system applies optimal pressure on the bit, while the crawler chassis provides stability and mobility. This combination of impact and rotation allows the KG590H to achieve high penetration rates in hard rock formations with minimal deviation.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Maximum drilling depth of 30 meters
▸Hole diameter range 90–165 mm
▸Powerful diesel engine for reliable performance
▸Advanced dust suppression system
▸Ergonomic control cabin with joystick controls
▸Heavy-duty crawler chassis for rough terrain
▸Centralized lubrication and automatic rod handling

Packaging & Shipping

The Kaishan KG590H is shipped in a disassembled state for efficient container loading. Main components are securely packed in a 40HQ container, with the cabin and chassis partially assembled. The drill string and accessories are packed in wooden cases. Delivery time is typically 30–45 days after order confirmation. Shipping ports include Shanghai, Ningbo, or Qingdao, China. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on the KG590H drilling rig. Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site installation, commissioning, and operator training to ensure optimal performance. Regular maintenance kits and genuine spare parts are available from our regional warehouses. Our experienced engineers are available for troubleshooting and preventive maintenance to maximize uptime and extend equipment life.

Frequently Asked Questions

What hole diameter and drilling depth does the KG590H cover?+

The KG590H drills holes of 105-152 mm diameter to a maximum drilling depth of 25 m. It uses DTH (Down-The-Hole) drilling for rock work. This range covers bench drilling and foundation holes.

What engine power does the KG590H use?+

The KG590H is powered by a 194 kW (260 HP) diesel engine. The engine drives both drilling and track travel on the crawler chassis. The rig weighs 7200 kg.

What are the dimensions of the KG590H?+

The KG590H measures 7100 × 2,500 × 2700 mm (L×W×H). It is mounted on a heavy-duty crawler chassis for mobility on rough terrain. The compact footprint supports navigation across open-pit and quarry sites.

Which applications suit the KG590H?+

The KG590H suits quarry bench drilling, open-pit mining, road and railway construction, and foundation drilling. Its DTH hammer and 105-152 mm hole range handle demanding rock conditions. The crawler chassis supports work on rough terrain.

What equipment matches the KG590H?+

The KG590H runs a DTH hammer with button bits for its 105-152 mm hole range. The DTH hammer requires a matching air supply for drilling. Automatic rod handling and centralized lubrication reduce downtime.

How is the KG590H shipped?+

The KG590H ships disassembled for container loading, with main components packed in a 40HQ container. The cabin and chassis are partially assembled, and the drill string and accessories go in wooden cases. Delivery is typically 30-45 days after order confirmation from Shanghai, Ningbo, or Qingdao.

What warranty and support come with the KG590H?+

The KG590H carries a 12-month warranty. Kaishan provides 24-hour technical support and spare parts delivery through its global service network. On-site installation, commissioning, and operator training are offered.
