Kaishan ZT11 Open-Pit DTH Drilling Rig

Name: Kaishan ZT11 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: ZT11
Availability: InStock

Model: ZT11

The Kaishan ZT11 is a track-mounted open-pit DTH drilling rig engineered for high-efficiency blast hole drilling in mining, quarrying and construction. Built around a proven diesel engine and a robust hydraulic system, it delivers reliable drilling performance with hole diameters of 90–165 mm and depths up to 30 m. Its compact structure, strong climbing ability and centralized control system make it ideal for rugged terrain and continuous operation. The ZT11 combines Kaishan's decades of rock drilling expertise with modern ergonomics, low fuel consumption and easy maintenance, helping contractors reduce cost per meter and improve site productivity. Whether you are developing an open-pit mine, quarrying aggregate or drilling foundation holes, the ZT11 offers a dependable, cost-effective solution backed by Kaishan's global service network.

Best For

Open-Pit Mining Quarrying Construction Water Well Drilling

Technical Specifications

Model	Kaishan ZT11
Drilling Depth	32 m
Hole Diameter	115–152 mm
Drilling Method	DTH (Down-The-Hole) drilling
Engine Power	235 kW
Weight	125000 kg
Dimension (L×W×H)	9900 × 2,300 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan ZT11 is a self-propelled, track-mounted open-pit DTH drilling rig designed for blast hole drilling in mining, quarrying, and infrastructure projects. As part of Kaishan's ZT series, it integrates a high-torque rotary head, powerful diesel engine, and advanced hydraulic system to deliver efficient drilling in medium to hard rock formations. With a compact footprint and excellent mobility, the ZT11 is suitable for both large-scale open-pit mines and smaller quarry operations. ## Technical Features The ZT11 features a robust undercarriage with high ground clearance and strong climbing capability, allowing it to operate on rough terrain. Its hydraulic system provides smooth control of feed, rotation, and tramming, while the centralized control panel simplifies operation and reduces operator fatigue. The rig is equipped with a reliable dust collection system to meet environmental requirements. The drilling system supports DTH hammer operation with hole diameters from 90 mm to 165 mm and maximum depth of 30 m. Powered by a fuel-efficient diesel engine, the ZT11 delivers stable power output with low noise and emissions. The heavy-duty boom and feed beam ensure precise hole alignment and long service life. ## Applications The ZT11 is widely used in open-pit mining for blast hole drilling, quarrying for aggregate production, and construction projects such as road cutting and foundation drilling. Its versatility also makes it suitable for water well drilling in some configurations. The rig performs well in various rock conditions, from soft to hard, and can be equipped with different DTH hammers and bits to match specific requirements. With its combination of power, mobility, and reliability, the Kaishan ZT11 helps contractors achieve higher productivity and lower operating costs.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

115–152 mm

Drilling Depth

32 m

Engine Power

235 kW

Weight

125000 kg

Dimension (L×W×H)

9900 × 2,300 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Track-mounted design for excellent mobility on rough terrain

✓

Powerful diesel engine with low fuel consumption

✓

DTH drilling capability for 90–165 mm holes up to 30 m deep

✓

Centralized control system for easy and precise operation

✓

Heavy-duty boom and feed beam for stable drilling

✓

Integrated dust collection system for environmental compliance

✓

Compact structure with high ground clearance and climbing ability

✓

Reliable hydraulic system with proven components

Applications

📍 Open-Pit Mining

Blast hole drilling in medium to hard rock for ore extraction.

Solution: The ZT11's powerful DTH hammer and stable feed system ensure fast penetration and accurate hole alignment, boosting mine productivity.

📍 Quarrying

Drilling blast holes for aggregate production in limestone, granite, and other quarries.

Solution: With its compact size and mobility, the ZT11 easily moves between benches, while the dust collector keeps the site clean.

📍 Construction

Foundation drilling, road cutting, and site preparation in infrastructure projects.

Solution: The rig's versatility and precise control allow for efficient drilling in confined spaces and challenging ground conditions.

📍 Water Well Drilling

Shallow water well drilling in rural and remote areas (with appropriate configuration).

Solution: The ZT11 can be equipped with water well drilling tools, offering a cost-effective solution for water access projects.

ZT Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
ZT11This model	Kaishan ZT11	32 m	115–152 mm	DTH (Down-The-Hole) drilling	235 kW	Get a Quote
ZT5	Kaishan ZT5	24 m	90–105 mm	Down-the-hole (DTH) hammer drilling	78 kW (105 hp)	Get a Quote
ZT12	Kaishan ZT12	32 m	115–152 mm	DTH (Down-The-Hole)	264 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system
Rotary head

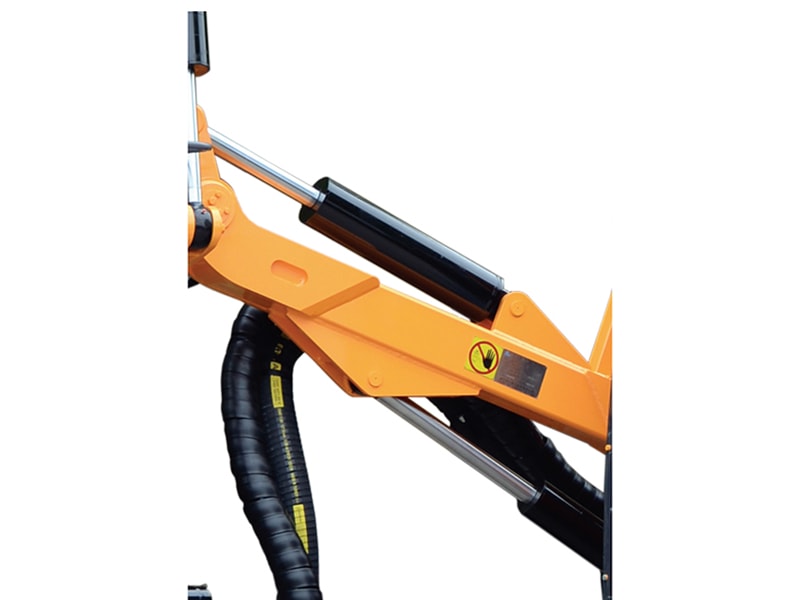

Feed beam and boom

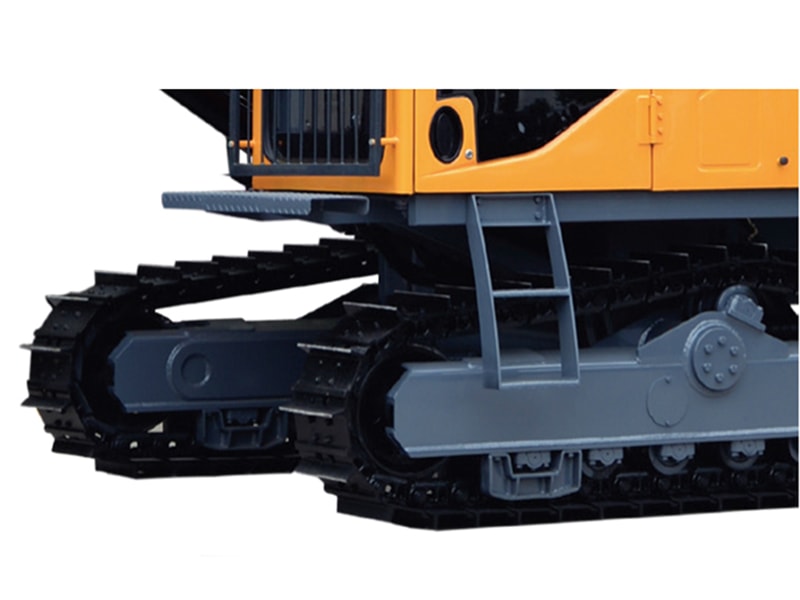

Track undercarriage
Control panel
Dust collection system
DTH hammer and bit

Working Principle

The Kaishan ZT11 operates on the principle of down-the-hole (DTH) drilling, where a pneumatic hammer is placed directly behind the drill bit at the bottom of the hole. High-pressure air from an onboard compressor or external source drives the hammer's piston, delivering rapid impacts to the bit while the rotary head turns the drill string. The combination of impact and rotation breaks rock efficiently, and the exhaust air flushes cuttings out of the hole. The rig's hydraulic system controls feed force, rotation speed, and tramming, allowing the operator to adjust parameters for different rock conditions. The track undercarriage provides mobility, and the dust collection system captures airborne particles for a safer work environment. This method ensures high penetration rates and straight holes in medium to hard formations.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Excellent mobility on rough terrain
▸Low fuel consumption and operating cost
▸Centralized controls for ease of use
▸Durable components for long service life
▸Environmental dust suppression
▸Compact design for easy transport
▸Comprehensive safety features

Packaging & Shipping

The Kaishan ZT11 is shipped in a disassembled or partially assembled state to fit into standard 40HQ containers, with major components securely packed and protected against corrosion and impact. Shipping is typically arranged from Shanghai or Ningbo port, China. Delivery time is approximately 30–45 days after order confirmation, depending on configuration and quantity. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on the ZT11 drilling rig (excluding wear parts). A 24-hour technical support hotline is available for troubleshooting and spare parts ordering. We provide on-site installation and commissioning services, as well as operator training to ensure safe and efficient use. A global network of service centers and authorized distributors ensures quick access to genuine spare parts and professional maintenance.

Frequently Asked Questions

What hole sizes and drilling depth can the Kaishan ZT11 handle?+

The Kaishan ZT11 drills hole diameters of 115–152 mm to a drilling depth of 32 m using the DTH (Down-The-Hole) drilling method. It is built for blast hole drilling in medium to hard rock formations.

What engine power does the ZT11 drilling rig use?+

The Kaishan ZT11 is powered by a 235 kW diesel engine. The rig weighs 125000 kg and measures 9900 × 2,300 × 3,200 mm (L×W×H).

What air supply does the ZT11 need for DTH drilling?+

The Kaishan ZT11 uses DTH (Down-The-Hole) drilling with a DTH hammer for 115–152 mm holes to 32 m depth. The rig is track-mounted with high ground clearance and strong climbing ability for rough terrain.

Where can the Kaishan ZT11 be used?+

The Kaishan ZT11 suits open-pit mining, quarrying, construction and water well drilling. Its track-mounted design, compact structure and high ground clearance support operation on rough terrain.

How is the Kaishan ZT11 shipped?+

The Kaishan ZT11 is shipped in a disassembled or partially assembled state to fit into standard 40HQ containers, with major components securely packed and protected against corrosion and impact. Shipping is typically arranged from Shanghai or Ningbo port, China, with delivery time of approximately 30–45 days after order confirmation.

What after-sales service is offered with the ZT11?+

Kaishan offers a 12-month warranty on the ZT11 drilling rig, excluding wear parts. A 24-hour technical support hotline is available for troubleshooting and spare parts ordering, along with on-site installation, commissioning and operator training.
