Kaishan KT7C Integrated Surface DTH Drilling Rig
Model: KT7C
Kaishan KT7C is an integrated (self-contained) surface DTH drilling rig. Official export model KD45E. Source: Zhejiang Kaishan Heavy Industry product centre.
Technical Specifications
| Model | Kaishan KT7C |
| Drilling Depth | 30 m |
| Hole Diameter | 76-115 mm |
| Drilling Method | Top Hammer |
| Engine Power | 194 kW |
| Weight | 15,000 kg |
| Dimension (L×W×H) | 10,000 × 2,500 × 3,200 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Hole Diameter
76-115 mm
Drilling Depth
30 m
Engine Power
194 kW
Weight
15,000 kg
Dimension (L×W×H)
10,000 × 2,500 × 3,200 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Powerful 194 kW diesel engine for high penetration rates
Drilling depth up to 30 meters and hole diameter 76-115 mm
Advanced hydraulic system for precise control and efficiency
Track-mounted undercarriage for excellent mobility on rough terrain
Ergonomic cabin with intuitive controls and dust suppression
Automatic rod changer for faster drilling cycles
Robust construction for reliable performance in harsh conditions
Low operating costs and easy maintenance
Applications
📍 Open-Pit Mining
Blasthole drilling for ore extraction in large open-pit mines.
Solution: The KT7C's high power and deep drilling capability ensure efficient blasthole patterns, reducing drilling costs per ton.
📍 Quarrying
Drilling blast holes for aggregate production in limestone, granite, and other quarries.
Solution: With adjustable hole diameters and fast penetration, the KT7C optimizes fragmentation and improves quarry productivity.
📍 Construction
Site preparation, foundation drilling, and trenching for infrastructure projects.
Solution: The rig's mobility and precise control allow accurate drilling in confined spaces, enhancing construction efficiency.
📍 Road Construction
Drilling for road cutting, tunneling, and rock bolting in road projects.
Solution: The KT7C's versatility and robust design handle diverse rock conditions, ensuring timely project completion.
Similar Models in This Category
This model is unique in its series — here are similar models from the same category.
| ☑ | Model | Model | Drilling Depth | Hole Diameter | Drilling Method | Engine Power | Inquire |
|---|---|---|---|---|---|---|---|
| KT7CThis model | Kaishan KT7C | 30 m | 76-115 mm | Top Hammer | 194 kW | Get a Quote | |
| KG430 | Kaishan KG430 | 30 m | 90–165 mm | DTH (Down-The-Hole) | 73 kW | Get a Quote | |
| KG520 | Kaishan KG520 | 30 m (single pass); 100 m (with extension rods) | 90–165 mm | Down-The-Hole (DTH) drilling | 194 kW (260 HP) | Get a Quote | |
| KG590 | Kaishan KG590 | 30 m | 90–165 mm | DTH (Down-The-Hole) Hammer Drilling | 194 kW (260 HP) | Get a Quote | |
| KG590H | KG590H | 25 m | 105-152 mm | DTH (Down-The-Hole) Drilling | 194 kW (260 HP) | Get a Quote | |
| KG720 | Kaishan KG720 | 30 m | 90–165 mm | Down-the-Hole (DTH) Drilling | 194 kW | Get a Quote | |
| KG420B | Kaishan KG420B | 25 m | 90-130 mm | Down-the-Hole (DTH) | 58 kW | Get a Quote | |
| KG550 | KG550 | 30 m | 115–165 mm | DTH (Down-The-Hole) hammer drilling | 73.5 kW | Get a Quote | |
| KG940A | KG940A | 30 m | 90–165 mm | DTH (Down-The-Hole) | 58 kW | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

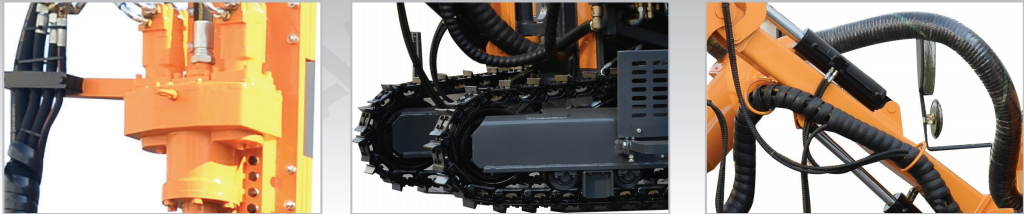

Main Components
- Hydraulic drifter
- Diesel engine
- Track undercarriage
- Boom and feed beam
- Automatic rod changer
- Operator cabin
- Dust collection system
- Control panel
Working Principle
The Kaishan KT7C operates on the top hammer drilling principle, where a hydraulic drifter generates high-frequency percussive impacts on the drill string. The impact energy travels through the drill rods to the drill bit, which crushes the rock. Simultaneously, the drifter rotates the drill string, allowing the bit to index between impacts. Compressed air is used to flush cuttings out of the hole, ensuring a clean hole and efficient drilling. The rig's hydraulic system controls the feed force, rotation speed, and percussion pressure, optimizing drilling parameters for different rock types. The track undercarriage provides mobility, while the boom and feed beam allow precise positioning of the hole. The operator controls all functions from the ergonomic cabin, monitoring drilling parameters via a digital display. This system ensures high penetration rates, straight holes, and long bit life, making the KT7C a reliable choice for surface drilling.
Detailed Features
- ▸High-performance hydraulic drifter for fast penetration
- ▸Fuel-efficient 194 kW diesel engine
- ▸Heavy-duty track undercarriage for stability
- ▸Articulated boom for precise hole positioning
- ▸Automatic rod changer reduces downtime
- ▸Comfortable and safe operator cabin
- ▸Effective dust suppression system
- ▸Easy maintenance with modular design
Packaging & Shipping
The Kaishan KT7C is shipped in a disassembled state for efficient transport. The main components are securely packed in a 40-foot container or flat rack, depending on configuration. All parts are protected with anti-rust coating and wrapped in durable materials. Shipping is typically arranged within 30-45 days after order confirmation. We ship from major Chinese ports such as Shanghai or Qingdao. Custom packaging and shipping solutions are available upon request.
After-Sales Service
Kaishan offers comprehensive after-sales service for the KT7C. The rig comes with a 12-month warranty or 2000 working hours, whichever comes first. Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site installation, commissioning, and operator training to ensure optimal performance. Regular maintenance kits and genuine spare parts are available from our regional warehouses. Our service engineers are available for periodic inspections and troubleshooting. With Kaishan, you get a partner committed to your productivity.
Frequently Asked Questions
What hole diameter and drilling depth does the KT7C cover?+
The KT7C drills hole diameters from 76 to 115 mm to a drilling depth of up to 30 m. It is a top hammer drilling rig built for blasthole work. The 15,000 kg operating weight supports stability at these diameters.
What engine powers the Kaishan KT7C?+
The KT7C runs on a 194 kW diesel engine. That power feeds the hydraulic system and the high-performance hydraulic drifter for penetration. The engine is described as fuel-efficient for the rig class.
What equipment matches the KT7C in a drilling spread?+
The KT7C is a top hammer drilling rig, so it works with top hammer tooling rather than a DTH hammer. Its hole range of 76 to 115 mm and 30 m drilling depth define the consumables it accepts. Match bits and rods to that diameter and depth window.
Where can the KT7C be used?+
The KT7C suits open-pit mining, quarrying, construction and road construction. Its track-mounted undercarriage gives mobility on rough terrain, and the articulated boom positions holes precisely. A dust suppression system and ergonomic cabin support work on site.
How is the KT7C maintained?+
The KT7C uses a modular design for easy maintenance, with regular maintenance kits and genuine spare parts available. An automatic rod changer reduces downtime in the drilling cycle. Kaishan's global service network provides 24-hour technical support.
What warranty and support come with the KT7C?+
The KT7C carries a 12-month warranty or 2000 working hours, whichever comes first. Kaishan provides on-site installation, commissioning and operator training. The global service network supplies prompt spare parts delivery.
How is the KT7C shipped?+
The KT7C ships disassembled for efficient transport, with main components packed in a 40-foot container or flat rack depending on configuration. Parts get anti-rust coating and durable wrapping. Shipping is typically arranged within 30-45 days after order confirmation from ports such as Shanghai or Qingdao.
What are the KT7C dimensions and weight?+
The KT7C measures 10,000 × 2,500 × 3,200 mm and weighs 15,000 kg. Those figures cover the track-mounted rig as specified. The heavy-duty track undercarriage provides stability during drilling.
