Kaishan KZ9 Open-Pit DTH Drilling Rig

Name: Kaishan KZ9 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KZ9
Availability: InStock

Model: KZ9

The Kaishan KZ9 is a heavy-duty open-pit DTH drilling rig engineered for quarrying, mining, and construction blasting. Built around a proven hydraulic top-drive system, it delivers 90 mm to 152 mm diameter blast holes to depths of up to 30 meters. A 194 kW diesel engine powers both the rotary head and the on-board air compressor, giving the KZ9 self-contained drilling capability on remote benches. Its tracked undercarriage, 25-degree gradeability, and 4,500 mm feed stroke allow fast hole-to-hole tramming and stable collaring on uneven rock. The KZ9 combines Kaishan's decades of rock drilling expertise with a service-friendly layout, centralized lubrication, and an ergonomic cab, making it a reliable production rig for aggregate quarries, open-pit metal mines, and infrastructure projects worldwide.

Best For

Aggregate Quarry Blast Hole Drilling Open-Pit Metal Mining Infrastructure and Road Construction Limestone and Granite Extraction

Technical Specifications

Model	Kaishan KZ9
Drilling Depth	30 m
Hole Diameter	90–152 mm
Drilling Method	DTH (Down-The-Hole) Hammer Drilling
Engine Power	194 kW
Weight	16,000 kg
Dimension (L×W×H)	8,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KZ9 is a self-propelled open-pit DTH drilling rig designed for high-productivity blast hole drilling in quarries, open-pit mines, and large construction sites. As a member of Kaishan's KZ series, the KZ9 integrates a heavy-duty hydraulic rotary head, a chain feed system, and an on-board screw air compressor into a single tracked carrier. This self-contained design eliminates the need for a separate air supply, simplifies site logistics, and shortens setup time between holes. The rig is purpose-built for DTH (down-the-hole) hammer drilling in medium to hard rock, delivering straight, clean holes that improve fragmentation and reduce explosive consumption. ## Technical Features The KZ9 is powered by a 194 kW diesel engine that drives both the hydraulic system and the air compressor. The hydraulic top-drive head provides stepless rotation speed and torque control, allowing operators to match drilling parameters to changing rock conditions. A 4,500 mm feed stroke supports efficient single-pass drilling and fast rod handling. The tracked undercarriage offers excellent stability and a gradeability of up to 25 degrees, enabling the rig to work on steep benches and rough terrain. An ergonomic operator cab with joystick controls, adjustable seating, and good visibility reduces fatigue during long shifts. Centralized lubrication and easily accessible service points keep maintenance downtime to a minimum. The KZ9 is also equipped with a dust suppression system to meet modern environmental requirements on sensitive job sites. ## Applications The KZ9 is widely used in aggregate quarries, open-pit metal mines, limestone and granite operations, and infrastructure projects such as road cuts, tunnels, and dam construction. Its ability to drill 90–152 mm holes to depths of up to 30 meters makes it suitable for both production blasting and pre-split drilling. Contractors value the rig for its mobility, reliability, and low cost per meter in hard rock. In quarrying, the KZ9 helps achieve consistent bench heights and improved fragmentation, which lowers secondary breaking costs. In mining, it supports short- and medium-term production planning with dependable hole accuracy. For construction projects, the rig's compact footprint and self-contained design allow it to work in confined areas where larger rigs cannot access. ## Why Choose Kaishan Kaishan has been manufacturing rock drilling equipment for over 60 years, with a global service network and a strong reputation for durable, cost-effective machines. The KZ9 benefits from this experience through robust structural design, proven hydraulic components, and readily available spare parts. Whether you are drilling in a quarry in Southeast Asia or a mine in South America, the KZ9 delivers reliable performance and low total cost of ownership.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–152 mm

Drilling Depth

30 m

Engine Power

194 kW

Weight

16,000 kg

Dimension (L×W×H)

8,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Self-contained DTH drilling rig with on-board air compressor

✓

194 kW diesel engine for powerful rotary and feed performance

✓

Drilling depth up to 30 m and hole diameter 90–152 mm

✓

Hydraulic top-drive head with stepless rotation and torque control

✓

Tracked undercarriage with 25-degree gradeability for rough terrain

✓

4,500 mm feed stroke for efficient single-pass drilling

✓

Ergonomic operator cab with joystick controls and good visibility

✓

Centralized lubrication and easy-access service points

Applications

📍 Aggregate Quarry Blast Hole Drilling

Quarries require fast, accurate blast holes to maintain production and control fragmentation.

Solution: The KZ9 drills 90–152 mm holes to 30 m with high penetration rates, improving bench consistency and reducing secondary breaking costs.

📍 Open-Pit Metal Mining

Metal mines need reliable production drilling for short- and medium-term planning.

Solution: The KZ9's hydraulic top-drive and self-contained air supply deliver dependable hole accuracy and low cost per meter in hard rock.

📍 Infrastructure and Road Construction

Road cuts, tunnels, and dam projects require versatile drilling on uneven terrain.

Solution: The tracked undercarriage and 25-degree gradeability allow the KZ9 to work on steep benches and confined sites with minimal setup.

📍 Limestone and Granite Extraction

Hard rock extraction demands durable equipment with high drilling efficiency.

Solution: The KZ9's robust structure, proven hydraulic components, and dust suppression system ensure reliable performance in abrasive rock conditions.

KZ Series Models

Compare specifications across the series to find the right model.

☑	Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
	KZ9This model	Kaishan KZ9	30 m	90–152 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW	Get a Quote

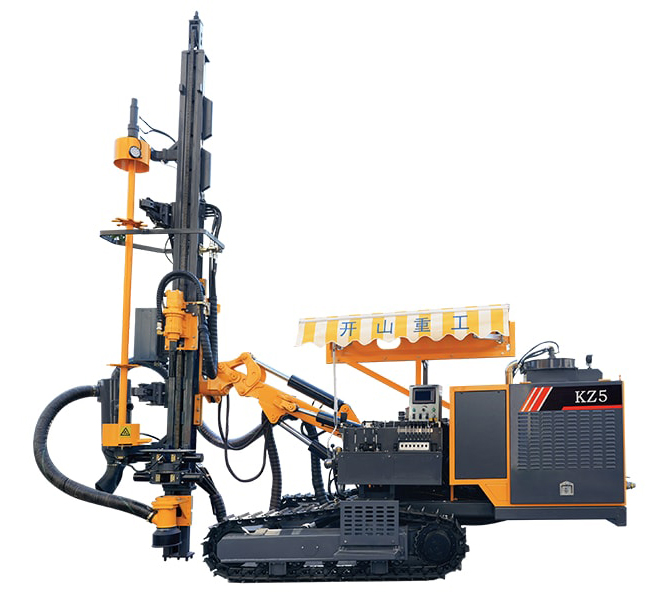

	KZ5	Kaishan KZ5	25 m	90–130 mm	DTH (Down-The-Hole) hammer drilling	78 kW (105 hp) diesel engine	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine (194 kW)

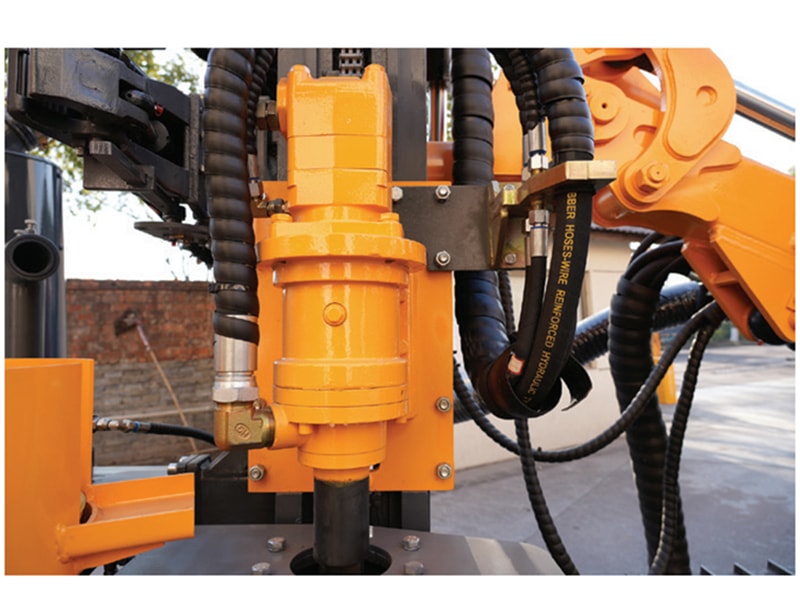

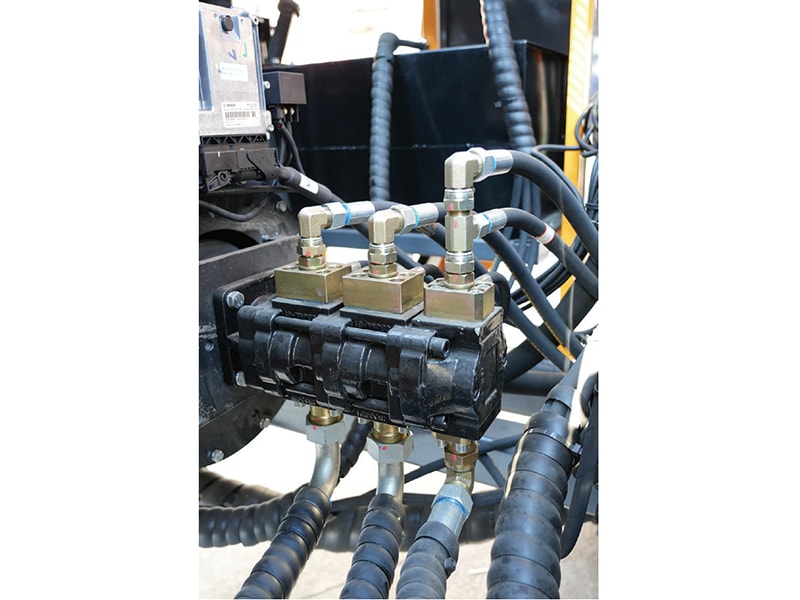

Hydraulic top-drive rotary head
Chain feed system with 4,500 mm stroke
On-board screw air compressor
Tracked undercarriage

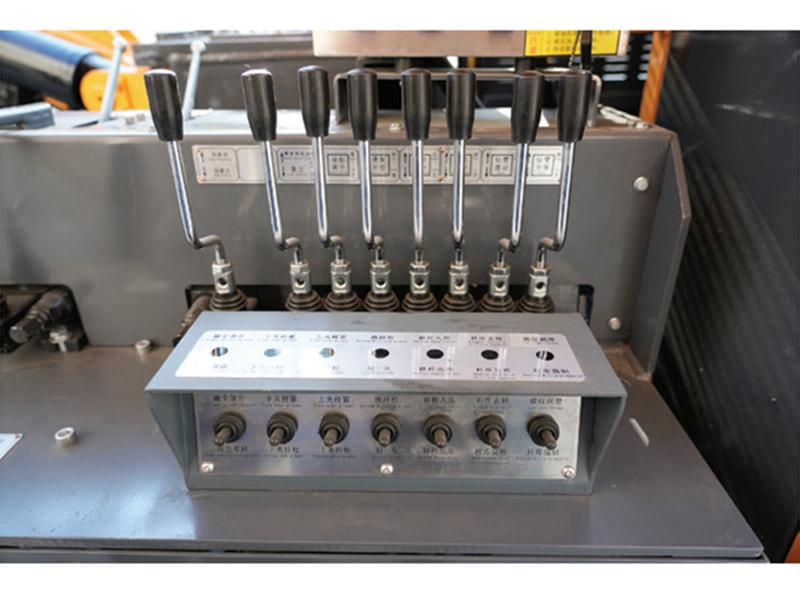

Operator cab with joystick controls
Dust suppression system
Centralized lubrication system

Working Principle

The Kaishan KZ9 operates on the down-the-hole (DTH) hammer drilling principle. A pneumatic hammer is attached to the bottom of the drill string, directly behind the drill bit. Compressed air, supplied by the rig's on-board compressor, is fed through the drill pipes to the hammer. Inside the hammer, the air drives a piston that strikes the bit at high frequency, typically 1,500 to 2,500 blows per minute. Simultaneously, the hydraulic top-drive head rotates the drill string, indexing the bit so that each impact fractures new rock. The air also serves to flush cuttings from the hole, carrying them up the annulus between the drill pipe and the hole wall. The KZ9's feed system applies controlled thrust to keep the bit in firm contact with the rock, while the rotation speed and feed rate are adjusted to match rock hardness. This combination of impact, rotation, and flushing creates fast, straight holes in medium to hard rock. The entire process is controlled from the operator cab, with joysticks managing tramming, positioning, and drilling functions.

Detailed Features

▸Self-contained design with on-board air compressor
▸194 kW diesel engine for powerful performance
▸Drilling depth up to 30 m and hole diameter 90–152 mm
▸Hydraulic top-drive with stepless rotation and torque control
▸Tracked undercarriage with 25-degree gradeability
▸4,500 mm feed stroke for efficient single-pass drilling
▸Ergonomic cab with joystick controls and good visibility
▸Centralized lubrication and easy-access service points

Packaging & Shipping

The Kaishan KZ9 is shipped in a disassembled or partially assembled state to optimize container loading. The main body, mast, and components are securely packed on steel frames and wrapped in protective film. Standard export packaging includes rust-preventive treatment for hydraulic and electrical parts. The rig typically loads into one 40-foot HQ container or one 40-foot flat rack, depending on configuration. Delivery time is 30–45 days after order confirmation. Ports of shipment include Shanghai, Ningbo, or Qingdao, China. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan provides a 12-month warranty on the KZ9 (excluding consumables and wear parts). A 24-hour technical support hotline is available for troubleshooting and spare parts inquiries. We offer on-site installation and commissioning services, as well as operator and maintenance training. A global network of authorized service centers and spare parts warehouses ensures quick response and minimal downtime. Regular maintenance kits and consumables are available for long-term operation.

Frequently Asked Questions

What hole diameter and drilling depth can the Kaishan KZ9 achieve?+

The KZ9 drills holes from 90 mm to 152 mm in diameter to a maximum depth of 30 m. It uses DTH (down-the-hole) hammer drilling for blast holes in medium to hard rock.

What engine powers the Kaishan KZ9?+

The KZ9 is powered by a 194 kW diesel engine. This engine drives both the hydraulic system and the on-board air compressor.

Does the KZ9 need a separate air compressor?+

No, the KZ9 is a self-contained DTH drilling rig with an on-board air compressor. The 194 kW diesel engine powers both the rotary head and the on-board compressor, so no separate air supply is required.

What applications is the Kaishan KZ9 suitable for?+

The KZ9 is used for aggregate quarry blast hole drilling, open-pit metal mining, infrastructure and road construction, and limestone and granite extraction. Its tracked undercarriage with 25-degree gradeability supports work on rough terrain.

What is the feed stroke of the Kaishan KZ9?+

The KZ9 has a 4,500 mm feed stroke for efficient single-pass drilling. Combined with the hydraulic top-drive head, it provides stepless rotation and torque control.

How much does the Kaishan KZ9 weigh and what are its dimensions?+

The KZ9 weighs 16,000 kg. Its dimensions are 8,500 × 2,500 × 3,200 mm (L×W×H).

How is the Kaishan KZ9 packaged for shipping?+

The KZ9 is shipped disassembled or partially assembled to optimize container loading, with the main body, mast and components packed on steel frames and wrapped in protective film. Standard export packaging includes rust-preventive treatment for hydraulic and electrical parts, and the rig typically loads into one 40-foot HQ container or one 40-foot flat rack.

What warranty and after-sales support come with the Kaishan KZ9?+

Kaishan provides a 12-month warranty on the KZ9, excluding consumables and wear parts. A 24-hour technical support hotline is available, along with on-site installation and commissioning, operator and maintenance training, and a global network of authorized service centers and spare parts warehouses.
