Kaishan KZ5 Open-Pit DTH Drilling Rig

Name: Kaishan KZ5 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KZ5
Availability: InStock

Model: KZ5

The Kaishan KZ5 is a compact open-pit DTH drilling rig engineered for quarrying, mining and construction blasting. Built for 90–130 mm blast holes, it combines a reliable diesel engine, powerful rotary head and efficient dust collection in a crawler-mounted platform. With a drilling depth up to 25 m and a proven DTH hammer system, the KZ5 delivers straight, high-penetration holes in hard rock such as granite, limestone and basalt. Its ergonomic control panel, stable undercarriage and low fuel consumption make it a cost-effective choice for contractors who need dependable open-pit drilling performance. The KZ5 is easy to transport, simple to maintain and supported by Kaishan's global service network.

Best For

Quarry Blasting Open-Pit Mining Road & Railway Construction Foundation Engineering

Technical Specifications

Model	Kaishan KZ5
Drilling Depth	25 m
Hole Diameter	90–130 mm
Drilling Method	DTH (Down-The-Hole) hammer drilling
Engine Power	78 kW (105 hp) diesel engine
Weight	5,800 kg
Dimension (L×W×H)	6,200 × 2,200 × 2,600 mm (transport)

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KZ5 is a crawler-mounted open-pit DTH drilling rig designed for blast-hole drilling in quarries, open-pit mines and infrastructure projects. As a member of Kaishan's proven KZ series, the KZ5 balances compact dimensions with solid drilling performance, making it ideal for contractors who require a versatile rig for 90–130 mm diameter holes. It is engineered to drill vertical, inclined and horizontal blast holes in medium to hard rock formations. ## Technical Features The KZ5 is powered by a reliable diesel engine that drives both the hydraulic system and the rotary head. A high-torque rotary head combined with a DTH hammer delivers fast penetration rates and straight hole geometry. The rig features a robust crawler undercarriage for stable tramming on rough terrain, a hydraulic boom for precise positioning, and an integrated dust collector to reduce environmental impact. The operator's platform offers excellent visibility and ergonomic controls, while the folding mast simplifies transport and setup. Standard safety features include emergency stops, anti-jamming protection and automatic rod handling options. ## Applications The KZ5 is widely used in quarry blasting, open-pit mining, road and railway construction, and foundation work. It performs exceptionally well in granite, limestone, basalt and other hard rock conditions. Its compact size allows access to tight benches and confined job sites, while the powerful DTH system ensures high productivity. The rig can be equipped with optional air compressors and drill tools to match specific project requirements. ## Why Choose the KZ5 With its combination of mobility, drilling efficiency and low operating cost, the Kaishan KZ5 is a smart investment for drilling contractors. It is backed by Kaishan's global dealer network, genuine spare parts and responsive technical support, ensuring maximum uptime and long service life.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–130 mm

Drilling Depth

25 m

Engine Power

78 kW (105 hp) diesel engine

Weight

5,800 kg

Dimension (L×W×H)

6,200 × 2,200 × 2,600 mm (transport)

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Compact crawler-mounted design for easy transport and maneuverability on tight job sites

✓

DTH hammer system delivers high penetration rates in hard rock formations

✓

Drilling depth up to 25 m and hole diameter range of 90–130 mm

✓

Fuel-efficient diesel engine reduces operating costs

✓

Integrated dust collector for cleaner and safer working environment

✓

Ergonomic control panel with excellent visibility for precise operation

✓

Robust undercarriage and folding mast for stability and quick setup

✓

Backed by Kaishan global service network and genuine spare parts

Applications

📍 Quarry Blasting

Drilling blast holes in granite, limestone and other hard rock quarries.

Solution: The KZ5's DTH hammer and 90–130 mm hole range ensure fast, accurate drilling for efficient blasting patterns.

📍 Open-Pit Mining

Production drilling in open-pit mines for ore extraction and overburden removal.

Solution: With up to 25 m depth and reliable diesel power, the KZ5 maintains high productivity in demanding mining conditions.

📍 Road & Railway Construction

Drilling for rock excavation, slope stabilization and foundation holes.

Solution: The compact crawler design and folding mast allow quick relocation and setup along linear construction sites.

📍 Foundation Engineering

Drilling for micropiles, anchors and site investigation in rocky terrain.

Solution: Precise hole alignment and adjustable drilling angles make the KZ5 suitable for foundation and geotechnical work.

KZ Series Models

Compare specifications across the series to find the right model.

☑	Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
	KZ5This model	Kaishan KZ5	25 m	90–130 mm	DTH (Down-The-Hole) hammer drilling	78 kW (105 hp) diesel engine	Get a Quote
	KZ9	Kaishan KZ9	30 m	90–152 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system

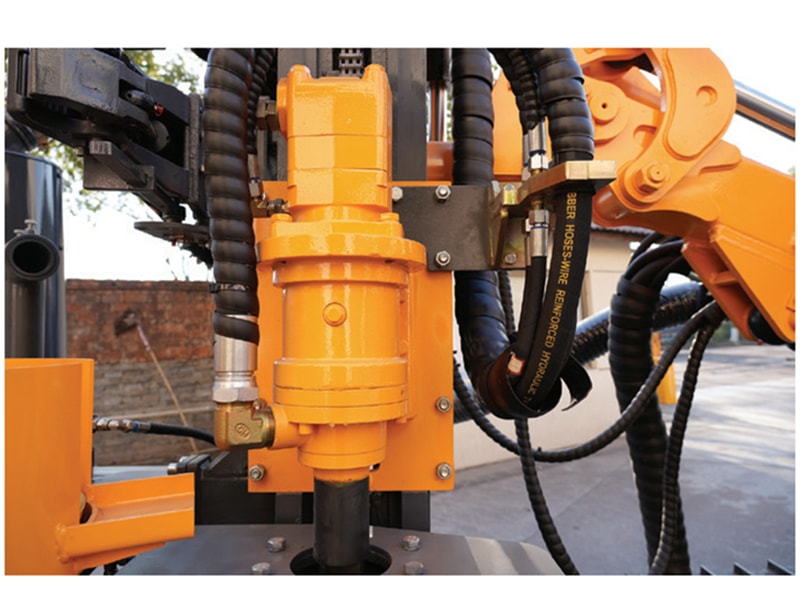

Rotary head
Feed beam and chain
Crawler undercarriage
Dust collector

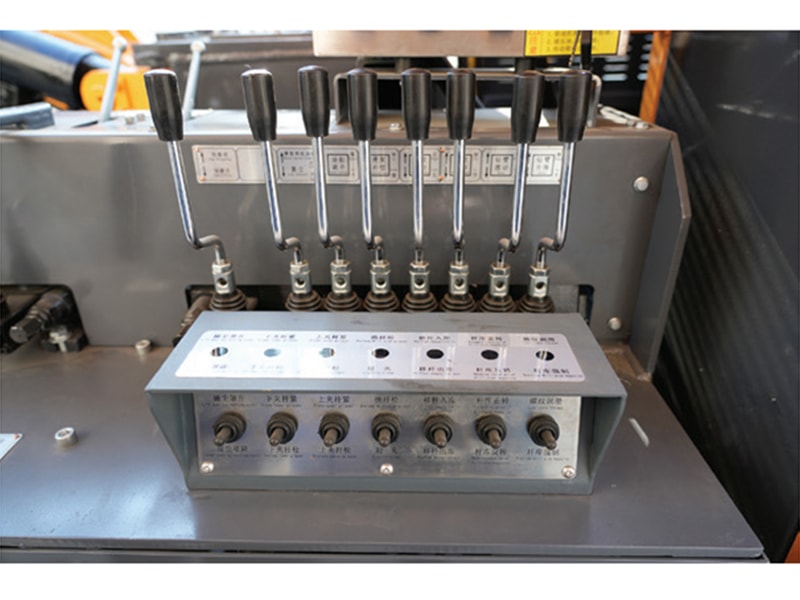

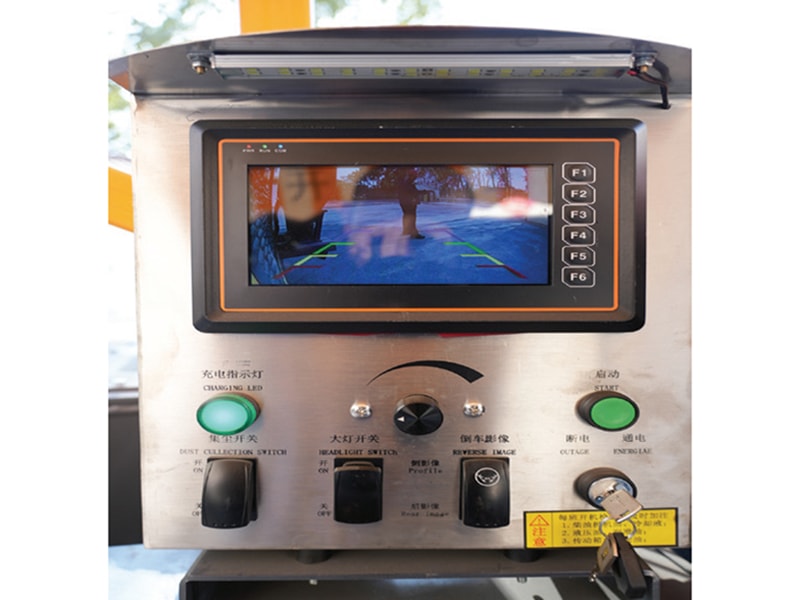

Control panel
