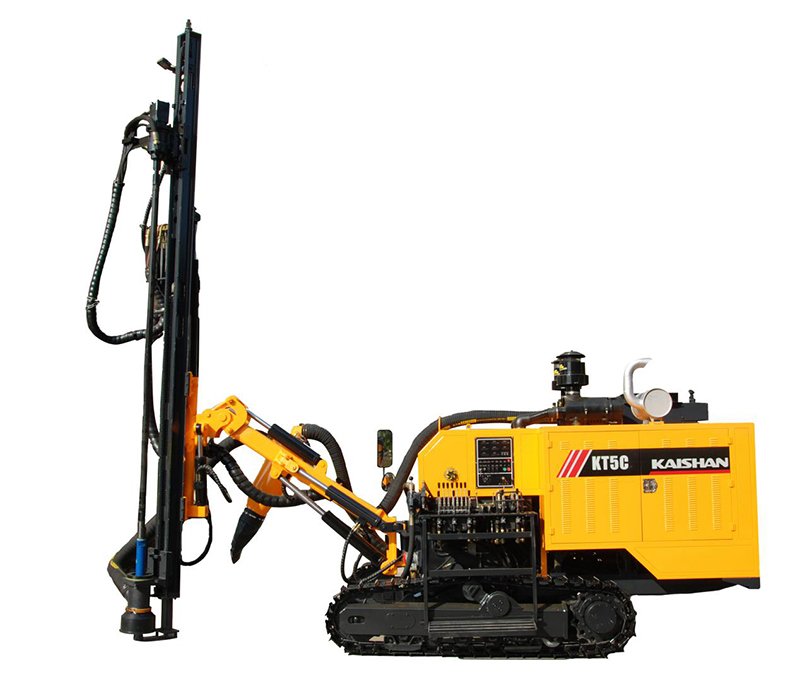

Kaishan KT5C Integrated Surface DTH Drilling Rig

Name: Kaishan KT5C Integrated Surface DTH Drilling Rig
Brand: Kaishan
SKU: KT5C
Availability: InStock

Model: KT5C

The Kaishan KT5C is an integrated (self-contained) surface DTH drilling rig for open-pit and construction drilling. Designed for hard rock conditions, it delivers reliable performance in confined spaces with a drilling depth of up to 150 meters and hole diameters from 45 to 89 mm. Powered by a 55 kW diesel engine, the KT5C combines robust construction with advanced hydraulic controls for precise drilling. Its compact dimensions and low weight make it ideal for narrow vein mining and underground development. The rig supports both rotary and DTH drilling methods, ensuring versatility across various rock formations. With Kaishan's global service network, the KT5C offers exceptional reliability and low operating costs for underground drilling projects.

Best For

Underground Mining Development Tunneling and Cavern Excavation Exploration and Geotechnical Drilling Narrow Vein Mining

Technical Specifications

Model	KT5C
Drilling Depth	25 m
Hole Diameter	80-105 mm
Drilling Method	Rotary / DTH
Engine Power	55 kW
Weight	4500 kg
Dimension (L×W×H)	5500×1200×1800 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KT5C is a purpose-built underground drilling rig designed to meet the demanding requirements of underground mining, tunneling, and exploration. As a track-mounted unit, it excels in confined spaces, offering superior maneuverability and stability. The KT5C is engineered for hard rock drilling, delivering consistent performance in challenging underground environments. ## Technical Features The KT5C features a robust hydraulic system that provides precise control over feed, rotation, and tramming. Its 55 kW diesel engine ensures ample power for drilling operations while maintaining fuel efficiency. The rig supports both rotary and down-the-hole (DTH) drilling methods, allowing operators to adapt to varying rock conditions. With a drilling depth of up to 150 meters and hole diameters ranging from 45 to 89 mm, the KT5C is versatile enough for a wide range of applications. The compact design, measuring approximately 5.5 meters in length, enables easy navigation through narrow drifts and tunnels. Advanced safety features, including emergency stops and automatic overload protection, ensure safe operation. ## Applications The KT5C is ideal for underground mining operations, including development drilling, production drilling, and bolting. It is also well-suited for tunneling projects, where precise hole placement is critical. In exploration, the rig can be used for core drilling and geotechnical investigation. Its ability to operate in confined spaces makes it a valuable asset for narrow vein mining and underground construction. The KT5C's versatility and reliability make it a cost-effective solution for contractors and mining companies worldwide. ## Conclusion With its powerful engine, advanced hydraulics, and compact design, the Kaishan KT5C underground drilling rig delivers exceptional performance in the most demanding underground conditions. Backed by Kaishan's global service and support network, it is a smart investment for any underground drilling project.
