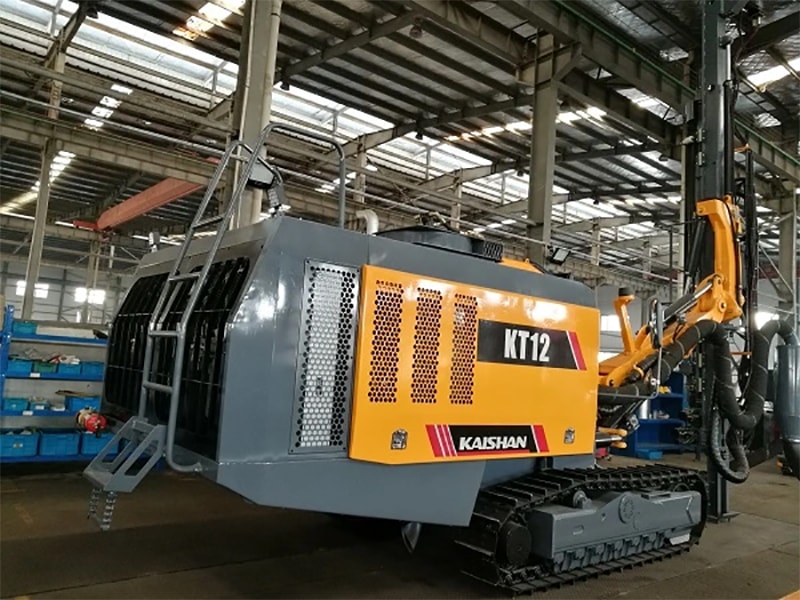

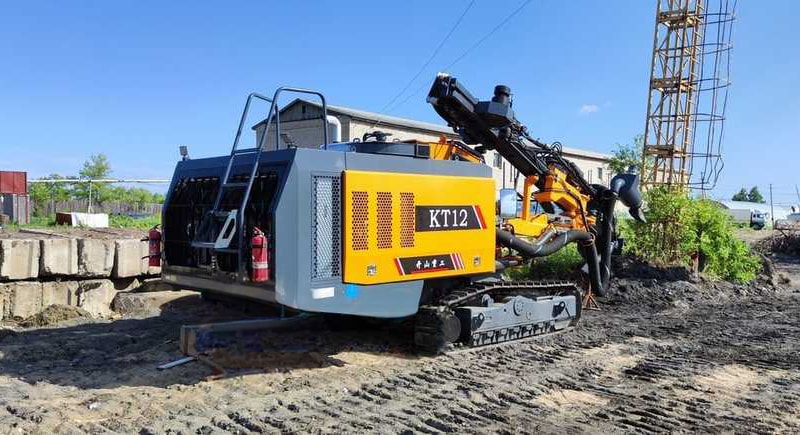

Kaishan KT12 Open-Pit DTH Drilling Rig

Name: Kaishan KT12 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KT12
Availability: InStock

Model: KT12

The Kaishan KT12 is a high-efficiency open-pit DTH drilling rig engineered for quarrying, mining, and construction projects. Built around a robust crawler chassis and a powerful diesel engine, it delivers reliable drilling performance with hole diameters from 90 to 165 mm and depths up to 30 meters. Its advanced rotary head and optimized dust collection system ensure clean, precise, and productive operation in demanding environments. The KT12 combines proven Kaishan reliability with low operating costs, making it an ideal choice for contractors seeking a versatile and durable drilling solution for open-pit applications.

Best For

Open-Pit Mining Quarrying Construction Water Well Drilling

Technical Specifications

Model	Kaishan KT12
Drilling Depth	30 m
Hole Diameter	115–152 mm
Drilling Method	DTH (Down-The-Hole) Drilling
Engine Power	118 kW
Weight	12,000 kg
Dimension (L×W×H)	7,500 × 2,300 × 2,900 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KT12 is a crawler-mounted open-pit DTH drilling rig designed for high-productivity drilling in quarries, open-pit mines, and construction sites. It integrates a powerful diesel engine, a heavy-duty undercarriage, and an efficient rotary head to deliver consistent performance in challenging rock formations. With a compact yet rugged design, the KT12 offers excellent mobility and stability on uneven terrain. ## Technical Features The KT12 features a proven DTH hammer system that ensures fast penetration rates and straight hole accuracy. The hydraulic system provides smooth control of feed, rotation, and tramming, while the automatic rod changer (optional) reduces manual handling and downtime. The rig is equipped with a high-efficiency dust collector that keeps the working environment clean and compliant with environmental regulations. Its ergonomic operator station offers excellent visibility and easy access to all controls, enhancing safety and comfort during long shifts. ## Applications The KT12 is widely used in open-pit mining for blast hole drilling, quarrying for aggregate production, and construction projects requiring rock excavation. It is also suitable for water well drilling in unconsolidated formations when equipped with appropriate tools. The rig's versatility makes it a valuable asset for contractors working in diverse geological conditions. ## Why Choose Kaishan KT12 With decades of experience in drilling equipment manufacturing, Kaishan delivers reliable, durable, and cost-effective solutions. The KT12 is backed by a global service network, ensuring prompt support and spare parts availability. Its fuel-efficient engine and low maintenance requirements reduce total cost of ownership, making it a smart investment for any drilling operation.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

115–152 mm

Drilling Depth

30 m

Engine Power

118 kW

Weight

12,000 kg

Dimension (L×W×H)

7,500 × 2,300 × 2,900 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful diesel engine for reliable performance in remote areas

✓

Crawler-mounted chassis for superior mobility on rough terrain

✓

DTH hammer system for fast penetration in hard rock

✓

Hole diameter range 90–165 mm for versatile applications

✓

Maximum drilling depth of 30 meters for efficient blast hole drilling

✓

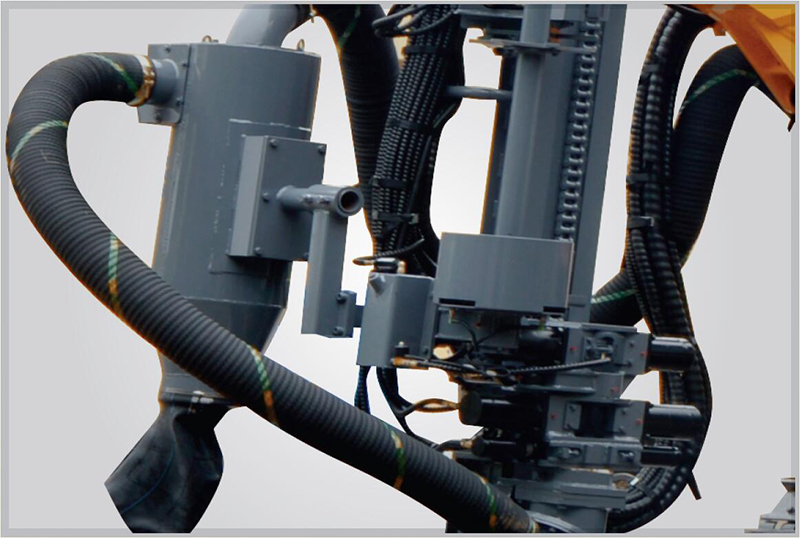

High-efficiency dust collector for a cleaner worksite

✓

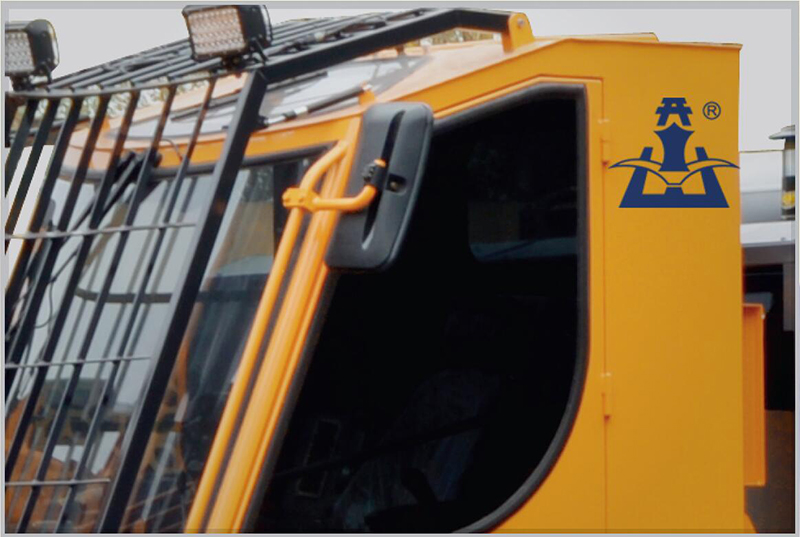

Ergonomic operator cabin with excellent visibility and controls

✓

Optional automatic rod changer to reduce labor and downtime

Applications

📍 Open-Pit Mining

Blast hole drilling in iron, copper, gold, and coal mines.

Solution: The KT12's powerful DTH hammer and stable crawler chassis ensure accurate and fast drilling, boosting mine productivity.

📍 Quarrying

Aggregate production for construction and cement industries.

Solution: With hole diameters up to 165 mm, the KT12 delivers efficient blast holes, reducing drilling costs per ton.

📍 Construction

Rock excavation for roads, dams, and foundations.

Solution: The rig's mobility and precision make it ideal for urban construction sites with limited space.

📍 Water Well Drilling

Shallow water wells in unconsolidated formations.

Solution: Equipped with appropriate tools, the KT12 can drill water wells up to 30 meters deep, providing a versatile solution.

KT Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KT12This model	Kaishan KT12	30 m	115–152 mm	DTH (Down-The-Hole) Drilling	118 kW	Get a Quote
KT5C	KT5C	25 m	80-105 mm	Rotary / DTH	55 kW	Get a Quote
KT5H	KT5H	24 m	90-127 mm	Top Hammer / DTH	74 kW	Get a Quote
KT11	KT11	20 m	80-115 mm	DTH (Down-The-Hole) drilling	92 kW (125 hp)	Get a Quote
KT9D	KT9D	30 m	115–165 mm	DTH (Down-The-Hole)	194 kW (260 hp)	Get a Quote
KT15	KT15	35 m	135-190 mm	Rotary & DTH	194 kW	Get a Quote
KT15C	Kaishan KT15C	36 m	140–190 mm	Down-the-Hole (DTH) Drilling	336 kW	Get a Quote
KT25	KT25	35 m	152–203 mm	Down-the-Hole (DTH) Drilling	328 kW	Get a Quote
KT30	Kaishan KT30	27 m	195–254 mm	DTH (Down-The-Hole) drilling	563 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Crawler undercarriage
Rotary head
DTH hammer
Drill rod
Dust collector
Operator cabin
Hydraulic system

Working Principle

The Kaishan KT12 operates on the principle of down-the-hole (DTH) drilling. A pneumatic hammer is positioned directly behind the drill bit, striking the rock with high-frequency impacts while the rotary head rotates the drill string. Compressed air, supplied by an onboard or external compressor, drives the hammer and also flushes cuttings out of the hole. The crawler chassis allows the rig to move easily between holes, and the hydraulic feed system applies optimal force for efficient penetration. The operator controls all functions from a centralized panel, ensuring precise and safe operation. This method is highly effective in hard rock formations, delivering straight holes and high productivity.

Detailed Features

▸Robust crawler chassis for all-terrain mobility
▸High-torque rotary head for efficient drilling
▸DTH hammer for fast penetration in hard rock
▸Advanced dust collection system
▸Ergonomic operator station with joystick controls
▸Optional automatic rod changer
▸Fuel-efficient diesel engine
▸Easy maintenance access and reliable components

Packaging & Shipping

The Kaishan KT12 is shipped in a standard 40HQ container with proper blocking and securing to prevent movement during transit. It is protected with anti-rust coating and wrapped in heavy-duty plastic. Delivery time is 30-45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. For special requirements, customized packaging and shipping arrangements can be provided.

After-Sales Service

Kaishan offers a 12-month warranty on the KT12 drilling rig (excluding wear parts). Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site installation and commissioning, as well as operator training to ensure safe and efficient use. Regular maintenance kits and genuine parts are available to minimize downtime and extend equipment life.

Frequently Asked Questions

What hole diameter and depth can the Kaishan KT12 drill?+

The KT12 drills hole diameters of 115–152 mm to a maximum drilling depth of 30 m. It uses DTH (Down-The-Hole) drilling for blast hole work. This size range covers typical open-pit and quarry patterns.

What engine powers the Kaishan KT12?+

The KT12 is powered by a 118 kW diesel engine. The diesel engine is specified for reliable performance in remote areas. The rig weighs 12,000 kg.

What air supply does the KT12 DTH hammer need?+

The KT12 runs a DTH hammer system for fast penetration in hard rock. The DTH hammer works with the rig's rotary head and feed system. Air consumption depends on the hammer and button bit selected for the 115–152 mm hole.

Where can the Kaishan KT12 be used?+

The KT12 is built for open-pit mining, quarrying, construction and water well drilling. Its crawler-mounted chassis gives mobility on rough terrain. The 7,500 × 2,300 × 2,900 mm footprint supports stability on uneven ground.

Does the KT12 have dust control and an operator cabin?+

The KT12 is fitted with a high-efficiency dust collector for a cleaner worksite. It has an ergonomic operator cabin with excellent visibility and joystick controls. An automatic rod changer is available as an option.

How is the Kaishan KT12 shipped?+

The KT12 ships in a standard 40HQ container with blocking and securing to prevent movement. It is protected with anti-rust coating and wrapped in heavy-duty plastic. Delivery time is 30-45 days after order confirmation, from Shanghai or Ningbo, China.

What warranty and support come with the KT12?+

Kaishan offers a 12-month warranty on the KT12 drilling rig, excluding wear parts. A global service network provides 24-hour technical support and spare parts delivery. On-site installation, commissioning and operator training are available.
