Kaishan KT9D Open-Pit DTH Drilling Rig

Name: Kaishan KT9D Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KT9D
Availability: InStock

Model: KT9D

The Kaishan KT9D is a heavy-duty open-pit DTH drilling rig engineered for high-capacity blast hole drilling in mining and quarrying. Built around a proven diesel-hydraulic platform, it delivers reliable penetration in hard rock with hole diameters of 90–165 mm and drilling depths up to 30 m. The KT9D combines a powerful Cummins engine, high-torque rotary head, and efficient dust collection system to maximize productivity while meeting environmental standards. Its robust tracked undercarriage and ergonomic cab ensure stable tramming and operator comfort across rough terrain. Ideal for open-pit mines, limestone quarries, and construction sites, the KT9D offers low cost per meter, easy maintenance, and global parts availability. With Kaishan's worldwide service network, this rig is a dependable choice for contractors seeking a productive, durable, and cost-effective drilling solution.

Best For

Open-Pit Mining Quarrying Construction Water Well Drilling

Technical Specifications

Model	KT9D
Drilling Depth	30 m
Hole Diameter	115–165 mm
Drilling Method	DTH (Down-The-Hole)
Engine Power	194 kW (260 hp)
Weight	15,000 kg
Dimension (L×W×H)	8,500 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KT9D is a track-mounted open-pit DTH drilling rig designed for demanding blast hole drilling in mining, quarrying, and construction. As part of Kaishan's proven KT series, the KT9D integrates a powerful diesel engine, high-torque hydraulic rotary head, and advanced dust suppression to deliver efficient penetration in medium to hard rock. It is engineered to drill 90–165 mm diameter holes to depths of up to 30 meters, making it ideal for production drilling in open-pit mines and large quarries. ## Technical Features The KT9D is built on a heavy-duty tracked undercarriage for stable tramming on rough terrain. Its hydraulic system provides smooth, precise control of feed, rotation, and tramming, while the high-torque rotary head ensures reliable torque transmission even in challenging formations. The rig features a powerful Cummins diesel engine that meets emission standards and delivers consistent power for both drilling and travel. An integrated two-stage dust collector with water injection significantly reduces airborne dust, improving visibility and compliance with environmental regulations. The ergonomic operator cab offers excellent visibility, adjustable seating, and intuitive joystick controls, reducing fatigue during long shifts. Maintenance points are centralized for quick access, minimizing downtime. ## Applications The KT9D excels in open-pit mining for iron, copper, gold, and coal, where it drills blast holes with high accuracy and speed. In limestone and aggregate quarries, it delivers consistent performance for production drilling. It is also suitable for construction sites requiring rock excavation, such as road cuts, foundations, and tunneling portals. Additionally, the rig can be used for water well drilling in unconsolidated formations when equipped with appropriate tools, though its primary design is for DTH blast hole drilling. ## Why Choose the KT9D With its combination of power, reliability, and low operating cost, the Kaishan KT9D offers a compelling solution for contractors seeking a versatile open-pit drilling rig. Kaishan's global service network ensures prompt support and genuine parts availability, maximizing uptime and return on investment.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

115–165 mm

Drilling Depth

30 m

Engine Power

194 kW (260 hp)

Weight

15,000 kg

Dimension (L×W×H)

8,500 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful Cummins diesel engine for reliable performance in demanding conditions

✓

High-torque hydraulic rotary head for efficient drilling in hard rock

✓

Drilling depth up to 30 m and hole diameter 90–165 mm

✓

Heavy-duty tracked undercarriage for stable tramming on rough terrain

✓

Integrated two-stage dust collection system for cleaner operation

✓

Ergonomic operator cab with joystick controls and excellent visibility

✓

Centralized maintenance points for reduced downtime

✓

Global Kaishan service network and genuine parts availability

Applications

📍 Open-Pit Mining

Production drilling for blast holes in iron, copper, gold, and coal mines.

Solution: The KT9D's high penetration rate and accurate hole alignment optimize blasting efficiency and reduce cost per ton.

📍 Quarrying

Drilling blast holes in limestone, granite, and aggregate quarries.

Solution: With its powerful engine and dust suppression, the KT9D maintains high productivity while meeting environmental standards.

📍 Construction

Rock excavation for roads, foundations, and tunneling portals.

Solution: The rig's mobility and precise controls enable efficient drilling in confined spaces and uneven ground.

📍 Water Well Drilling

Drilling water wells in unconsolidated formations (with appropriate tools).

Solution: The KT9D can be adapted for water well drilling, offering flexibility for contractors working in mixed applications.

KT Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KT9DThis model	KT9D	30 m	115–165 mm	DTH (Down-The-Hole)	194 kW (260 hp)	Get a Quote
KT5C	KT5C	25 m	80-105 mm	Rotary / DTH	55 kW	Get a Quote

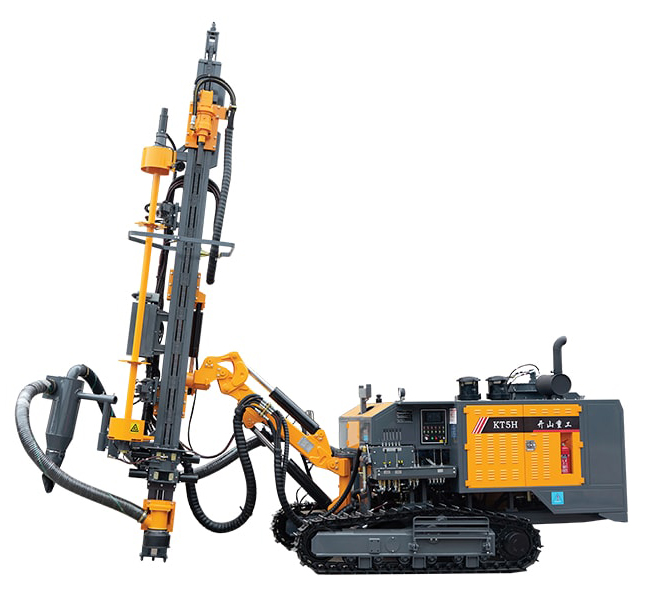

KT5H	KT5H	24 m	90-127 mm	Top Hammer / DTH	74 kW	Get a Quote
KT11	KT11	20 m	80-115 mm	DTH (Down-The-Hole) drilling	92 kW (125 hp)	Get a Quote
KT12	Kaishan KT12	30 m	115–152 mm	DTH (Down-The-Hole) Drilling	118 kW	Get a Quote
KT15	KT15	35 m	135-190 mm	Rotary & DTH	194 kW	Get a Quote
KT15C	Kaishan KT15C	36 m	140–190 mm	Down-the-Hole (DTH) Drilling	336 kW	Get a Quote
KT25	KT25	35 m	152–203 mm	Down-the-Hole (DTH) Drilling	328 kW	Get a Quote
KT30	Kaishan KT30	27 m	195–254 mm	DTH (Down-The-Hole) drilling	563 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Cummins diesel engine
Hydraulic rotary head

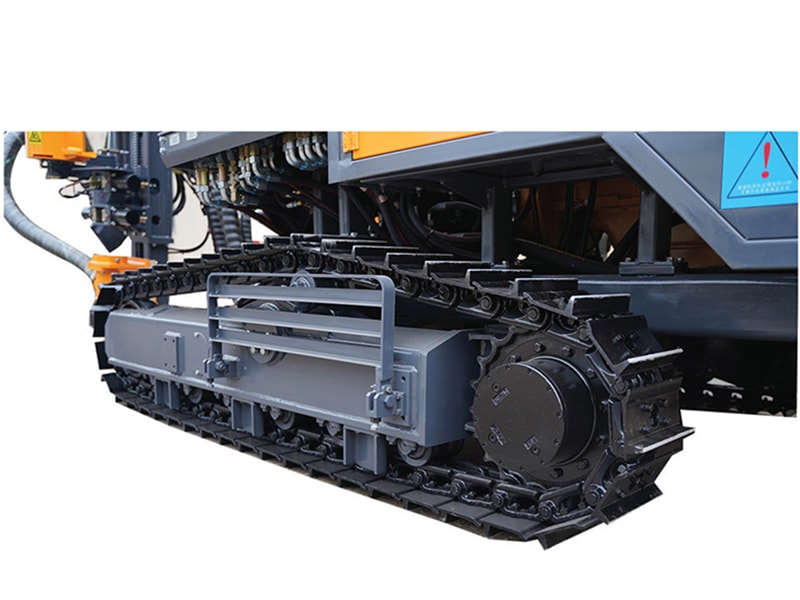

Tracked undercarriage
DTH hammer and drill bit
Onboard air compressor
Dust collection system
Operator cab

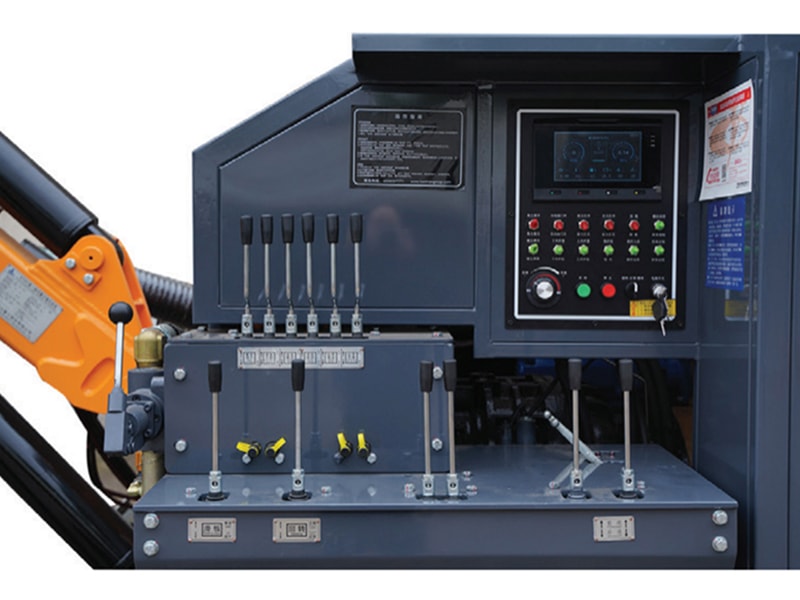

Control panel

Working Principle

The Kaishan KT9D operates on the down-the-hole (DTH) drilling principle. A pneumatic hammer is positioned at the bottom of the drill string, directly above the drill bit. Compressed air is delivered through the drill pipe to drive the hammer's piston, which strikes the bit with high-frequency impacts. Simultaneously, the rotary head turns the drill string, indexing the bit for efficient rock breakage. The feed system applies optimal thrust to maintain bit-to-rock contact, while the air flow also flushes cuttings from the hole. This combination of impact and rotation achieves high penetration rates in hard rock. The KT9D's hydraulic system controls feed, rotation, and tramming, ensuring smooth operation. An onboard compressor provides the necessary air for the DTH hammer and hole cleaning. Dust is suppressed by a water injection system and collected by a two-stage filter, maintaining a safe and clean worksite.

Detailed Features

▸High drilling efficiency in hard rock
▸Reliable Cummins engine
▸Advanced dust suppression
▸Ergonomic operator environment
▸Easy maintenance access
▸Stable tracked chassis
▸Global service support
▸Low operating cost per meter

Packaging & Shipping

The Kaishan KT9D is shipped in a 40FR container or break bulk, depending on configuration. Standard delivery time is 30–45 days after order confirmation. Port of departure: Shanghai or Ningbo, China. The rig is securely fastened and protected for ocean transport. Custom packaging available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on major components. 24-hour technical support via phone or email. On-site training for operators and maintenance staff. Global network of service centers and genuine spare parts. Preventive maintenance programs and remote diagnostics available.

Frequently Asked Questions

What hole diameter and drilling depth does the KT9D support?+

The KT9D drills holes from 115 mm to 165 mm in diameter to a maximum drilling depth of 30 m. It uses the DTH (Down-The-Hole) drilling method for blast hole drilling. The rig is a track-mounted open-pit DTH drilling rig in the KT series.

What engine powers the KT9D?+

The KT9D is powered by a 194 kW (260 hp) Cummins diesel engine. The diesel-hydraulic platform drives a high-torque hydraulic rotary head for feed, rotation and tramming control. The engine is matched to the rig's 15,000 kg operating weight.

What air supply does the KT9D require for DTH drilling?+

The KT9D uses the DTH method with a DTH hammer and button bit, so it requires a matching air compressor to supply the working pressure and free air delivery for the selected hammer. The rig is designed for blast hole drilling in medium to hard rock. Air consumption depends on the hammer and bit size chosen for the 115–165 mm hole diameter.

Where can the KT9D be used?+

The KT9D is built for open-pit mining, quarrying, construction and water well drilling. Its heavy-duty tracked undercarriage provides stable tramming on rough terrain. The ergonomic operator cab with joystick controls supports long shifts on site.

How is the KT9D maintained?+

The KT9D has centralized maintenance points to reduce downtime, and Kaishan offers preventive maintenance programs and remote diagnostics. A 12-month warranty on major components is provided, along with 24-hour technical support via phone or email. On-site training for operators and maintenance staff is available.

How is the KT9D shipped and what is the delivery time?+

The KT9D is shipped in a 40FR container or break bulk, depending on configuration, from Shanghai or Ningbo, China. Standard delivery time is 30–45 days after order confirmation. The rig is securely fastened and protected for ocean transport, and custom packaging is available upon request.

What are the dimensions and weight of the KT9D?+

The KT9D measures 8,500 × 2,500 × 3,200 mm (L×W×H) and weighs 15,000 kg. The track-mounted undercarriage supports stable tramming on rough terrain. These dimensions apply to the standard configuration.
