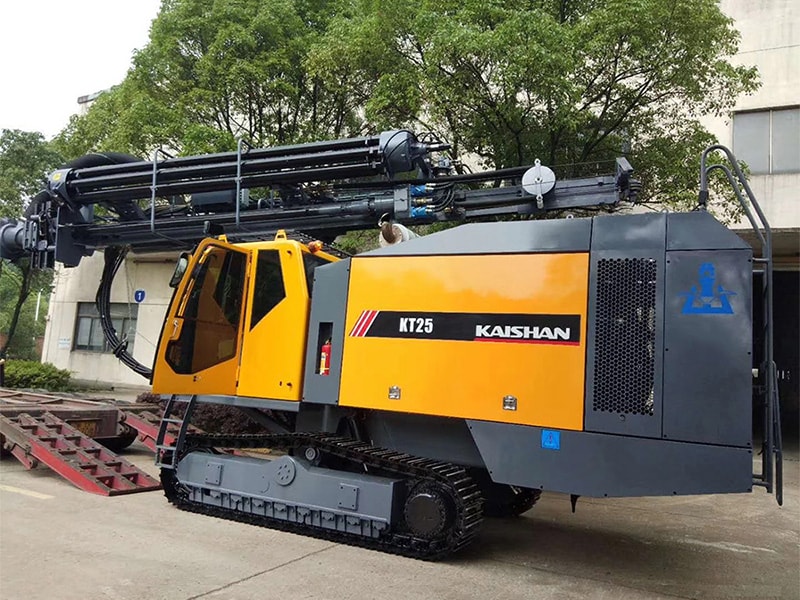

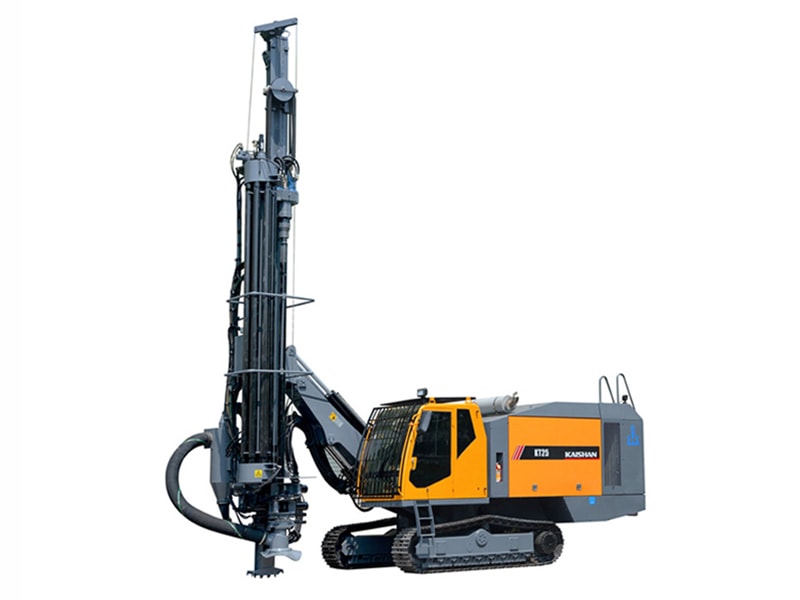

Kaishan KT25 Open-Pit DTH Drilling Rig

Name: Kaishan KT25 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KT25
Availability: InStock

Model: KT25

The Kaishan KT25 is a compact, high-efficiency open-pit DTH drilling rig engineered for quarrying, mining, and construction projects. With a maximum drilling depth of 25 meters and a hole diameter range of 80–115 mm, it delivers reliable performance in hard rock conditions. Powered by a 78 kW diesel engine, the KT25 combines a robust track undercarriage with a powerful rotary head and high-frequency impact system, ensuring fast penetration rates and reduced fuel consumption. Its compact dimensions and 6,800 kg operating weight make it easy to maneuver on tight benches and uneven terrain. The rig features a user-friendly control panel, automatic rod handling, and a dust suppression system for safer, cleaner operation. Ideal for small to medium-scale open-pit mines, the KT25 offers an excellent balance of productivity, mobility, and low operating cost, making it a smart choice for contractors seeking a dependable drilling solution.

Best For

Quarry Blasting Open-Pit Mining Road Construction Foundation Work

Technical Specifications

Model	KT25
Drilling Depth	35 m
Hole Diameter	152–203 mm
Drilling Method	Down-the-Hole (DTH) Drilling
Engine Power	328 kW
Weight	25800 kg
Dimension (L×W×H)	12200 × 2840 × 3620 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KT25 is a track-mounted open-pit DTH drilling rig designed for high-performance drilling in quarries, open-pit mines, and construction sites. It is specifically engineered for drilling blast holes with diameters from 80 to 115 mm and depths up to 25 meters. Combining a powerful diesel engine, a robust rotary head, and an efficient down-the-hole hammer, the KT25 delivers exceptional penetration rates in medium to hard rock formations. Its compact design and excellent maneuverability make it ideal for operations with limited space or challenging terrain. ## Technical Features The KT25 is built around a reliable 78 kW diesel engine that provides ample power for both drilling and track travel. The hydraulic system is optimized for smooth operation and precise control, while the automatic rod changer reduces downtime and improves safety. The rig features a heavy-duty track undercarriage with low ground pressure, allowing it to operate on soft or uneven ground. The dust suppression system uses water injection to minimize airborne particles, creating a cleaner working environment. Additionally, the ergonomic control panel and adjustable seat enhance operator comfort during long shifts. ## Applications The KT25 excels in a variety of drilling applications, including quarry blasting, open-pit mining, road construction, and foundation work. Its ability to drill accurate holes quickly makes it a valuable asset for contractors and mining companies. Whether you are working in limestone, granite, or other hard rock formations, the KT25 delivers consistent performance and reliability. The rig can be easily transported between sites on a standard flatbed truck, further increasing its versatility. ## Why Choose Kaishan KT25 With decades of experience in drilling equipment manufacturing, Kaishan has designed the KT25 to meet the demanding needs of modern drilling operations. It offers a perfect combination of power, efficiency, and durability at a competitive price. Backed by a global service network and comprehensive after-sales support, the KT25 is a smart investment for any drilling project.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

152–203 mm

Drilling Depth

35 m

Engine Power

328 kW

Weight

25800 kg

Dimension (L×W×H)

12200 × 2840 × 3620 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 78 kW diesel engine for reliable performance in hard rock

✓

Maximum drilling depth of 25 meters and hole diameter of 80–115 mm

✓

Track-mounted design for excellent mobility on rough terrain

✓

Automatic rod handling system reduces labor and improves safety

✓

Dust suppression system for cleaner and safer operation

✓

Compact dimensions and low ground pressure for easy maneuverability

Applications

📍 Quarry Blasting

Drilling blast holes in limestone, granite, and other hard rock quarries.

Solution: The KT25's high penetration rate and accurate hole alignment ensure efficient blasting patterns, reducing overall drilling costs.

📍 Open-Pit Mining

Production drilling in small to medium-scale open-pit mines for ore extraction.

Solution: With a depth capacity of 25 meters, the KT25 can handle bench drilling efficiently, improving mine productivity.

📍 Road Construction

Drilling holes for rock blasting in road cutting and tunneling projects.

Solution: The rig's compact size and mobility allow it to work in confined spaces along road alignments, ensuring timely project completion.

📍 Foundation Work

Drilling for foundation anchors and micropiles in construction sites.

Solution: The KT25's precise control and adjustable drilling parameters make it suitable for foundation drilling with various diameters.

KT Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KT25This model	KT25	35 m	152–203 mm	Down-the-Hole (DTH) Drilling	328 kW	Get a Quote
KT5C	KT5C	25 m	80-105 mm	Rotary / DTH	55 kW	Get a Quote
KT5H	KT5H	24 m	90-127 mm	Top Hammer / DTH	74 kW	Get a Quote
KT11	KT11	20 m	80-115 mm	DTH (Down-The-Hole) drilling	92 kW (125 hp)	Get a Quote
KT12	Kaishan KT12	30 m	115–152 mm	DTH (Down-The-Hole) Drilling	118 kW	Get a Quote
KT9D	KT9D	30 m	115–165 mm	DTH (Down-The-Hole)	194 kW (260 hp)	Get a Quote
KT15	KT15	35 m	135-190 mm	Rotary & DTH	194 kW	Get a Quote
KT15C	Kaishan KT15C	36 m	140–190 mm	Down-the-Hole (DTH) Drilling	336 kW	Get a Quote
KT30	Kaishan KT30	27 m	195–254 mm	DTH (Down-The-Hole) drilling	563 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic system
Rotary head
Feed beam
Track undercarriage
Control panel
Dust suppression system
Automatic rod changer

Working Principle

The Kaishan KT25 operates on the down-the-hole (DTH) drilling principle. A pneumatic hammer is positioned at the bottom of the drill string, directly impacting the rock with high-frequency blows while the rotary head turns the string. Compressed air is supplied by a separate air compressor (not included) to power the hammer and flush cuttings out of the hole. The rig's hydraulic system drives the rotary head, feed chain, and track motors. The operator controls the drilling process from an ergonomic panel, adjusting rotation speed, feed force, and air volume to match rock conditions. The automatic rod changer adds or removes rods as needed, allowing continuous drilling to the desired depth. This method ensures fast penetration and straight holes in hard rock formations.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Reliable 78 kW diesel engine
▸Compact and maneuverable track design
▸Automatic rod handling for safety
▸Dust suppression for environmental compliance
▸Ergonomic operator controls
▸Durable construction for tough conditions
▸Easy maintenance and service access

Packaging & Shipping

The Kaishan KT25 is shipped in a standard 40-foot container or on a flat rack, depending on configuration. The rig is securely fastened with heavy-duty straps and protected with anti-rust coating and wrapping. Delivery time is typically 30–45 days after order confirmation. Shipping ports include Shanghai, Ningbo, or Qingdao, China. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on the KT25 drilling rig (excluding wear parts). A 24-hour technical support hotline is available for troubleshooting. We provide free operator training at our factory or on-site (travel expenses may apply). Spare parts are stocked in regional warehouses for fast delivery. Our global service network ensures prompt assistance and minimal downtime.

Frequently Asked Questions

What hole diameter and drilling depth does the KT25 cover?+

The KT25 drills hole diameters of 152–203 mm to a maximum drilling depth of 35 m. It uses Down-the-Hole (DTH) drilling for blast hole work. This size range fits surface mining and quarrying duties.

What engine powers the KT25 drilling rig?+

The KT25 is powered by a 328 kW engine. The rig weighs 25800 kg and measures 12200 × 2840 × 3620 mm. This power source drives both the drilling system and the track undercarriage.

What air supply does the KT25 need for DTH drilling?+

The KT25 uses Down-the-Hole (DTH) drilling with a DTH hammer, so it requires a matching air supply for the hammer. The PRODUCT DATA does not list a working pressure or free air delivery figure for this model. Confirm the air package against your DTH hammer's air consumption.

Where can the KT25 be used?+

The KT25 suits quarry blasting, open-pit mining, road construction and foundation work. Its 152–203 mm hole range and 35 m drilling depth cover typical blast hole patterns. The track-mounted design handles uneven benches on surface sites.

How is the KT25 shipped?+

The KT25 ships in a standard 40-foot container or on a flat rack, depending on configuration. It is secured with heavy-duty straps and protected with anti-rust coating and wrapping. Delivery is typically 30–45 days after order confirmation, from Shanghai, Ningbo or Qingdao.

What warranty and support come with the KT25?+

Kaishan offers a 12-month warranty on the KT25 drilling rig, excluding wear parts. A 24-hour technical support hotline handles troubleshooting, and free operator training is provided at the factory or on-site. Spare parts are stocked in regional warehouses.

What are the KT25 dimensions and weight?+

The KT25 measures 12200 × 2840 × 3620 mm and weighs 25800 kg. These dimensions apply to the standard configuration. The track-mounted design carries this weight across surface benches.
