Kaishan 102mm DTH Drill Rods for Mining & Water Well

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Key Advantages

Applications

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Main Components

• Rod body made of alloy steel
• Male thread (pin) connection
• Female thread (box) connection
• Upset ends for thread reinforcement
• Heat-treated surface for wear resistance
• Internal flushing hole for air passage
• Thread protectors for shipping
• Identification markings for traceability

Working Principle

DTH drill rods function as the mechanical link between the drill rig and the down-the-hole hammer. The rig applies rotation, feed force, and compressed air through the rod string. The rods transmit torque and thrust to the hammer, while also serving as a conduit for high-pressure air. This air drives the hammer piston, which delivers high-frequency impacts to the drill bit, fracturing rock. Simultaneously, the air flushes cuttings out of the hole through the annulus between the rod and the hole wall. The threaded connections at each end of the rod must withstand extreme cyclic loads and provide an airtight seal to maintain air pressure. Kaishan 102mm drill rods are engineered with precision threads and heat-treated bodies to ensure reliable energy transfer and long service life under these demanding conditions.

Detailed Features

• ▸Manufactured from 42CrMo alloy steel for high strength
• ▸Multi-stage heat treatment for uniform hardness
• ▸Precision CNC-machined threads for perfect fit
• ▸Straightness tolerance within 0.5mm per meter
• ▸Available in various lengths and thread types
• ▸Ultrasonically tested for internal defects
• ▸Corrosion-resistant coating for extended storage
• ▸Compatible with major DTH hammer brands

Packaging & Shipping

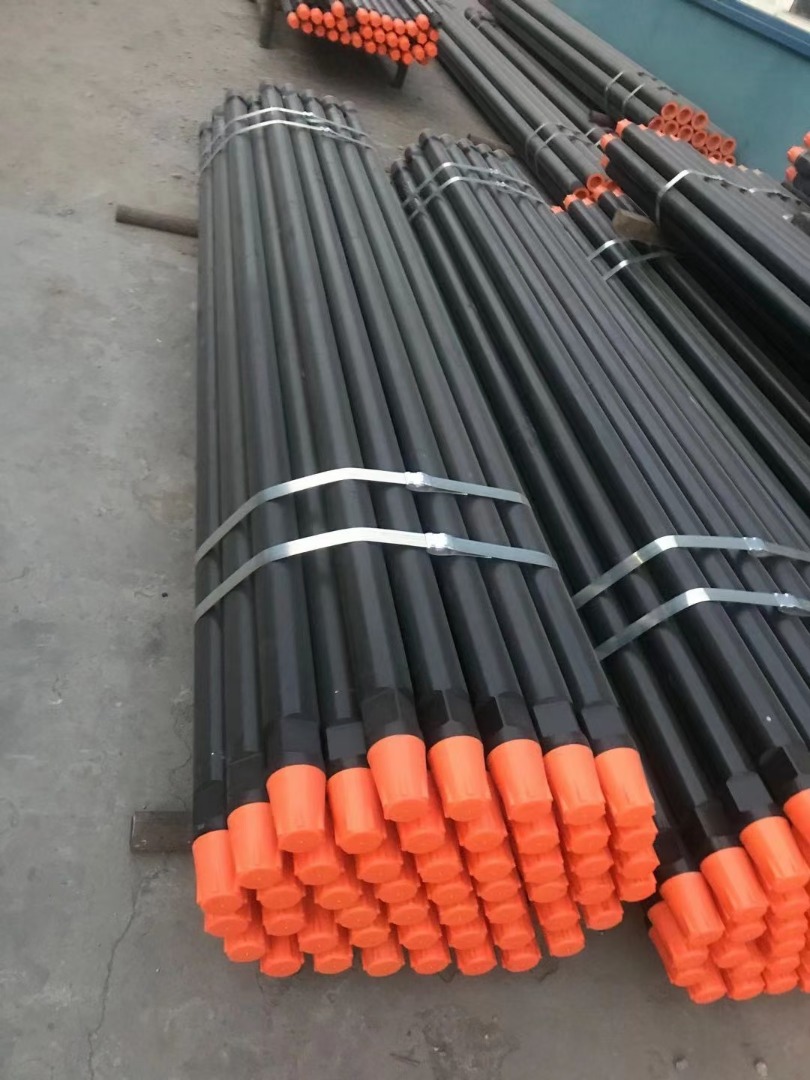

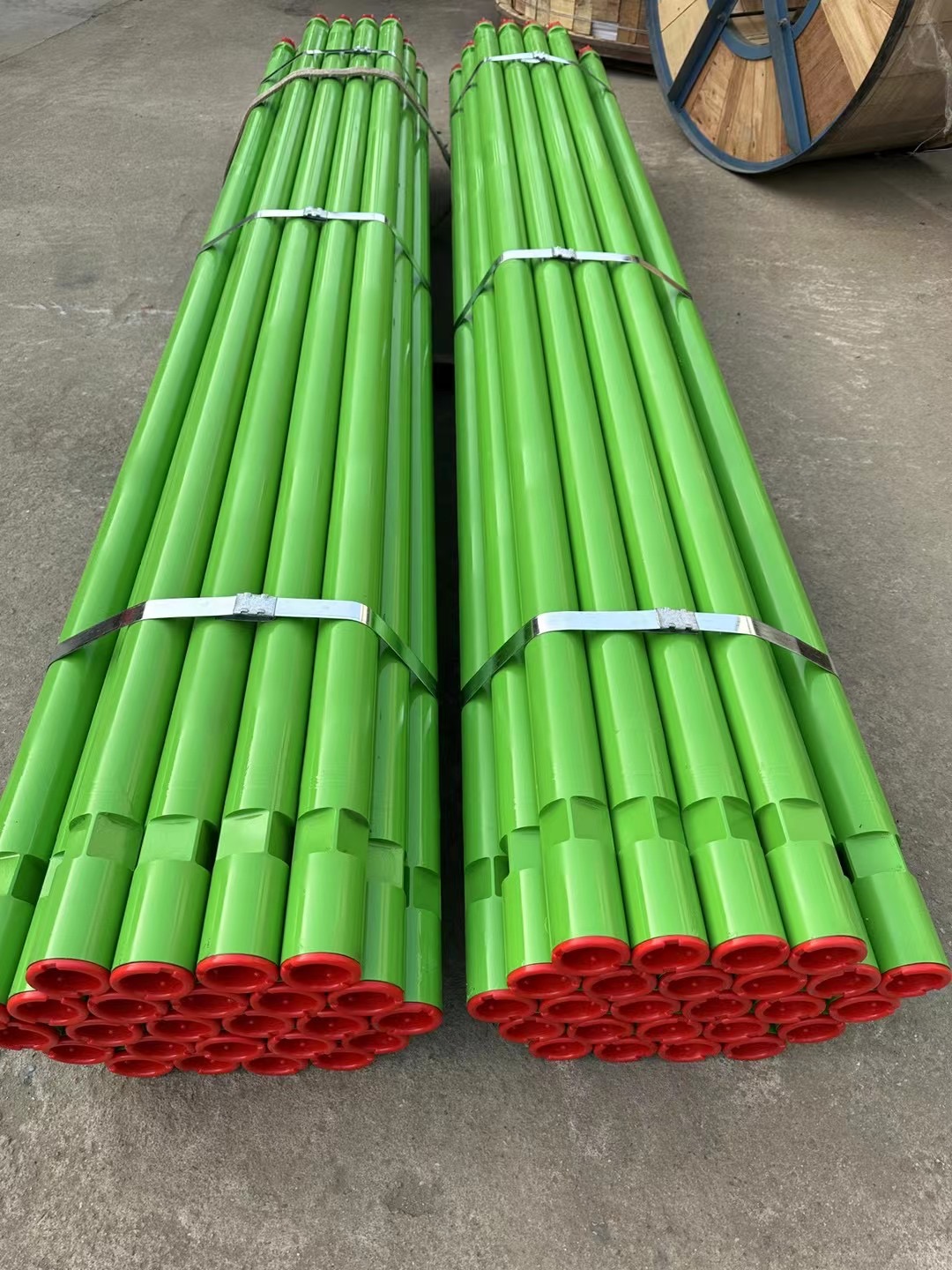

Kaishan 102mm DTH drill rods are carefully packaged to prevent damage during transport. Each rod is protected with thread caps and bundled in wooden crates or steel frames, suitable for sea freight. Standard packaging includes anti-rust oil applied to threads and exposed surfaces. We offer flexible shipping terms: FOB, CIF, or EXW. Ports of departure include Shanghai, Ningbo, or Qingdao, China. Lead time is typically 15-30 days after order confirmation, depending on quantity. For urgent orders, expedited production and air freight can be arranged. Custom packaging and labeling are available upon request.

After-Sales Service

Kaishan provides comprehensive after-sales support for all drilling tools. Each product comes with a 12-month warranty against manufacturing defects. Our dedicated technical team is available 24/7 to assist with troubleshooting and operational guidance. We offer free training for your staff on proper rod handling, maintenance, and thread care, either online or on-site. A full range of spare parts, including thread protectors and adapters, is stocked for quick dispatch. Our global service network ensures prompt response and minimal downtime. Additionally, we provide customization services to meet specific drilling requirements, ensuring you get the right tools for your project.

Frequently Asked Questions
