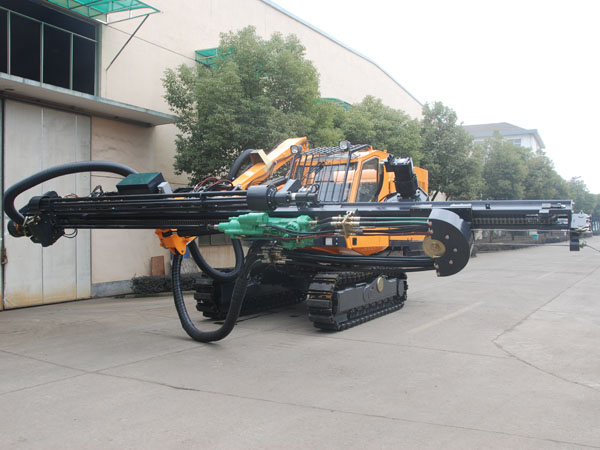

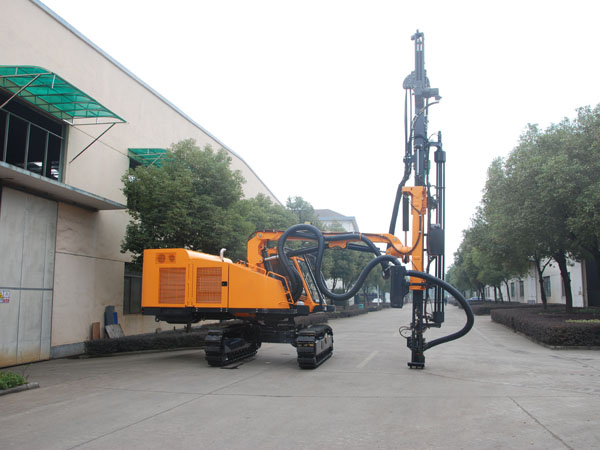

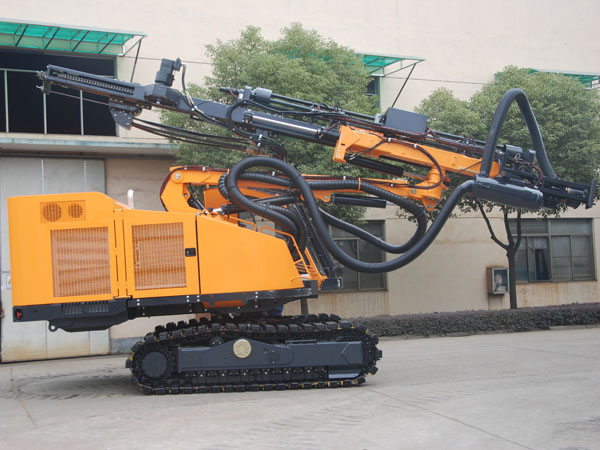

Kaishan KL511 Open-Pit DTH Drilling Rig

Name: Kaishan KL511 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KAISHAN KL511
Availability: InStock

Model: KAISHAN KL511

The Kaishan KL511 is a heavy-duty open-pit DTH drilling rig engineered for high-efficiency blast hole drilling in mining, quarrying, and construction. Built on a robust crawler chassis, it delivers reliable performance with a drilling depth of up to 30 meters and hole diameters of 90–165 mm. Powered by a 194 kW diesel engine, the KL511 combines powerful rotary torque and high penetration rates with excellent mobility on rough terrain. Its advanced dust collection system and ergonomic control cabin ensure safe, comfortable operation. Ideal for limestone, granite, and other hard rock applications, this rig reduces drilling costs and boosts productivity. With proven Kaishan reliability and global service support, the KL511 is the smart choice for open-pit drilling projects.

Best For

Open-Pit Mining Quarrying Road Construction Foundation Drilling

Technical Specifications

Model	Kaishan KL511
Drilling Depth	26.5 m
Hole Diameter	89–127 mm
Drilling Method	DTH Hammer Drilling
Engine Power	194 kW
Weight	15,000 kg
Dimension (L×W×H)	11100 × 2,520 × 3,320 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KL511 is a crawler-mounted open-pit DTH drilling rig designed for demanding blast hole drilling in mining, quarrying, and infrastructure projects. It integrates a high-performance diesel engine, powerful rotary head, and efficient dust suppression system to deliver consistent results in hard rock conditions. ## Technical Features Equipped with a 194 kW Cummins engine, the KL511 provides ample power for drilling 90–165 mm holes to depths of up to 30 meters. The hydraulic system offers high torque and fast feed rates, while the heavy-duty crawler undercarriage ensures stability and mobility on rugged terrain. The ergonomic cabin with joystick controls reduces operator fatigue, and the automatic rod changer (optional) speeds up cycle times. A high-efficiency dust collector keeps the working environment clean and compliant with environmental regulations. ## Applications This rig excels in open-pit mining, quarrying, road construction, and foundation drilling. It is particularly effective in limestone, granite, and other hard rock formations. The KL511 can be configured for DTH hammer drilling or rotary drilling, making it versatile for various geological conditions. ## Why Choose Kaishan KL511 With decades of expertise in drilling equipment, Kaishan delivers reliable, durable machines with global after-sales support. The KL511 combines advanced technology, operator comfort, and low maintenance costs, ensuring maximum return on investment for your drilling operations.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

89–127 mm

Drilling Depth

26.5 m

Engine Power

194 kW

Weight

15,000 kg

Dimension (L×W×H)

11100 × 2,520 × 3,320 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 194 kW diesel engine for high-altitude and hard rock drilling

✓

Drilling depth up to 30 m and hole diameter 90–165 mm

✓

Heavy-duty crawler chassis for superior mobility on rough terrain

✓

High-torque rotary head and fast feed system for high penetration rates

✓

Ergonomic control cabin with joystick operation and dust collection system

✓

Optional automatic rod changer for increased efficiency and safety

Applications

📍 Open-Pit Mining

Blast hole drilling in iron, copper, gold, and coal mines.

Solution: KL511's powerful DTH hammer and high torque ensure fast penetration in hard rock, reducing drilling costs per meter.

📍 Quarrying

Production drilling in limestone, granite, and marble quarries.

Solution: The rig's mobility and dust suppression system enable efficient, environmentally friendly quarry operations.

📍 Road Construction

Drilling for road cutting, tunneling, and slope stabilization.

Solution: Compact design and powerful engine allow drilling in confined spaces and steep terrain.

📍 Foundation Drilling

Drilling for building foundations, bridges, and infrastructure.

Solution: Precise control and optional rod changer facilitate accurate hole placement and fast cycle times.

KL Series Models

Compare specifications across the series to find the right model.

☑	Model	Model	Hole Diameter	Drilling Method	Engine Power	Weight	Inquire
	KAISHAN KL511This model	Kaishan KL511	89–127 mm	DTH Hammer Drilling	194 kW	15,000 kg	Get a Quote
	KL510	Kaishan KL510	64-115 mm	Down-the-Hole (DTH) Drilling	179 kW	165,00 kg	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Cummins diesel engine (194 kW)
Hydraulic rotary head
Heavy-duty crawler undercarriage
Dust collection system
Ergonomic control cabin
Drill mast and feed system
DTH hammer and drill bit
Automatic rod changer (optional)

Working Principle

The Kaishan KL511 operates on the principle of DTH (Down-The-Hole) drilling, where a pneumatic hammer located at the bottom of the drill string directly impacts the rock. High-pressure air from an onboard compressor (or external source) drives the hammer piston, delivering rapid blows to the drill bit. Simultaneously, the rotary head rotates the drill string, ensuring even bit wear and efficient rock fragmentation. The feed system applies optimal thrust to maintain bit contact, while the flushing air removes cuttings from the hole. The crawler chassis provides mobility, and the dust collector captures airborne particles. This method achieves high penetration rates in hard rock with minimal energy loss, making the KL511 ideal for open-pit blast hole drilling.

Detailed Features

▸High-power diesel engine for reliable performance in remote areas
▸Advanced hydraulic system for smooth and precise control
▸Durable crawler chassis with low ground pressure
▸Efficient dust suppression for environmental compliance
▸Spacious cabin with air conditioning and joystick controls
▸Optional automatic rod changer for reduced labor and downtime
▸Easy maintenance access to major components
▸Global service network and spare parts availability

Packaging & Shipping

The Kaishan KL511 is shipped in a disassembled state for efficient container loading. Main components are securely packed in steel frames and protected with anti-corrosion wrapping. Standard export packaging ensures safe transport by sea. Delivery time is 30–45 days after order confirmation. Port of departure: Shanghai or Qingdao, China. Custom packaging and shipping arrangements are available upon request.

After-Sales Service

Kaishan provides a 12-month warranty on the KL511 drilling rig. Our global service team offers 24-hour technical support via phone or email. We provide on-site installation, commissioning, and operator training. A comprehensive spare parts inventory ensures quick delivery. Regular maintenance kits and service contracts are available to maximize uptime and extend equipment life.

Frequently Asked Questions

What hole diameter and drilling depth does the Kaishan KL511 cover?+

The Kaishan KL511 drills holes of 89–127 mm in diameter to a maximum drilling depth of 26.5 m using DTH hammer drilling. It is built for blast hole work in open-pit mining and quarrying.

What engine powers the Kaishan KL511?+

The Kaishan KL511 is powered by a 194 kW engine. This power source drives the rig's rotary head and feed system during DTH hammer drilling.

What air supply does the Kaishan KL511 need?+

The Kaishan KL511 uses DTH hammer drilling, so it requires a matching air supply for the hammer, with the hole diameter range of 89–127 mm and drilling depth of 26.5 m defining the working setup. The rig itself is a crawler-mounted carrier with a 194 kW engine.

Where can the Kaishan KL511 be used?+

The Kaishan KL511 is suited to open-pit mining, quarrying, road construction and foundation drilling. Its crawler chassis and 15,000 kg operating weight support work on rough terrain at the site.

How much does the Kaishan KL511 weigh and what are its dimensions?+

The Kaishan KL511 weighs 15,000 kg and measures 11100 × 2,520 × 3,320 mm (L×W×H). These figures cover the rig as specified for transport and site planning.

How is the Kaishan KL511 packaged and shipped?+

The Kaishan KL511 is shipped in a disassembled state for efficient container loading, with main components packed in steel frames and protected by anti-corrosion wrapping. Delivery takes 30–45 days after order confirmation, departing from Shanghai or Qingdao, China.

What warranty and after-sales support come with the Kaishan KL511?+

Kaishan provides a 12-month warranty on the KL511 drilling rig, along with 24-hour technical support by phone or email. On-site installation, commissioning and operator training are also provided.
