Kaishan KT11 Open-Pit DTH Drilling Rig
Model: KT11

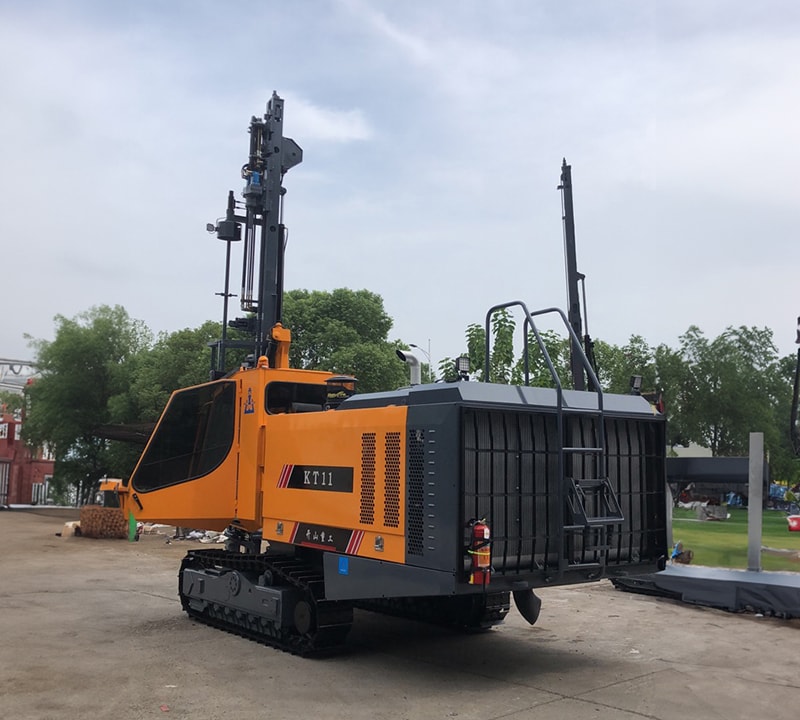

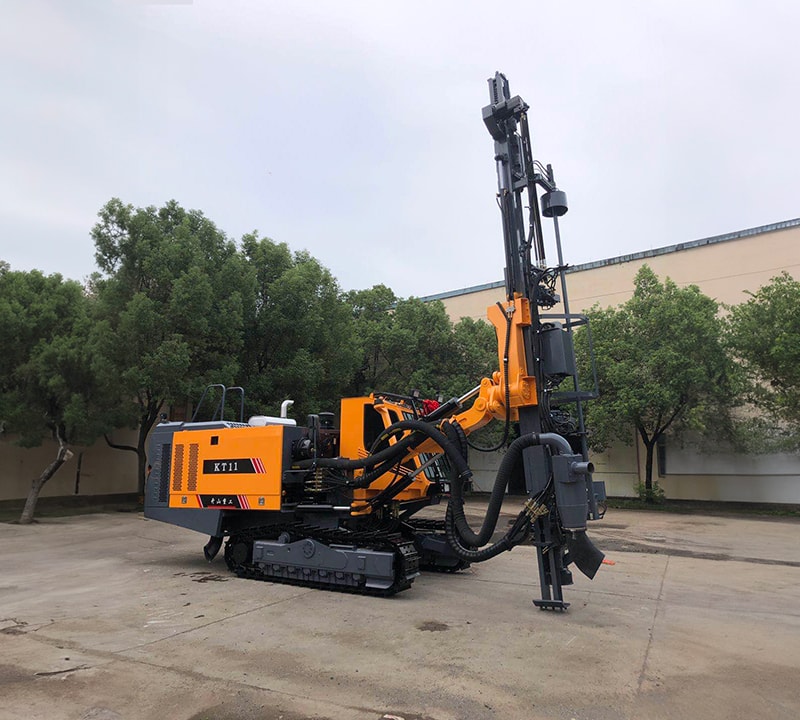

The Kaishan KT11 is a track-mounted open-pit DTH drilling rig engineered for high-efficiency blasthole drilling in quarries, mines, and construction sites. Powered by a reliable diesel engine, it delivers stable drilling performance with hole diameters from 80 to 115 mm and drilling depths up to 20 meters. Its robust undercarriage, hydraulic tramming system, and optimized dust collection make it ideal for continuous operation in tough rock conditions. The KT11 combines proven Kaishan rotary head technology with user-friendly controls, reducing downtime and improving productivity. Whether you are drilling limestone, granite, or other hard rock formations, this rig offers a cost-effective solution for your open-pit drilling needs.
Technical Specifications
| Model | KT11 |
| Drilling Depth | 20 m |
| Hole Diameter | 80-115 mm |
| Drilling Method | DTH (Down-The-Hole) drilling |
| Engine Power | 92 kW (125 hp) |
| Weight | 7,500 kg |
| Dimension (L×W×H) | 6,000 × 2,200 × 2,800 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Hole Diameter
80-115 mm
Drilling Depth
20 m
Engine Power
92 kW (125 hp)
Weight
7,500 kg
Dimension (L×W×H)
6,000 × 2,200 × 2,800 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Track-mounted design for superior mobility on rough terrain
Drilling depth up to 20 meters and hole diameter 80-115 mm

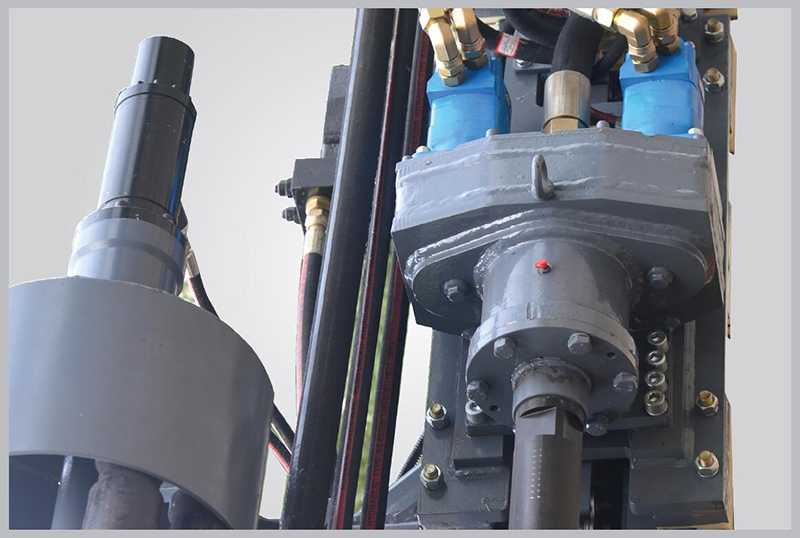

High-torque rotary head for efficient rock penetration

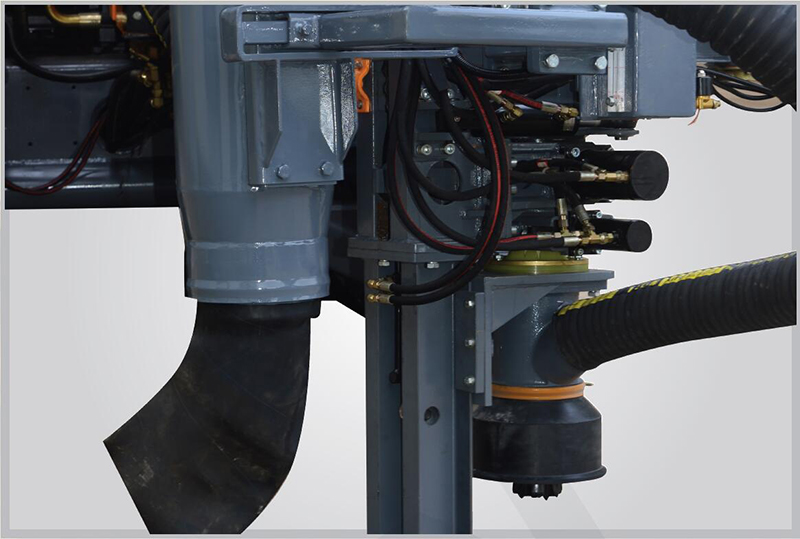

Dual-stage dust collection system for a cleaner worksite
Ergonomic operator controls and comfortable cabin
Reliable diesel engine with low fuel consumption
Easy maintenance access and long service intervals
Optional air compressor and DTH hammer configurations
Applications
📍 Quarry Blast Hole Drilling
Efficient drilling of blast holes in limestone, granite, and other hard rock quarries.
Solution: Kaishan KT11 with high-torque rotary head and DTH hammer delivers fast penetration and accurate hole alignment, reducing overall drilling costs.
📍 Open-Pit Mining
Production drilling for copper, iron, gold, and coal mines.
Solution: The KT11's robust undercarriage and dust suppression system ensure continuous operation in demanding mining environments, maximizing productivity.
📍 Road Construction
Drilling for road cutting, tunneling, and slope stabilization.
Solution: Compact and maneuverable, the KT11 can access tight spaces and drill inclined holes for road construction and rock bolting.
📍 Foundation Drilling
Drilling for building foundations, bridges, and infrastructure projects.
Solution: With precise control and reliable performance, the KT11 provides accurate holes for foundation piling and anchoring.
KT Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Drilling Depth | Hole Diameter | Drilling Method | Engine Power | Inquire |
|---|---|---|---|---|---|---|---|
| KT11This model | KT11 | 20 m | 80-115 mm | DTH (Down-The-Hole) drilling | 92 kW (125 hp) | Get a Quote | |
| KT5C | KT5C | 25 m | 80-105 mm | Rotary / DTH | 55 kW | Get a Quote | |
| KT5H | KT5H | 24 m | 90-127 mm | Top Hammer / DTH | 74 kW | Get a Quote | |
| KT12 | Kaishan KT12 | 30 m | 115–152 mm | DTH (Down-The-Hole) Drilling | 118 kW | Get a Quote | |
| KT9D | KT9D | 30 m | 115–165 mm | DTH (Down-The-Hole) | 194 kW (260 hp) | Get a Quote | |
| KT15 | KT15 | 35 m | 135-190 mm | Rotary & DTH | 194 kW | Get a Quote | |
| KT15C | Kaishan KT15C | 36 m | 140–190 mm | Down-the-Hole (DTH) Drilling | 336 kW | Get a Quote | |
| KT25 | KT25 | 35 m | 152–203 mm | Down-the-Hole (DTH) Drilling | 328 kW | Get a Quote | |
| KT30 | Kaishan KT30 | 27 m | 195–254 mm | DTH (Down-The-Hole) drilling | 563 kW | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Diesel engine
- Hydraulic system
- Rotary head
- Feed beam and chain
- Track undercarriage
- Dust collector
- Operator cabin/control panel
- Drill rod and DTH hammer
Working Principle
The Kaishan KT11 open-pit DTH drilling rig operates on the principle of down-the-hole (DTH) drilling, where a pneumatic hammer is placed directly behind the drill bit. High-pressure air from an onboard or external compressor drives the hammer's piston, delivering rapid impacts to the bit while it rotates slowly. This combination of impact and rotation fractures rock efficiently. The rig's hydraulic system powers the rotary head, feed chain, and tramming motors. The operator controls the drilling process from an ergonomic panel, adjusting feed force and rotation speed to match rock conditions. Cuttings are flushed out of the hole by the exhaust air and captured by the dust collector. The KT11's track undercarriage allows precise positioning and stable drilling, making it a versatile solution for open-pit operations.
Detailed Features
- ▸Track-mounted for all-terrain mobility
- ▸Drilling depth up to 20 m
- ▸Hole diameter 80-115 mm
- ▸High-torque rotary head
- ▸Dual-stage dust suppression
- ▸Ergonomic operator station
- ▸Reliable diesel engine
- ▸Easy maintenance access
Packaging & Shipping
The Kaishan KT11 is shipped in a standard 40HQ container or flat rack, depending on configuration. Each unit is securely fastened with steel chains and protected with anti-rust coating and waterproof wrapping. Delivery time is typically 30-45 days after order confirmation. Ports of shipment include Shanghai, Ningbo, or Qingdao, China. Custom packaging and labeling are available upon request.
After-Sales Service
Kaishan offers a 12-month warranty on the KT11 drilling rig, covering major components. A 24-hour online support team provides technical assistance and troubleshooting. On-site training for operators and maintenance staff is available. Genuine spare parts are stocked in regional warehouses for quick delivery. Annual maintenance contracts and extended warranty options are also offered to ensure maximum uptime.
Frequently Asked Questions
What hole diameter and drilling depth does the KT11 cover?+
The KT11 drills hole diameters from 80 to 115 mm and reaches a drilling depth of up to 20 m. It uses DTH (Down-The-Hole) drilling for blast hole work. This size range suits medium-scale open-pit operations.
What engine powers the KT11 drilling rig?+
The KT11 runs on a diesel engine rated at 92 kW (125 hp). The rig weighs 7,500 kg and measures 6,000 × 2,200 × 2,800 mm. The engine is described as reliable with low fuel consumption.
What air supply and DTH tools does the KT11 need?+
The KT11 is offered with optional air compressor and DTH hammer configurations. Matching air supply and DTH hammer selection depend on the configuration chosen for the rig. The rig itself is a track-mounted DTH drilling unit for 80-115 mm holes.
Where can the KT11 be used?+
The KT11 is built for quarry blast hole drilling, open-pit mining, road construction and foundation drilling. Its track-mounted design and hydraulic tramming motors give mobility on rough terrain. It handles hard rock formations such as limestone and granite.
How is the KT11 maintained?+
The KT11 has easy maintenance access and long service intervals, with a dual-stage dust collection system for a cleaner worksite. Genuine spare parts are stocked in regional warehouses for quick delivery. A 24-hour online support team provides technical assistance and troubleshooting.
What warranty and support come with the KT11?+
Kaishan offers a 12-month warranty on the KT11 drilling rig covering major components. On-site training for operators and maintenance staff is available. Annual maintenance contracts and extended warranty options are also offered.
How is the KT11 shipped and what is the delivery time?+
The KT11 ships in a standard 40HQ container or flat rack, depending on configuration, secured with steel chains and protected by anti-rust coating and waterproof wrapping. Delivery time is typically 30-45 days after order confirmation. Ports of shipment include Shanghai, Ningbo or Qingdao, China.
