Kaishan LGCY-21/21-23/18 Portable Diesel Screw Compressor

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Key Advantages

Applications

LGCY Series Models

Compare specifications across the series to find the right model.

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

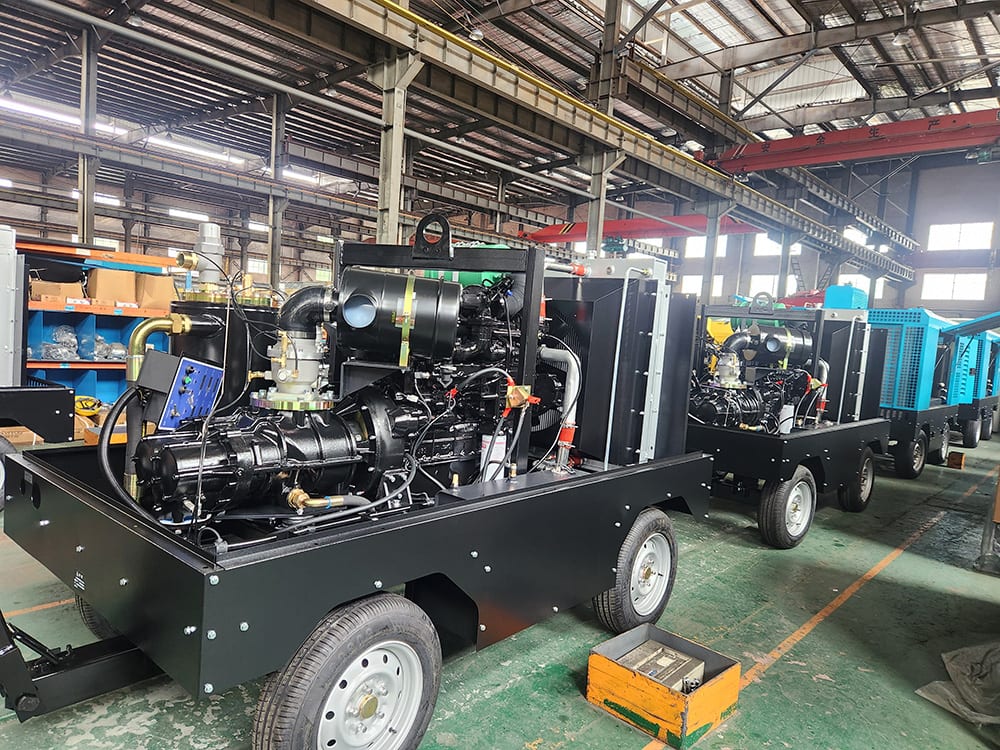

Main Components

• Diesel engine (Cummins or Yuchai)
• Two-stage rotary screw air end
• Air intake filter and pre-cleaner
• Oil separation tank and filter
• Aftercooler and oil cooler
• Intelligent control panel
• Towable chassis with pneumatic tires
• Weather-resistant canopy

Working Principle

The Kaishan LGCY-21/21-23/18 operates on the principle of positive displacement rotary screw compression. Ambient air is drawn through a heavy-duty filter into the compressor element, where two intermeshing helical screws rotate. As the screws turn, the trapped air is progressively compressed as the volume between the screw lobes decreases. Oil is injected into the compression chamber to lubricate, seal, and cool the process. The oil-air mixture then enters a separation system, where the oil is removed and returned to the sump, while the compressed air passes through a minimum pressure valve and aftercooler before exiting the discharge port. The diesel engine drives the screw element via a coupling or belt system, and an intelligent controller adjusts engine speed to match air demand, optimizing fuel efficiency. This two-stage design allows for higher pressure ratios with lower compression temperatures, resulting in greater efficiency and longer component life compared to single-stage compressors.

Detailed Features

• ▸High pressure 21 bar for demanding drilling applications
• ▸Large air delivery 21 m³/min for high productivity
• ▸Two-stage compression for energy efficiency
• ▸Reliable diesel engine with global service support
• ▸Mobile towable design for easy relocation
• ▸Durable canopy protects against harsh weather
• ▸Advanced control system with diagnostics
• ▸Extended service intervals reduce maintenance costs

Packaging & Shipping

The Kaishan LGCY-21/21-23/18 is shipped in a heavy-duty seaworthy packing suitable for container or flat-rack transport. The unit is securely fastened to the container floor or flat-rack platform using steel straps and chocks to prevent movement during transit. For standard 40HQ container, the compressor can be loaded after removing the canopy or with minor disassembly; alternatively, it can be shipped on a flat-rack or in a bulk vessel. Delivery time is typically 30-45 days after receipt of deposit, depending on order quantity and production schedule. Main loading ports include Shanghai, Ningbo, or Qingdao, China. We provide all necessary export documentation and can arrange door-to-door delivery upon request.

After-Sales Service

Kaishan offers comprehensive after-sales service for the LGCY-21/21-23/18. Each unit comes with a 12-month warranty or 2000 operating hours (whichever comes first) covering major components. Our global service network provides 24-hour technical support via phone or email. We offer on-site commissioning and operator training at the buyer's location (travel expenses may apply). Genuine spare parts are available from regional warehouses to minimize downtime. Regular maintenance kits and service contracts can be customized to meet specific operational needs. Our factory-trained technicians ensure your compressor operates at peak performance throughout its service life.

Frequently Asked Questions
