Kaishan LGCY-33/35A Portable Diesel Screw Air Compressor
Model: LGCY-33/35A
The Kaishan LGCY-33/35A portable diesel screw air compressor delivers 33 m³/min of free air at 35 bar working pressure, making it one of the most powerful models in Kaishan's high-pressure mobile compressor lineup. Designed for demanding industrial applications such as water well drilling, mining, quarrying, and oil and gas exploration, this diesel-driven screw compressor combines robust construction with advanced air-end technology. Powered by a reliable Cummins or Yuchai diesel engine, it ensures consistent performance even in remote locations without access to electricity. The LGCY-33/35A features a heavy-duty chassis, four-wheel towable design, and intelligent control system for safe and efficient operation. Its high-pressure output supports DTH hammers, deep-hole drilling rigs, and sandblasting equipment. With excellent fuel efficiency, low noise levels, and easy maintenance, this compressor is an ideal choice for contractors seeking a dependable high-pressure air solution. Whether you are drilling water wells, exploring minerals, or performing pipeline testing, the Kaishan LGCY-33/35A delivers the power and reliability you need.
Best For
Technical Specifications
| Model | LGCY-33/35A |
| Free Air Delivery | 33 m³/min (1,165 CFM) |
| Working Pressure | 35 bar (508 psi) |
| Engine | Cummins or Yuchai diesel engine |
| Air Outlet Port | G1.5×1, G3/4×1 |
| Weight | 5,800 kg |
| Dimension (L×W×H) | 4,500 × 2,100 × 2,500 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Working Pressure
35 bar (508 psi)
Free Air Delivery
33 m³/min (1,165 CFM)
Weight
5,800 kg
Dimension (L×W×H)
4,500 × 2,100 × 2,500 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
High free air delivery of 33 m³/min (1,165 CFM) at 35 bar working pressure
Powered by reliable Cummins or Yuchai diesel engine for superior fuel efficiency
Heavy-duty four-wheel towable chassis for easy transportation on rough terrain
Intelligent control system with real-time monitoring and fault diagnostics
High-efficiency screw air end with two-stage compression for high pressure
Sound-attenuated canopy reduces noise levels for urban and residential use
Large fuel tank enables extended operation without refueling
Corrosion-resistant materials and robust construction for harsh environments
Applications
📍 Water Well Drilling
High-pressure air is essential for DTH hammer drilling in water well construction, where deep holes and hard rock formations are common.
Solution: The LGCY-33/35A provides 35 bar pressure and 33 m³/min flow to efficiently drive DTH hammers, ensuring fast penetration rates and reduced drilling costs.
📍 Mining and Quarrying
Mining operations require reliable high-pressure air for drilling blast holes and powering pneumatic tools in remote locations.
Solution: With its diesel engine and mobile design, this compressor delivers consistent air power on-site, eliminating the need for electrical infrastructure and reducing downtime.
📍 Oil and Gas Pipeline Testing
Pipeline testing demands high-pressure air for pigging, purging, and pressure testing to ensure integrity and safety.
Solution: The LGCY-33/35A offers precise pressure control and high flow, making it suitable for various pipeline testing and maintenance tasks.
📍 Sandblasting and Surface Preparation
Sandblasting requires a steady supply of high-pressure air to clean and prepare surfaces before coating.
Solution: This compressor delivers ample air volume and pressure to operate multiple sandblasting nozzles simultaneously, improving productivity.
LGCY Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Free Air Delivery | Working Pressure | Engine | Air Outlet Port | Inquire |
|---|---|---|---|---|---|---|---|
| LGCY-33/35AThis model | LGCY-33/35A | 33 m³/min (1,165 CFM) | 35 bar (508 psi)★ | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-33/35 | LGCY-33/35 | 33 m³/min (1,165 CFM) | 35 bar (507 psi) | Cummins or Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-33/25 | LGCY-33/25 | 33 m³/min (1,165 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-33/25K | LGCY-33/25K | 33 m³/min (1,165 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G2×1, G3/4×1 | Get a Quote | |
| LGCY-27/25-29/18 | LGCY-27/25-29/18 | 27 m³/min at 25 bar, 29 m³/min at 18 bar | 25 bar / 18 bar | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-39/25 | LGCY-39/25 | 39 m³/min (1,377 CFM) | 25 bar (362 psi) | Cummins or Yuchai heavy-duty diesel | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-39/25A | LGCY-39/25A | 39 m³/min | 25 bar | Cummins / Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-26/25 | LGCY-26/25 | 26 m³/min (918 CFM) | 25 bar (362 psi) | Cummins diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-26/25K | LGCY-26/25K | 26 m³/min (918 CFM) | 25 bar (362 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-25/23-27/18K | LGCY-25/23-27/18K | 25 m³/min (883 CFM) | 23 bar (334 psi) | Cummins / Yuchai diesel engine, 18K series | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-45/25-37/35V | LGCY-45/25-37/35V | 45 m³/min (1,590 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-23/23-25/18K | LGCY-23/23-25/18K | 23 m³/min (812 CFM) | 23 bar (334 psi) | Cummins / Yuchai diesel engine | G1.5 × 1, G3/4 × 1 | Get a Quote | |
| LGCY-21/21-23/18 | LGCY-21/21-23/18 | 21 m³/min (740 CFM) | 21 bar (305 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18K | LGCY-19/21-21/18K | 19 m³/min | 21 bar / 18 bar | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-23/23-25/18 | LGCY-23/23-25/18 | 23 m³/min | 18 bar | Cummins / Yuchai | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18 | LGCY-19/21-21/18 | 21 m³/min (740 CFM) at 18 bar / 19 m³/min (670 CFM) at 21 bar | 18 bar (261 psi) / 21 bar (305 psi) | Cummins or Yuchai diesel engine, 6-cylinder, turbocharged | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18X | LGCY-19/21-21/18X | 21 m³/min (740 CFM) | 18 bar (261 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-17/18-18/15T | LGCY-17/18-18/15T | 17 m³/min (600 CFM) | 18 bar (261 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-17/18-18/15TK | LGCY-17/18-18/15TK | 17 m³/min (600 CFM) | 18 bar (261 psi) | Cummins / Yuchai diesel engine | G1.5 × 1, G3/4 × 1 | Get a Quote | |
| LGCY-15/18-17/12T | LGCY-15/18-17/12T | — | — | — | — | Get a Quote | |
| LGCY-30/8TK | LGCY-30/8TK | 30 m³/min (1060 CFM) | 8 bar (116 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-21/13TK | LGCY-21/13TK | 21 m³/min (740 CFM) | 13 bar (190 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-25/10TK | LGCY-25/10TK | 25 m³/min (883 CFM) | 10 bar (145 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LCGC-29/23 (crawler base) | LCGC-29/23 (crawler base) | 29 | 2.3 | — | G2×1, G³/₄×1 | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Diesel engine (Cummins or Yuchai)
- Screw air end (two-stage)
- Air-oil separator tank
- Cooling system (radiator and oil cooler)
- Intelligent control panel
- Heavy-duty four-wheel chassis with towbar
- Fuel tank (large capacity)
- Intake air filter and oil filter
Working Principle
The Kaishan LGCY-33/35A operates on the principle of rotary screw compression. A diesel engine drives the screw air end, which consists of two intermeshing helical rotors. As the rotors turn, air is trapped between them and progressively compressed as the space decreases. The compressed air then passes through a separator to remove oil, a cooler to reduce temperature, and a filter to remove impurities before being discharged. The two-stage compression design allows the compressor to achieve high pressure (35 bar) efficiently by compressing air in two steps, with intercooling between stages to reduce thermal stress and improve efficiency. The intelligent control system continuously monitors key parameters such as discharge pressure, temperature, and engine speed, adjusting the engine throttle to match air demand. This ensures optimal fuel consumption and reduces wear. The mobile chassis and diesel power source make the compressor self-contained, capable of operating in remote areas without external power. Safety features include automatic shutdown in case of high temperature or low oil pressure, ensuring reliable and safe operation.
Detailed Features
- ▸High pressure 35 bar for demanding drilling applications
- ▸Large air delivery 33 m³/min for high productivity
- ▸Fuel-efficient diesel engine reduces operating costs
- ▸Mobile design with four-wheel chassis for easy relocation
- ▸Intelligent control system for safe and efficient operation
- ▸Durable construction for harsh environments
- ▸Low noise and emission levels comply with environmental standards
- ▸Easy maintenance with accessible service points
Packaging & Shipping
The Kaishan LGCY-33/35A is shipped in a heavy-duty seaworthy packing suitable for international transportation. The compressor is secured on a steel frame and wrapped in protective material to prevent corrosion during transit. It can be loaded into a 40-foot container or shipped as breakbulk depending on quantity. Standard delivery time is 30-45 days after order confirmation. Ports of shipment include Shanghai, Ningbo, or Qingdao, China. Custom packaging and shipping arrangements can be made upon request.
After-Sales Service
Kaishan offers comprehensive after-sales service for the LGCY-33/35A. The product comes with a 12-month warranty or 2,000 operating hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting and emergency assistance. We provide free training for operators and maintenance personnel at our factory or on-site. Genuine spare parts are available through our global distribution network, ensuring quick delivery and optimal performance. Regular maintenance kits and service contracts are also offered to maximize uptime and extend equipment life.
Frequently Asked Questions
What is the free air delivery and working pressure of the LGCY-33/35A?+
The LGCY-33/35A delivers 33 m³/min (1,165 CFM) of free air at a working pressure of 35 bar (508 psi). This combination supports high-pressure drilling and industrial operations.
What engine powers the LGCY-33/35A portable diesel screw air compressor?+
The LGCY-33/35A is powered by a Cummins or Yuchai diesel engine. The diesel drive allows operation in remote locations without access to electricity.
What equipment can the LGCY-33/35A supply air to?+
The LGCY-33/35A supports DTH hammers, deep-hole drilling rigs, and sandblasting equipment with its 33 m³/min (1,165 CFM) free air delivery at 35 bar (508 psi). Its air outlet ports are G1.5×1 and G3/4×1.
What applications is the LGCY-33/35A suitable for?+
The LGCY-33/35A is used for water well drilling, mining and quarrying, oil and gas pipeline testing, and sandblasting and surface preparation. Its four-wheel towable chassis allows relocation on rough terrain.
How much does the LGCY-33/35A weigh and what are its dimensions?+
The LGCY-33/35A weighs 5,800 kg and measures 4,500 × 2,100 × 2,500 mm (L×W×H). The heavy-duty four-wheel towable chassis supports transportation on rough terrain.
What is the warranty on the LGCY-33/35A?+
The LGCY-33/35A comes with a 12-month warranty or 2,000 operating hours, whichever comes first, covering major components. A 24-hour technical support hotline is available for troubleshooting and emergency assistance.
How is the LGCY-33/35A packaged and shipped?+
The LGCY-33/35A is shipped in heavy-duty seaworthy packing secured on a steel frame and wrapped in protective material. It can be loaded into a 40-foot container or shipped as breakbulk depending on quantity, with a standard delivery time of 30-45 days after order confirmation.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.

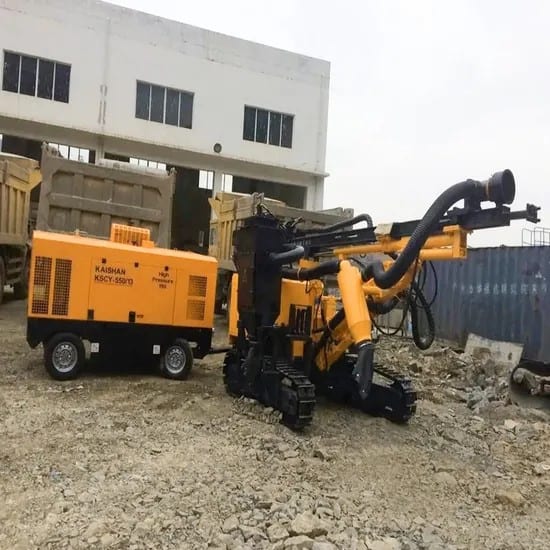

Compatible Drilling Rigs
Rigs this air supply can drive, matched on air demand and working pressure.
Best air-supply match shown first — the rest are still compatible.
Top matches
KQLG-115
- Hole range
- 90–152 mm
- Drilling depth
- 25 m
- Air demand
- 12–25 m³/min
KG520
- Hole range
- 105–152 mm
- Drilling depth
- 25 m
- Air demand
- 15–22 m³/min
Show 3 more compatible rigs(Other compatible rigs)
KG430
- Hole range
- 90–152 mm
- Drilling depth
- 25 m
- Air demand
- 13–20 m³/min
KG420B
- Hole range
- 90–130 mm
- Drilling depth
- 25 m
- Air demand
- 10–17 m³/min
Marked “lower range only” means the rig's upper air demand exceeds this unit's 33 m³/min, so it works with smaller hole sizes or a second compressor.
Need Technical Support?
Request information and get a quote from our engineers.
Recommended System
Rig + air compressor + drilling tools matched to your project. Get pre-matching advice from our engineers.
Recommended Equipment Configuration
Matched from real machine parameters — rig, compressor, hammer, bit and rod working as one system.
KG550
- Hole range
- 115–254 mm
Why matched
Covers the lower range of the required 15 bar / 35 m³/min air demand — this unit is rated 35 bar / 33 m³/min, so pair it with smaller hole sizes or add a second compressor.
K8
- Hole range
- 195–254
- Air flow
- 12–31 m³/min
- Working pressure
- 10+ bar
- Bit shank
- K8** / COP84/DHD380
Why matched
Hole range 195–254 mm covers your requirement 115–254 mm.
K6
- Hole range
- 152–300
- Pressure class
- 高风压 (High pressure)
Why matched
Hole range 152–300 mm covers your requirement 115–254 mm.
76mm Drill Rods
- Rod spec
- Φ76 / Φ89 / Φ102 mm
Why matched
Matches the rig's official rod specification Φ76 / Φ89 / Φ102 mm.
System requirement: 35 bar / 33 m³/min · 115–254 mm
