Kaishan LGCY-23/23-25/18 Diesel Screw Compressor
Model: LGCY-23/23-25/18
The Kaishan LGCY-23/23-25/18 portable diesel screw compressor delivers up to 23 m³/min of free air at 18 bar working pressure, making it a powerful solution for heavy-duty industrial applications. Built with a robust diesel engine and advanced screw airend, this unit ensures reliable performance in demanding environments such as mining, construction, and oil & gas. Its compact design and mobility allow easy transport between job sites, while the intelligent control system optimizes fuel efficiency and reduces operating costs. With a high-capacity air outlet and durable components, the LGCY-23/23-25/18 is engineered for continuous operation and minimal maintenance. Whether you need compressed air for drilling, sandblasting, or pneumatic tools, this Kaishan compressor provides consistent power and dependability. Backed by Kaishan's global service network, it is the ideal choice for professionals seeking a versatile and efficient diesel screw compressor.
Technical Specifications
| Model | LGCY-23/23-25/18 |
| Free Air Delivery | 23 m³/min |
| Working Pressure | 18 bar |
| Engine | Cummins / Yuchai |
| Air Outlet Port | G1.5×1, G3/4×1 |
| Weight | 2,800 kg |
| Dimension (L×W×H) | 3,200 × 1,500 × 1,800 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Working Pressure
18 bar
Free Air Delivery
23 m³/min
Weight
2,800 kg
Dimension (L×W×H)
3,200 × 1,500 × 1,800 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
High free air delivery of 23 m³/min for demanding applications
18 bar working pressure suitable for heavy-duty drilling
Reliable diesel engine (Cummins/Yuchai) with low fuel consumption
Advanced screw airend for efficient and consistent air output
Intelligent control system for monitoring and optimization
Durable and portable design for easy transportation
Multiple air outlet ports for versatile use
Corrosion-resistant enclosure for extended lifespan
Applications
📍 Mining
Powers rock drills, pneumatic tools, and ventilation systems in underground and surface mines.
Solution: The LGCY-23/23-25/18 provides high-pressure air to operate drilling equipment efficiently, increasing productivity and reducing downtime.
📍 Construction
Used for sandblasting, concrete spraying, and foundation piling.
Solution: Its portable design and robust performance ensure reliable air supply on construction sites, enhancing project timelines.
📍 Oil and Gas
Supports pipeline testing, well drilling, and pneumatic controls.
Solution: With 18 bar pressure, it meets the demanding requirements of oilfield operations, ensuring safe and efficient processes.
📍 Emergency Repair
Provides compressed air for remote repair and maintenance tasks.
Solution: The compressor's mobility and dependability make it ideal for rapid response in emergency situations, minimizing operational disruptions.
LGCY Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Free Air Delivery | Working Pressure | Engine | Air Outlet Port | Inquire |
|---|---|---|---|---|---|---|---|
| LGCY-23/23-25/18This model | LGCY-23/23-25/18 | 23 m³/min | 18 bar | Cummins / Yuchai | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18 | LGCY-19/21-21/18 | 21 m³/min (740 CFM) at 18 bar / 19 m³/min (670 CFM) at 21 bar | 18 bar (261 psi) / 21 bar (305 psi) | Cummins or Yuchai diesel engine, 6-cylinder, turbocharged | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18X | LGCY-19/21-21/18X | 21 m³/min (740 CFM) | 18 bar (261 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-17/18-18/15T | LGCY-17/18-18/15T | 17 m³/min (600 CFM) | 18 bar (261 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-17/18-18/15TK | LGCY-17/18-18/15TK | 17 m³/min (600 CFM) | 18 bar (261 psi) | Cummins / Yuchai diesel engine | G1.5 × 1, G3/4 × 1 | Get a Quote | |
| LGCY-15/18-17/12T | LGCY-15/18-17/12T | — | — | — | — | Get a Quote | |
| LGCY-21/21-23/18 | LGCY-21/21-23/18 | 21 m³/min (740 CFM) | 21 bar (305 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-19/21-21/18K | LGCY-19/21-21/18K | 19 m³/min | 21 bar / 18 bar | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-23/23-25/18K | LGCY-23/23-25/18K | 23 m³/min (812 CFM) | 23 bar (334 psi) | Cummins / Yuchai diesel engine | G1.5 × 1, G3/4 × 1 | Get a Quote | |
| LGCY-25/23-27/18K | LGCY-25/23-27/18K | 25 m³/min (883 CFM) | 23 bar (334 psi) | Cummins / Yuchai diesel engine, 18K series | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-21/13TK | LGCY-21/13TK | 21 m³/min (740 CFM) | 13 bar (190 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-26/25 | LGCY-26/25 | 26 m³/min (918 CFM) | 25 bar (362 psi) | Cummins diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-26/25K | LGCY-26/25K | 26 m³/min (918 CFM) | 25 bar (362 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-27/25-29/18 | LGCY-27/25-29/18 | 27 m³/min at 25 bar, 29 m³/min at 18 bar | 25 bar / 18 bar | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-25/10TK | LGCY-25/10TK | 25 m³/min (883 CFM) | 10 bar (145 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-33/25 | LGCY-33/25 | 33 m³/min (1,165 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-33/25K | LGCY-33/25K | 33 m³/min (1,165 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G2×1, G3/4×1 | Get a Quote | |
| LGCY-30/8TK | LGCY-30/8TK | 30 m³/min (1060 CFM) | 8 bar (116 psi) | Cummins / Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-39/25 | LGCY-39/25 | 39 m³/min (1,377 CFM) | 25 bar (362 psi) | Cummins or Yuchai heavy-duty diesel | G1.5×1, G3/4×1 | Get a Quote | |
| LGCY-39/25A | LGCY-39/25A | 39 m³/min | 25 bar | Cummins / Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-45/25-37/35V | LGCY-45/25-37/35V | 45 m³/min (1,590 CFM) | 25 bar (362 psi) | Cummins or Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LCGC-29/23 (crawler base) | LCGC-29/23 (crawler base) | 29 | 2.3 | — | G2×1, G³/₄×1 | Get a Quote | |
| LGCY-33/35 | LGCY-33/35 | 33 m³/min (1,165 CFM) | 35 bar (507 psi) | Cummins or Yuchai diesel engine | G2×1, G1×1 | Get a Quote | |
| LGCY-33/35A | LGCY-33/35A | 33 m³/min (1,165 CFM) | 35 bar (508 psi) | Cummins or Yuchai diesel engine | G1.5×1, G3/4×1 | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

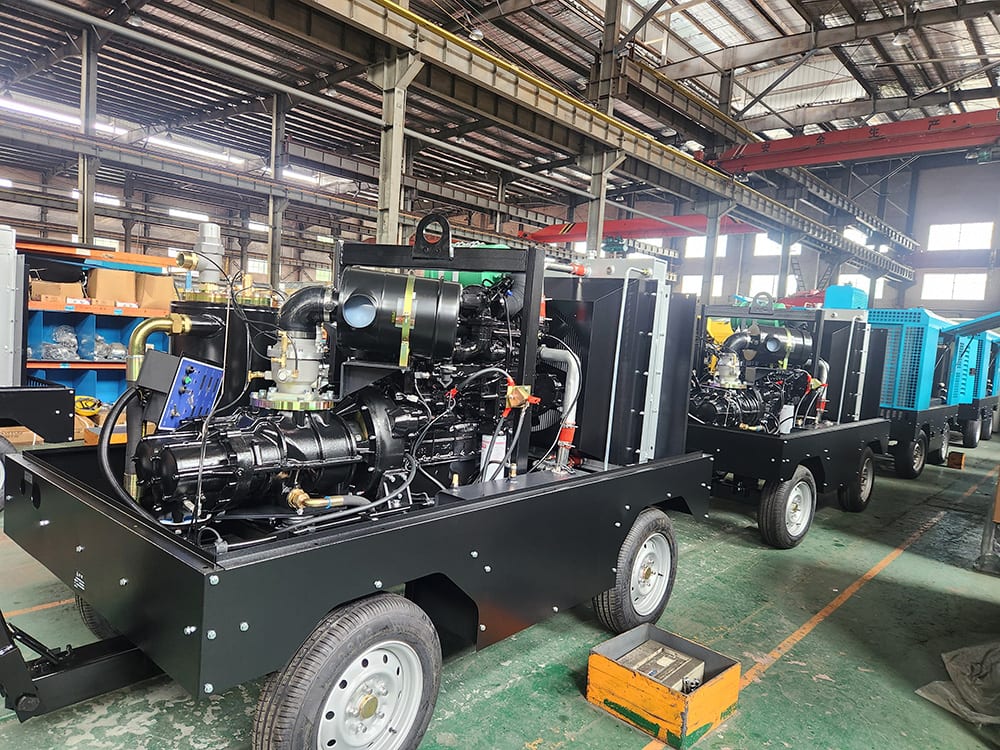

Main Components
- Diesel engine (Cummins/Yuchai)
- Screw airend

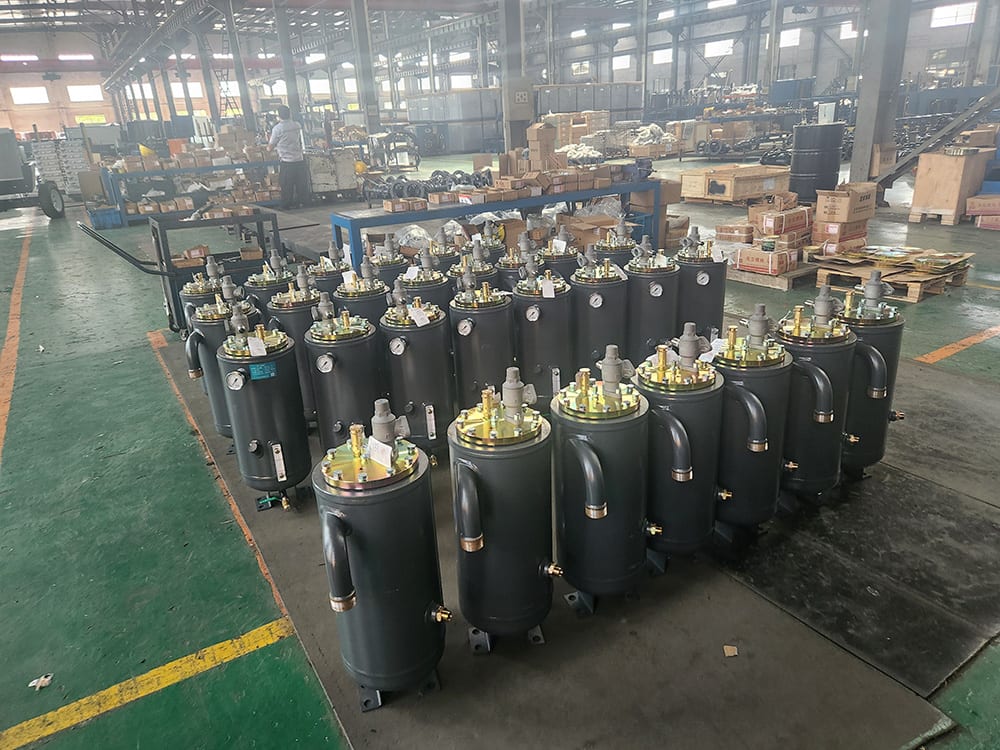

- Oil separator tank
- Aftercooler
- Intake valve
- Control panel
- Chassis with wheels
- Air outlet ports
Working Principle
The Kaishan LGCY-23/23-25/18 operates on the principle of positive displacement using a rotary screw mechanism. Air is drawn into the compressor through an intake valve and enters the airend, where two intermeshing helical screws rotate. As the screws turn, the space between them decreases, compressing the air. Oil is injected into the compression chamber to lubricate, seal, and cool the process. The compressed air then passes through an oil separator, where most of the oil is removed and recirculated. The air is further cooled in an aftercooler and delivered through outlet ports at the required pressure. The diesel engine drives the airend via a coupling, and the intelligent control system regulates engine speed and air intake to match demand, optimizing fuel efficiency. This design ensures smooth, continuous operation with minimal vibration and wear, making it suitable for heavy-duty applications.
Detailed Features
- ▸High efficiency screw airend
- ▸Low fuel consumption
- ▸Intelligent control system
- ▸Durable construction
- ▸Easy maintenance access
- ▸Portable design
- ▸Multiple outlet ports
- ▸Corrosion-resistant enclosure
Packaging & Shipping
The Kaishan LGCY-23/23-25/18 is shipped in a sturdy wooden crate or as a fully assembled unit on a flat rack, depending on customer requirements. It is protected with anti-corrosion film and secured for ocean transport. Standard packaging ensures safe delivery to major ports worldwide. Delivery time is typically 30-45 days after order confirmation. The compressor can be loaded into a 20ft or 40ft container, with one unit per 20ft container. Shipping ports include Shanghai, Ningbo, or as specified.
After-Sales Service
Kaishan offers comprehensive after-sales service for the LGCY-23/23-25/18. All products come with a 12-month warranty or 2000 operating hours, whichever comes first. Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site training for operators and maintenance personnel to ensure optimal performance. Genuine spare parts are available through our authorized distributors, guaranteeing reliability and longevity. Additionally, we provide regular maintenance reminders and troubleshooting assistance to minimize downtime.
Frequently Asked Questions
What is the free air delivery and working pressure of the LGCY-23/23-25/18?+
The LGCY-23/23-25/18 delivers 23 m³/min of free air delivery at 18 bar working pressure. These figures make it suitable for heavy-duty drilling and industrial compressed air supply.
What engine powers the LGCY-23/23-25/18 diesel screw compressor?+
The LGCY-23/23-25/18 is powered by a Cummins or Yuchai diesel engine. The unit weighs 2,800 kg and measures 3,200 × 1,500 × 1,800 mm.
What air outlet ports does the LGCY-23/23-25/18 have?+
The LGCY-23/23-25/18 is fitted with G1.5×1 and G3/4×1 air outlet ports. These multiple outlet ports allow versatile connection to pneumatic equipment.
What applications suit the LGCY-23/23-25/18?+
The LGCY-23/23-25/18 suits mining, construction, oil and gas, and emergency repair applications. Its 23 m³/min free air delivery and 18 bar working pressure support demanding site conditions.
How is the LGCY-23/23-25/18 packaged for shipping?+
The LGCY-23/23-25/18 is shipped in a sturdy wooden crate or as a fully assembled unit on a flat rack. It is protected with anti-corrosion film and secured for ocean transport.
What warranty covers the LGCY-23/23-25/18?+
The LGCY-23/23-25/18 comes with a 12-month warranty or 2000 operating hours, whichever comes first. Kaishan's global service network provides 24-hour technical support and spare parts delivery.
What are the dimensions and weight of the LGCY-23/23-25/18?+
The LGCY-23/23-25/18 measures 3,200 × 1,500 × 1,800 mm and weighs 2,800 kg. Its portable design allows easy transport between job sites.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.
Compatible Drilling Rigs
Rigs this air supply can drive, matched on air demand and working pressure.
Best air-supply match shown first — the rest are still compatible.
Top matches
KG520
- Hole range
- 105–152 mm
- Drilling depth
- 25 m
- Air demand
- 15–22 m³/min
KG430
- Hole range
- 90–152 mm
- Drilling depth
- 25 m
- Air demand
- 13–20 m³/min
KG420B
- Hole range
- 90–130 mm
- Drilling depth
- 25 m
- Air demand
- 10–17 m³/min
Show 3 more compatible rigs(Other compatible rigs)
KQLG-115
- Hole range
- 90–152 mm
- Drilling depth
- 25 m
- Air demand
- 12–25 m³/min
Marked “lower range only” means the rig's upper air demand exceeds this unit's 23 m³/min, so it works with smaller hole sizes or a second compressor.
Need Technical Support?
Request information and get a quote from our engineers.
Recommended System
Rig + air compressor + drilling tools matched to your project. Get pre-matching advice from our engineers.
Recommended Equipment Configuration
Matched from real machine parameters — rig, compressor, hammer, bit and rod working as one system.
KG550
- Hole range
- 115–254 mm
Why matched
Covers the lower range of the required 15 bar / 35 m³/min air demand — this unit is rated 18 bar / 23 m³/min, so pair it with smaller hole sizes or add a second compressor.
K8
- Hole range
- 195–254
- Air flow
- 12–31 m³/min
- Working pressure
- 10+ bar
- Bit shank
- K8** / COP84/DHD380
Why matched
Hole range 195–254 mm covers your requirement 115–254 mm.
K6
- Hole range
- 152–300
- Pressure class
- 高风压 (High pressure)
Why matched
Hole range 152–300 mm covers your requirement 115–254 mm.
76mm Drill Rods
- Rod spec
- Φ76 / Φ89 / Φ102 mm
Why matched
Matches the rig's official rod specification Φ76 / Φ89 / Φ102 mm.
System requirement: 18 bar / 23 m³/min · 115–254 mm
