Kaishan KT30 Open-Pit DTH Drilling Rig

Name: Kaishan KT30 Open-Pit DTH Drilling Rig
Brand: Kaishan
SKU: KT30
Availability: InStock

Model: KT30

The Kaishan KT30 is a robust open-pit DTH drilling rig engineered for high-efficiency blast hole drilling in mining and quarrying. Powered by a 194 kW diesel engine, it delivers a drilling depth of up to 30 meters with hole diameters of 90–165 mm. Its heavy-duty tracked undercarriage ensures stable operation on rough terrain, while the integrated dust collection system minimizes environmental impact. The KT30 combines advanced hydraulic control with a reliable rotary head, offering precise and fast penetration in medium to hard rock. Ideal for open-pit mines, construction sites, and quarrying projects, this rig reduces downtime and boosts productivity. With a compact design and easy maintenance access, the Kaishan KT30 is a cost-effective solution for contractors seeking a dependable drilling rig.

Best For

Open-Pit Mining Quarrying Road Construction Foundation Drilling

Technical Specifications

Model	Kaishan KT30
Drilling Depth	27 m
Hole Diameter	195–254 mm
Drilling Method	DTH (Down-The-Hole) drilling
Engine Power	563 kW
Weight	33930 kg
Dimension (L×W×H)	14300 × 3000 ×4100 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KT30 is a track-mounted open-pit DTH drilling rig designed for blast hole drilling in mining, quarrying, and construction. It delivers exceptional performance with a maximum drilling depth of 30 meters and hole diameters from 90 to 165 mm. Powered by a 194 kW diesel engine, the KT30 ensures reliable power for demanding rock conditions. ## Technical Features Equipped with a high-torque rotary head and advanced hydraulic system, the KT30 achieves fast penetration rates in medium to hard rock. The heavy-duty tracked undercarriage provides excellent stability and mobility on rough terrain. An integrated dust collector significantly reduces airborne particles, meeting environmental standards. The ergonomic control panel simplifies operation, while the automatic rod handling system minimizes manual labor and enhances safety. ## Applications The KT30 is ideal for open-pit mining, quarrying, road construction, and foundation drilling. Its versatility allows it to handle various rock formations, from limestone to granite. The rig's compact design and powerful engine make it suitable for both large-scale projects and confined job sites. ## Reliability and Maintenance Built with durable components and easy-access service points, the KT30 reduces maintenance downtime. The hydraulic system is equipped with high-quality filters and coolers, ensuring long service life. Kaishan's global service network provides prompt support and genuine spare parts, maximizing uptime and return on investment.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

195–254 mm

Drilling Depth

27 m

Engine Power

563 kW

Weight

33930 kg

Dimension (L×W×H)

14300 × 3000 ×4100 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 194 kW diesel engine for demanding rock drilling

✓

Maximum drilling depth of 30 meters with hole diameters 90–165 mm

✓

Heavy-duty tracked undercarriage for stability on rough terrain

✓

Integrated dust collection system for environmental compliance

✓

Advanced hydraulic system for fast penetration and precise control

✓

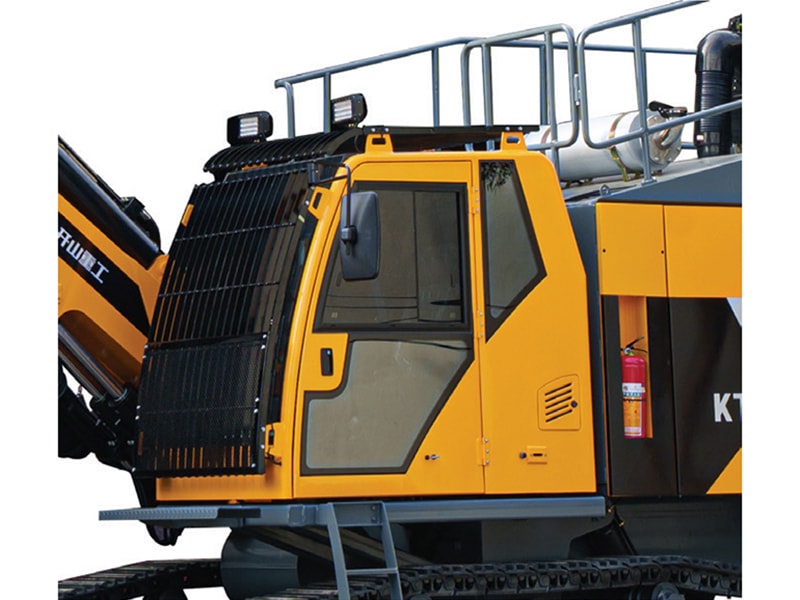

Ergonomic control panel and automatic rod handling for safety

Applications

📍 Open-Pit Mining

Blast hole drilling in large open-pit mines for ore extraction.

Solution: The KT30's high penetration rate and 30 m depth capacity ensure efficient bench drilling, reducing cycle times and increasing productivity.

📍 Quarrying

Drilling blast holes in limestone, granite, and other quarry materials.

Solution: With a powerful engine and durable components, the KT30 handles abrasive rock, delivering consistent performance and low cost per meter.

📍 Road Construction

Rock drilling for road cutting and tunneling in infrastructure projects.

Solution: The rig's mobility and compact design allow easy access to tight sites, while the dust collector maintains a safe working environment.

📍 Foundation Drilling

Drilling for foundation piles in construction and civil engineering.

Solution: Precise hydraulic control and adjustable drilling parameters enable accurate hole placement, ensuring strong foundation integrity.

KT Series Models

Compare specifications across the series to find the right model.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KT30This model	Kaishan KT30	27 m	195–254 mm	DTH (Down-The-Hole) drilling	563 kW	Get a Quote
KT5C	KT5C	25 m	80-105 mm	Rotary / DTH	55 kW	Get a Quote
KT5H	KT5H	24 m	90-127 mm	Top Hammer / DTH	74 kW	Get a Quote
KT11	KT11	20 m	80-115 mm	DTH (Down-The-Hole) drilling	92 kW (125 hp)	Get a Quote
KT12	Kaishan KT12	30 m	115–152 mm	DTH (Down-The-Hole) Drilling	118 kW	Get a Quote
KT9D	KT9D	30 m	115–165 mm	DTH (Down-The-Hole)	194 kW (260 hp)	Get a Quote
KT15	KT15	35 m	135-190 mm	Rotary & DTH	194 kW	Get a Quote
KT15C	Kaishan KT15C	36 m	140–190 mm	Down-the-Hole (DTH) Drilling	336 kW	Get a Quote
KT25	KT25	35 m	152–203 mm	Down-the-Hole (DTH) Drilling	328 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

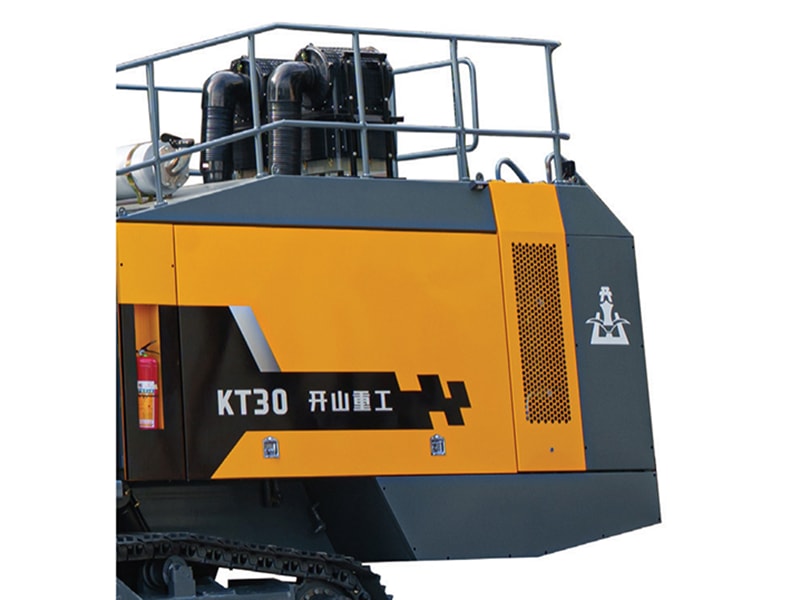

Diesel engine
Hydraulic system

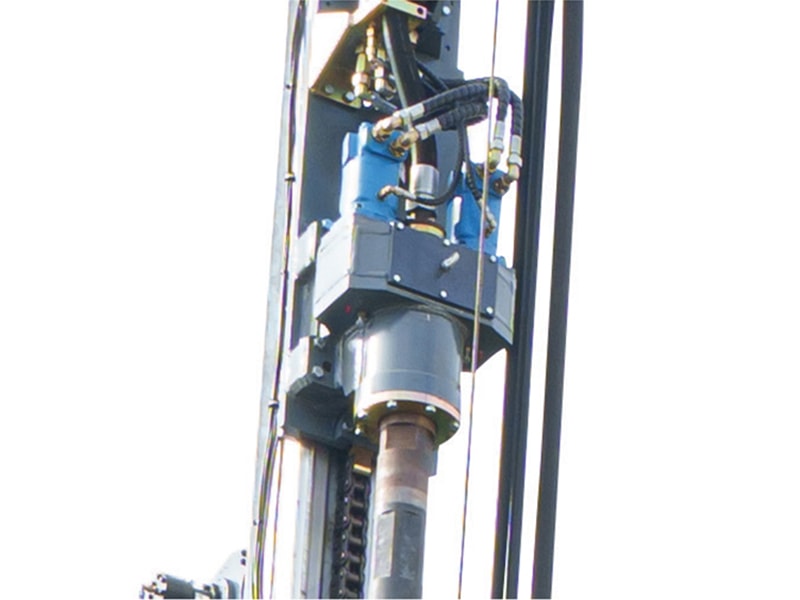

Rotary head
Drill string
DTH hammer and bit
Dust collector

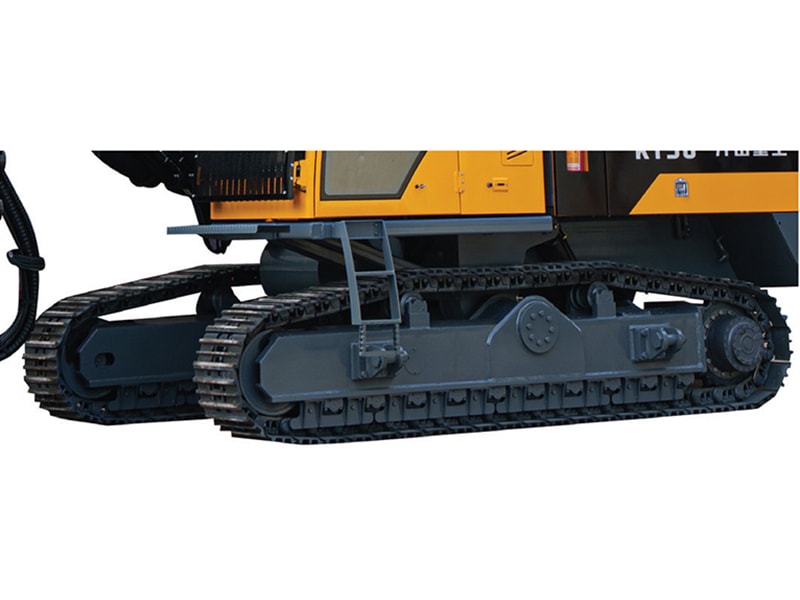

Tracked undercarriage
Control panel

Working Principle

The Kaishan KT30 operates on the DTH (Down-The-Hole) drilling principle, where a pneumatic hammer is integrated into the drill bit assembly. High-pressure air is delivered through the drill string to the hammer, which strikes the bit directly, creating rapid impacts that fracture rock. The rotary head simultaneously rotates the drill string, ensuring even bit wear and a straight hole. Cuttings are flushed out of the hole by the exhaust air, and a dust collector captures fine particles. The hydraulic system powers the rotation, feed, and track movement, while the diesel engine drives the air compressor and hydraulic pumps. This combination allows the KT30 to achieve high penetration rates in hard rock with minimal energy loss. The operator controls all functions from an ergonomic panel, with automatic rod handling for efficient operation.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Maximum depth 30 m and diameter 90–165 mm
▸194 kW diesel engine for reliable power
▸Heavy-duty tracked chassis for rough terrain
▸Integrated dust suppression system
▸Automatic rod handling for safety
▸Ergonomic control panel for easy operation
▸Easy maintenance access and durable components

Packaging & Shipping

The Kaishan KT30 is shipped in a 40-foot container or flat rack, with the main unit securely fastened and protected. Smaller components are packed in wooden crates. Delivery time is 30–45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. Custom packaging and labeling available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on the KT30 drilling rig. Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site training for operators and maintenance staff. Genuine spare parts are available from regional warehouses to minimize downtime. Regular maintenance kits and service contracts are also available.

Frequently Asked Questions

What hole diameter and drilling depth does the Kaishan KT30 cover?+

The Kaishan KT30 drills hole diameters of 195–254 mm to a drilling depth of 27 m. It uses DTH (Down-The-Hole) drilling for blast hole work. This size range suits open-pit mining and quarrying.

What engine powers the Kaishan KT30?+

The Kaishan KT30 is powered by a 563 kW engine. The rig has an operating weight of 33930 kg. Its dimensions are 14300 × 3000 × 4100 mm.

What air supply does the Kaishan KT30 need for DTH drilling?+

The Kaishan KT30 is a DTH drilling rig that works with a DTH hammer matched to its 195–254 mm hole diameter range. The PRODUCT DATA does not list a working pressure or free air delivery figure for this model. Match the hammer and air package to the 195–254 mm hole size.

Where can the Kaishan KT30 be used?+

The Kaishan KT30 is built for open-pit mining, quarrying, road construction and foundation drilling. It drills 195–254 mm blast holes to 27 m using DTH drilling. The track-mounted undercarriage supports operation on rough terrain.

How is the Kaishan KT30 shipped?+

The Kaishan KT30 is shipped in a 40-foot container or flat rack, with the main unit fastened and protected. Smaller components are packed in wooden crates. Delivery time is 30–45 days after order confirmation, from Shanghai or Ningbo, China.

What warranty and after-sales support come with the Kaishan KT30?+

Kaishan offers a 12-month warranty on the KT30 drilling rig. A global service network provides 24-hour technical support and spare parts delivery. On-site training for operators and maintenance staff is available.

What maintenance support is available for the Kaishan KT30?+

Regular maintenance kits and service contracts are available for the Kaishan KT30. Genuine spare parts are stocked at regional warehouses to reduce downtime. On-site training covers operators and maintenance staff.
