Kaishan KG200GF Photovoltaic DTH Drilling Rig
Model: KG200GF
Kaishan KG200GF is a split-type (KD70S) DTH drilling rig built for photovoltaic pile driving: hole diameter 115–203 mm, 6250×2260×2600 mm, 5500 kg, max gradeability 30°.
Technical Specifications
| Model | Kaishan KG200GF |
| Drilling Depth | 30 m |
| Hole Diameter | 90-165 mm |
| Drilling Method | DTH Hammer Drilling |
| Engine Power | 194 kW |
| Weight | 22,000 kg |
| Dimension (L×W×H) | 10,500 × 2,800 × 3,500 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Hole Diameter
90-165 mm
Drilling Depth
30 m
Engine Power
194 kW
Weight
22,000 kg
Dimension (L×W×H)
10,500 × 2,800 × 3,500 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Powerful 194 kW diesel engine for demanding drilling conditions
DTH hammer drilling for high penetration rates and hole accuracy
Maximum drilling depth of 30 meters and hole diameter of 90-165 mm
Heavy-duty crawler undercarriage for superior stability and mobility
Ergonomic cabin with climate control and joystick operation
Automatic rod handling system for increased efficiency and safety
Dust suppression system for a cleaner and safer worksite
Global service support and readily available spare parts
Applications
📍 Open-Pit Mining
Drilling blast holes for mineral extraction in open-pit mines such as coal, iron, and copper.
Solution: The KG200GF's powerful engine and DTH drilling method ensure fast and accurate hole drilling, optimizing blasting efficiency and reducing overall mining costs.
📍 Quarrying
Drilling holes for aggregate production and dimension stone quarrying.
Solution: With adjustable hole diameters and high penetration rates, the KG200GF maximizes productivity in quarry operations while maintaining precise hole alignment.
📍 Construction
Rock excavation for infrastructure projects like roads, railways, and building foundations.
Solution: The rig's mobility and stability allow for efficient drilling in confined construction sites, while the dust suppression system ensures environmental compliance.
📍 Infrastructure Development
Drilling blast holes for tunnels, dams, and other large-scale infrastructure projects.
Solution: The KG200GF's robust design and reliable performance handle tough rock conditions, ensuring project timelines are met with minimal downtime.
Similar Models in This Category
This model is unique in its series — here are similar models from the same category.
| ☑ | Model | Model | Drilling Depth | Hole Diameter | Drilling Method | Engine Power | Inquire |
|---|---|---|---|---|---|---|---|
| KG200GFThis model | Kaishan KG200GF | 30 m | 90-165 mm | DTH Hammer Drilling | 194 kW | Get a Quote | |
| KG430 | Kaishan KG430 | 30 m | 90–165 mm | DTH (Down-The-Hole) | 73 kW | Get a Quote | |
| KG520 | Kaishan KG520 | 30 m (single pass); 100 m (with extension rods) | 90–165 mm | Down-The-Hole (DTH) drilling | 194 kW (260 HP) | Get a Quote | |
| KG590 | Kaishan KG590 | 30 m | 90–165 mm | DTH (Down-The-Hole) Hammer Drilling | 194 kW (260 HP) | Get a Quote | |
| KG590H | KG590H | 25 m | 105-152 mm | DTH (Down-The-Hole) Drilling | 194 kW (260 HP) | Get a Quote | |
| KG720 | Kaishan KG720 | 30 m | 90–165 mm | Down-the-Hole (DTH) Drilling | 194 kW | Get a Quote | |
| KG420B | Kaishan KG420B | 25 m | 90-130 mm | Down-the-Hole (DTH) | 58 kW | Get a Quote | |
| KG550 | KG550 | 30 m | 115–165 mm | DTH (Down-The-Hole) hammer drilling | 73.5 kW | Get a Quote | |
| KG940A | KG940A | 30 m | 90–165 mm | DTH (Down-The-Hole) | 58 kW | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

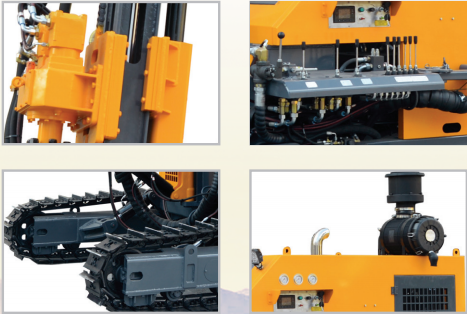

Main Components
- Diesel engine
- Hydraulic system
- Crawler undercarriage
- Drill mast and feed system
- Rotary head
- DTH hammer and drill bit
- Dust suppression system
- Operator cabin
Working Principle
The Kaishan KG200GF operates on the principle of Down-The-Hole (DTH) hammer drilling. A pneumatic hammer is positioned at the bottom of the drill string, directly impacting the rock with high-frequency blows. The rig's diesel engine powers a hydraulic system that drives the rotation and feed mechanisms, while an onboard air compressor supplies compressed air to the DTH hammer. The hammer's piston strikes the drill bit, fracturing the rock, and the compressed air flushes cuttings out of the hole. The KG200GF's hydraulic system allows precise control of rotation speed, feed force, and tramming, ensuring optimal drilling parameters for different rock formations. The crawler-mounted chassis provides stability and mobility, while the ergonomic cabin enables the operator to monitor and adjust drilling functions efficiently. This method results in high penetration rates, straight holes, and reduced wear on the drill string, making it ideal for surface mining and quarrying applications.
Detailed Features
- ▸High-power diesel engine for reliable performance
- ▸Advanced hydraulic controls for precise drilling
- ▸Heavy-duty crawler chassis for rough terrain
- ▸Ergonomic cabin with climate control and joystick
- ▸Automatic rod handling for efficiency and safety
- ▸Dust suppression system for environmental compliance
- ▸Easy maintenance access and durable components
- ▸Global service network and spare parts support
Packaging & Shipping
The Kaishan KG200GF is shipped in a disassembled state for efficient transport. The main components are securely packed in containers and protected against corrosion and impact. Standard shipping includes 1 x 40ft container and 1 x 20ft container. Delivery time is typically 30-45 days after order confirmation, depending on destination. Shipping ports include Shanghai, Qingdao, or other major Chinese ports as per customer request. All necessary documentation for customs clearance is provided.
After-Sales Service
Kaishan offers comprehensive after-sales service for the KG200GF. The rig comes with a 12-month warranty or 2000 operating hours, whichever comes first. Our global service network provides 24-hour technical support and prompt on-site assistance. We offer operator training and maintenance workshops to ensure optimal performance. Spare parts are readily available through our regional warehouses, minimizing downtime. Our dedicated team is committed to your success.
Frequently Asked Questions
What hole diameter and depth can the KG200GF drill?+
The KG200GF drills hole diameters from 90 to 165 mm to a maximum drilling depth of 30 m. It uses the DTH hammer drilling method for blast hole work.
What engine powers the KG200GF?+
The KG200GF is powered by a 194 kW diesel engine. The rig has an operating weight of 22,000 kg.
What are the dimensions of the KG200GF?+
The KG200GF measures 10,500 × 2,800 × 3,500 mm (L×W×H). It is a track-mounted rig built on a heavy-duty crawler undercarriage.
What applications suit the KG200GF?+
The KG200GF is used in open-pit mining, quarrying, construction and infrastructure development. Its DTH hammer drilling setup handles blast hole drilling on these sites.
How is the KG200GF shipped?+
The KG200GF is shipped disassembled, with main components packed in containers and protected against corrosion and impact. Standard shipping includes 1 x 40ft container and 1 x 20ft container, with delivery typically 30-45 days after order confirmation.
What warranty covers the KG200GF?+
The KG200GF comes with a 12-month warranty or 2000 operating hours, whichever comes first. Kaishan's global service network provides 24-hour technical support and on-site assistance.
What handling features does the KG200GF include?+
The KG200GF has an automatic rod handling system and an ergonomic cabin with climate control and joystick operation. A dust suppression system is also fitted for a cleaner worksite.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.
Need Technical Support?
Request information and get a quote from our engineers.
Recommended System
Rig + air compressor + drilling tools matched to your project. Get pre-matching advice from our engineers.
Recommended Equipment Configuration
Matched from real machine parameters — rig, compressor, hammer, bit and rod working as one system.
KG200GF
- Hole range
- 115–203 mm
Why matched
Parameter-matched to the machine on this page.
KSZJ-27/23-30/17K
- Working pressure
- 17 bar
- Air flow
- 27 m³/min
Why matched
Covers the required 10 bar / 26 m³/min air demand (rated 17 bar / 27 m³/min).
K6
- Hole range
- 155–190
- Air flow
- 9–26 m³/min
- Working pressure
- 10+ bar
- Bit shank
- K6** / COP64/DHD360
Why matched
Hole range 155–190 mm covers your requirement 115–203 mm.
K5
- Hole range
- 135–216
- Pressure class
- 高风压 (High pressure)
Why matched
Hole range 135–216 mm covers your requirement 115–203 mm.
89mm Drill Rods
- Rod spec
- Φ89 mm
Why matched
Matches the rig's official rod specification Φ89 mm.
Engineer note: 按孔径反查（该机未公布官方配杆规格）
System requirement: 10 bar / 26 m³/min · 115–203 mm
