Kaishan KG726HIII Surface DTH Drilling Rig

Name: Kaishan KG726HIII Surface DTH Drilling Rig
Brand: Kaishan
SKU: KG726HIII
Availability: InStock

Model: KG726HIII

Kaishan KG726HIII (KD35S) is a split-type surface DTH drilling rig with an integrated dust collector for cleaner and more reliable operation.

Best For

Open-Pit Mining Quarrying Construction Water Well Drilling

Technical Specifications

Model	KG726HIII
Drilling Depth	30 m
Hole Diameter	90-165 mm
Drilling Method	DTH Hammer Drilling
Engine Power	264 kW
Weight	28,000 kg
Dimension (L×W×H)	12,000 × 3,200 × 3,600 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KG726HIII is a top-tier surface mining drilling rig designed to meet the rigorous demands of open-pit mining, quarrying, and large-scale construction. As a leader in Down-The-Hole (DTH) drilling technology, this rig delivers exceptional performance in blast hole drilling, combining power, precision, and reliability. The KG726HIII is built on a robust crawler chassis, ensuring stability and mobility across challenging terrains. Its advanced hydraulic system and high-torque rotary head enable efficient drilling in hard rock formations, making it a preferred choice for contractors worldwide. ## Technical Features The KG726HIII is equipped with a powerful 264 kW diesel engine that provides ample power for demanding drilling tasks while maintaining fuel efficiency. The rig features a maximum drilling depth of 30 meters and a hole diameter range of 90 to 165 mm, suitable for various blast hole patterns. The DTH hammer drilling method ensures fast penetration rates and straight hole accuracy. The hydraulic system offers precise control over feed, rotation, and tramming, enhancing operational efficiency. The ergonomic cabin with joystick controls, air conditioning, and excellent visibility reduces operator fatigue and improves safety. Additionally, the rig's automatic rod handling system speeds up the drilling cycle and minimizes manual intervention. ## Applications The KG726HIII excels in multiple applications, including open-pit mining for coal, metal, and non-metal deposits; quarrying for aggregate production; and construction projects requiring rock excavation. Its versatility also extends to water well drilling and geothermal exploration when equipped with appropriate tools. The rig's ability to drill accurate blast holes enhances fragmentation, reduces explosive consumption, and lowers overall mining costs. Whether in hard granite or abrasive sandstone, the KG726HIII maintains high productivity and reliability. ## Durability and Service Kaishan designs the KG726HIII with heavy-duty components and high-strength steel structures to withstand the toughest conditions. The rig undergoes rigorous testing to ensure long service life and minimal downtime. Kaishan's global service network provides comprehensive support, including spare parts availability, technical assistance, and operator training. With a focus on customer success, Kaishan ensures that the KG726HIII delivers maximum return on investment through superior performance and low operating costs.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90-165 mm

Drilling Depth

30 m

Engine Power

264 kW

Weight

28,000 kg

Dimension (L×W×H)

12,000 × 3,200 × 3,600 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 264 kW diesel engine for efficient hard rock drilling

✓

DTH hammer drilling method for fast penetration and accurate holes

✓

Maximum drilling depth of 30 meters and hole diameter 90-165 mm

✓

Heavy-duty crawler undercarriage for stability on rough terrain

✓

Ergonomic cabin with joystick controls and air conditioning

✓

Automatic rod handling system for faster drilling cycles

✓

Advanced hydraulic system for precise control and efficiency

✓

Global service network with spare parts and technical support

Applications

📍 Open-Pit Mining

Blast hole drilling in coal, metal, and non-metal mines.

Solution: KG726HIII delivers high penetration rates and accurate hole alignment, optimizing fragmentation and reducing explosive costs.

📍 Quarrying

Aggregate production in limestone, granite, and other quarries.

Solution: With DTH hammer and powerful engine, the rig ensures consistent productivity and low cost per ton.

📍 Construction

Rock excavation for foundations, roads, and tunnels.

Solution: The rig's mobility and precise drilling improve project timelines and reduce manual labor.

📍 Water Well Drilling

Drilling water wells in hard rock formations.

Solution: Equipped with appropriate tools, the KG726HIII can efficiently drill water wells up to 30 meters depth.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KG726HIIIThis model	KG726HIII	30 m	90-165 mm	DTH Hammer Drilling	264 kW	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

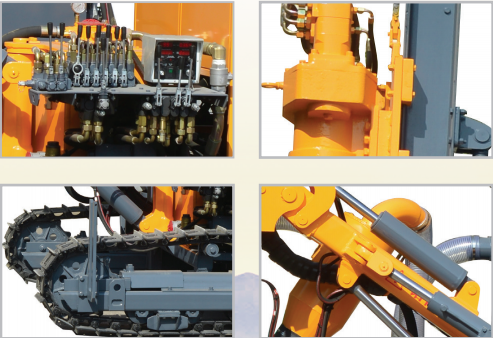

Main Components

Diesel engine
Hydraulic system
Air compressor
DTH hammer
Drill bit
Crawler undercarriage
Operator cabin
Automatic rod handler

Working Principle

The Kaishan KG726HIII operates on the Down-The-Hole (DTH) hammer drilling principle, where a pneumatic hammer is integrated into the drill string just above the drill bit. High-pressure air is supplied through the drill pipe to the hammer, driving the piston to strike the bit with high frequency. This impact energy fractures the rock, while the rotation of the drill string ensures even wear and round holes. The air also serves to flush cuttings out of the hole, keeping the bit clean and efficient. The rig's hydraulic system controls the feed force, rotation speed, and tramming, allowing precise adjustment to rock conditions. The powerful diesel engine drives the hydraulic pumps and air compressor, ensuring reliable operation. The automatic rod handling system adds or removes rods quickly, minimizing downtime. This combination of impact, rotation, and flushing results in fast penetration rates and straight, accurate blast holes, making the KG726HIII ideal for surface mining and quarrying.

Detailed Features

▸High drilling efficiency with DTH hammer
▸Powerful 264 kW engine for tough conditions
▸Maximum depth 30 m and diameter 90-165 mm
▸Heavy-duty crawler for stability
▸Ergonomic cabin with joystick controls
▸Automatic rod handling system
▸Advanced hydraulic controls for precision
▸Global service and spare parts support

Packaging & Shipping

The Kaishan KG726HIII is shipped in a disassembled state for efficient transport. Main components are packed in heavy-duty steel frames and protected with anti-rust coating and waterproof wrapping. The rig can be loaded into 40HQ containers or flat racks, depending on configuration. Standard delivery time is 30-45 days after order confirmation. Shipping ports include Shanghai, Qingdao, or as per customer request. All packages are clearly labeled with handling instructions and comply with international export standards.

After-Sales Service

Kaishan offers a comprehensive warranty of 12 months or 2000 working hours (whichever comes first) for the KG726HIII. Our global service network provides 24-hour technical support and spare parts availability. We offer on-site installation, commissioning, and operator training to ensure optimal performance. Regular maintenance kits and genuine parts are available through our distributors. Our dedicated team ensures quick response to any service needs, minimizing downtime and maximizing productivity.

Frequently Asked Questions

What hole diameter and drilling depth does the KG726HIII cover?+

The KG726HIII drills hole diameters from 90 to 165 mm to a maximum drilling depth of 30 m. It uses the DTH hammer drilling method for blast hole drilling. This range covers surface mining and quarrying requirements.

What engine powers the KG726HIII?+

The KG726HIII is powered by a 264 kW diesel engine. The rig weighs 28,000 kg and measures 12,000 × 3,200 × 3,600 mm. The engine supports DTH hammer drilling in hard rock.

What equipment matches the KG726HIII for DTH drilling?+

The KG726HIII works with DTH hammers and button bits sized for its 90-165 mm hole diameter range. Air supply must match the DTH hammer and bit selected for the hole size. The rig's 264 kW engine powers the drilling system.

Where can the KG726HIII be used?+

The KG726HIII suits open-pit mining, quarrying, construction and water well drilling. Its heavy-duty crawler undercarriage provides stability on rough terrain. The 30 m drilling depth and 90-165 mm hole diameter fit blast hole drilling.

What maintenance and consumables does the KG726HIII need?+

The KG726HIII uses DTH hammers and button bits as drilling consumables. Regular maintenance kits and genuine parts are available through Kaishan distributors. The rig carries a 12-month or 2000 working hour warranty, whichever comes first.

How is the KG726HIII packaged and shipped?+

The KG726HIII is shipped disassembled, with main components packed in heavy-duty steel frames and protected by anti-rust coating and waterproof wrapping. It loads into 40HQ containers or flat racks depending on configuration. Standard delivery time is 30-45 days after order confirmation, with shipping ports including Shanghai and Qingdao.

What support comes with the KG726HIII?+

Kaishan provides a 12-month or 2000 working hour warranty for the KG726HIII, whichever comes first. The global service network offers 24-hour technical support and spare parts availability. On-site installation, commissioning and operator training are also provided.
