Kaishan KT6C Integrated Surface DTH Drilling Rig

Name: Kaishan KT6C Integrated Surface DTH Drilling Rig
Brand: Kaishan
SKU: KT6C
Availability: InStock

Model: KT6C

Kaishan KT6C is an integrated (self-contained) surface DTH drilling rig. Official export model KD40E. Source: Zhejiang Kaishan Heavy Industry product centre.

Best For

Quarry Blast Hole Drilling Open-Pit Mining Construction and Infrastructure Water Well Drilling (Optional)

Technical Specifications

Model	Kaishan KT6C
Drilling Depth	30 m
Hole Diameter	90–165 mm
Drilling Method	DTH (Down-The-Hole) drilling
Engine Power	194 kW (Cummins)
Weight	15,000 kg
Dimension (L×W×H)	12,000 × 2,500 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

The Kaishan KT6C is a powerful surface mining DTH drilling rig engineered for high-efficiency blast hole drilling in quarries, open-pit mines, and construction sites. With a maximum drilling depth of 30 meters and hole diameter range of 90–165 mm, it delivers reliable performance in medium to hard rock formations. Powered by a 194 kW diesel engine and equipped with a high-torque rotary head and heavy-duty crawler undercarriage, the KT6C ensures stable positioning and fast tramming on rough terrain. Its advanced dust collection system and ergonomic control panel improve operator safety and reduce environmental impact. The rig is compatible with various DTH hammers and drill pipes, making it a versatile solution for mining contractors seeking productivity and low operating cost.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

90–165 mm

Drilling Depth

30 m

Engine Power

194 kW (Cummins)

Weight

15,000 kg

Dimension (L×W×H)

12,000 × 2,500 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Powerful 194 kW Cummins diesel engine for reliable performance in demanding conditions

✓

Maximum drilling depth of 30 m and hole diameter range of 90–165 mm for versatile blast hole drilling

✓

Heavy-duty crawler undercarriage with excellent stability and 25° gradeability

✓

High-torque rotary head and efficient feed system for fast penetration in hard rock

✓

Advanced two-stage dust collection system for a cleaner and safer working environment

✓

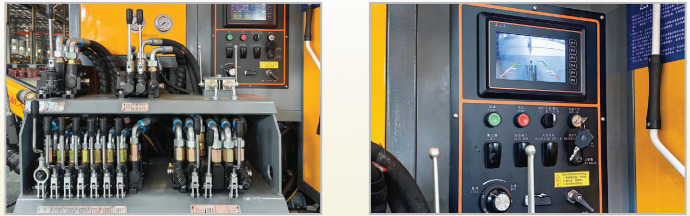

Ergonomic control panel with joystick operation for precise and easy drilling control

Applications

📍 Quarry Blast Hole Drilling

Efficient drilling of blast holes in limestone, granite, and other hard rock quarries.

Solution: The KT6C's powerful DTH hammer and high-torque rotary head ensure fast penetration and accurate hole alignment, reducing overall drilling cost per meter.

📍 Open-Pit Mining

Production drilling in metal and non-metal open-pit mines for ore extraction.

Solution: With a reliable diesel engine and robust crawler chassis, the KT6C maintains high productivity in remote mining sites, minimizing downtime and maximizing output.

📍 Construction and Infrastructure

Drilling for foundation pits, road cuts, and dam construction in rocky terrain.

Solution: The rig's compact design and excellent mobility allow easy access to tight job sites, while the dust collection system keeps the environment clean and compliant.

📍 Water Well Drilling (Optional)

Adaptable for water well drilling with optional DTH hammer and accessories.

Solution: By equipping the KT6C with a water well kit, contractors can expand their service offerings and tap into new markets with the same machine.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KT6CThis model	Kaishan KT6C	30 m	90–165 mm	DTH (Down-The-Hole) drilling	194 kW (Cummins)	Get a Quote
KG430	Kaishan KG430	30 m	90–165 mm	DTH (Down-The-Hole)	73 kW	Get a Quote
KG520	Kaishan KG520	30 m (single pass); 100 m (with extension rods)	90–165 mm	Down-The-Hole (DTH) drilling	194 kW (260 HP)	Get a Quote
KG590	Kaishan KG590	30 m	90–165 mm	DTH (Down-The-Hole) Hammer Drilling	194 kW (260 HP)	Get a Quote
KG590H	KG590H	25 m	105-152 mm	DTH (Down-The-Hole) Drilling	194 kW (260 HP)	Get a Quote
KG720	Kaishan KG720	30 m	90–165 mm	Down-the-Hole (DTH) Drilling	194 kW	Get a Quote
KG420B	Kaishan KG420B	25 m	90-130 mm	Down-the-Hole (DTH)	58 kW	Get a Quote
KG550	KG550	30 m	115–165 mm	DTH (Down-The-Hole) hammer drilling	73.5 kW	Get a Quote
KG940A	KG940A	30 m	90–165 mm	DTH (Down-The-Hole)	58 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Cummins diesel engine
High-torque rotary head
Hydraulic feed system
Crawler undercarriage
Dust collection system
Control panel with joysticks
Drill pipe and DTH hammer
Air compressor (onboard)

Working Principle

The Kaishan KT6C operates on the principle of down-the-hole (DTH) drilling, where a pneumatic hammer is placed directly behind the drill bit. High-pressure air from an onboard compressor is delivered through the drill pipe to the hammer, causing the piston to strike the bit at high frequency. Simultaneously, the rotary head rotates the drill string, ensuring even bit wear and a round hole. The feed system applies optimal thrust to maintain efficient rock breakage. Cuttings are flushed out of the hole by the exhaust air and captured by the dust collection system. The crawler undercarriage enables precise positioning and stable drilling on uneven ground. This method is highly effective in hard rock formations, delivering straight holes and high penetration rates with lower fuel consumption compared to top hammer drilling.

Detailed Features

▸Robust and durable construction for tough mining environments
▸High drilling efficiency with DTH hammer and powerful engine
▸Excellent mobility and stability on rough terrain
▸Advanced dust suppression for environmental compliance
▸Ergonomic controls for reduced operator fatigue
▸Easy maintenance with modular component design
▸Optional automatic rod changer for increased safety
▸Global after-sales support and spare parts availability

Packaging & Shipping

The Kaishan KT6C is shipped in a 40HQ container or flat rack, depending on configuration. The rig is partially disassembled for transport, with the mast folded and components securely packed. Shipping dimensions are approximately 12,000 × 2,500 × 3,200 mm. Delivery time is 30–45 days after order confirmation. Port of departure: Shanghai or Ningbo, China. Custom packaging and labeling available upon request.

After-Sales Service

Kaishan offers a 12-month warranty on major components (excluding wear parts). A 24-hour online technical support hotline is available. On-site installation and commissioning services are provided by certified engineers. Operator training is offered at Kaishan factories or on-site. A global network of spare parts warehouses ensures quick delivery of consumables and critical components. Regular maintenance reminders and remote diagnostics are available for enhanced uptime.

Frequently Asked Questions

What hole diameter and drilling depth does the KT6C cover?+

The KT6C drills holes from 90–165 mm in diameter to a maximum drilling depth of 30 m. It uses DTH (Down-The-Hole) drilling for blast hole work in medium to hard rock.

What engine powers the KT6C drilling rig?+

The KT6C is powered by a 194 kW Cummins diesel engine. The rig weighs 15,000 kg and measures 12,000 × 2,500 × 3,200 mm.

What air supply and DTH tools does the KT6C need?+

The KT6C is compatible with various DTH hammers and drill pipes for its 90–165 mm hole range. The data does not state a required working pressure or free air delivery figure.

Where can the KT6C be used?+

The KT6C suits quarry blast hole drilling, open-pit mining, and construction and infrastructure work, with water well drilling available as an option. Its heavy-duty crawler undercarriage gives stability and 25° gradeability on rough terrain.

How does the KT6C handle dust and operator control?+

The KT6C uses an advanced two-stage dust collection system for a cleaner and safer working environment. An ergonomic control panel with joystick operation supports precise drilling control and reduced operator fatigue.

How is the KT6C shipped and how long is delivery?+

The KT6C ships in a 40HQ container or flat rack, depending on configuration, partially disassembled with the mast folded. Delivery time is 30–45 days after order confirmation, departing from Shanghai or Ningbo, China.

What warranty and support come with the KT6C?+

Kaishan offers a 12-month warranty on major components, excluding wear parts, plus a 24-hour online technical support hotline. On-site installation, commissioning, and operator training are provided by certified engineers.
