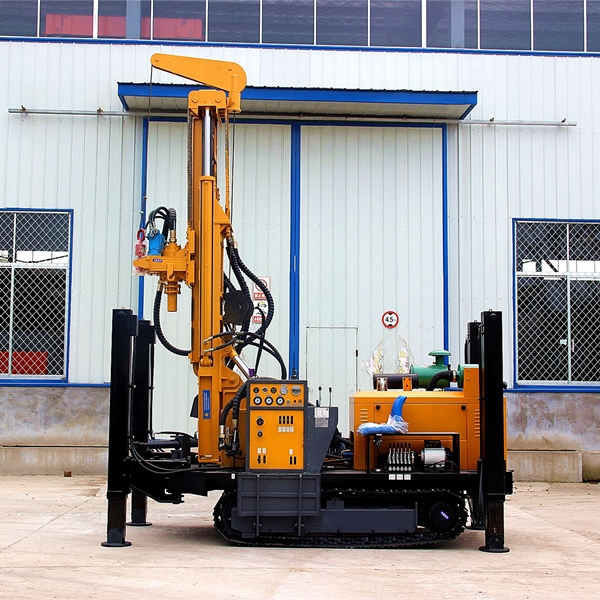

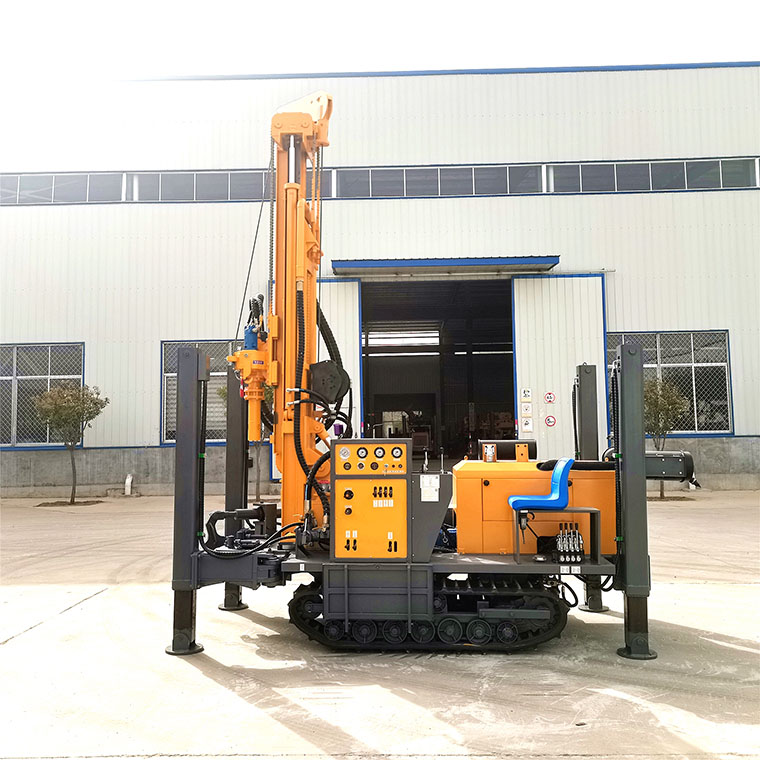

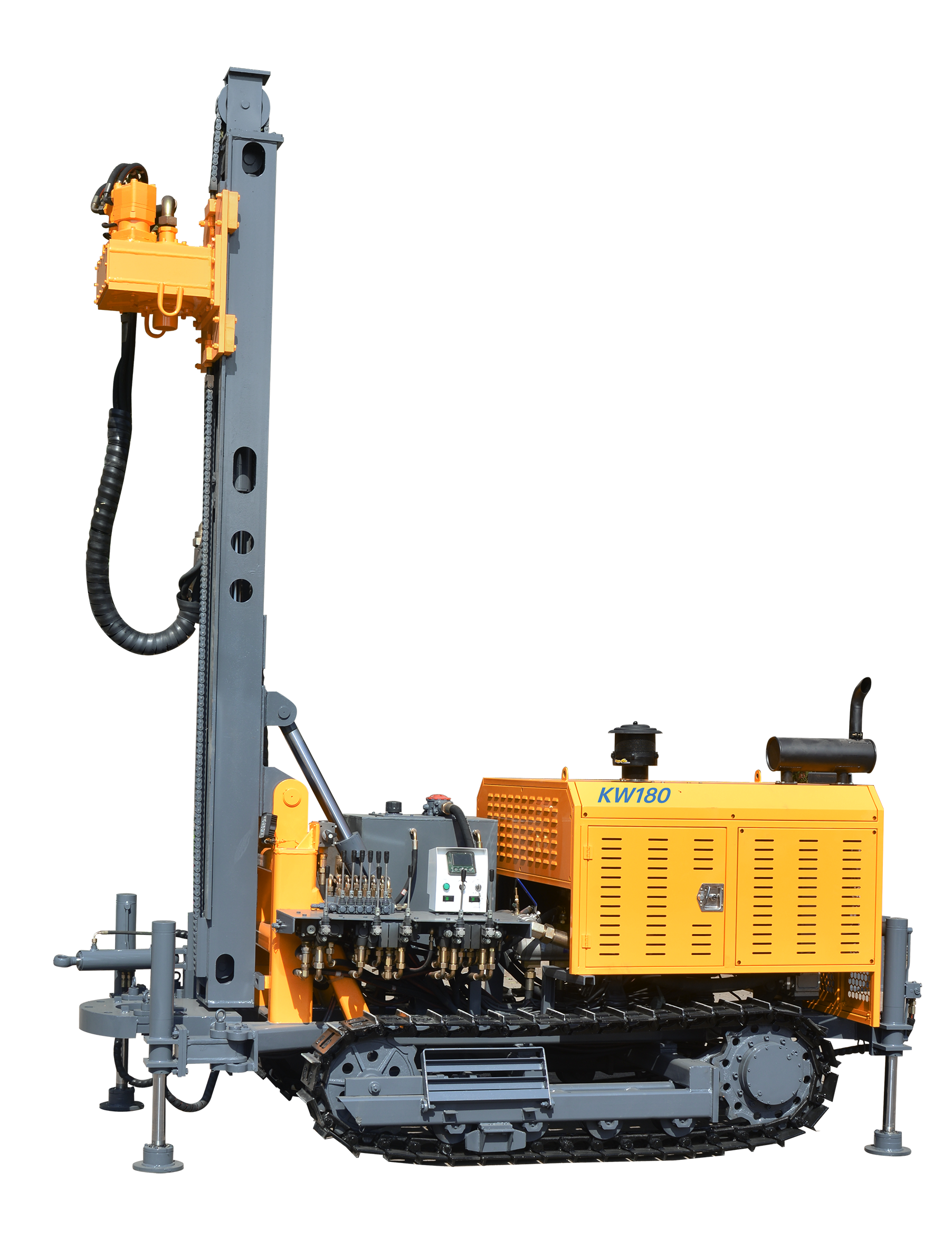

Kaishan KW180 Geothermal Water Well Drilling Rig
Model: KW180
Kaishan KW180 is a multi-purpose geothermal water well drilling rig, upgraded with a Yuchai 4-cylinder engine and optimised hydraulics for stable performance and higher efficiency.
Best For
Technical Specifications
| Model | KW180 |
| Drilling Depth | 180 m |
| Hole Diameter | 105–254 mm |
| Drill pipe diamete(mm) | φ76 φ89 |
| Drill pipe length(m) | 1.5m 2.0m 3.0m |
| Swing torque(N.m) | 3200-4600 |
| Dimension (L×W×H) | 3950 × 1630 × 2250 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Hole Diameter
105–254 mm
Drilling Depth
180 m
Drill pipe diamete(mm)
φ76 φ89
Dimension (L×W×H)
3950 × 1630 × 2250 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Crawler-mounted design for superior mobility on rough terrain
Maximum drilling depth of 180 m and hole diameter 105–254 mm
Hydraulic top-head drive supports DTH and mud rotary drilling
78 kW diesel engine for reliable power and fuel efficiency
Integrated air compressor interface for quick DTH setup
User-friendly control panel for precise drilling parameter adjustment
Compact dimensions for easy transport and narrow site access
Durable construction with readily available spare parts
Applications
📍 Municipal Water Supply
Drilling deep water wells for towns and cities.
Solution: KW180's 180 m depth and 254 mm max diameter meet high-yield water demands.
📍 Agricultural Irrigation
Installing wells for crop irrigation in rural areas.
Solution: Crawler mobility and DTH capability ensure fast drilling in remote fields.
📍 Geothermal Heat Pump Systems
Drilling boreholes for ground-source heat exchangers.
Solution: Precise control and mud rotary option enable stable, clean boreholes.
📍 Geotechnical Exploration
Sampling and testing soil and rock for construction projects.
Solution: Versatile drilling methods and adjustable parameters suit varied strata.
Similar Models in This Category
This model is unique in its series — here are similar models from the same category.
| ☑ | Model | Model | Drilling Depth | Hole Diameter | Drill pipe diamete(mm) | Drill pipe length(m) | Inquire |
|---|---|---|---|---|---|---|---|
| KW180This model | KW180 | 180 m | 105–254 mm | φ76 φ89 | 1.5m 2.0m 3.0m | Get a Quote | |
| KW360 | KW360 | 360 m | 140–350 mm | — | — | Get a Quote | |
| KS260 | KS260 | 260 m | 140–305 mm | — | — | Get a Quote | |
| KS300 | KS300 | — | — | φ76 φ89 φ102 | 1.5m 2.0m 3.0m | Get a Quote | |
| KS350 | Kaishan KS350 | 350 m | 140-325 | φ89 φ102 | 1.5m 2.0m 3.0m | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Crawler undercarriage
- Diesel engine
- Hydraulic top-head drive
- Feed system (cylinder and chain)
- Control panel
- Mast and derrick
- Air compressor interface
- Drill string and bit
Working Principle
The Kaishan KW180 operates on a hydraulic top-head drive system. A diesel engine powers hydraulic pumps that supply pressurized oil to the rotation unit and feed cylinders. The top head rotates the drill string while the feed system applies downward force. For DTH drilling, compressed air is directed through the drill pipe to the hammer, which strikes the bit rapidly to fracture rock. Cuttings are flushed out by air or drilling mud. For mud rotary drilling, a mud pump circulates fluid down the hole to cool the bit and carry cuttings to the surface. The crawler chassis allows the rig to move and position accurately. The operator controls rotation speed, feed rate, and torque via a centralized panel, optimizing performance for different geological conditions. This combination of hydraulic power and flexible drilling methods ensures efficient penetration and stable hole integrity.
Detailed Features
- ▸Crawler-mounted for all-terrain mobility
- ▸Max drilling depth 180 m
- ▸Hole diameter 105–254 mm
- ▸DTH and mud rotary drilling methods
- ▸78 kW diesel engine
- ▸Hydraulic top-head drive
- ▸Integrated air compressor interface
- ▸Compact and transport-friendly design
Packaging & Shipping
The Kaishan KW180 is shipped in a 40HQ container with the mast folded and components securely packed. Standard export packaging includes anti-rust treatment, wooden crates for accessories, and waterproof wrapping. Delivery time is 30–45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. Custom packaging and labeling available upon request.
After-Sales Service
Kaishan offers a 12-month warranty on the KW180 drilling rig. A 24-hour technical support hotline is available for troubleshooting. We provide free on-site training for operators and maintenance staff. Spare parts are stocked in regional warehouses for fast delivery. Regular maintenance reminders and remote diagnostics ensure optimal performance throughout the rig's lifecycle.
Frequently Asked Questions
What is the maximum drilling depth of the KW180?+
The KW180 can drill up to 180 meters, depending on geological conditions and drill string configuration.
Which drilling methods does the KW180 support?+
It supports both DTH hammer drilling and mud rotary drilling, making it versatile for various formations.
What is the engine power of the KW180?+
The rig is powered by a 78 kW diesel engine, providing reliable performance and fuel efficiency.
What is the hole diameter range?+
The KW180 can drill holes from 105 mm to 254 mm in diameter.
Is the KW180 easy to transport?+
Yes, its crawler undercarriage and compact dimensions allow for easy transport on standard trailers and into narrow sites.
What after-sales support is available?+
We offer a 12-month warranty, 24-hour technical support, free operator training, and fast spare parts delivery.
