Kaishan KS350 Crawler Water Well Drilling Rig
Model: KS350

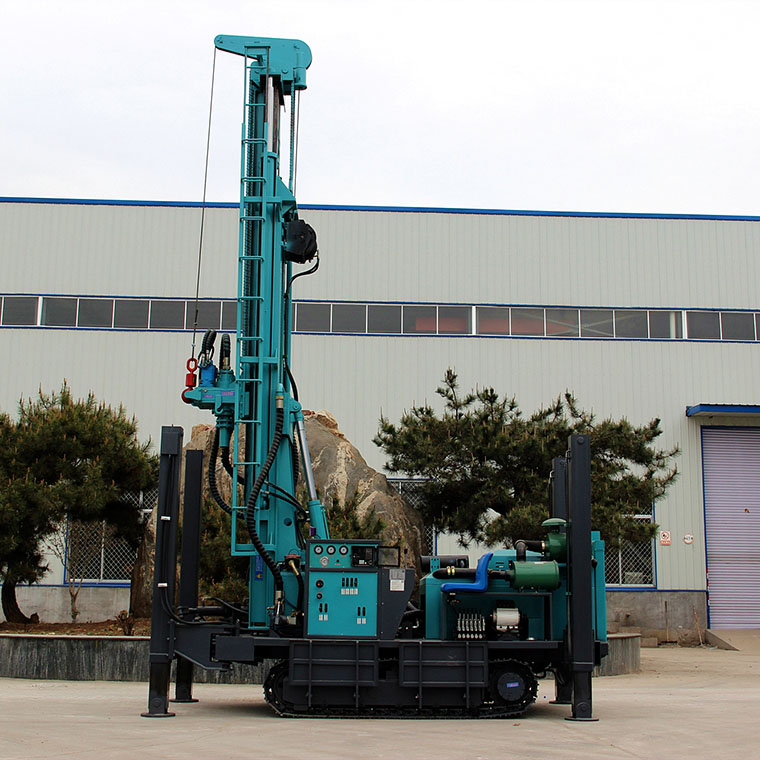

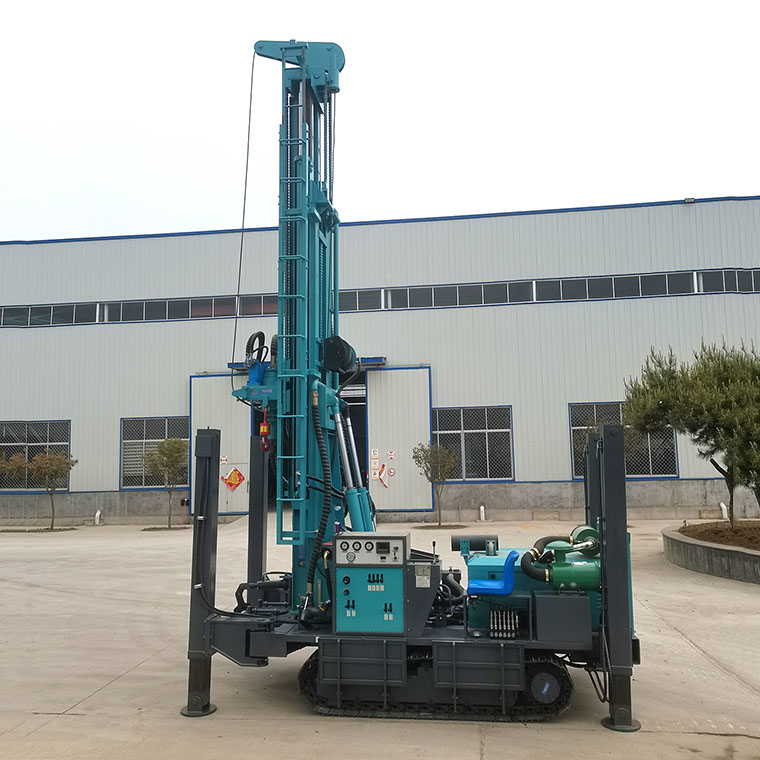

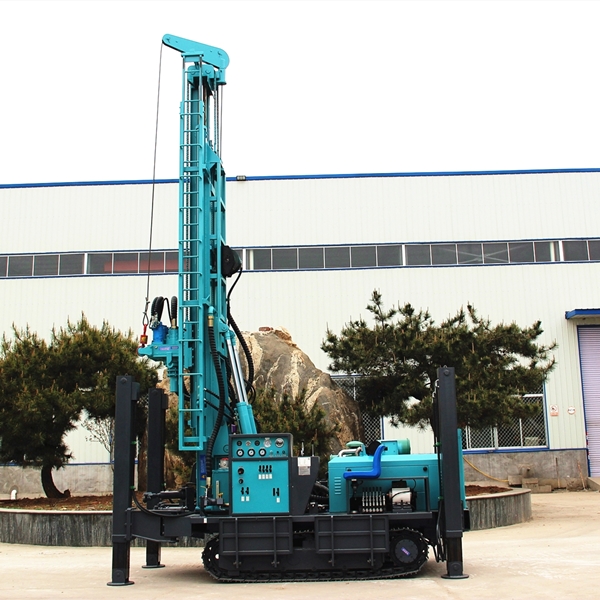

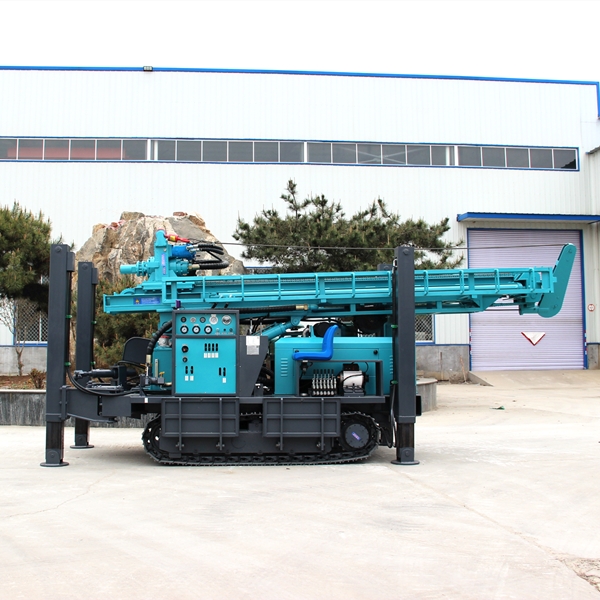

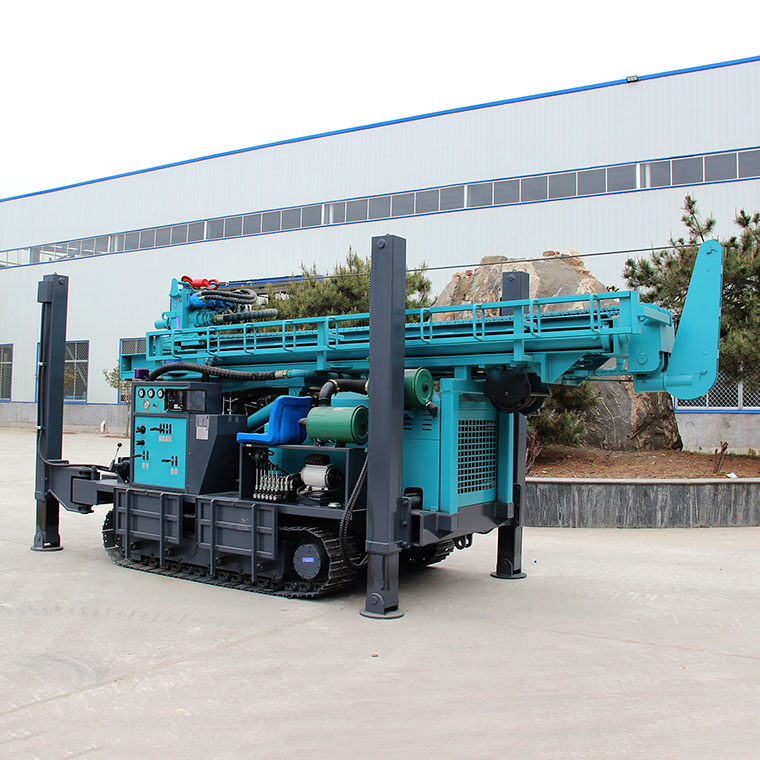

The Kaishan KS350 is a crawler-mounted water well drilling rig engineered for reliable borehole construction in water well, geothermal, and geotechnical projects. Built around a durable hydraulic top-head drive and a powerful diesel engine, it delivers efficient DTH and mud rotary drilling in medium to hard rock formations. With a rated drilling depth of up to 350 m and a hole diameter range of 105–350 mm, the KS350 balances penetration rate, fuel economy, and mobility on challenging terrain. Its hydraulic crawler chassis, integrated dust control, and ergonomic control panel simplify operation and reduce labor intensity. The rig supports down-the-hole hammer, rotary, and air-assisted drilling methods, making it adaptable to varied geological conditions. Designed for contractors and rental fleets, the KS350 offers fast setup, low maintenance, and stable performance across remote job sites.
Technical Specifications
| Model | Kaishan KS350 |
| Drilling Depth | 350 m |
| Hole Diameter | 140-325 |
| Drill pipe diamete(mm) | φ89 φ102 |
| Drill pipe length(m) | 1.5m 2.0m 3.0m |
| Swing torque(N.m) | 6200-8500 |
| Dimension (L×W×H) | 6000 × 2,000 × 2,550 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Hole Diameter
140-325
Drilling Depth
350 m
Drill pipe diamete(mm)
φ89 φ102
Dimension (L×W×H)
6000 × 2,000 × 2,550 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Crawler-mounted chassis for stable and mobile operation on rough terrain
Hydraulic top-head drive with stepless speed control for efficient rock drilling
Rated drilling depth up to 350 m and hole diameter range of 105–350 mm
Powerful diesel engine delivering reliable performance in remote areas
Supports DTH hammer, rotary, and air-assisted drilling methods
Integrated dust control system for cleaner and safer job sites
Ergonomic control panel for simplified operation and reduced fatigue
Modular design for easy maintenance and quick spare parts replacement
Applications
📍 Water Well Drilling
Drilling water wells for municipal, agricultural, and industrial water supply in various geological formations.
Solution: The KS350 delivers up to 350 m depth with 105–350 mm hole diameter, using DTH or rotary drilling to penetrate hard rock efficiently.
📍 Geothermal Boreholes
Construction of geothermal heat exchange boreholes for heating and cooling systems.
Solution: Precise hydraulic feed and rotation control ensure straight holes and stable drilling in medium to hard formations.
📍 Geotechnical Investigation
Soil and rock sampling for engineering and construction site assessment.
Solution: The rig supports various drilling methods and provides reliable core recovery with optional tooling.
📍 Foundation Piling
Small-diameter foundation piles for buildings, bridges, and solar farms.
Solution: Crawler mobility and high torque allow fast positioning and drilling of multiple piles on one site.
Similar Models in This Category
This model is unique in its series — here are similar models from the same category.
| ☑ | Model | Model | Drilling Depth | Hole Diameter | Drill pipe diamete(mm) | Drill pipe length(m) | Inquire |
|---|---|---|---|---|---|---|---|
| KS350This model | Kaishan KS350 | 350 m | 140-325 | φ89 φ102 | 1.5m 2.0m 3.0m | Get a Quote | |
| KW360 | KW360 | 360 m | 140–350 mm | — | — | Get a Quote | |
| KW180 | KW180 | 180 m | 105–254 mm | φ76 φ89 | 1.5m 2.0m 3.0m | Get a Quote | |
| KS260 | KS260 | 260 m | 140–305 mm | — | — | Get a Quote | |
| KS300 | KS300 | — | — | φ76 φ89 φ102 | 1.5m 2.0m 3.0m | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Crawler undercarriage
- Hydraulic top-head drive
- Mast and feed system
- Diesel engine
- Control panel
- Dust suppression system
- Drill pipe and bit
- Air compressor (optional)
Working Principle
The Kaishan KS350 operates on a hydraulic top-head drive principle. A diesel engine powers the hydraulic system, which drives the rotary head to generate torque and rotation. The feed system applies pull-down force to the drill string, while compressed air or mud is circulated through the drill pipe to remove cuttings. For hard rock, a down-the-hole (DTH) hammer is used, where compressed air drives a piston to impact the bit while the rotary head rotates it. The crawler chassis allows the rig to move between holes. The operator controls rotation speed, feed rate, and air/mud flow from the centralized panel to match geological conditions. This combination enables efficient drilling of water wells and other boreholes with good hole quality and penetration rate.
Detailed Features
- ▸Crawler-mounted for mobility on rough terrain
- ▸Hydraulic top-head drive with stepless speed control
- ▸Rated drilling depth up to 350 m
- ▸Hole diameter range 105–350 mm
- ▸Supports DTH, rotary, and air-assisted drilling
- ▸Dust control system for cleaner operation
- ▸Ergonomic control panel
- ▸Modular design for easy maintenance
Packaging & Shipping
The Kaishan KS350 is shipped in a standard export packing suitable for sea transportation. The rig is partially disassembled if required and loaded into 40HQ containers or flat racks. Each unit is protected with anti-rust coating and wrapped. Delivery time is typically 30–45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. Custom packaging and labeling are available upon request.
After-Sales Service
Kaishan provides a 12-month warranty on major components. 24-hour online technical support is available. We offer operator training and on-site installation guidance. Genuine spare parts are supplied through our global network. Regular maintenance reminders and service kits are available to ensure long-term reliability.
Frequently Asked Questions
What drilling depth and hole diameter can the Kaishan KS350 handle?+
The Kaishan KS350 is rated for a drilling depth of 350 m and a hole diameter range of 140-325 mm. It uses drill pipes of φ89 and φ102 with lengths of 1.5m, 2.0m and 3.0m. This makes it suitable for boreholes in water well, geothermal and geotechnical projects.
What powers the KS350 crawler water well drilling rig?+
The Kaishan KS350 is built around a powerful diesel engine. This engine delivers reliable performance in remote areas. The rig is a crawler-mounted unit with a hydraulic top-head drive.
What torque does the KS350 rotary head produce?+
The KS350 hydraulic top-head drive produces a swing torque of 6200-8500 N.m. This torque supports DTH hammer, rotary and air-assisted drilling methods. The stepless speed control allows smooth torque delivery in medium to hard rock.
What drilling methods does the KS350 support?+
The Kaishan KS350 supports DTH hammer, rotary and air-assisted drilling methods. It is designed for efficient drilling in medium to hard rock formations. This adaptability suits varied geological conditions.
Where can the KS350 crawler rig be used?+
The Kaishan KS350 is used for water well drilling, geothermal boreholes, geotechnical investigation and foundation piling. Its crawler-mounted chassis provides stable and mobile operation on rough terrain. The rig is suited to remote job sites.
What are the dimensions of the KS350 drilling rig?+
The Kaishan KS350 measures 6000 × 2,000 × 2,550 mm (L×W×H). Its crawler-mounted chassis supports mobility on rough terrain. The compact footprint aids operation on challenging ground.
How is the KS350 packaged and shipped?+
The Kaishan KS350 is shipped in standard export packing suitable for sea transportation. It is partially disassembled if required and loaded into 40HQ containers or flat racks, with anti-rust coating and wrapping. Delivery time is typically 30-45 days after order confirmation, from Shanghai or Ningbo, China.
What after-sales support is available for the KS350?+
Kaishan provides a 12-month warranty on major components for the KS350. 24-hour online technical support is available, along with operator training and on-site installation guidance. Genuine spare parts are supplied through our global network.
