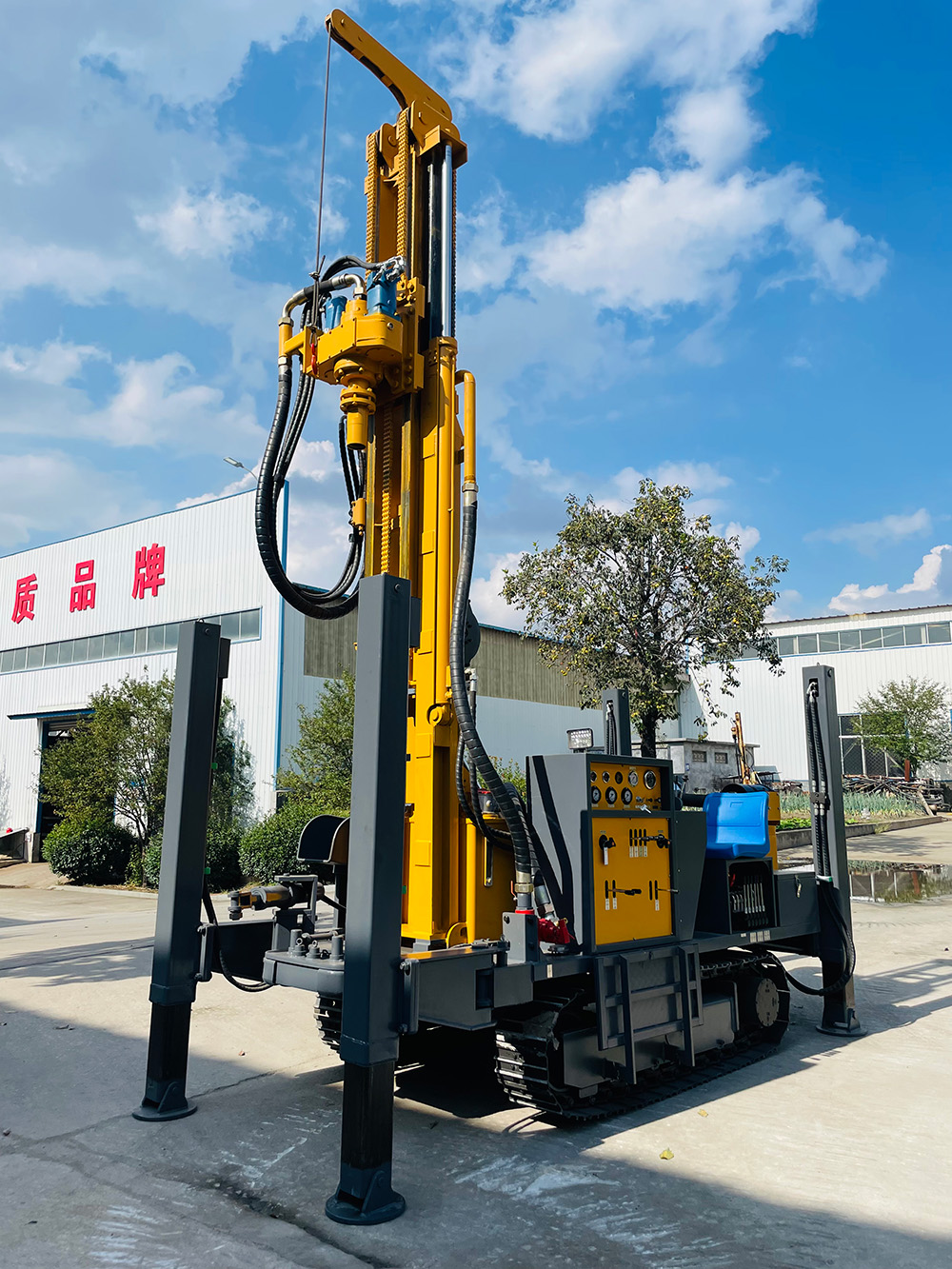

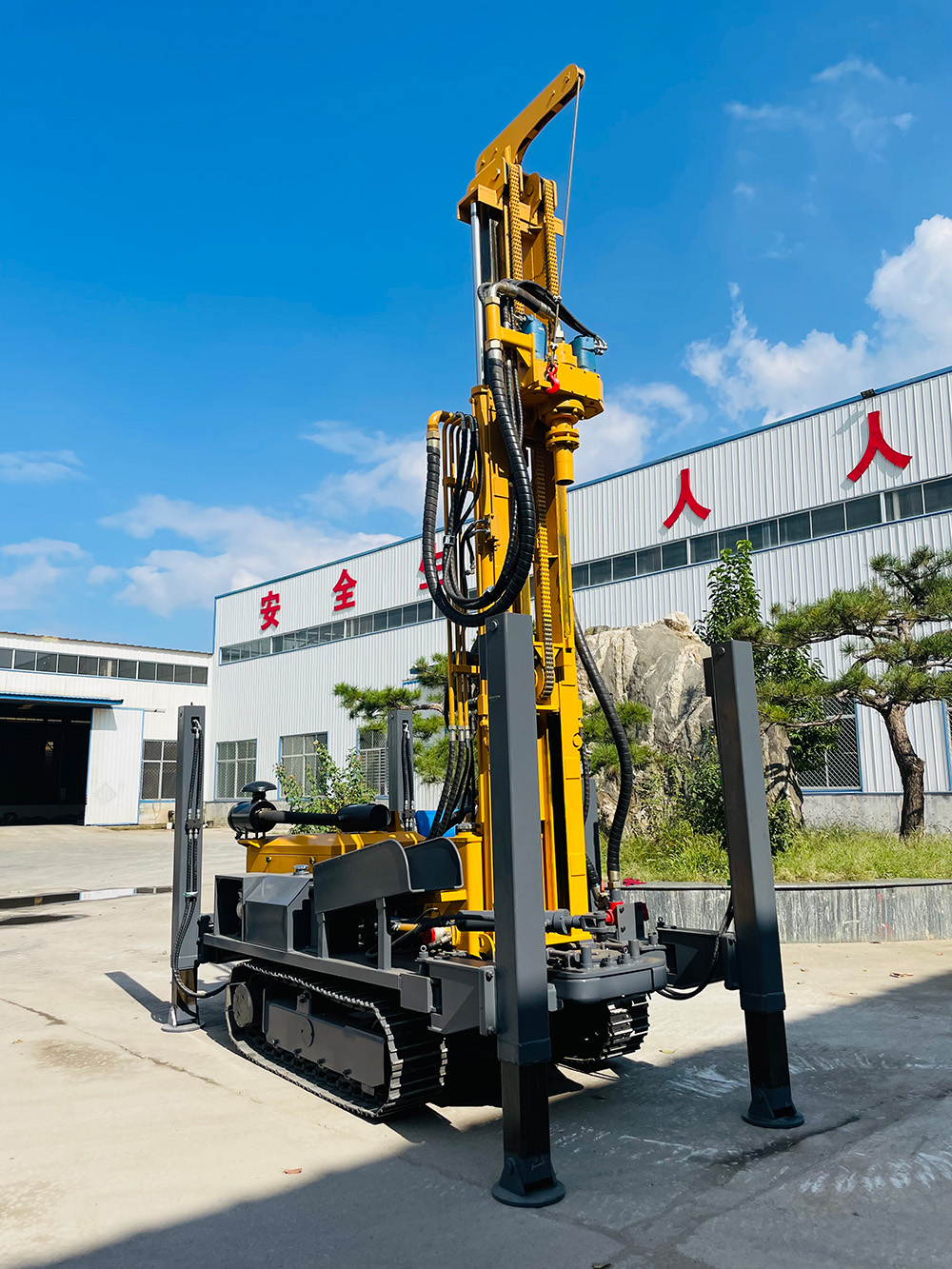

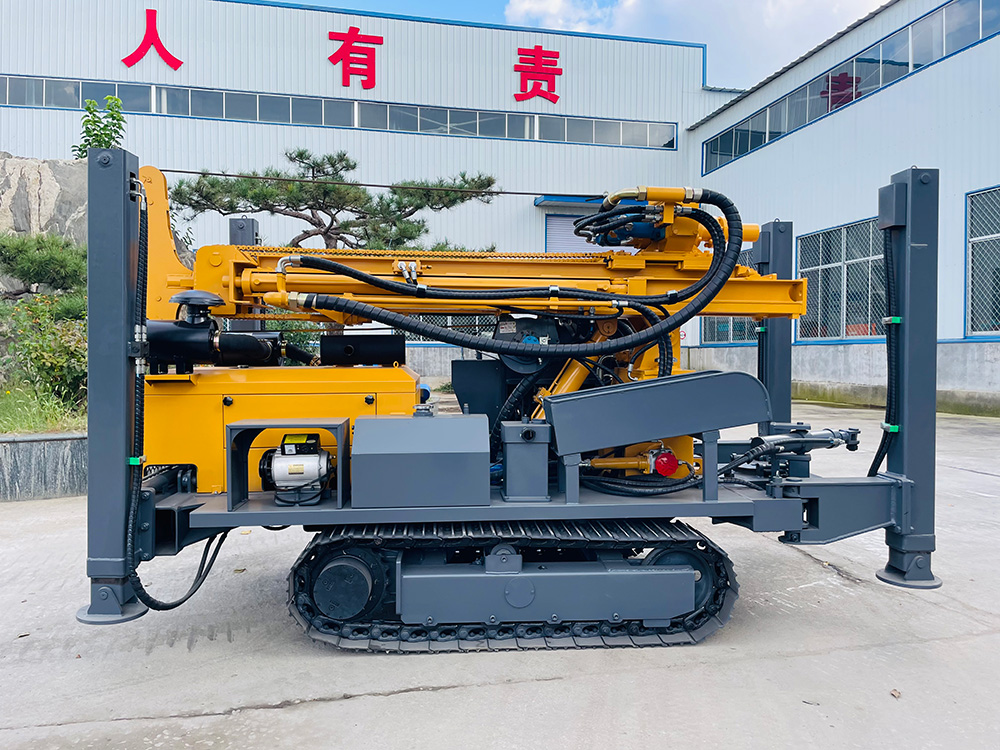

Kaishan KS260 Crawler Water Well Drilling Rig

Name: Kaishan KS260 Crawler Water Well Drilling Rig
Brand: Kaishan
SKU: KS260
Availability: InStock

Model: KS260

The Kaishan KS260 is a heavy-duty crawler water well drilling rig engineered for efficient DTH and rotary drilling in tough geological formations. With a maximum drilling depth of 260 meters and a hole diameter range of 140–305 mm, it delivers reliable performance for water well, agricultural, and geothermal projects. Powered by a 132 kW diesel engine and mounted on a robust crawler chassis, the KS260 ensures stable operation on uneven terrain. Its hydraulic top-drive system and high torque output enable fast penetration in hard rock, while the integrated dust suppression system keeps worksites clean. Designed for ease of maintenance and operator comfort, this rig is an ideal choice for contractors seeking productivity and durability in water well drilling.

Best For

Municipal Water Wells Agricultural Irrigation Geothermal Systems Monitoring Wells

Technical Specifications

Model	KS260
Drilling Depth	260 m
Hole Diameter	140–305 mm
Drilling Method	DTH Hammer / Rotary
Engine Power	76 kW
Swing torque	4000-5300
Dimension (L×W×H)	3900 × 7500 × 2250 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KS260 is a crawler-mounted water well drilling rig designed to meet the demands of modern water extraction and geothermal projects. Built on Kaishan's proven engineering platform, this rig combines a powerful diesel engine, advanced hydraulic system, and rugged crawler undercarriage to deliver exceptional performance in diverse drilling conditions. Whether drilling in unconsolidated sediments or hard rock, the KS260 offers the reliability and efficiency required for large-scale operations. ## Technical Features The KS260 features a hydraulic top-drive head that provides high torque and variable speed control, enabling efficient DTH hammer drilling and rotary drilling with air or mud. The rig's maximum drilling depth of 260 meters and hole diameter range of 140–305 mm make it suitable for a wide range of water well applications. A 132 kW turbocharged diesel engine ensures ample power for drilling and travel, while the four-cylinder hydraulic system offers smooth and precise control. The crawler chassis with wide tracks provides excellent stability and traction on rough terrain, and the rig's compact design allows for easy maneuvering in confined spaces. An optional dust collector and water injection system help maintain a clean working environment. ## Applications The KS260 is ideal for drilling water wells for municipal, agricultural, and industrial use. It is also well-suited for geothermal heat pump installations, monitoring wells, and foundation grouting. Its ability to handle both DTH and rotary methods makes it versatile for different geological formations, from sand and clay to granite and basalt. Contractors appreciate its fast setup, high penetration rates, and low operating costs. ## Why Choose Kaishan KS260 With decades of experience in drilling equipment, Kaishan delivers a rig that balances power, efficiency, and durability. The KS260 is backed by a global service network and comprehensive after-sales support, ensuring maximum uptime and productivity. Its user-friendly design and robust construction make it a smart investment for any drilling fleet.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

140–305 mm

Drilling Depth

260 m

Engine Power

76 kW

Dimension (L×W×H)

3900 × 7500 × 2250 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Max drilling depth of 260 m for deep water wells

✓

Hole diameter range 140–305 mm for versatile applications

✓

132 kW diesel engine for powerful performance

✓

Crawler-mounted for superior mobility on rough terrain

✓

Hydraulic top-drive with high torque for efficient drilling

✓

Dust suppression system for cleaner worksites

✓

Compact design for easy maneuvering in tight spaces

✓

Global service network and reliable after-sales support

Applications

📍 Municipal Water Wells

Drilling deep water wells for community water supply.

Solution: KS260's 260 m depth and 305 mm max diameter ensure high-yield wells; DTH hammer drilling speeds up hard rock penetration.

📍 Agricultural Irrigation

Providing reliable water sources for farmland irrigation.

Solution: Efficient rotary drilling in sand and clay, with quick setup and mobility to move between fields.

📍 Geothermal Systems

Installing geothermal heat pump loops for heating and cooling.

Solution: Precise hole diameter control and stable crawler chassis for accurate vertical drilling in urban areas.

📍 Monitoring Wells

Drilling wells for environmental monitoring and groundwater testing.

Solution: Clean drilling with optional dust collector and water injection, minimizing environmental impact.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KS260This model	KS260	260 m	140–305 mm	DTH Hammer / Rotary	76 kW	Get a Quote
KW360	KW360	360 m	140–350 mm	DTH Hammer / Mud Rotary	132 kW (180 HP)	Get a Quote
KW180	KW180	180 m	105–254 mm	—	—	Get a Quote
KS300	KS300	—	—	—	—	Get a Quote
KS350	Kaishan KS350	350 m	140-325	—	—	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Crawler undercarriage
Diesel engine
Hydraulic top-drive head
Mast and feed system
Drill string (pipes and bit)
Air compressor (optional for DTH)
Control panel
Dust suppression system

Working Principle

The Kaishan KS260 operates on a hydraulic top-drive drilling principle. A powerful diesel engine drives the hydraulic system, which powers the top-drive head to rotate the drill string. The rig can use either DTH (down-the-hole) hammer drilling or rotary drilling with air or mud. In DTH mode, compressed air is sent down the drill pipe to operate the hammer, which strikes the bit rapidly to break rock. The cuttings are flushed out by the air or mud return. In rotary mode, the top-drive rotates the bit while drilling fluid is pumped through the string to cool the bit and carry cuttings to the surface. The crawler chassis allows the rig to move and position accurately. The operator controls all functions from a centralized panel, ensuring precise and efficient drilling.

Detailed Features

▸Heavy-duty crawler chassis for stability on uneven ground
▸Hydraulic top-drive with variable speed and high torque
▸132 kW turbocharged diesel engine for reliable power
▸Max drilling depth 260 m and diameter 140–305 mm
▸Compatible with DTH hammer and rotary drilling methods
▸Dust collector and water injection for clean operation
▸Ergonomic control panel for easy operation
▸Optional air compressor and mud pump for versatile drilling

Packaging & Shipping

The Kaishan KS260 is shipped in a 40HQ container with the mast folded and components securely packed. Standard export packaging includes rust-proof coating, wooden supports, and waterproof wrapping. Delivery time is 30–45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. Custom packaging and labeling available upon request.

After-Sales Service

Kaishan provides a 12-month warranty on the KS260 drilling rig (excluding wear parts). A 24-hour technical support hotline is available for troubleshooting. We offer on-site installation and operator training at additional cost. Genuine spare parts are stocked in regional warehouses for quick delivery. Regular maintenance reminders and service contracts are available to ensure optimal performance.

Frequently Asked Questions

What is the drilling depth and hole diameter of the KS260?+

The KS260 reaches a maximum drilling depth of 260 m with a hole diameter range of 140–305 mm. It supports DTH hammer and rotary drilling methods.

What engine power does the KS260 use?+

The KS260 is powered by a 76 kW engine. It is mounted on a crawler chassis for stability on uneven ground.

What air supply does the KS260 need for DTH drilling?+

The KS260 is compatible with DTH hammer and rotary drilling methods. An air compressor and mud pump are available as optional equipment.

What applications suit the KS260 rig?+

The KS260 suits municipal water wells, agricultural irrigation, geothermal systems and monitoring wells. Its crawler chassis supports operation on rough terrain.

What are the dimensions of the KS260?+

The KS260 measures 3900 × 7500 × 2250 mm (L×W×H). It is shipped in a 40HQ container with the mast folded.

How is the KS260 packaged and shipped?+

The KS260 ships in a 40HQ container with rust-proof coating, wooden supports and waterproof wrapping. Delivery takes 30–45 days after order confirmation from Shanghai or Ningbo.

What warranty covers the KS260?+

The KS260 carries a 12-month warranty excluding wear parts. A 24-hour technical support hotline is available for troubleshooting.
