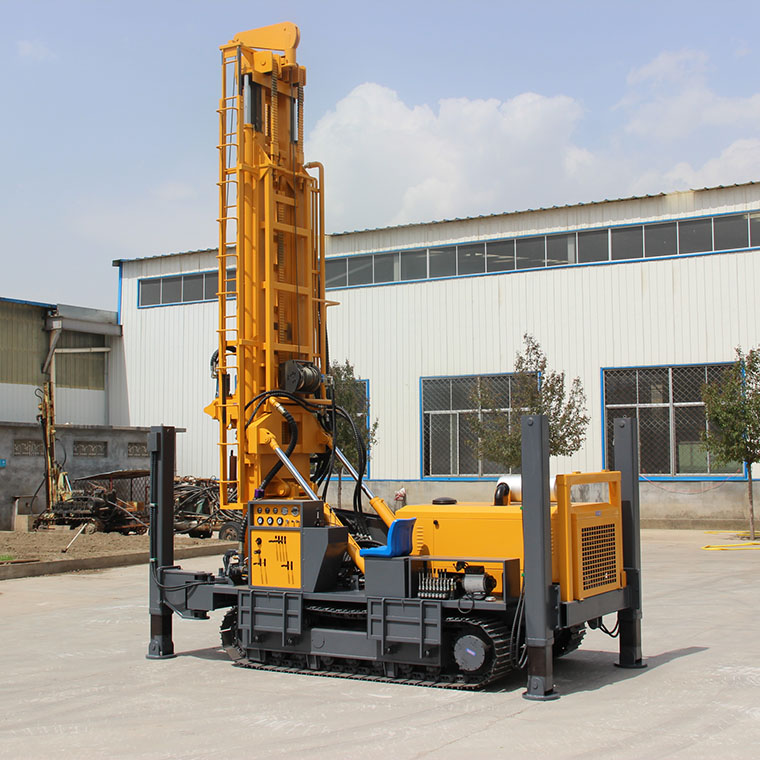

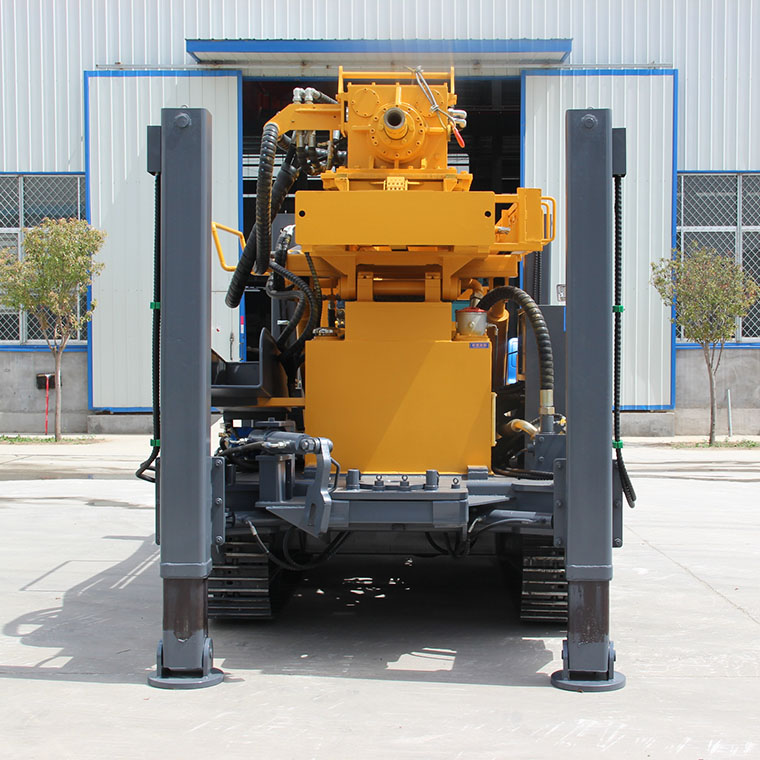

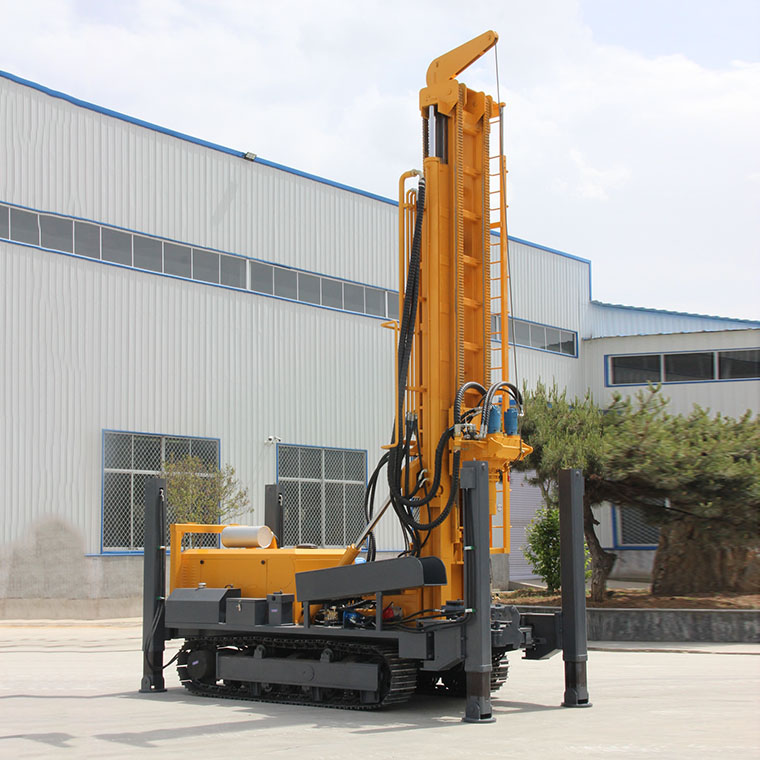

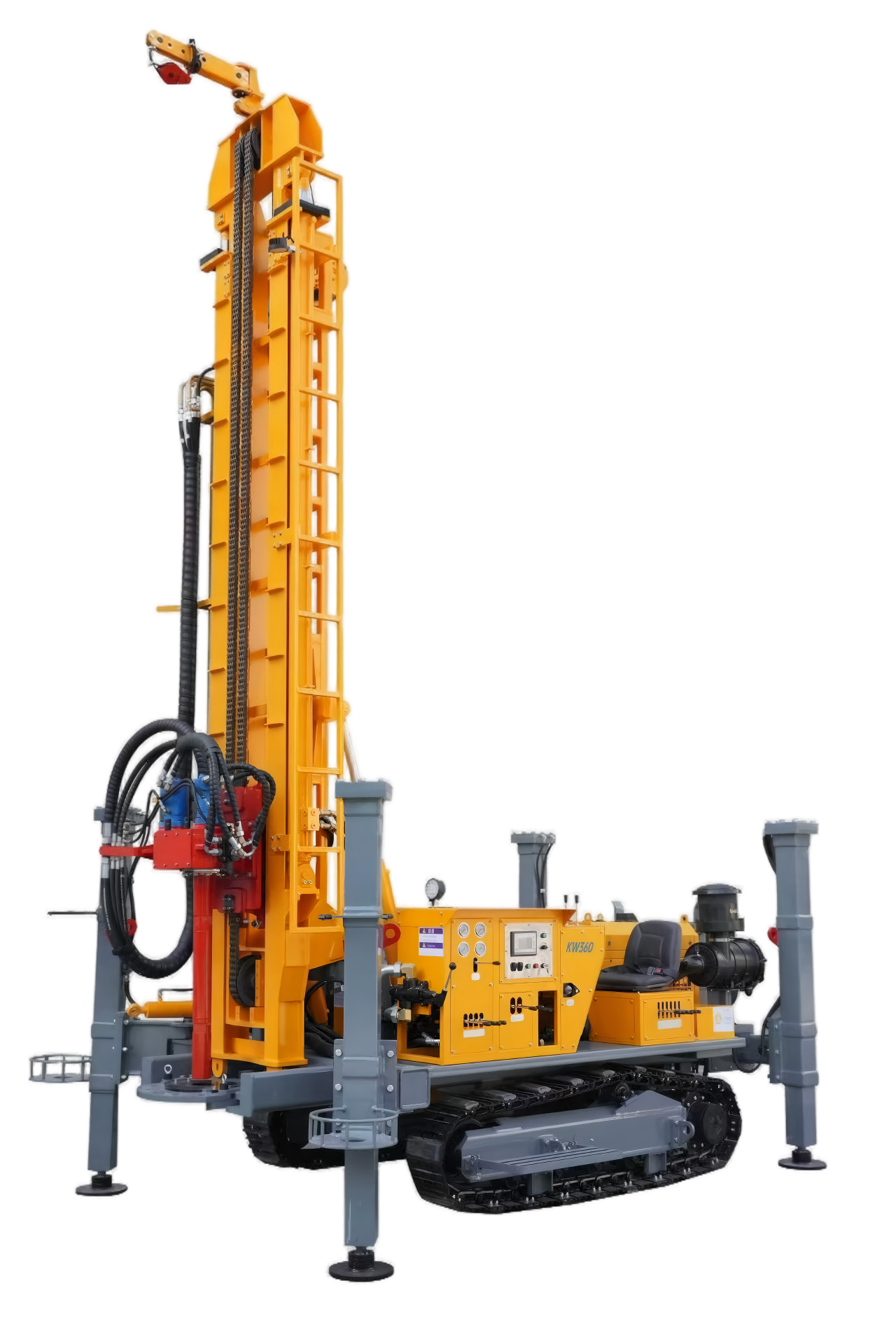

Kaishan KW360 Geothermal Water Well Drilling Rig

Name: Kaishan KW360 Geothermal Water Well Drilling Rig
Brand: Kaishan
SKU: KW360
Availability: InStock

Model: KW360

Kaishan KW360 is a multi-purpose geothermal water well drilling rig: hole diameter 115–305 mm, drilling depth 350 m, 6400×2250×2400 mm, 9000 kg, gradeability ≤20°.

Best For

Agricultural Water Wells Municipal Water Supply Mining Dewatering Geothermal Boreholes

Technical Specifications

Model	KW360
Drilling Depth	360 m
Hole Diameter	140–350 mm
Drilling Method	DTH Hammer / Mud Rotary
Engine Power	132 kW (180 HP)
Weight	12,000 kg
Dimension (L×W×H)	8,500 × 2,300 × 3,200 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KW360 is a crawler-mounted water well drilling rig designed for medium-to-deep boreholes in groundwater exploration, agricultural irrigation, and industrial water supply. As part of Kaishan's proven KW series, it integrates a durable crawler chassis, a high-torque rotary head, and a powerful diesel engine to deliver reliable drilling performance in diverse geological conditions. The rig supports both DTH hammer drilling and mud rotary drilling, making it adaptable to hard rock, sand, clay, and mixed formations. ## Technical Features The KW360 features a robust hydraulic system that provides smooth feed and retraction, ensuring stable penetration rates and reduced wear on drill string components. Its telescopic mast and hydraulic outriggers enable quick setup and leveling on uneven terrain. The centralized control panel allows the operator to monitor and adjust key parameters such as rotation speed, feed force, and air/mud flow, improving efficiency and safety. The crawler undercarriage offers excellent mobility and traction, allowing the rig to move easily between boreholes on challenging job sites. With a rated drilling depth of 360 m and a hole diameter range of 140–350 mm, the KW360 is suitable for a wide range of water well applications. ## Applications This rig is widely used for drilling water wells for municipal, agricultural, and industrial purposes. It is also ideal for mining dewatering, geothermal borehole installation, and construction site water supply. Its ability to operate in remote areas with limited infrastructure makes it a valuable asset for contractors working in developing regions. The KW360's combination of power, mobility, and versatility ensures high productivity and cost-effective operation. ## Reliability and Service Kaishan is a globally recognized manufacturer of drilling equipment, and the KW360 is built with high-quality components and rigorous quality control. The rig is supported by Kaishan's worldwide service network, ensuring prompt technical support and spare parts availability. With proper maintenance, the KW360 delivers long service life and dependable performance, making it a smart investment for drilling professionals.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

140–350 mm

Drilling Depth

360 m

Engine Power

132 kW (180 HP)

Weight

12,000 kg

Dimension (L×W×H)

8,500 × 2,300 × 3,200 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Rated drilling depth up to 360 m for medium-to-deep water wells

✓

Hole diameter range of 140–350 mm for versatile drilling

✓

Supports both DTH hammer and mud rotary drilling methods

✓

Crawler-mounted chassis for excellent mobility on rough terrain

✓

Powerful diesel engine with high torque for efficient penetration

✓

Hydraulic outriggers and telescopic mast for quick setup

✓

Centralized control system for easy operation and monitoring

✓

Robust construction and reliable components for long service life

Applications

📍 Agricultural Water Wells

Drilling water wells for irrigation and livestock in rural areas.

Solution: The KW360's 360 m depth and 140–350 mm diameter range efficiently tap into aquifers, ensuring reliable water supply for farms.

📍 Municipal Water Supply

Constructing water wells for towns and cities.

Solution: With DTH and mud rotary capabilities, the rig handles various formations, providing clean and sustainable water sources for communities.

📍 Mining Dewatering

Drilling dewatering wells to lower groundwater levels in mines.

Solution: The KW360's powerful engine and robust feed system quickly drill dewatering holes, improving safety and productivity in mining operations.

📍 Geothermal Boreholes

Installing geothermal heat exchange loops for HVAC systems.

Solution: Precise drilling and diameter control make the KW360 ideal for geothermal boreholes, ensuring efficient energy transfer.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
KW360This model	KW360	360 m	140–350 mm	DTH Hammer / Mud Rotary	132 kW (180 HP)	Get a Quote
KW180	KW180	180 m	105–254 mm	—	—	Get a Quote
KS260	KS260	260 m	140–305 mm	DTH Hammer / Rotary	76 kW	Get a Quote
KS300	KS300	—	—	—	—	Get a Quote
KS350	Kaishan KS350	350 m	140-325	—	—	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Crawler undercarriage
Diesel engine
Hydraulic system
Rotary head
Mast and feed system
Control panel
Air compressor (for DTH)
Mud pump (for rotary)

Working Principle

The Kaishan KW360 crawler water well drilling rig operates on a combination of mechanical rotation and either DTH (down-the-hole) hammer or mud rotary drilling. In DTH mode, compressed air is delivered through the drill pipe to a hammer at the bottom of the hole, which rapidly strikes the bit to fracture rock. The rotary head simultaneously rotates the drill string, ensuring even bit wear and a straight hole. Cuttings are flushed to the surface by the air stream. In mud rotary mode, drilling fluid is pumped down the drill pipe to cool the bit, stabilize the borehole, and carry cuttings to the surface. The rig's hydraulic system controls feed force, rotation speed, and pull-back, allowing the operator to adapt to changing formations. The crawler undercarriage provides mobility, while the outriggers stabilize the rig during drilling. This dual-method capability makes the KW360 versatile and efficient for water well drilling in various geological conditions.

Detailed Features

▸Crawler-mounted for all-terrain mobility
▸Dual drilling method: DTH and mud rotary
▸High torque rotary head for efficient drilling
▸Hydraulic outriggers for stable setup
▸Telescopic mast for quick pipe handling
▸Centralized controls for ease of operation
▸Durable components for extended service life
▸Global service network for timely support

Packaging & Shipping

The Kaishan KW360 is shipped in a disassembled state for efficient container transport. The main rig, mast, and components are securely packed and protected against corrosion and impact. Standard export packaging includes steel frames, wooden crates, and moisture barriers. The rig typically fits into a 40HQ container or flat rack, depending on configuration. Delivery time is approximately 30–45 days after order confirmation. Shipping ports include Shanghai, Qingdao, or other major Chinese ports as per customer request.

After-Sales Service

Kaishan offers comprehensive after-sales service for the KW360, including a 12-month warranty on major components (excluding wear parts). A 24-hour technical support hotline is available for troubleshooting and operational guidance. We provide on-site installation and commissioning services, as well as operator training to ensure safe and efficient use. A global network of spare parts warehouses ensures quick availability of consumables and critical components, minimizing downtime. Regular maintenance reminders and service packages are available to extend the rig's lifespan.
