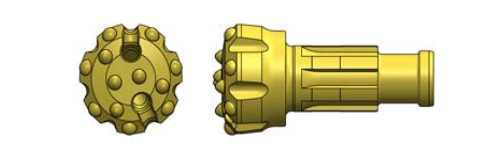

Kaishan M3K DTH Drill Bit for Mining & Water Well Drilling
Model: M3K
The Kaishan M3K DTH drill bit is a high-performance down-the-hole hammer bit designed for demanding mining, quarrying, and water well drilling operations. Engineered with premium carbide buttons and a robust alloy steel body, the M3K delivers exceptional penetration rates and extended service life in hard rock formations. Its optimized air flow design ensures efficient cuttings removal and reduced energy consumption. Compatible with standard DTH hammers and drill rigs, this bit offers reliable performance in medium to hard rock conditions. Whether you are drilling blast holes, water wells, or foundation holes, the Kaishan M3K provides consistent results and low cost per meter. Backed by Kaishan's global service network, it is the ideal choice for contractors seeking durability and productivity.

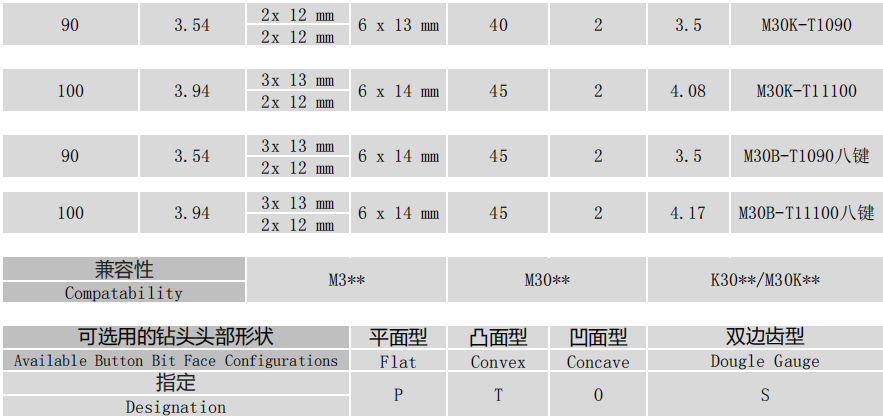

Technical Specifications
| Model | M3K |
| Type | DTH Drill Bit |
| Size | 3 inch (76 mm) diameter |
| Application | Mining, quarrying, water well drilling, construction |
| Material | Alloy steel body with tungsten carbide buttons |
| Weight | Approx. 3.5 kg |
| Packing | Wooden case or carton |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Weight
Approx. 3.5 kg
Model
M3K
Type
DTH Drill Bit
Size
3 inch (76 mm) diameter
Application
Mining, quarrying, water well drilling, construction
Material
Alloy steel body with tungsten carbide buttons
Packing
Wooden case or carton
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
High-strength alloy steel body for superior durability
Premium tungsten carbide buttons for efficient rock cutting
Optimized air flow design for fast cuttings removal
Compatible with standard DTH hammers and rigs
Available in various sizes for different hole diameters
Heat-treated for consistent hardness and wear resistance
Low cost per meter in medium to hard rock
Backed by Kaishan global service and support
Applications
📍 Open-Pit Mining
Blast hole drilling in hard rock such as granite and basalt.
Solution: Kaishan M3K DTH bit paired with high-pressure DTH hammer for fast penetration and reduced drilling costs.
📍 Quarrying
Drilling blast holes for aggregate production in limestone and dolomite quarries.
Solution: M3K bit with optimized button layout ensures straight holes and consistent fragmentation.
📍 Water Well Drilling
Constructing water wells in hard rock formations for residential, agricultural, and industrial use.
Solution: M3K bit combined with Kaishan water well drill rig and DTH hammer for reliable deep drilling.
📍 Construction & Foundation
Drilling foundation holes, anchor holes, and micropiles in rocky terrain.
Solution: M3K bit provides accurate hole diameter and smooth drilling in reinforced concrete and rock.
Middle Pressure Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Type | Size | Application | Material | Inquire |
|---|---|---|---|---|---|---|---|
| M3KThis model | M3K | DTH Drill Bit | 3 inch (76 mm) diameter | Mining, quarrying, water well drilling, construction | Alloy steel body with tungsten carbide buttons | Get a Quote | |
| M3A | M3A | DTH Button Bit | 3 inches (76 mm) | Mining, Water Well, Quarrying | Alloy Steel, Tungsten Carbide | Get a Quote | |
| M30C | M30C | Down-The-Hole (DTH) Hammer | 3-4 inch (76-102 mm) hole diameter | Mining, water well drilling, quarrying, construction | Alloy steel, heat-treated | Get a Quote | |
| M3A | M3A | DTH Hammer (3-inch class) | 3 inches | Mining, quarrying, water well drilling, construction | High-strength alloy steel | Get a Quote | |
| M3AK | M3AK | Down-the-Hole (DTH) Hammer | 3 inch | Mining, quarrying, water well drilling, construction | Alloy steel | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Alloy steel body
- Tungsten carbide buttons
- Flushing holes
- Splines
- Shank
- Face design
- Retaining ring
- Air passages
Working Principle
The Kaishan M3K DTH drill bit operates on the principle of down-the-hole percussion. High-pressure air is delivered through the drill string to the DTH hammer, which drives the piston to strike the bit's shank at high frequency. The impact energy is transferred to the tungsten carbide buttons on the bit face, which crush and fracture the rock. Simultaneously, the air flows through the bit's flushing holes to remove cuttings from the hole bottom and carry them to the surface. The bit rotates slowly, indexing the buttons to new positions for even wear and efficient rock breakage. This combination of impact and rotation allows the M3K to achieve high penetration rates in hard rock with minimal energy loss. The design ensures that the bit remains cool and clean, extending its service life and maintaining drilling efficiency.
Detailed Features
- ▸High wear resistance
- ▸Excellent impact toughness
- ▸Optimized button geometry
- ▸Efficient air flushing
- ▸Precision manufacturing
- ▸Long service life
- ▸Easy to replace
- ▸Cost-effective
Packaging & Shipping
Each Kaishan M3K DTH drill bit is securely packed in a wooden case or carton with rust-proof protection. Multiple units are palletized for container shipping. Standard export packaging ensures safe transport by sea or air. Delivery time is typically 15-30 days after order confirmation, depending on quantity. Ports of shipment include Shanghai, Ningbo, or as per customer request. Customized packaging and labeling are available for OEM orders.
After-Sales Service
Kaishan offers a comprehensive after-sales service for the M3K DTH drill bit. All products come with a 6-month warranty against manufacturing defects. Our 24-hour technical support team is available to assist with troubleshooting and application advice. We provide on-site training for drill operators to maximize bit performance and lifespan. Genuine spare parts and accessories are stocked in regional warehouses for fast delivery. Our global service network ensures quick response and minimal downtime for your drilling operations.
Frequently Asked Questions
What is the Kaishan M3K DTH drill bit used for?+
The M3K is used for down-the-hole drilling in mining, quarrying, water well drilling, and construction. It is suitable for medium to hard rock formations.
What is the size of the M3K bit?+
The M3K is typically available in 3-inch (76 mm) and similar sizes. Please confirm the exact diameter with our sales team based on your hammer and hole requirements.
What material is the M3K made of?+
The bit body is made of high-strength alloy steel, and the cutting buttons are made of premium tungsten carbide for maximum wear resistance.
Is the M3K compatible with other brands of DTH hammers?+
Yes, the M3K is designed to fit standard DTH hammers with matching shank types. Please provide your hammer specifications for compatibility confirmation.
How long does the M3K bit last?+
Bit life depends on rock conditions, drilling parameters, and operator skill. Under normal conditions, the M3K offers excellent service life and low cost per meter.
What is the warranty and delivery time?+
We offer a 6-month warranty. Delivery time is usually 15-30 days after order confirmation, depending on quantity and destination.
