Kaishan KJ422 Underground Drill Rig

Name: Kaishan KJ422 Underground Drill Rig
Brand: Kaishan
SKU: KJ422
Availability: InStock

Model: KJ422

The Kaishan KJ422 is a compact underground drill rig engineered for efficient drilling in mining and tunneling operations. Designed for underground drill rig applications, it delivers reliable performance in confined spaces with a robust boom and feed system. The KJ422 supports both DTH and rotary drilling methods, achieving hole diameters from 76 mm to 152 mm and drilling depths up to 100 meters. Powered by a 74 kW diesel engine, it combines strong drilling capability with maneuverability. Its articulated chassis and four-wheel drive ensure stable positioning on rough underground terrain. The rig features a hydraulic control system for precise boom movement, reducing operator fatigue and improving accuracy. With a compact footprint of 6,800 × 2,100 × 2,600 mm and a weight of 9,500 kg, the KJ422 is easy to transport and set up in narrow drifts. Ideal for mining development, tunnel support, and underground water well drilling, this rig offers a cost-effective solution for contractors seeking dependable underground drilling equipment.

Best For

Underground Mining Development Tunnel Excavation Underground Water Well Drilling Ground Support

Technical Specifications

Model	Kaishan KJ422
Impact Pressure	180-200bar
Hole Diameter	76-152 mm
Drilling Method	DTH / Rotary
Engine	Cummins qsb5.9-c160
Weight	22000 kg
Dimension (L×W×H)	15000 × 2,550 × 2,400 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan KJ422 is a purpose-built underground drill rig designed to meet the demanding requirements of mining and tunneling projects. As a member of Kaishan's underground drill rig series, the KJ422 combines compact dimensions with powerful drilling capabilities, making it an ideal choice for operations where space is limited but productivity cannot be compromised. This rig is engineered to drill both DTH and rotary holes, providing versatility for various underground applications. ## Technical Features The KJ422 is equipped with a robust hydraulic system that ensures smooth and precise control of the boom, feed, and rotation functions. Its articulated chassis and four-wheel drive allow for excellent maneuverability in narrow tunnels and uneven ground. The rig features a heavy-duty feed beam that supports efficient drilling with minimal deviation. Powered by a 74 kW diesel engine, it delivers reliable performance while maintaining fuel efficiency. The drilling depth reaches up to 100 meters, with hole diameters ranging from 76 mm to 152 mm, suitable for a wide range of underground tasks. The operator's station is ergonomically designed for comfort and visibility, reducing fatigue during long shifts. ## Applications The KJ422 is widely used in underground mining development, tunnel excavation, and underground water well drilling. Its ability to operate in confined spaces makes it particularly valuable for mine galleries and shaft sinking. The rig can also be employed for ground support operations, such as drilling bolt holes and grouting holes. With its versatile drilling methods, it adapts to different rock formations, from soft to medium-hard rock. Contractors appreciate its reliability and low maintenance requirements, which contribute to reduced downtime and lower operational costs. ## Conclusion In summary, the Kaishan KJ422 underground drill rig offers a powerful, compact, and versatile solution for underground drilling challenges. Its combination of advanced hydraulics, durable construction, and operator-friendly design ensures high productivity and safety in the most demanding environments. Whether for mining, tunneling, or water well projects, the KJ422 stands out as a dependable partner for underground operations.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

76-152 mm

Impact Pressure

180-200bar

Weight

22000 kg

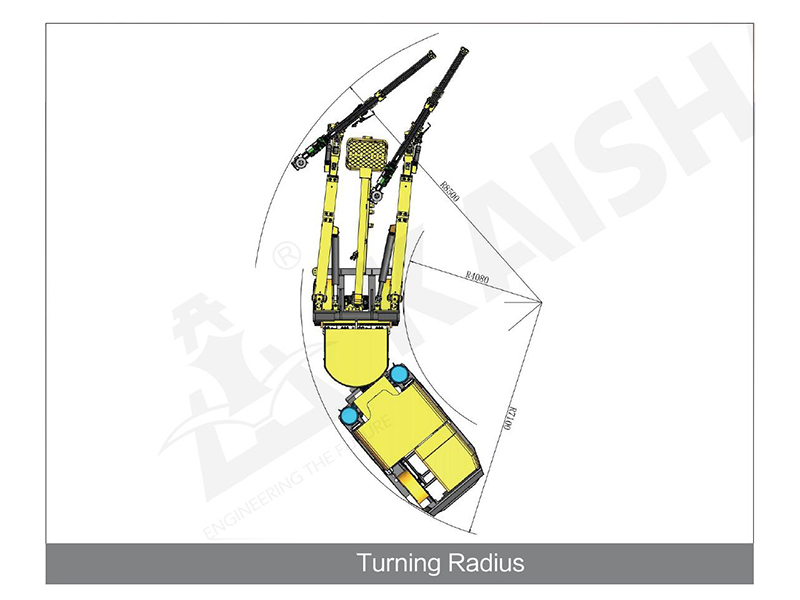

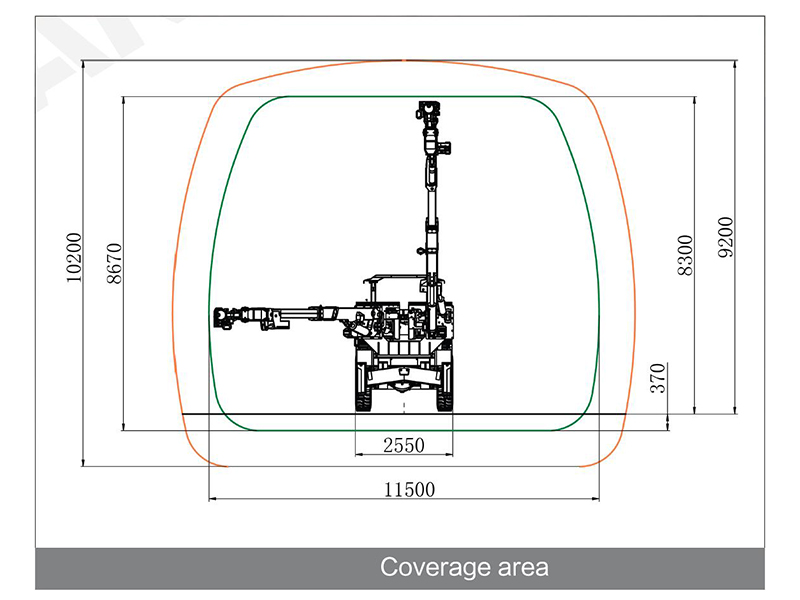

Dimension (L×W×H)

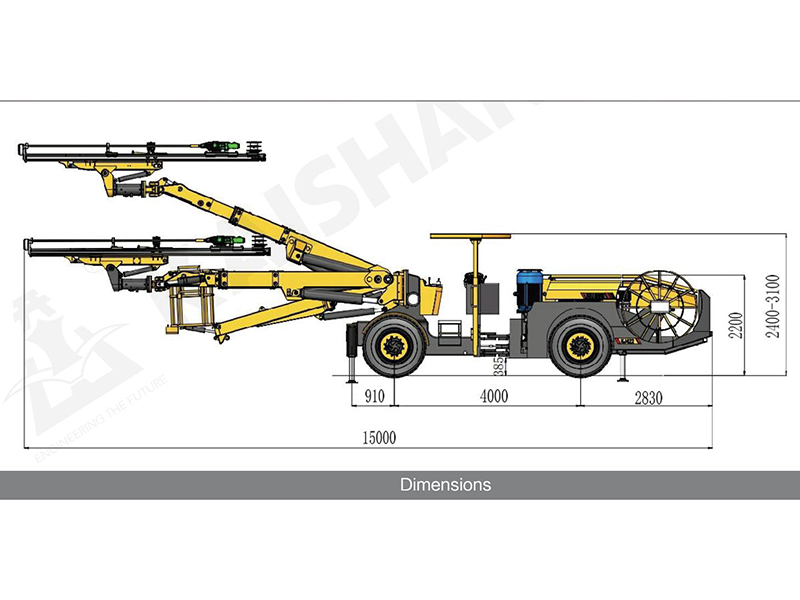

15000 × 2,550 × 2,400 mm
