Kaishan KJ310 Underground Drilling Rig

Name: Kaishan KJ310 Underground Drilling Rig
Brand: Kaishan
SKU: KAISHAN KJ310
Availability: InStock

Model: KAISHAN KJ310

The Kaishan KJ310 is a robust underground drilling rig engineered for demanding mining and tunneling applications. Designed for underground drill rigs, it delivers reliable performance in confined spaces with efficient rock drilling capabilities. Powered by a durable diesel engine, the KJ310 achieves drilling depths up to 300 meters with hole diameters ranging from 45 to 102 mm, making it ideal for blast hole drilling, anchor drilling, and exploration. Its compact structure and articulated boom ensure maneuverability in narrow tunnels, while advanced hydraulic controls enhance precision and productivity. The KJ310 integrates proven Kaishan technology for high penetration rates, low operational costs, and easy maintenance. Whether used in metal mines, coal mines, or civil construction, this underground drilling rig offers a dependable solution for challenging underground environments. With global service support and readily available spare parts, the Kaishan KJ310 maximizes uptime and return on investment for contractors and mining operators worldwide.

Best For

Underground Metal Mining Tunnel Construction Coal Mine Drilling Civil Engineering

Technical Specifications

Model	Kaishan KJ310
Impact Pressure	130bar
Hole Diameter	32-76 mm
Drilling Method	Rotary / DTH
Engine Power	45 kW
Weight	12000 kg

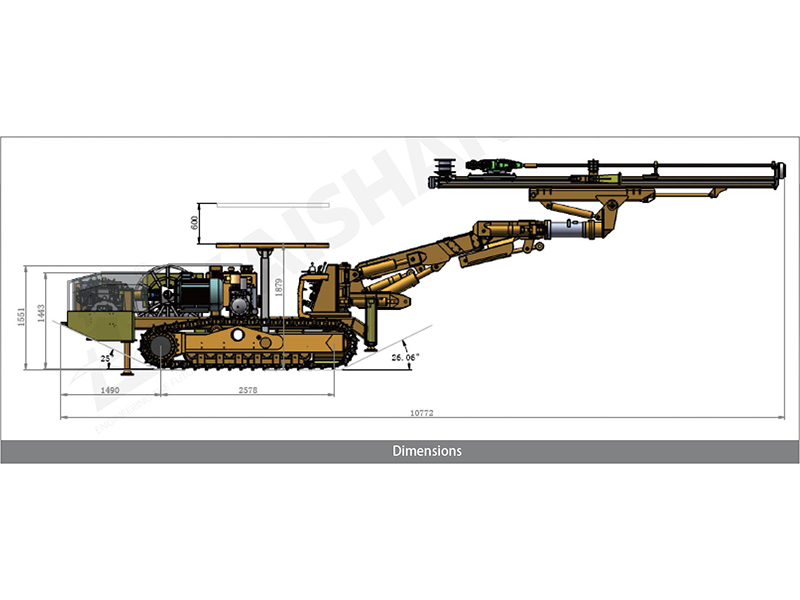

Dimension (L×W×H)	10700×1650×2500 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

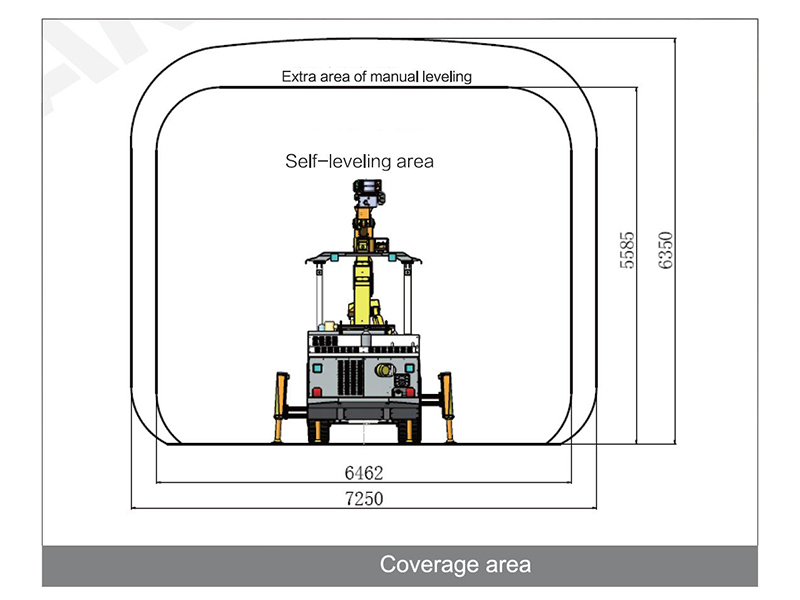

## Overview The Kaishan KJ310 is a dedicated underground drilling rig designed to meet the rigorous demands of mining, tunneling, and underground construction. As a leader in underground drill rigs, Kaishan has engineered the KJ310 to deliver exceptional performance in confined spaces, combining powerful drilling capabilities with superior maneuverability. This rig is ideal for blast hole drilling, anchor hole drilling, and geological exploration in underground mines and tunnels. ## Technical Features The KJ310 is built around a robust hydraulic system that provides precise control over drilling parameters, ensuring optimal penetration rates and extended tool life. Its articulated boom and compact chassis allow operation in tunnels as small as 3.2 m x 3.2 m, while the four-wheel drive and articulated steering enhance mobility on rough terrain. The rig is powered by a reliable diesel engine, delivering ample power for demanding drilling tasks while maintaining fuel efficiency. The KJ310 supports both rotary and DTH drilling methods, with a maximum drilling depth of 300 meters and hole diameters from 45 mm to 102 mm. The ergonomic control panel and optional remote operation improve operator safety and comfort. ## Applications The Kaishan KJ310 excels in underground mining operations, including metal mines, coal mines, and non-metallic mines. It is equally effective in tunnel excavation, underground cavern construction, and civil engineering projects. The rig's versatility allows it to handle various drilling tasks, from production drilling to rock bolting and grouting. Its ability to operate in narrow veins and steep inclines makes it a valuable asset for challenging underground environments. ## Reliability and Support Kaishan is committed to providing reliable equipment and comprehensive support. The KJ310 is manufactured with high-quality components and undergoes rigorous testing to ensure durability and performance. With a global network of service centers and spare parts warehouses, Kaishan ensures minimal downtime and maximum productivity for its customers.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

32-76 mm

Impact Pressure

130bar

Engine Power

45 kW

Weight

12000 kg

Dimension (L×W×H)

10700×1650×2500 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Compact design for narrow tunnel operation

✓

Powerful diesel engine for efficient drilling

✓

Articulated boom for precise positioning

✓

Hydraulic controls for smooth operation

✓

Supports rotary and DTH drilling methods

✓

Maximum drilling depth of 300 meters

✓

Four-wheel drive for superior mobility

✓

Ergonomic cabin for operator comfort

Applications

📍 Underground Metal Mining

Drilling blast holes and anchor holes in metal mines with high efficiency.

Solution: The KJ310's powerful hydraulic system and articulated boom enable precise drilling in narrow veins, improving ore recovery and safety.

📍 Tunnel Construction

Excavation drilling for tunnels and underground caverns.

Solution: With its compact size and maneuverability, the KJ310 operates efficiently in confined spaces, accelerating tunnel advance rates.

📍 Coal Mine Drilling

Drilling for coal seam degasification and exploration.

Solution: The rig's reliable engine and DTH capability ensure efficient drilling in coal mines, enhancing gas drainage and safety.

📍 Civil Engineering

Underground drilling for foundations, grouting, and rock bolting.

Solution: The KJ310's versatility and precision make it ideal for various civil engineering tasks, ensuring stable and durable structures.

KJ Series Models

Compare specifications across the series to find the right model.

Model	Model	Impact Pressure	Hole Diameter	Drilling Method	Engine Power	Inquire
KAISHAN KJ310This model	Kaishan KJ310	130bar	32-76 mm	Rotary / DTH	45 kW	Get a Quote
KAISHAN KJ311	Kaishan KJ311	130BAR	32-76mm	Hydraulic percussion + rotation	93 kW	Get a Quote
KAISHAN KJ311D	Kaishan KJ311	130bar	32–89 mm	Top Hammer / DTH	45 kW	Get a Quote
KJ211	Kaishan KJ211	130bar	—	Hydraulic Top Hammer	45 kW	Get a Quote
KJ210	Kaishan KJ210	150bar	—	Hydraulic top hammer drilling	45 kW diesel (optional electric motor)	Get a Quote
KJ422	Kaishan KJ422	180-200bar	76-152 mm	DTH / Rotary	—	Get a Quote
KJ421	Kaishan KJ421	180-200bar	—	Hydraulic percussion	93 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Diesel engine
Hydraulic pump
Articulated boom
Rotation unit
Feed system
Control panel
Undercarriage
Drill string

Working Principle

The Kaishan KJ310 underground drilling rig operates on a hydraulic drilling principle. A powerful diesel engine drives the hydraulic pumps, which supply pressurized oil to the hydraulic motors and cylinders. The rotation unit, mounted on an articulated boom, rotates the drill string while the feed system applies thrust to the bit. For DTH drilling, compressed air is directed through the drill pipe to the down-the-hole hammer, which delivers high-frequency impacts to break rock. The cuttings are flushed out by the air stream. The rig's control system allows the operator to adjust rotation speed, feed force, and air volume to match rock conditions, ensuring optimal penetration rates and bit life. The articulated boom and four-wheel drive enable precise positioning and mobility in underground environments.

Detailed Features

▸Compact and maneuverable for underground use
▸High drilling efficiency with hydraulic controls
▸Supports both rotary and DTH drilling
▸Maximum depth 300 m, diameter 45-102 mm
▸Reliable diesel engine for tough conditions
▸Four-wheel drive and articulated steering
▸Ergonomic cabin with optional remote control
▸Easy maintenance and global spare parts support

Packaging & Shipping

The Kaishan KJ310 is shipped in a disassembled state for efficient container loading, with major components securely packed and protected against corrosion and impact. Standard export packaging includes wooden crates, steel frames, and waterproof covers. The rig can be loaded into a 40HQ container or flat rack, depending on configuration. Delivery time is typically 30-45 days after order confirmation. Shipping ports include Shanghai, Qingdao, or as per customer request. All necessary documentation for export, including CE certification and inspection reports, is provided.

After-Sales Service

Kaishan offers comprehensive after-sales service for the KJ310, including a 12-month warranty on major components (excluding wear parts). Our global service network provides 24-hour technical support and on-site assistance. We offer operator training and maintenance workshops to ensure optimal equipment performance. Genuine spare parts are available through our worldwide distribution centers, ensuring quick delivery and minimal downtime. Our service team is committed to maximizing your productivity and return on investment.

Frequently Asked Questions

What hole diameter can the Kaishan KJ310 drill?+

The Kaishan KJ310 drills hole diameters from 32-76 mm. It supports both rotary and DTH drilling methods for underground rock drilling.

What engine powers the Kaishan KJ310?+

The Kaishan KJ310 is powered by a 45 kW engine. The rig weighs 12000 kg and measures 10700×1650×2500 mm.

What impact pressure does the Kaishan KJ310 use?+

The Kaishan KJ310 operates at an impact pressure of 130bar. This pressure supports its rotary and DTH drilling methods in underground conditions.

Where can the Kaishan KJ310 be used?+

The Kaishan KJ310 suits underground metal mining, tunnel construction, coal mine drilling and civil engineering. Its compact design supports work in confined underground spaces.

What drilling methods does the Kaishan KJ310 support?+

The Kaishan KJ310 supports rotary and DTH drilling. It drills hole diameters of 32-76 mm at an impact pressure of 130bar.

How is the Kaishan KJ310 packaged for shipping?+

The Kaishan KJ310 is shipped disassembled for container loading with wooden crates, steel frames and waterproof covers. It can be loaded into a 40HQ container or flat rack.

What after-sales service is available for the Kaishan KJ310?+

The Kaishan KJ310 carries a 12-month warranty on major components, excluding wear parts. Kaishan provides 24-hour technical support, on-site assistance and operator training.
