📦 Diesel Screw Air Compressors

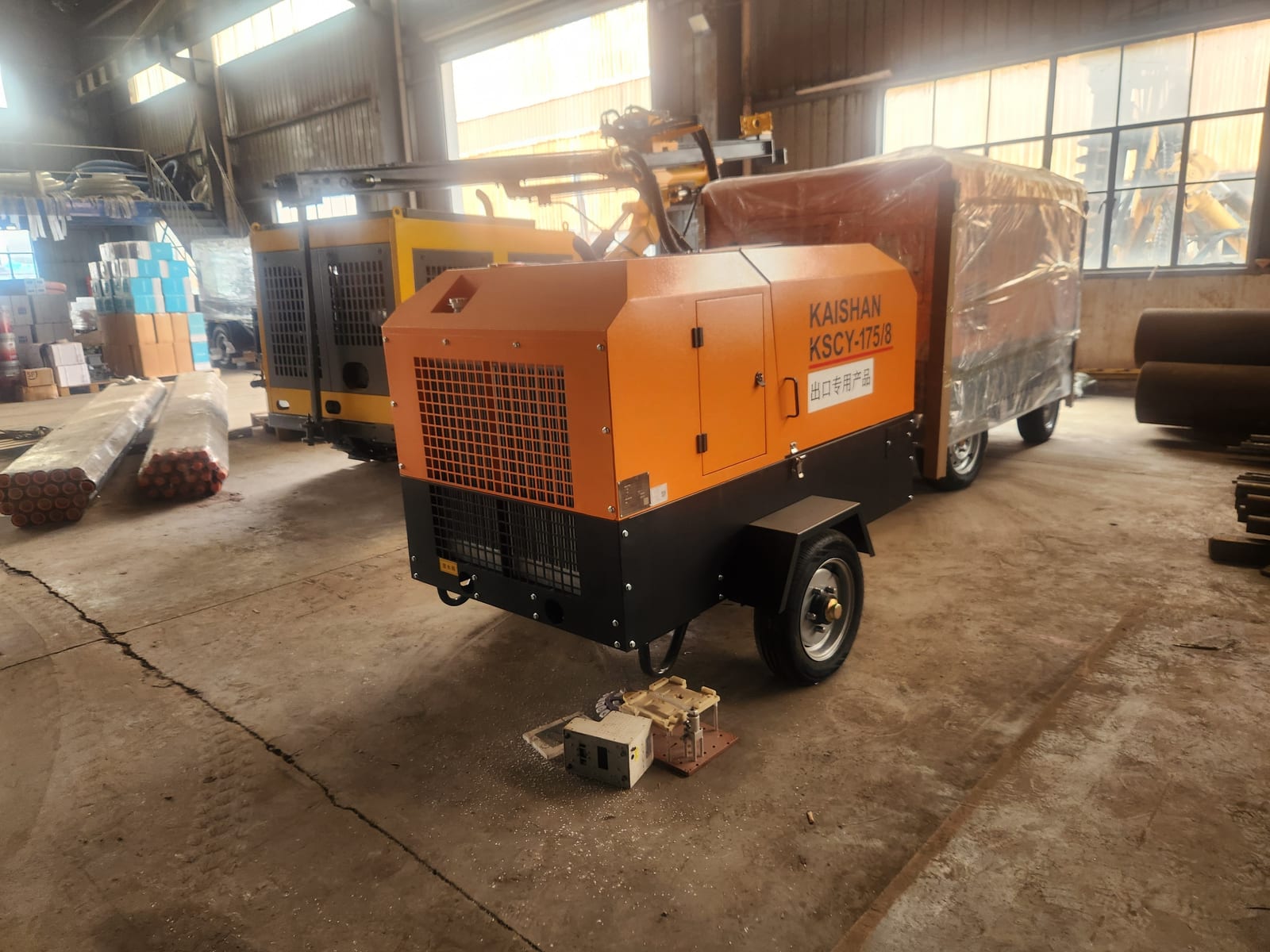

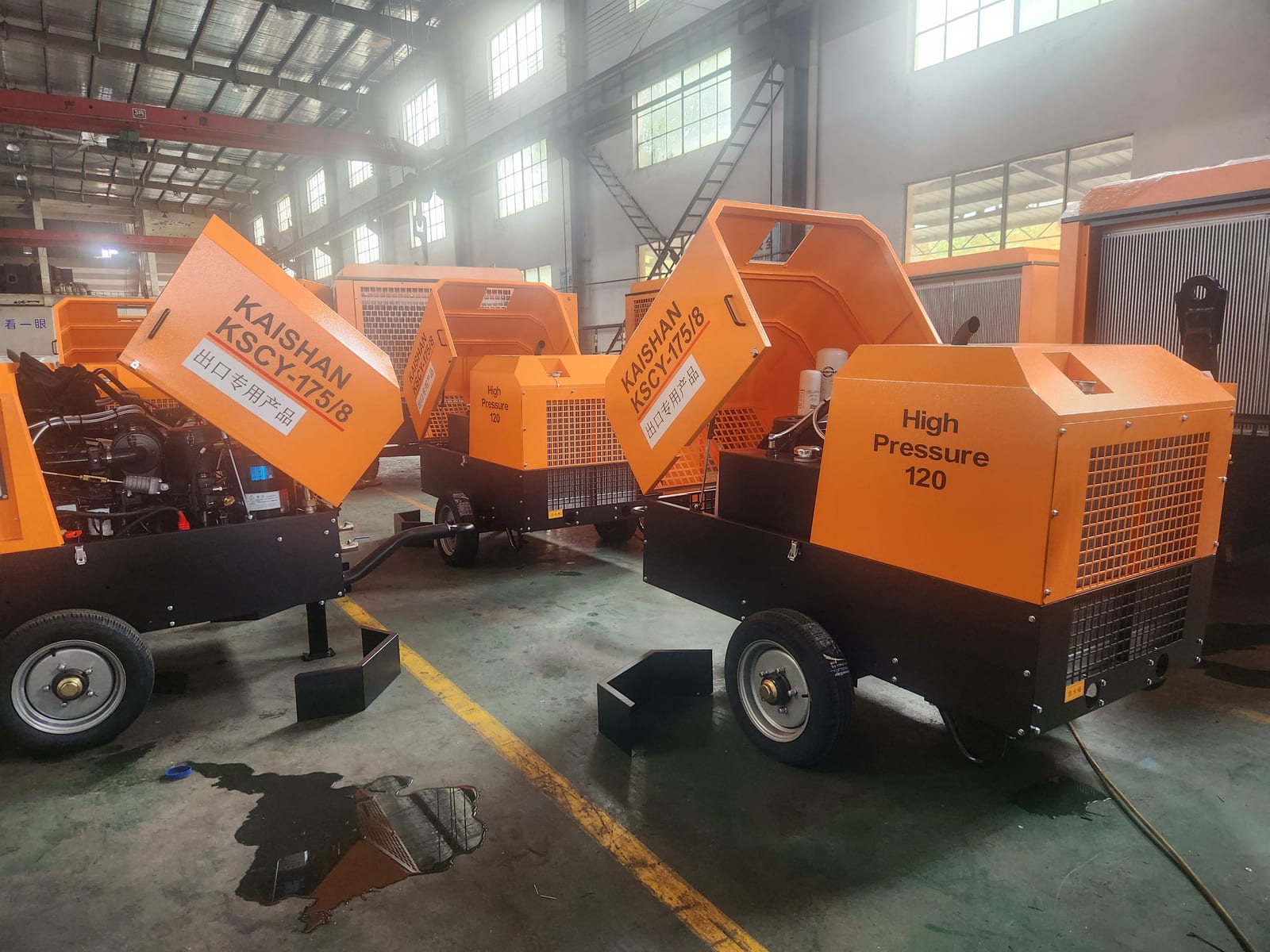

Kaishan KSCY-175/8 Portable Diesel Screw Air Compressor
Model: KSCY-175/8
The Kaishan KSCY-175/8 is a robust portable diesel screw air compressor delivering 175 CFM (5.0 m³/min) at 8 bar (116 psi). Engineered for demanding construction, mining, and pipeline applications, this mobile compressor combines proven screw technology with a fuel-efficient diesel engine, ensuring reliable performance in the toughest environments. Its compact, towable design and heavy-duty chassis provide exceptional mobility on job sites, while the integrated control panel offers simple operation and real-time monitoring. Whether powering pneumatic tools, sandblasting equipment, or exploration drills, the KSCY-175/8 delivers consistent, high-quality compressed air with minimal maintenance. Trusted by contractors worldwide, this Kaishan compressor is built to maximize uptime and productivity, offering an excellent return on investment.
Best For
Technical Specifications
| Model | KSCY-175/8 |
| Free Air Delivery | 5.0 m³/min (175 CFM) |
| Working Pressure | 8 bar (116 psi) |
| Engine | Cummins / Yuchai, 52 kW (70 HP) |
| Air Outlet Port | G1-1/4 × 1, G3/4 × 1 |
| Weight | 1,800 kg |
| Dimension (L×W×H) | 2,600 × 1,500 × 1,600 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Working Pressure
8 bar (116 psi)
Free Air Delivery
5.0 m³/min (175 CFM)
Weight
1,800 kg
Dimension (L×W×H)
2,600 × 1,500 × 1,600 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Reliable screw air end for continuous 24/7 operation
Fuel-efficient diesel engine with low emissions
Rugged, portable design with lifting and towing options
Automatic pressure control and monitoring system
Heavy-duty air filters for harsh environments
Easy service access and low maintenance requirements
Applications
📍 Construction
Powering pneumatic tools such as breakers, picks, and compactors on building sites.
Solution: Provides a steady 8 bar air supply to run multiple tools simultaneously, improving crew productivity.
📍 Mining & Quarrying
Operating rock drills and other mining equipment in remote and rugged locations.
Solution: The portable skid design and robust engine ensure reliable operation even in dusty, high-altitude environments.
📍 Pipeline & Utility Maintenance
Supplying air for pipe testing, valve actuation, and pneumatic tools during maintenance work.
Solution: Compact dimensions allow easy positioning along trench lines, while the diesel engine eliminates the need for external power.
📍 Sandblasting & Surface Preparation
Delivering high-volume air for sandblasting and shotcreting operations.
Solution: Consistent pressure and flow ensure uniform blasting results, reducing media consumption and labor time.
KSCY Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Free Air Delivery | Working Pressure | Engine | Air Outlet Port | Inquire |
|---|---|---|---|---|---|---|---|
| KSCY-175/8This model | KSCY-175/8 | 5.0 m³/min (175 CFM) | 8 bar (116 psi) | Cummins / Yuchai, 52 kW (70 HP) | G1-1/4 × 1, G3/4 × 1 | Get a Quote | |
| KSCY-220/8X | KSCY-220/8X | 22 m³/min | 8 bar (116 psi) | Weichai/Deutz diesel, 75-90 kW | G1.5×1, G3/4×1 | Get a Quote | |
| KSCY-400/14.5K | KSCY-400/14.5K | 400 CFM (11.3 m³/min) | 14.5 bar (210 psi) | Diesel engine, 6-cylinder, 110 kW | 2 × 3/4 inch or 1 × 1 inch | Get a Quote | |
| KSCY-550/13 | KSCY-550/13 | 550 CFM (15.6 m³/min) | 13 bar (188 psi) | Cummins QSB5.9 or equivalent, 132 kW | 2 × 3/4" or 1 × 1" | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Screw air end
- Diesel engine
- Oil separator
- Air filter
- Cooling system (radiator and oil cooler)
- Control panel with gauges
- Chassis with lifting points
- Air outlet valves
Working Principle
The Kaishan KSCY-175/8 operates on the rotary screw compression principle. A diesel engine drives a pair of intermeshing helical rotors within the air end. As the rotors turn, air is drawn in and trapped between the rotors and the housing. The volume of this trapped air decreases as the rotors rotate, progressively raising the pressure. Oil is injected into the compression chamber to seal the gaps, lubricate the rotors, and absorb the heat of compression. The oil-air mixture then passes through a separator where the oil is extracted, cooled, and recirculated. The compressed air is discharged through a minimum pressure valve and aftercooler before being delivered to the outlet. This design ensures high efficiency, low pulsation, and a long service life.
Detailed Features
- ▸High-efficiency screw element with low energy consumption
- ▸Durable diesel engine from reputable brands (e.g., Cummins, Yuchai)
- ▸Corrosion-resistant canopy for all-weather protection
- ▸Large capacity fuel tank for extended operation
- ▸Automatic shutdown alarms for high temperature and low oil pressure
- ▸Towing kit and adjustable towbar (optional)
- ▸Centralized control panel for easy operation
- ▸Anti-vibration mounts for smooth running
Packaging & Shipping
The Kaishan KSCY-175/8 is exported in a robust, weatherproof package. The compressor is securely fastened to a heavy-duty steel skid or wheeled chassis, then wrapped in a protective plastic film and placed in a wooden crate or directly loaded into a 40-foot open-top or flat-rack container, depending on the final destination. All loose parts, manuals, and toolkits are packed in a separate wooden case. Standard delivery time is 30-45 days after receipt of the deposit. Shipping is available from major Chinese ports such as Shanghai, Qingdao, or Ningbo, with FOB or CIF terms negotiable.
After-Sales Service
Kaishan provides comprehensive after-sales support for the KSCY-175/8. The compressor comes with a 12-month warranty covering manufacturing defects and workmanship. Our global service network offers 24-hour online technical support and prompt on-site assistance. We provide operator and maintenance training either at our factory or via video conference. Genuine spare parts are available worldwide through our distribution centers, ensuring minimal downtime. Regular maintenance kits and extended warranty options are also available to protect your investment.
Frequently Asked Questions
What is the free air delivery and working pressure of the KSCY-175/8?+
The KSCY-175/8 delivers a free air delivery of 5.0 m³/min (175 CFM) at a working pressure of 8 bar (116 psi). These figures suit pneumatic tools and drilling equipment that require a steady air supply.
What engine powers the KSCY-175/8 portable diesel screw air compressor?+
The KSCY-175/8 is powered by a Cummins or Yuchai diesel engine rated at 52 kW (70 HP). The diesel engine is selected for fuel economy and low emissions.
What air outlet ports does the KSCY-175/8 have?+
The KSCY-175/8 has one G1-1/4 air outlet port and one G3/4 air outlet port. These ports allow connection of pneumatic tools and air supply lines.
What applications suit the KSCY-175/8 diesel screw air compressor?+
The KSCY-175/8 suits construction, mining and quarrying, pipeline and utility maintenance, and sandblasting and surface preparation. Its rugged portable design supports use on demanding outdoor job sites.
How much does the KSCY-175/8 weigh and what are its dimensions?+
The KSCY-175/8 weighs 1,800 kg and measures 2,600 × 1,500 × 1,600 mm (L×W×H). The unit is mounted on a skid or wheeled chassis with lifting and towing options.
How is the KSCY-175/8 packaged for shipping?+
The KSCY-175/8 is fastened to a heavy-duty steel skid or wheeled chassis, wrapped in protective plastic film, and placed in a wooden crate or loaded into a 40-foot open-top or flat-rack container. Loose parts, manuals and toolkits are packed separately in a wooden case.
What warranty and after-sales support come with the KSCY-175/8?+
The KSCY-175/8 comes with a 12-month warranty covering manufacturing defects and workmanship. Kaishan provides 24-hour online technical support, on-site assistance, and operator and maintenance training.
What maintenance features does the KSCY-175/8 offer?+
The KSCY-175/8 has easy service access and low maintenance requirements, with heavy-duty air filters for harsh environments. Automatic shutdown alarms for high temperature and low oil pressure are included.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.
No compatible drilling rig in our range
This unit delivers 5 m³/min, which is below the minimum air demand of every DTH drilling rig in our range. It is specified for pneumatic tools, sandblasting and general construction air rather than for driving a DTH rig.
