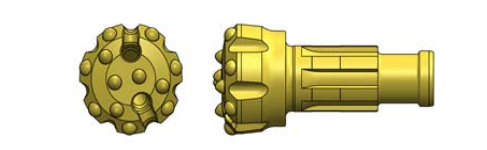

M30K DTH Drill Bit

Name: M30K DTH Drill Bit
Brand: Kaishan
SKU: M30K
Availability: InStock

Model: M30K

M30K DTH Drill Bit (official model M30K). Source: Zhejiang Kaishan Heavy Industry product centre.

Best For

Mining Blast Hole Drilling Quarrying and Aggregate Production Water Well Drilling Construction and Foundation Drilling

Technical Specifications

Model	M30K
Type	DTH Drill Bit
Size	76 mm (3 inch) diameter
Application	Mining, quarrying, water well drilling, construction
Material	Alloy steel body with tungsten carbide buttons
Weight	Approx. 4.5 kg
Packing	Wooden case or carton

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan M30K is a high-performance DTH (down-the-hole) drill bit designed for professionals in mining, quarrying, and water well drilling. As a core component of the drilling tools category, this bit is engineered to withstand the most abrasive and hard rock formations. With a nominal diameter of 76 mm (3 inches), the M30K is compatible with a wide range of DTH hammers, making it a versatile tool for various drilling rigs. Kaishan’s advanced manufacturing processes ensure each bit meets stringent quality standards, delivering consistent results and extended service life. ## Technical Features The M30K DTH bit is crafted from premium alloy steel and fitted with high-quality tungsten carbide buttons. The bit body undergoes specialized heat treatment to achieve an optimal balance of hardness and toughness, resisting wear and breakage even in the most challenging conditions. The flat face design with center blow hole promotes efficient flushing and rapid cuttings removal, reducing regrinding and improving penetration rates. The button layout is optimized for uniform wear, ensuring a longer bit life and lower drilling costs. Additionally, the bit is available with various shank types, including DHD, COP, and Mission, to suit different hammer models. ## Applications This DTH drill bit excels in a variety of applications, including open-pit mining, quarrying, construction, and water well drilling. It is particularly effective in hard rock formations such as granite, basalt, and quartzite. The M30K’s robust construction and efficient cutting action make it a reliable choice for both production drilling and exploration. Whether you are drilling blast holes, anchor holes, or water wells, the Kaishan M30K delivers superior performance and durability. ## Why Choose Kaishan M30K Kaishan is a globally recognized brand in the drilling industry, known for its innovative solutions and rigorous quality control. The M30K DTH bit embodies this commitment, offering a cost-effective solution without compromising on quality. With its optimized design, premium materials, and precise manufacturing, this bit ensures maximum productivity and minimal downtime. Backed by Kaishan’s extensive service network and technical support, the M30K is the smart choice for drilling professionals seeking reliability and efficiency.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Weight

Approx. 4.5 kg

Model

M30K

Type

DTH Drill Bit

Size

76 mm (3 inch) diameter

Application

Mining, quarrying, water well drilling, construction

Material

Alloy steel body with tungsten carbide buttons

Packing

Wooden case or carton

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

High-grade tungsten carbide buttons for superior wear resistance

✓

Robust alloy steel body with advanced heat treatment

✓

Optimized button layout for uniform wear and longer life

✓

Flat face design with center blow hole for efficient flushing

✓

Compatible with standard DTH hammers (DHD, COP, Mission)

✓

Available in various shank types for versatility

✓

Precision manufacturing ensures consistent performance

✓

Cost-effective solution for hard rock drilling

Applications

📍 Mining Blast Hole Drilling

Used in open-pit mines for drilling blast holes in hard rock formations such as granite and basalt.

Solution: The M30K's durable carbide buttons and optimized face design ensure fast penetration and long service life, reducing drilling costs per meter.

📍 Quarrying and Aggregate Production

Ideal for drilling in quarries to extract stone and aggregate materials.

Solution: With its efficient flushing and wear-resistant construction, the M30K maintains high productivity even in abrasive conditions.

📍 Water Well Drilling

Suitable for drilling water wells in various geological formations.

Solution: The bit's compatibility with standard DTH hammers and reliable performance make it a preferred choice for water well contractors.

📍 Construction and Foundation Drilling

Used for drilling anchor holes, foundation piles, and other construction applications.

Solution: The M30K's precision design ensures straight holes and consistent diameter, meeting strict construction requirements.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Type	Size	Application	Material	Inquire
M30KThis model	M30K	DTH Drill Bit	76 mm (3 inch) diameter	Mining, quarrying, water well drilling, construction	Alloy steel body with tungsten carbide buttons	Get a Quote
K10	K10	DTH Drill Bit (Down-the-Hole Button Bit)	90–130 mm diameter (customizable)	Mining, quarrying, water well drilling, construction	Alloy steel body with tungsten carbide buttons	Get a Quote
K3	K3	DTH Drill Bit	76mm - 152mm	Mining, Quarrying, Water Well Drilling	Alloy Steel with Carbide Buttons	Get a Quote
K30	K30	DTH Button Bit	76mm - 152mm (customizable)	Mining, Quarrying, Water Well, Construction	Alloy Steel Body with Tungsten Carbide Buttons	Get a Quote
K4	K4	DTH Drill Bit	Φ110 mm (standard); other sizes available	Mining, water well drilling, quarrying, construction	Alloy steel body with carbide button inserts	Get a Quote
K40	K40	DTH Button Bit	76mm - 152mm (3" - 6")	Mining, quarrying, water well drilling, construction	Alloy steel body with tungsten carbide buttons	Get a Quote
K5	K5	DTH Button Bit	130 mm - 152 mm diameter	Mining, quarrying, water well drilling, foundation engineering	Alloy steel body with tungsten carbide buttons	Get a Quote
K50	K50	DTH Drill Bit (Button Bit)	5 inch (127 mm) shank, 130-140 mm diameter	Mining, quarrying, water well drilling, construction	Alloy steel body with tungsten carbide buttons	Get a Quote
K6	K6	DTH Button Bit	76mm - 152mm (3" - 6")	Mining, Quarrying, Water Well Drilling, Construction	Alloy Steel Body with Tungsten Carbide Buttons	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Alloy steel bit body
Tungsten carbide buttons
Center blow hole
Flushing grooves
Shank adapter
Retaining ring
O-ring seals
Wear-resistant coating

Working Principle

The Kaishan M30K DTH drill bit operates on the principle of down-the-hole percussion drilling. High-pressure air is delivered through the drill string to the DTH hammer, which drives the bit's piston in a rapid reciprocating motion. This piston strikes the bit's shank, transferring impact energy to the tungsten carbide buttons. The buttons penetrate the rock, creating fractures and chips. Simultaneously, the rotation of the drill string indexes the bit, allowing the buttons to attack fresh rock surfaces. The air also serves as a flushing medium, blowing the rock cuttings out of the hole through the annulus. The M30K's flat face with center blow hole ensures efficient cuttings removal, preventing regrinding and enhancing penetration rates. The combination of impact, rotation, and flushing makes DTH drilling highly effective in hard rock, and the M30K is engineered to maximize this efficiency through its robust construction and optimized button layout.

Detailed Features

▸Premium tungsten carbide buttons for extended life
▸Heat-treated alloy steel body for toughness
▸Optimized button layout for uniform wear
▸Flat face design for efficient rock breakage
▸Center blow hole for superior flushing
▸Compatible with major DTH hammer brands
▸Available in various shank types
▸Precision machined for consistent fit and performance

Packaging & Shipping

Each Kaishan M30K DTH drill bit is carefully packaged in a wooden case or carton, with rust-preventive coating applied to the surface. The bits are secured to prevent movement during transport. For bulk orders, bits are packed in wooden pallets or crates suitable for sea freight. Standard delivery time is 15-30 days after order confirmation, depending on quantity. Shipping ports include Shanghai, Ningbo, or as per customer request. Air freight and express delivery are also available for urgent orders.

After-Sales Service

Kaishan offers comprehensive after-sales service for the M30K DTH drill bit. All products come with a 6-month warranty against manufacturing defects. Our technical support team is available 24/7 to assist with product selection, troubleshooting, and optimization. We provide free training for operators and maintenance personnel, either on-site or at our facilities. A full range of spare parts and accessories is stocked for quick delivery. Our global service network ensures prompt response and minimal downtime for your drilling operations.

Frequently Asked Questions

What hole size does the M30K DTH drill bit drill?+

The M30K is a 76 mm (3 inch) diameter DTH drill bit. It is used for down-the-hole hammer drilling in mining, quarrying, water well drilling and construction.

What is the M30K DTH drill bit made of?+

The M30K has an alloy steel body with tungsten carbide buttons. The bit weighs approximately 4.5 kg.

Which DTH hammers is the M30K compatible with?+

The M30K is compatible with standard DTH hammers, including DHD, COP and Mission. It is available in various shank types.

What applications is the M30K DTH drill bit used for?+

The M30K is used for mining blast hole drilling, quarrying and aggregate production, water well drilling, and construction and foundation drilling. Its flat face design with center blow hole supports efficient flushing in hard rock.

How is the M30K DTH drill bit packaged for shipping?+

Each M30K DTH drill bit is packaged in a wooden case or carton with a rust-preventive coating. For bulk orders, bits are packed in wooden pallets or crates suitable for sea freight.

What warranty covers the M30K DTH drill bit?+

The M30K DTH drill bit comes with a 6-month warranty against manufacturing defects. Technical support is available 24/7 for product selection, troubleshooting and optimization.

Does the M30K DTH drill bit come with operator training?+

Free training for operators and maintenance personnel is provided for the M30K, either on-site or at Kaishan facilities. A full range of spare parts is also available.
