Kaishan KM211 Underground Drilling Rig
Model: KM211
The Kaishan KM211 is a compact underground drilling rig engineered for efficient development and production drilling in narrow-vein mining and tunneling projects. Built around a robust boom and feed system, it delivers reliable performance in confined spaces with low emissions and high mobility. Powered by a 74 kW diesel engine, the KM211 achieves drilling depths up to 200 meters with hole diameters from 45 to 102 mm, using top hammer or DTH methods. Its articulated chassis and four-wheel drive ensure stable tramming on rough underground roads, while the ergonomic control panel simplifies operation. Ideal for mining contractors, tunnel construction, and underground water well drilling, the KM211 combines Kaishan's proven reliability with low operating costs. With a compact footprint of 7,200 × 1,800 × 2,400 mm and a weight of 9,500 kg, it is easy to transport and position. The rig supports both rotary and percussive drilling, making it a versatile solution for underground rock drilling. Backed by Kaishan's global service network, the KM211 is ready for your toughest underground challenges.
Best For
Technical Specifications
| Model | Kaishan KM211 |
| Impact Pressure | 150bar |
| Engine | Cummins QSB3.9-C80-31 |
| Drilling Method | Top Hammer / DTH |
| Engine Power | 60 kW |
| Weight | 12000 kg |

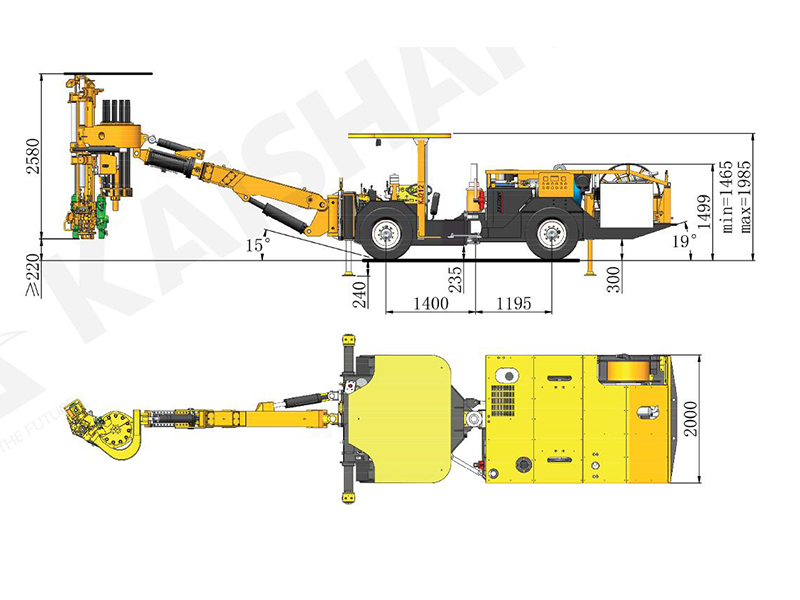

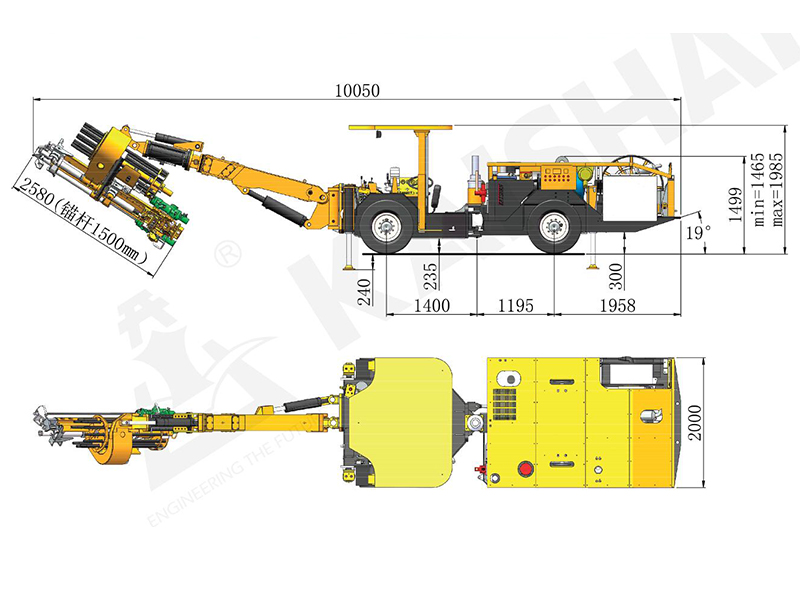

| Dimension (L×W×H) | 10700 × 2000 × 1500 mm |
Product Details
Technical Selection
Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.
Impact Pressure
150bar
Engine Power
60 kW
Weight
12000 kg
Dimension (L×W×H)
10700 × 2000 × 1500 mm
Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.
Check with an engineerKey Advantages
Compact design for narrow underground workings
Powerful 74 kW diesel engine for reliable performance
Drilling depth up to 200 m with hole diameter 45-102 mm
Supports both top hammer and DTH drilling methods

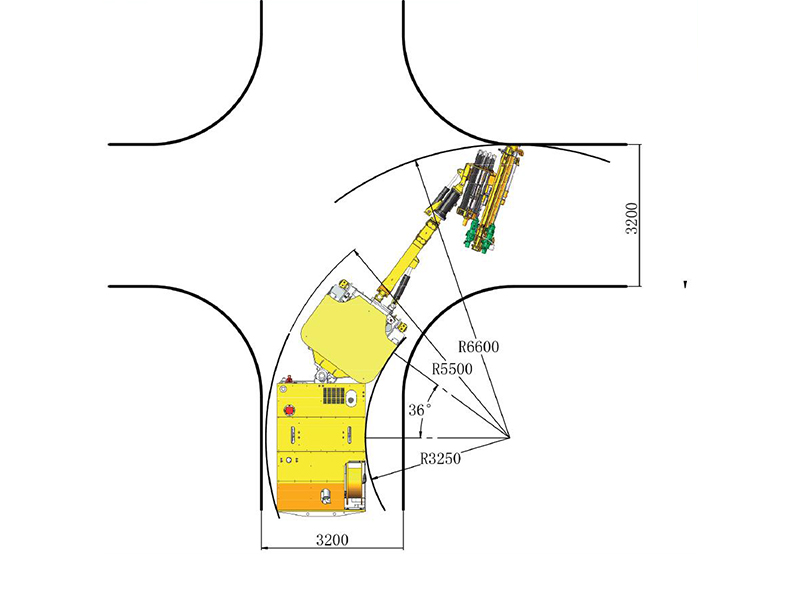

Four-wheel drive articulated chassis for excellent mobility
Ergonomic controls and optional remote operation
Applications
📍 Underground Mining Development
Drilling blast holes and anchor holes in narrow-vein mines and development headings.
Solution: The KM211's compact size and powerful boom enable efficient drilling in confined spaces, improving cycle times and reducing labor costs.
📍 Tunnel Construction
Face drilling and rock bolting in road, rail, and hydraulic tunnels.
Solution: With its high penetration rate and precise positioning, the KM211 speeds up tunnel advance while ensuring safety and accuracy.
📍 Underground Water Well Drilling
Drilling water wells in underground mines or caverns for water supply or dewatering.
Solution: The rig's ability to use DTH hammers and its 200 m depth capacity make it ideal for underground water well projects.
📍 Ground Consolidation and Exploration
Drilling grout holes and exploration holes for geotechnical purposes.
Solution: The KM211's versatility and reliable hydraulic system ensure accurate drilling for consolidation and sampling.
KM Series Models
Compare specifications across the series to find the right model.
| ☑ | Model | Model | Impact Pressure | Engine | Drilling Method | Engine Power | Inquire |
|---|---|---|---|---|---|---|---|
| KM211This model | Kaishan KM211 | 150bar★ | Cummins QSB3.9-C80-31 | Top Hammer / DTH | 60 kW | Get a Quote | |
| KM311 | Kaishan KM311 | 150bar | Cummins QSB39 | DTH / Rotary | 60 kW | Get a Quote |
Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.
Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.
Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.
Main Components
- Diesel engine
- Hydraulic pump and system
- Boom and feed beam
- Rock drill (top hammer)
- Control panel
- Undercarriage with four-wheel drive
- Dust suppression system
- Drill string and bit
Working Principle
The Kaishan KM211 underground drilling rig operates on a hydraulic top hammer or DTH drilling principle. A diesel engine powers the hydraulic system, which drives the rotation unit and impact mechanism. The boom and feed system position the drill string accurately against the rock face. In top hammer mode, the rock drill delivers high-frequency impacts and rotation to the drill steel, transferring energy to the bit for efficient rock fragmentation. In DTH mode, a down-the-hole hammer is used, where compressed air (provided by a separate air compressor) drives the piston directly on the bit, ideal for hard rock and larger diameters. The feed system applies optimal thrust to maintain bit contact, while the flushing system removes cuttings from the hole. The articulated chassis and four-wheel drive allow the rig to tram efficiently between drilling sites. All functions are controlled from an ergonomic panel, ensuring precise and safe operation.
Detailed Features
- ▸Compact and lightweight for easy transport underground
- ▸Powerful 74 kW diesel engine for reliable performance
- ▸Drilling depth up to 200 m and hole diameter 45-102 mm
- ▸Supports both top hammer and DTH drilling
- ▸Four-wheel drive articulated chassis for superior mobility
- ▸Ergonomic controls with optional remote operation
- ▸Dust suppression system for a safer working environment
- ▸Low emission engine meeting environmental standards
Packaging & Shipping
The Kaishan KM211 is shipped in a disassembled state for efficient container loading. It is securely packed with rust-proof coating and protected by wooden crates and steel frames. Standard packaging includes the main rig, boom, feed beam, and accessories. The rig can fit into a 40HQ container. Delivery time is typically 30-45 days after order confirmation. Port of shipment: Shanghai or Ningbo, China. Custom packaging and shipping arrangements are available upon request.
After-Sales Service
Kaishan offers comprehensive after-sales service for the KM211. All machines come with a 12-month warranty or 2000 working hours, whichever comes first. Our global service network provides 24-hour technical support and prompt spare parts delivery. We offer on-site installation and commissioning, as well as operator training to ensure safe and efficient use. Regular maintenance kits and consumables are available from our regional warehouses. With Kaishan, you get a reliable partner dedicated to your productivity.
Frequently Asked Questions
What drilling methods does the Kaishan KM211 support?+
The Kaishan KM211 supports both top hammer and DTH drilling methods. It is built for development and production drilling in underground mining and tunneling.
What is the impact pressure of the KM211?+
The KM211 operates at an impact pressure of 150bar. This figure applies to the rig's drilling system as specified in the product data.
What engine powers the Kaishan KM211?+
The KM211 is powered by a Cummins QSB3.9-C80-31 engine rated at 60 kW. This diesel engine provides the power source for the rig.
What are the dimensions and weight of the KM211?+
The KM211 measures 10700 × 2000 × 1500 mm (L×W×H) and weighs 12000 kg. These compact dimensions suit narrow underground workings.
What applications is the Kaishan KM211 suitable for?+
The KM211 is used for underground mining development, tunnel construction, underground water well drilling, and ground consolidation and exploration. Its compact design suits confined underground spaces.
How is the Kaishan KM211 packaged and shipped?+
The KM211 is shipped disassembled for efficient container loading and fits into a 40HQ container. It is packed with rust-proof coating and protected by wooden crates and steel frames, with shipment from Shanghai or Ningbo.
What warranty and after-sales service come with the KM211?+
The KM211 comes with a 12-month warranty or 2000 working hours, whichever comes first. Kaishan provides 24-hour technical support, spare parts delivery, on-site installation and commissioning, and operator training.
Related Insights
Related Projects
Where This Machine Is Used
Is This Rig Right for My Project?
Answer seven questions about your hole, depth and rock — get a matched rig, compressor, hammer, bit and rod.
Need Technical Support?
Request information and get a quote from our engineers.
Recommended System
Rig + air compressor + drilling tools matched to your project. Get pre-matching advice from our engineers.
Recommended Equipment Configuration
Matched from real machine parameters — rig, compressor, hammer, bit and rod working as one system.
KM211
- Hole range
- 32–51 mm
Why matched
Parameter-matched to the machine on this page.
KSCY-175/8
- Working pressure
- 8 bar
- Air flow
- 5 m³/min
Why matched
Covers the required 8 bar / 0.7 m³/min air demand (rated 8 bar / 5 m³/min).
System requirement: 8 bar / 0.7 m³/min · 32–51 mm
