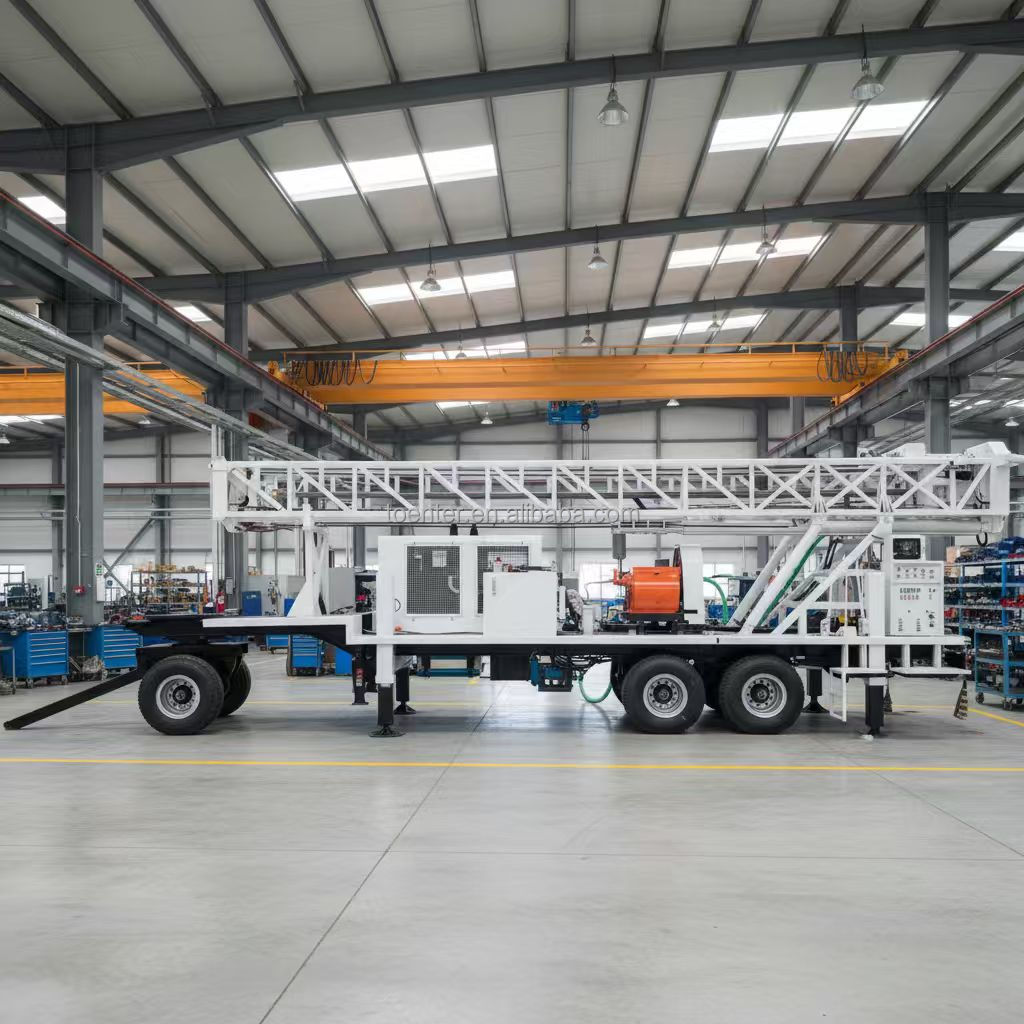

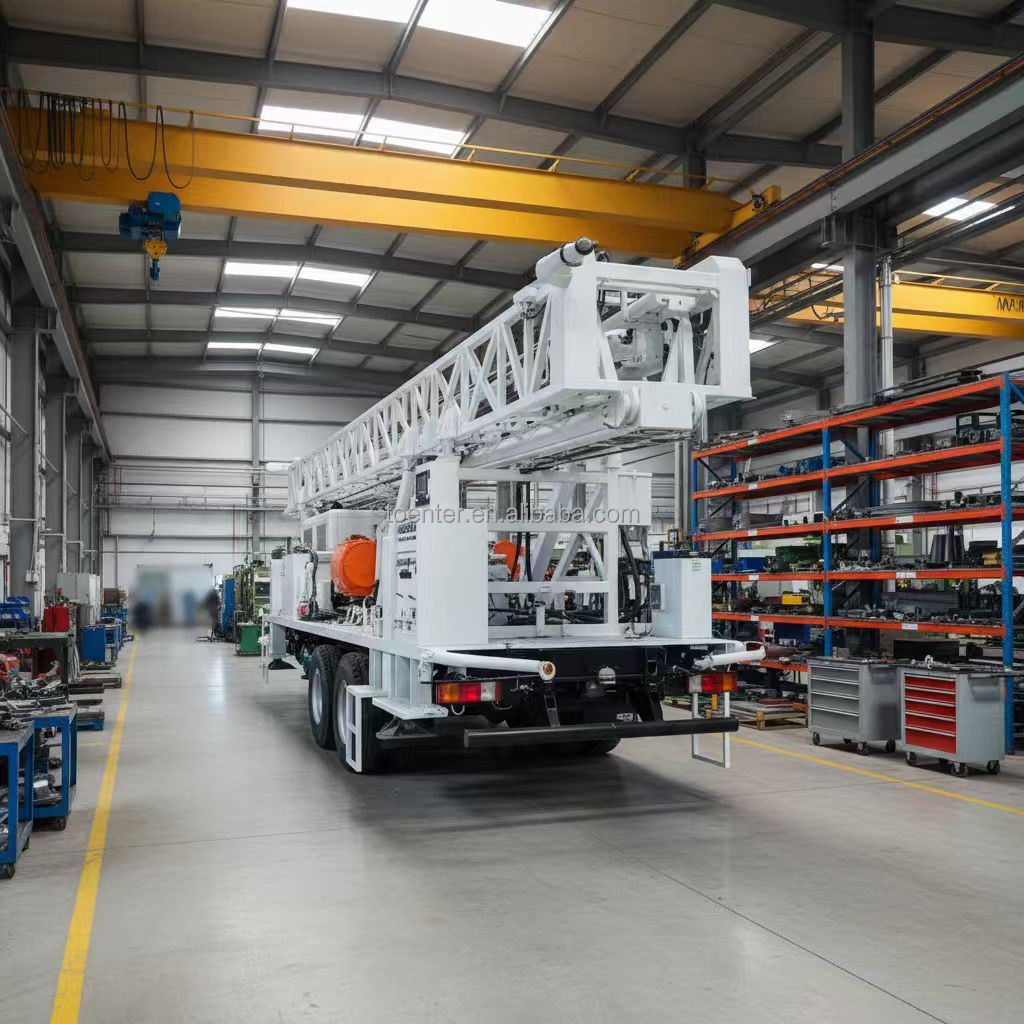

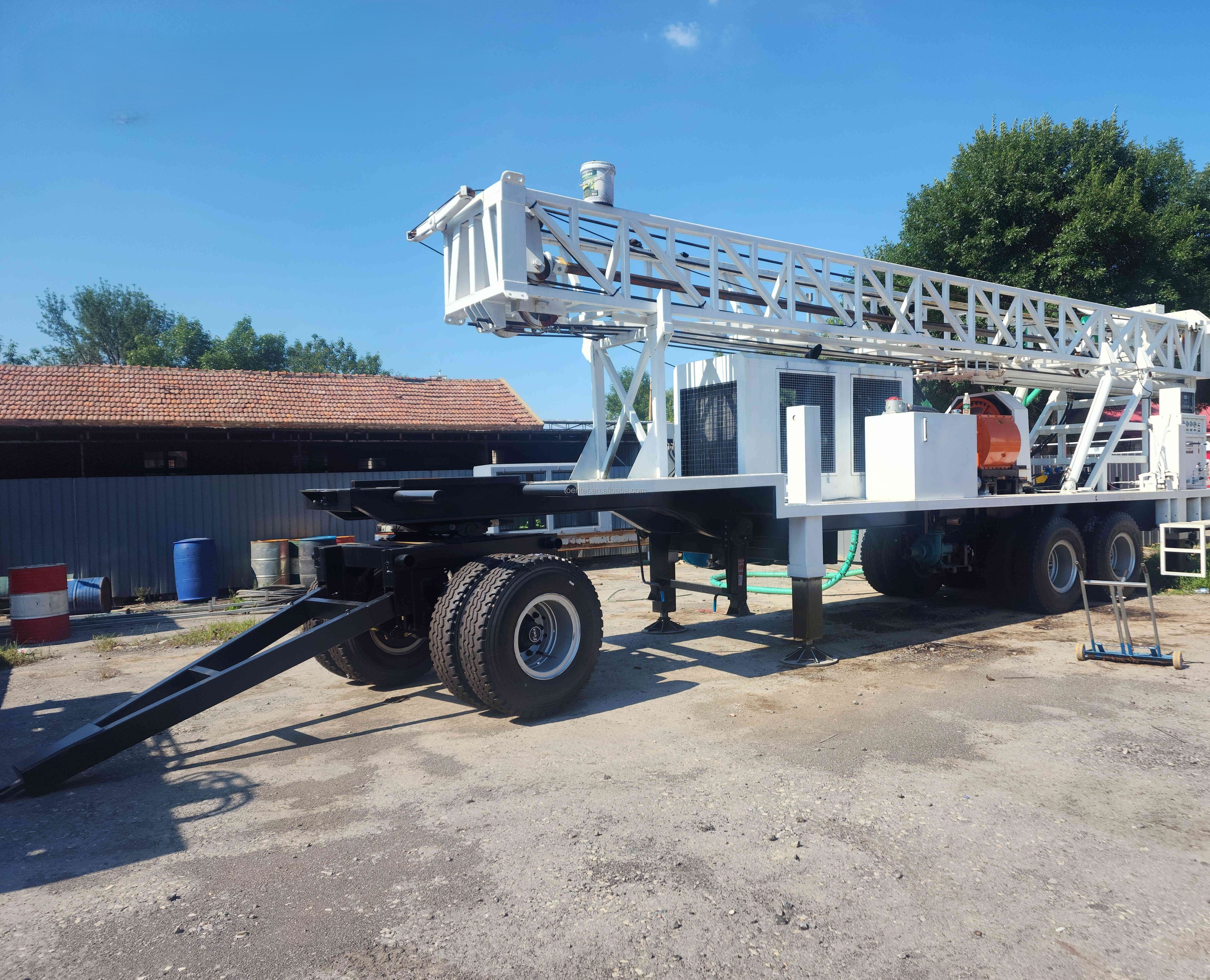

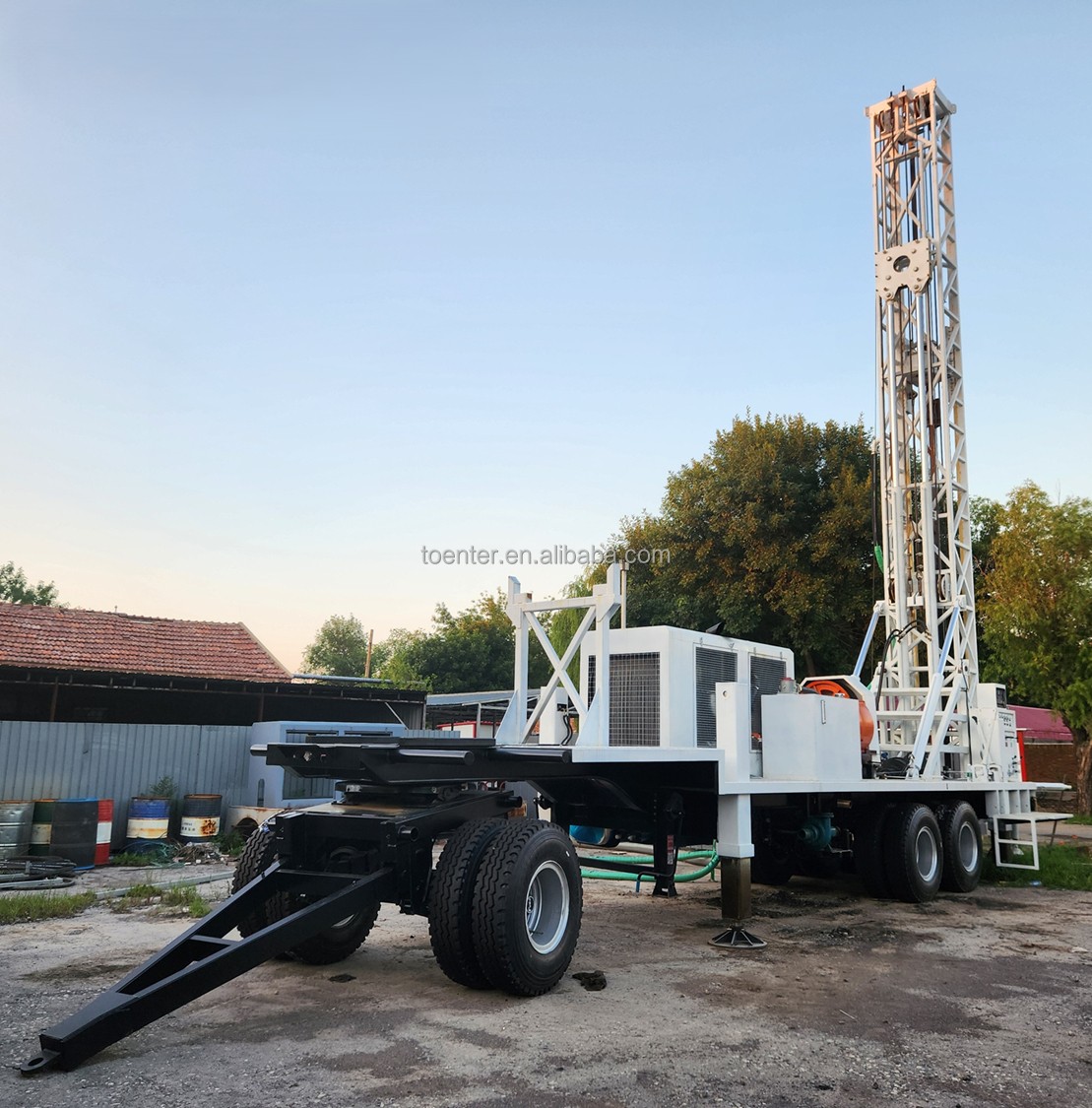

Kaishan CDT-600 Trailer Water Well Drilling Rig

Name: Kaishan CDT-600 Trailer Water Well Drilling Rig
Brand: Kaishan
SKU: CDT-600 Trailer Water Well Drilling Rig
Availability: InStock

Model: CDT-600 Trailer Water Well Drilling Rig

The Kaishan CDT-600 Trailer Water Well Drilling Rig is a mobile, trailer-mounted water well drilling rig designed for efficient borehole drilling in water well, geothermal, and construction projects. With a maximum drilling depth of 600 m and hole diameter up to 350 mm, it combines powerful rotary or DTH drilling capability with a reliable diesel engine. Its trailer chassis enables rapid site-to-site movement, reducing setup time and transportation costs. The rig features a hydraulic top-head drive, integrated air compressor compatibility, and a robust mast for stable operation. Ideal for rural water supply, irrigation wells, and geotechnical exploration, the CDT-600 delivers consistent performance in diverse geological formations. Its user-friendly controls and durable construction ensure low maintenance and high productivity, making it a cost-effective solution for contractors and drilling professionals worldwide.

Best For

Rural Water Supply Irrigation Wells Geothermal Installation Geotechnical Exploration

Technical Specifications

Model	Kaishan CDT-600
Drilling Depth	600 m
Hole Diameter	89–950 mm
Drilling Method	Rotary / DTH Hammer
Engine Power	353 kW
Weight	290,000 kg
Dimension (L×W×H)	13000 × 2500 × 4500 mm

Get a Quote Check Fit

Selection Advantages Applications Comparison Components Principle Features Packaging Service FAQ

Product Details

## Overview The Kaishan CDT-600 Trailer Water Well Drilling Rig is a highly mobile drilling solution engineered for water well and geothermal applications. Mounted on a heavy-duty trailer chassis, it offers exceptional maneuverability and quick deployment, making it ideal for projects in remote or difficult-to-access locations. The rig is designed to deliver reliable performance with a maximum drilling depth of 600 meters and a hole diameter range of 105–350 mm, suitable for both rotary and down-the-hole (DTH) hammer drilling methods. ## Technical Features At the heart of the CDT-600 is a powerful diesel engine that drives the hydraulic system, providing ample torque and feed force for efficient penetration in various formations, including soil, sand, clay, and hard rock. The hydraulic top-head drive ensures smooth rotation and precise control, while the integrated mast allows for stable and accurate drilling. The rig is compatible with an external air compressor for DTH operations, enabling high-speed drilling in hard rock. The trailer-mounted design includes leveling jacks and a folding mast for easy transport and rapid setup. Operator comfort is enhanced with an ergonomic control panel and optional cabin, ensuring safety and productivity. ## Applications The CDT-600 is versatile and well-suited for a wide range of drilling tasks. It is commonly used for rural water supply wells, irrigation systems, geothermal heat pump installations, and geotechnical investigation. Its ability to handle different drilling methods makes it adaptable to varying geological conditions, from unconsolidated sediments to hard bedrock. Contractors appreciate its mobility and reliability, which reduce mobilization costs and downtime. Whether drilling for community water projects or industrial water needs, the CDT-600 provides a dependable and efficient solution. ## Conclusion With its robust construction, advanced hydraulic system, and trailer-mounted mobility, the Kaishan CDT-600 Trailer Water Well Drilling Rig represents a smart investment for drilling professionals seeking a versatile and cost-effective rig. Backed by Kaishan's global service network and quality assurance, it delivers consistent performance and long service life.

Technical Selection

Key parameters for matching this machine to your job. Send us your hole diameter, depth and rock condition and our engineers will confirm the right configuration.

Hole Diameter

89–950 mm

Drilling Depth

600 m

Engine Power

353 kW

Weight

290,000 kg

Dimension (L×W×H)

13000 × 2500 × 4500 mm

Not sure this model fits? Tell us the hole diameter and depth — we will confirm the matching rig, compressor and hammer.

Check with an engineer

Key Advantages

✓

Trailer-mounted design for easy transportation and quick setup

✓

Maximum drilling depth of 600 meters for deep water wells

✓

Hole diameter range of 105–350 mm for versatile applications

✓

Hydraulic top-head drive for efficient rotary and DTH drilling

✓

Powerful diesel engine with reliable performance

✓

Compatible with external air compressor for DTH hammer drilling

✓

Robust mast and leveling jacks for stable operation

✓

Ergonomic controls and optional cabin for operator comfort

Applications

📍 Rural Water Supply

Drilling water wells for villages and communities lacking access to clean water.

Solution: The CDT-600's 600 m depth capacity and mobility allow quick drilling of reliable water sources in remote areas.

📍 Irrigation Wells

Creating wells for agricultural irrigation to support crop production.

Solution: With adjustable hole diameters and efficient drilling, the rig ensures high-yield wells for farmland irrigation.

📍 Geothermal Installation

Drilling boreholes for geothermal heat pump systems in residential and commercial buildings.

Solution: The rig's precise control and compatibility with various drilling methods make it ideal for geothermal loop installations.

📍 Geotechnical Exploration

Obtaining soil and rock samples for construction and mining site investigations.

Solution: The CDT-600's rotary drilling capability and stable mast enable accurate sampling and testing.

Similar Models in This Category

This model is unique in its series — here are similar models from the same category.

Model	Model	Drilling Depth	Hole Diameter	Drilling Method	Engine Power	Inquire
CDT-600 Trailer Water Well Drilling RigThis model	Kaishan CDT-600	600 m	89–950 mm	Rotary / DTH Hammer	353 kW	Get a Quote
CDT-800J Trailer water well drilling rig	CDT-800J	800 m	90–850 mm	DTH Hammer / Mud Rotary	353 kW	Get a Quote
KSC-800J	KSC-800J	800 m	90–920 mm	DTH Hammer / Mud Rotary	353 kW	Get a Quote

Compare 2–3 models? Tick the boxes and send them together — we will quote each one for you.

Inquire All

Tip: select multiple models and click “Inquire All” — the selected models are added to the quote form automatically, so you get a faster quotation.

Not sure which model fits your project? Send us your working pressure and air demand — our engineers will recommend the right one.

Get a Recommendation 💬 WhatsApp

Main Components

Trailer chassis with leveling jacks
Diesel engine and hydraulic system
Hydraulic top-head drive
Mast and feed system
Drill string (rods and bit)
Control panel and operator station
Air compressor connection (external)
Mud pump or air flushing system

Working Principle

The Kaishan CDT-600 Trailer Water Well Drilling Rig operates on a hydraulic rotary or DTH (down-the-hole) drilling principle. A powerful diesel engine drives a hydraulic pump, which supplies pressurized oil to the top-head drive and feed system. The top-head rotates the drill string, while the feed system applies downward force to the bit. For rotary drilling, the bit cuts through soil and soft rock, and drilling fluid (mud or water) is circulated to remove cuttings and cool the bit. For hard rock, an external air compressor is connected to power a DTH hammer, which delivers high-frequency impacts to crush rock, with air flushing cuttings out of the hole. The mast supports the drill string and allows vertical alignment. The trailer-mounted chassis with leveling jacks ensures stability during drilling. The operator controls all functions from a centralized panel, enabling precise adjustment of rotation speed, feed force, and air pressure for optimal penetration rates.

Detailed Features

▸Trailer-mounted for high mobility and quick site-to-site movement
▸Maximum drilling depth of 600 meters
▸Hole diameter range from 105 mm to 350 mm
▸Hydraulic top-head drive for efficient rotary and DTH drilling
▸Powerful diesel engine with low fuel consumption
▸Compatible with external air compressor for DTH hammer drilling
▸Robust mast and leveling jacks for stable drilling
▸Ergonomic control panel and optional cabin for operator comfort

Packaging & Shipping

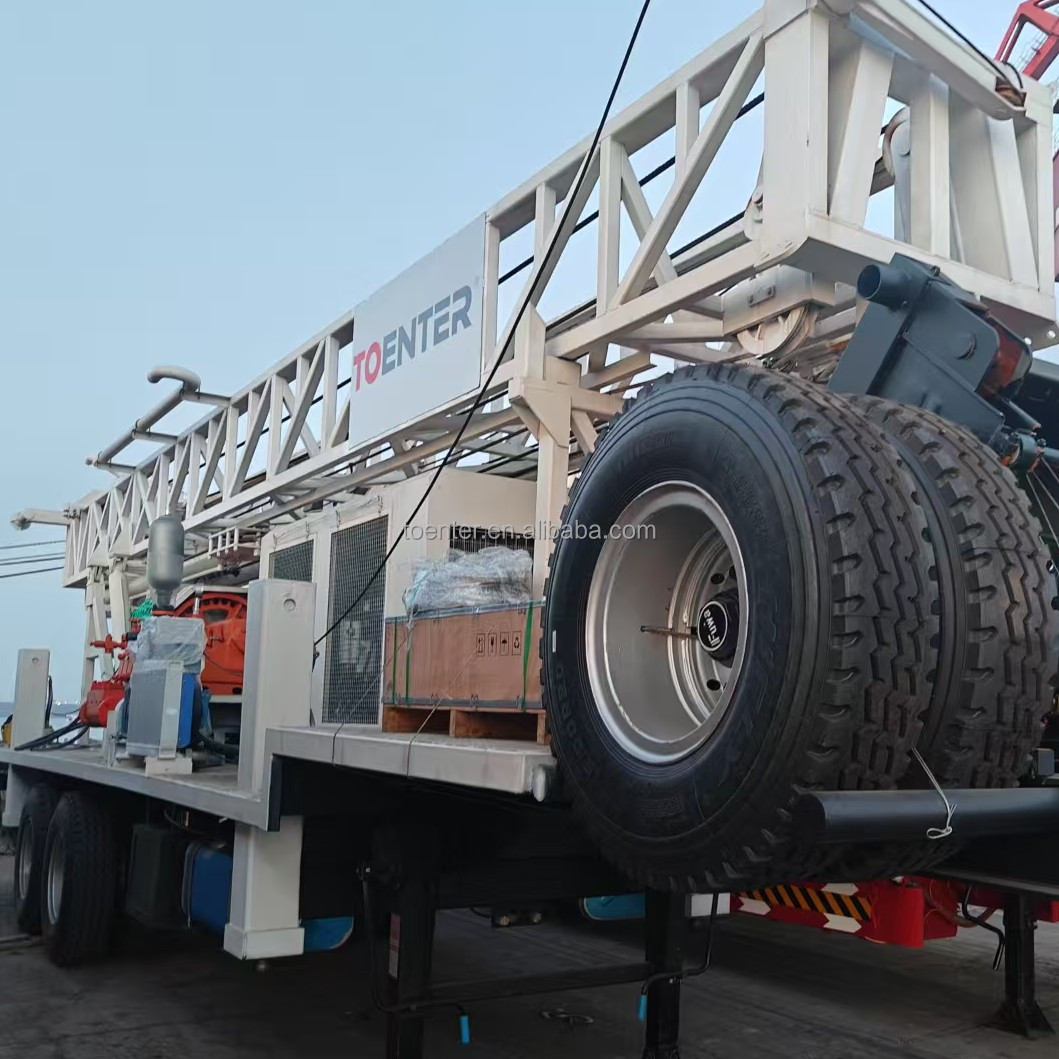

The Kaishan CDT-600 Trailer Water Well Drilling Rig is shipped as a complete unit on a trailer, ready for towing. It is secured with heavy-duty straps and protected with anti-rust coating and tarpaulin for ocean transport. The rig can be loaded into a 40-foot flat rack container or shipped as break-bulk, depending on customer preference. Standard delivery time is 30–45 days after order confirmation. Ports of shipment include Shanghai, Qingdao, or as specified. All necessary documentation for export, including CE certification where applicable, is provided.

After-Sales Service

Kaishan offers comprehensive after-sales service for the CDT-600. The rig comes with a 12-month warranty on major components (excluding wear parts). A 24-hour technical support hotline is available for troubleshooting and operational guidance. We provide on-site installation and commissioning services, as well as operator training to ensure safe and efficient use. A global network of spare parts warehouses ensures quick availability of replacement parts. Regular maintenance kits and service contracts are available to maximize uptime and extend equipment life.
